WLDH-1000
Karvil

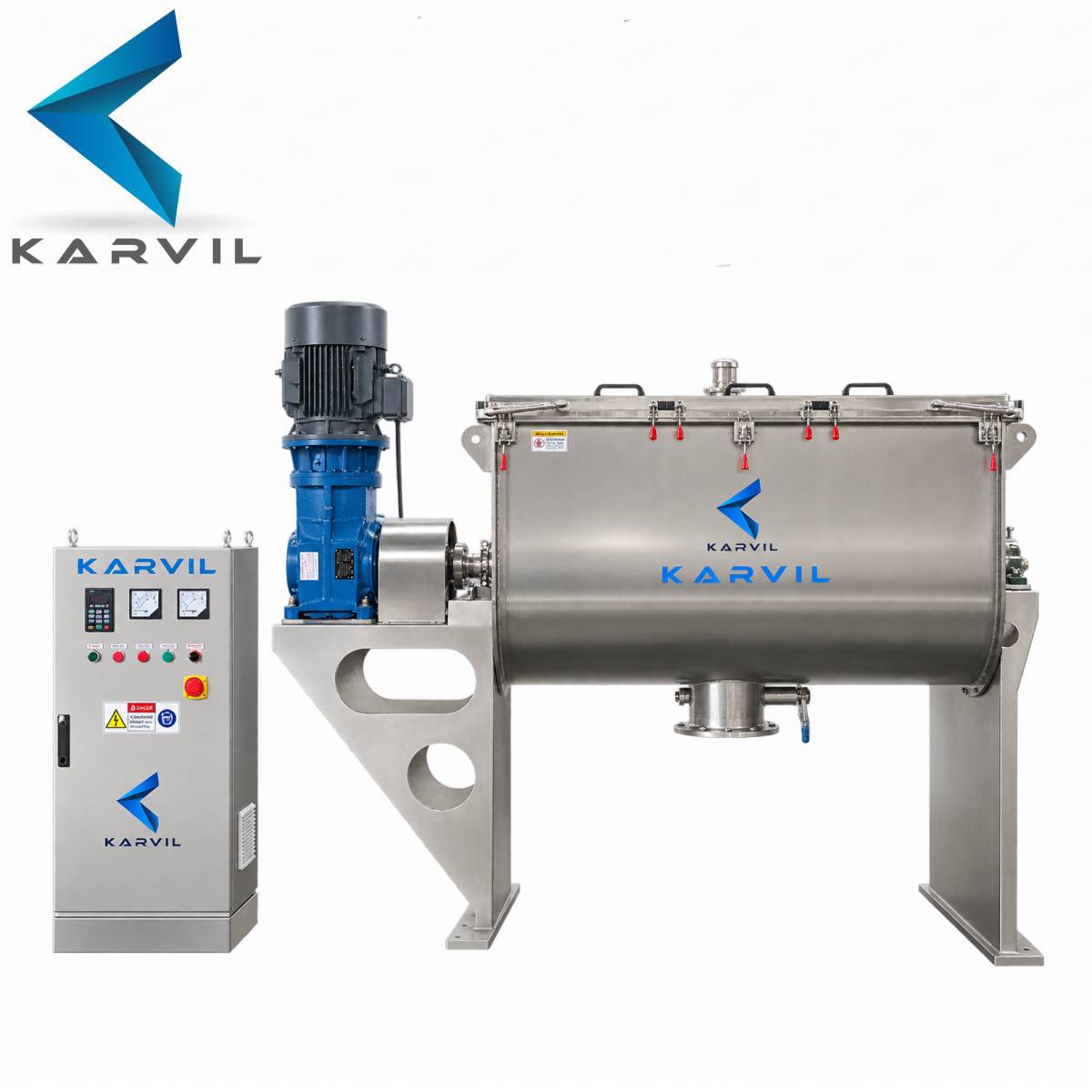

This 1000L paddle mixer was manufactured by Karvil Machinery for a long-term customer in Uzbekistan for spice blending.

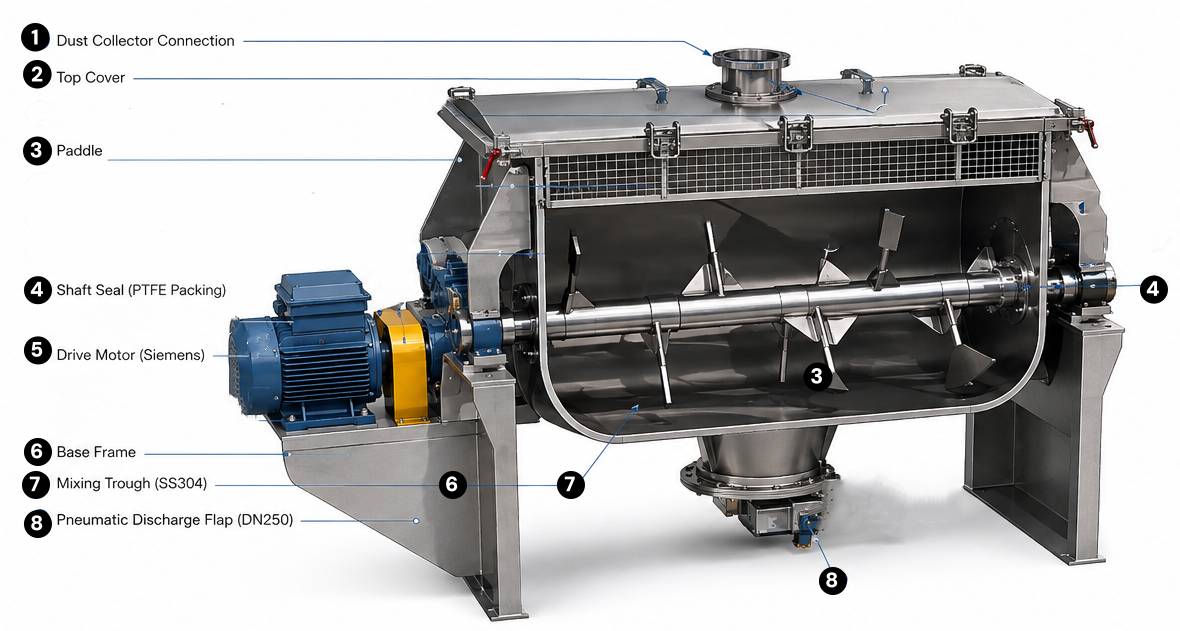

The mixer is constructed entirely from SS304 stainless steel, with a mirror-polished internal surface for easier cleaning and hygienic production. A DN250 pneumatic bottom flap discharge provides fast and controlled material discharge after mixing.
With a 600L effective working volume, variable-speed control and integrated dust protection, the machine is designed for reliable batch production of spice and powder materials.
All stainless steel 304 construction with mirror-polished product-contact surfaces.
DN250 pneumatic flap discharge for fast and convenient batch unloading.
0–43 rpm variable-speed control for different powder and spice formulations.
Built around the hygiene, dust control and cleaning requirements of spice processing.

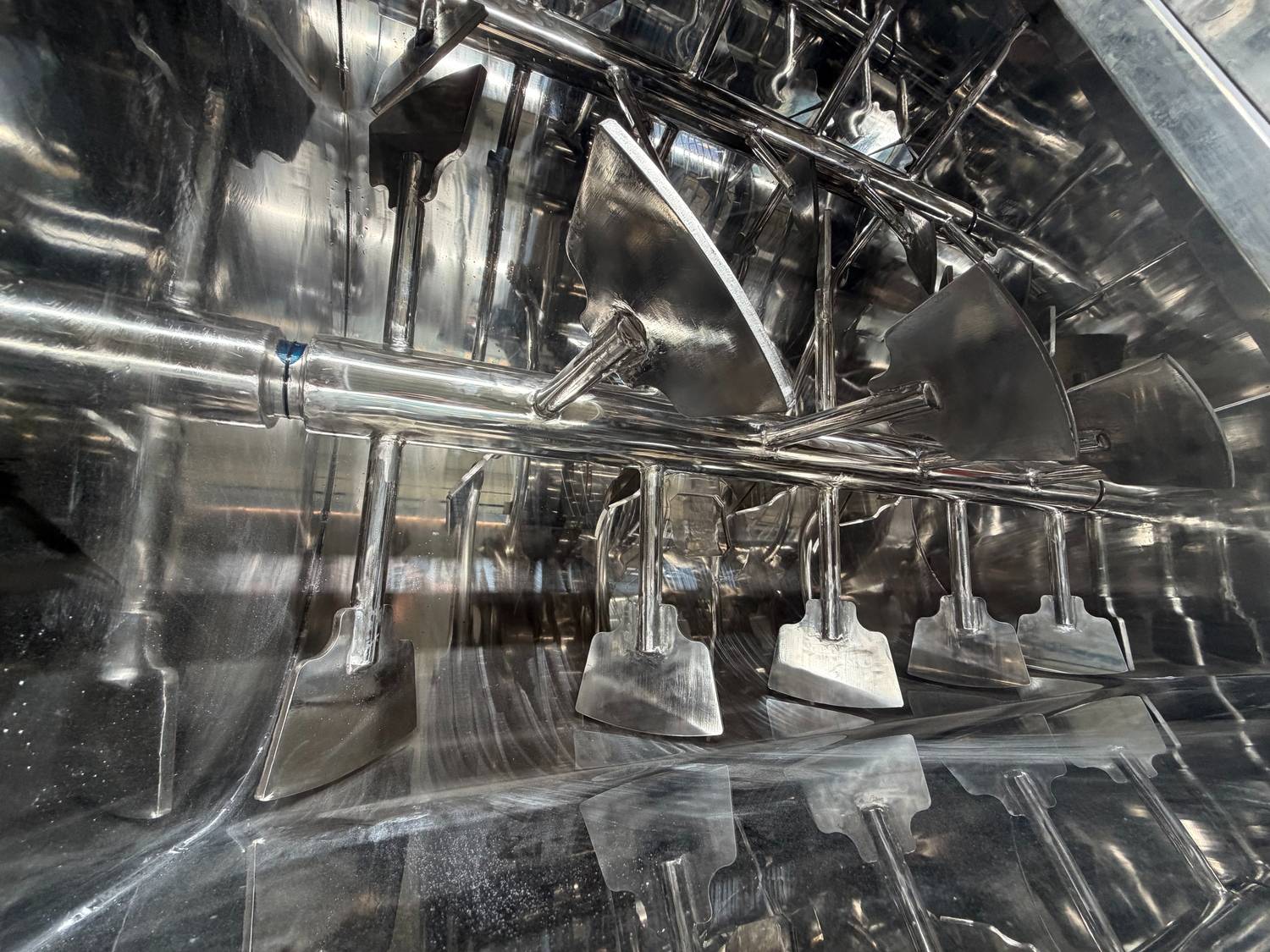

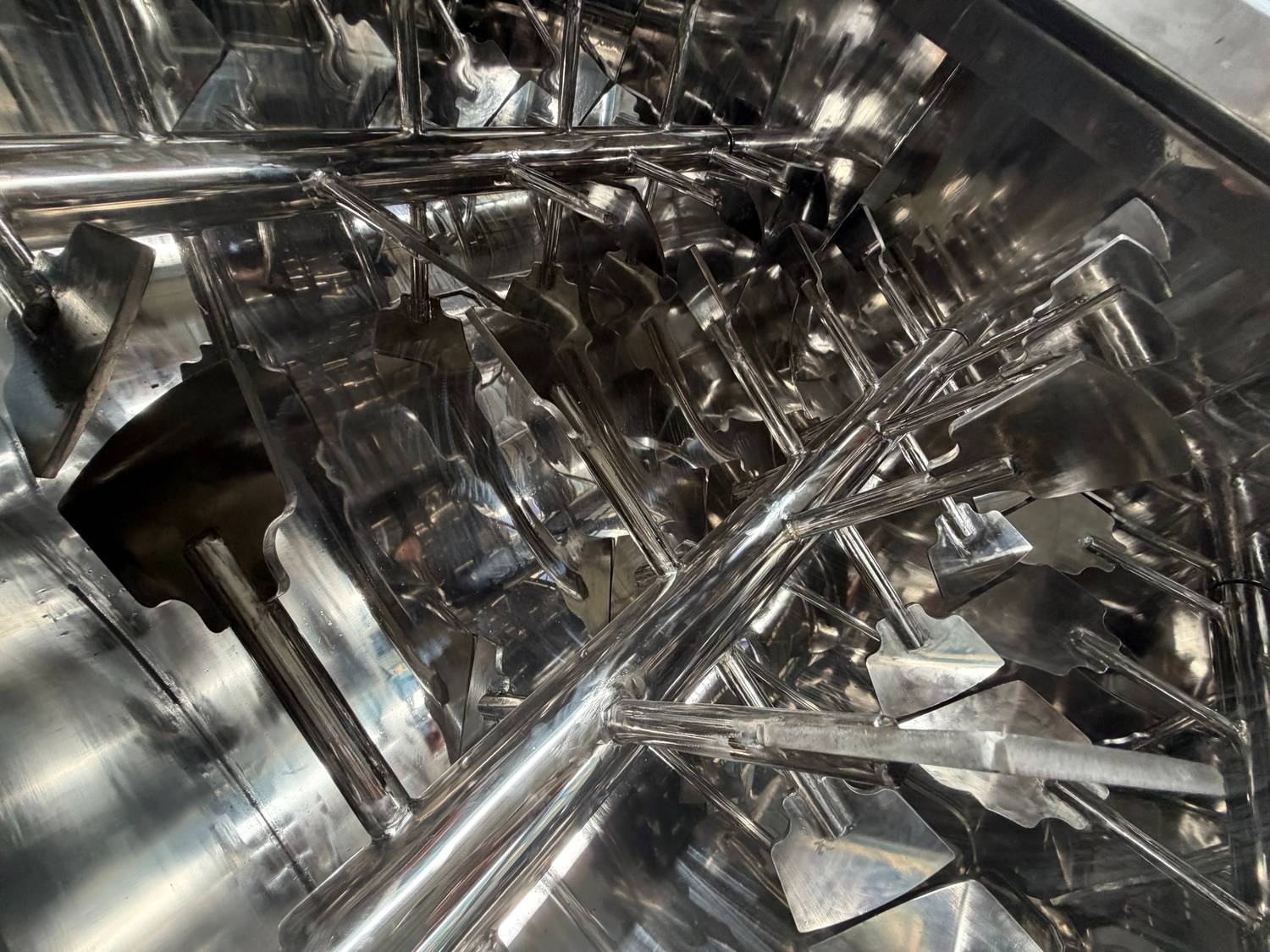

Hygienic SS304 Interior

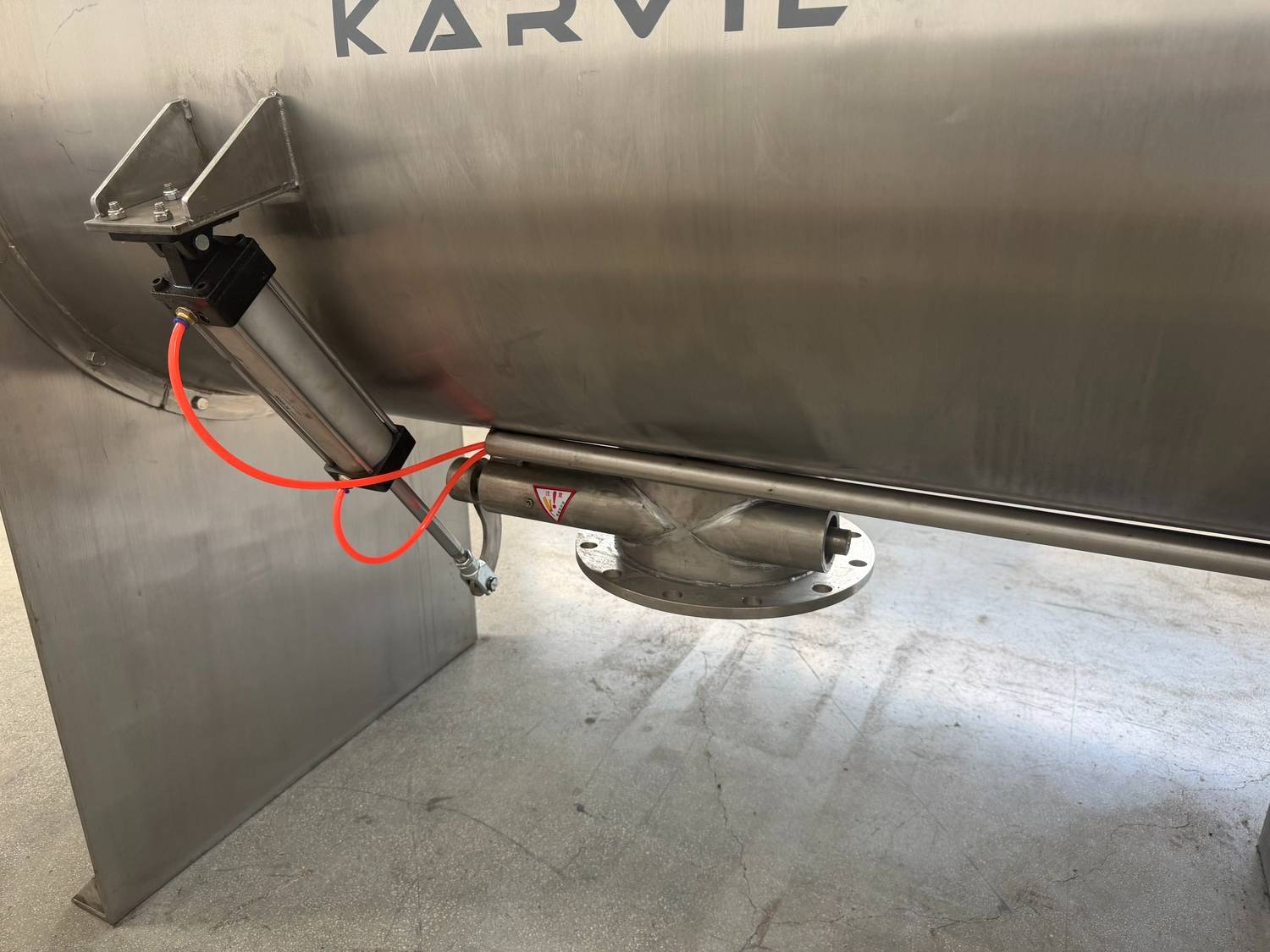

Pneumatic Bottom Discharge

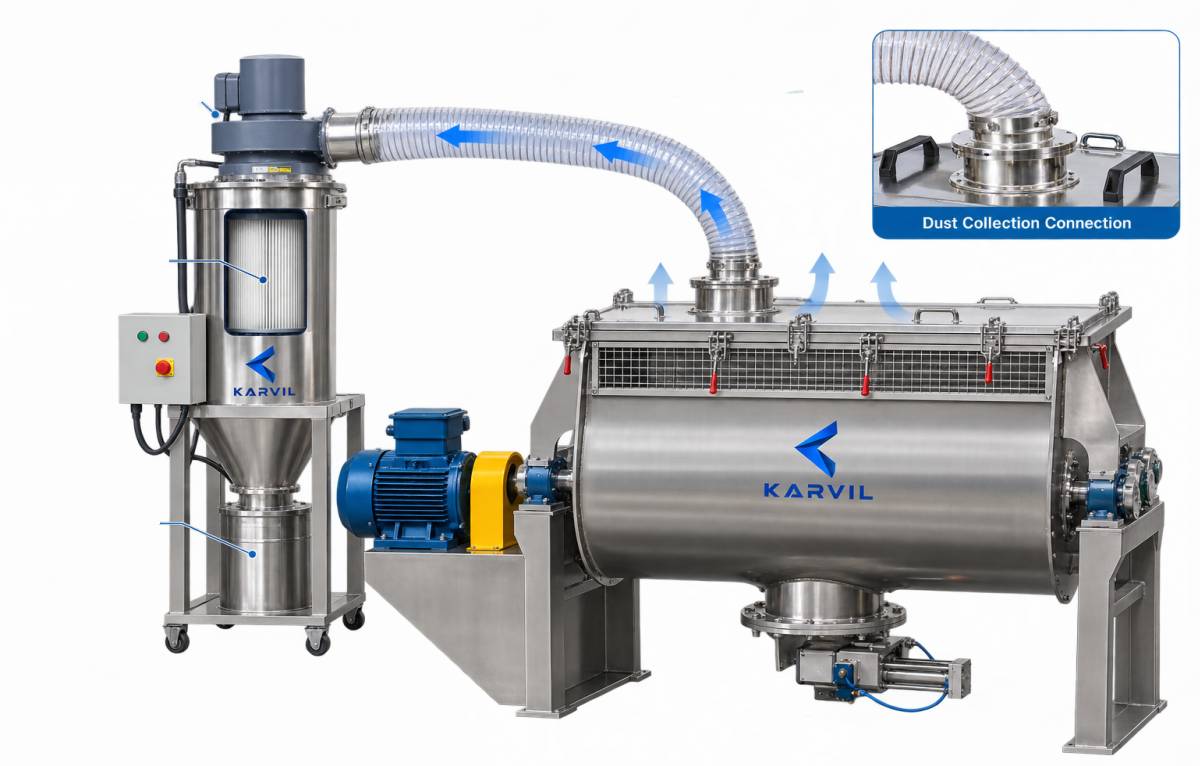

Dust Control
Loading → Paddle Mixing → Uniform Blending → Pneumatic Discharge
The paddle shaft rotates inside the U-shaped mixing chamber. The paddles continuously lift, fold and move the material through the mixing zone.
As the material moves through the chamber, the repeated movement gradually distributes the different powder components throughout the batch.
After the required mixing time is reached, the bottom pneumatic flap opens and the finished material is discharged.

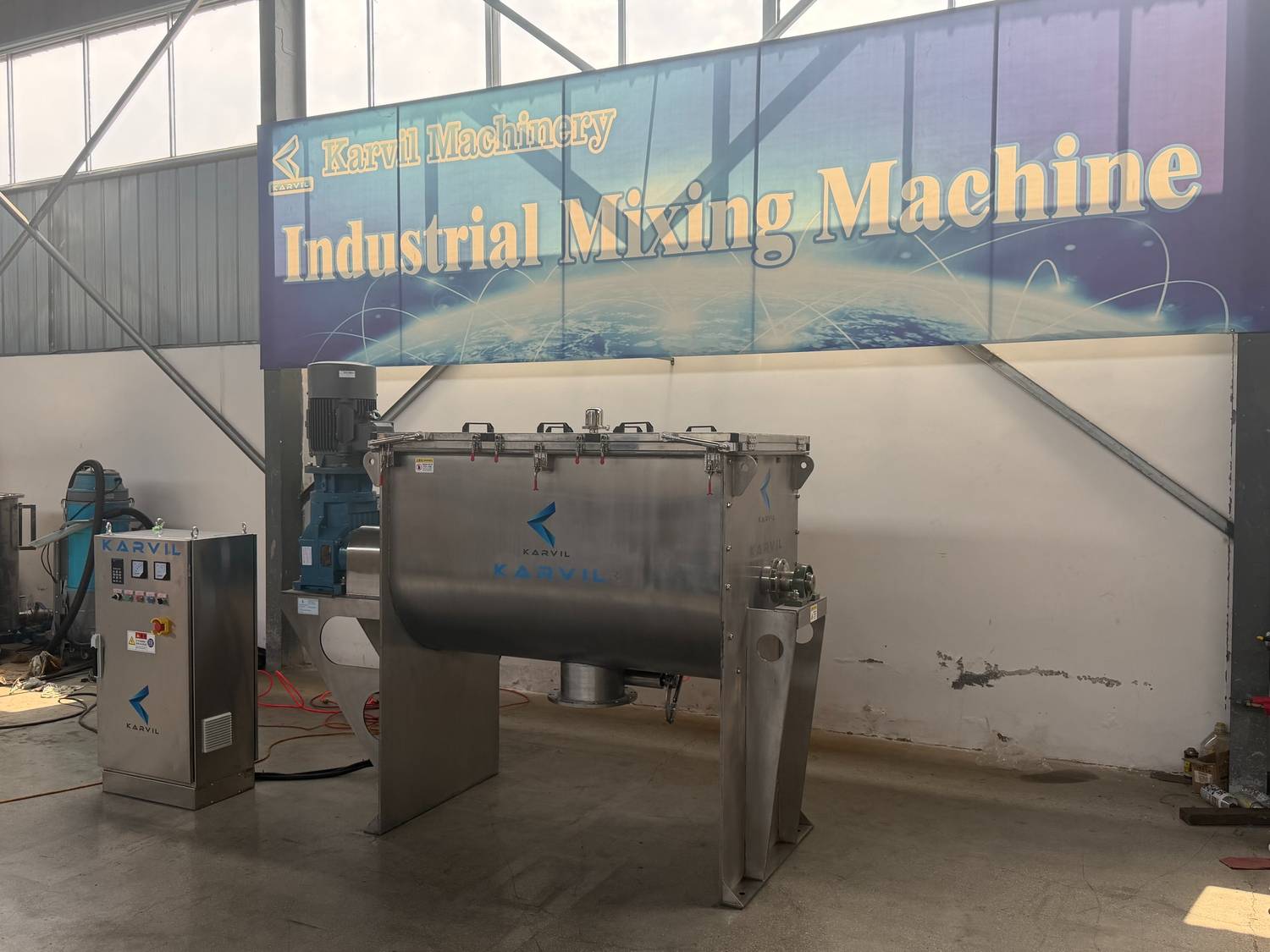

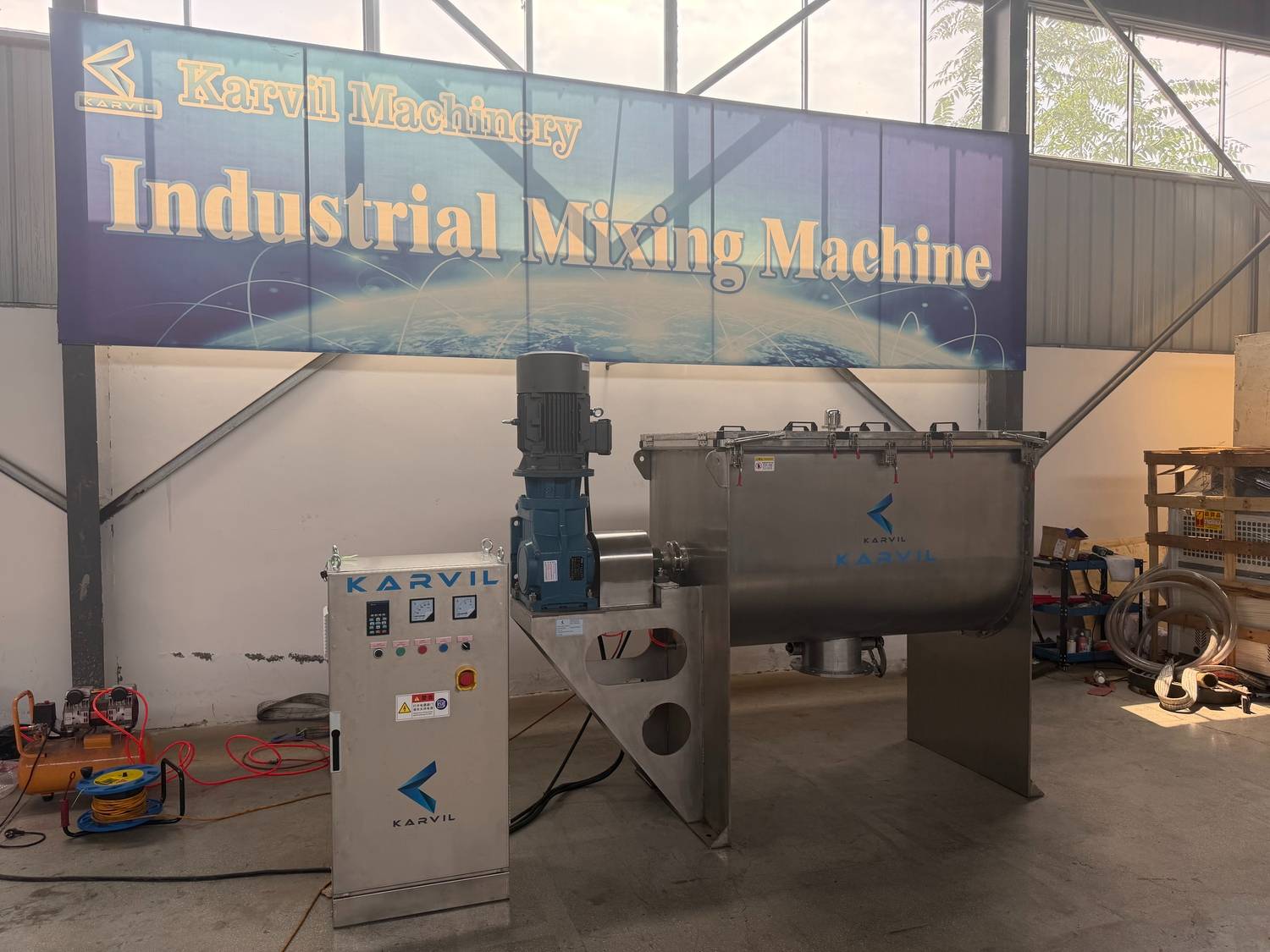

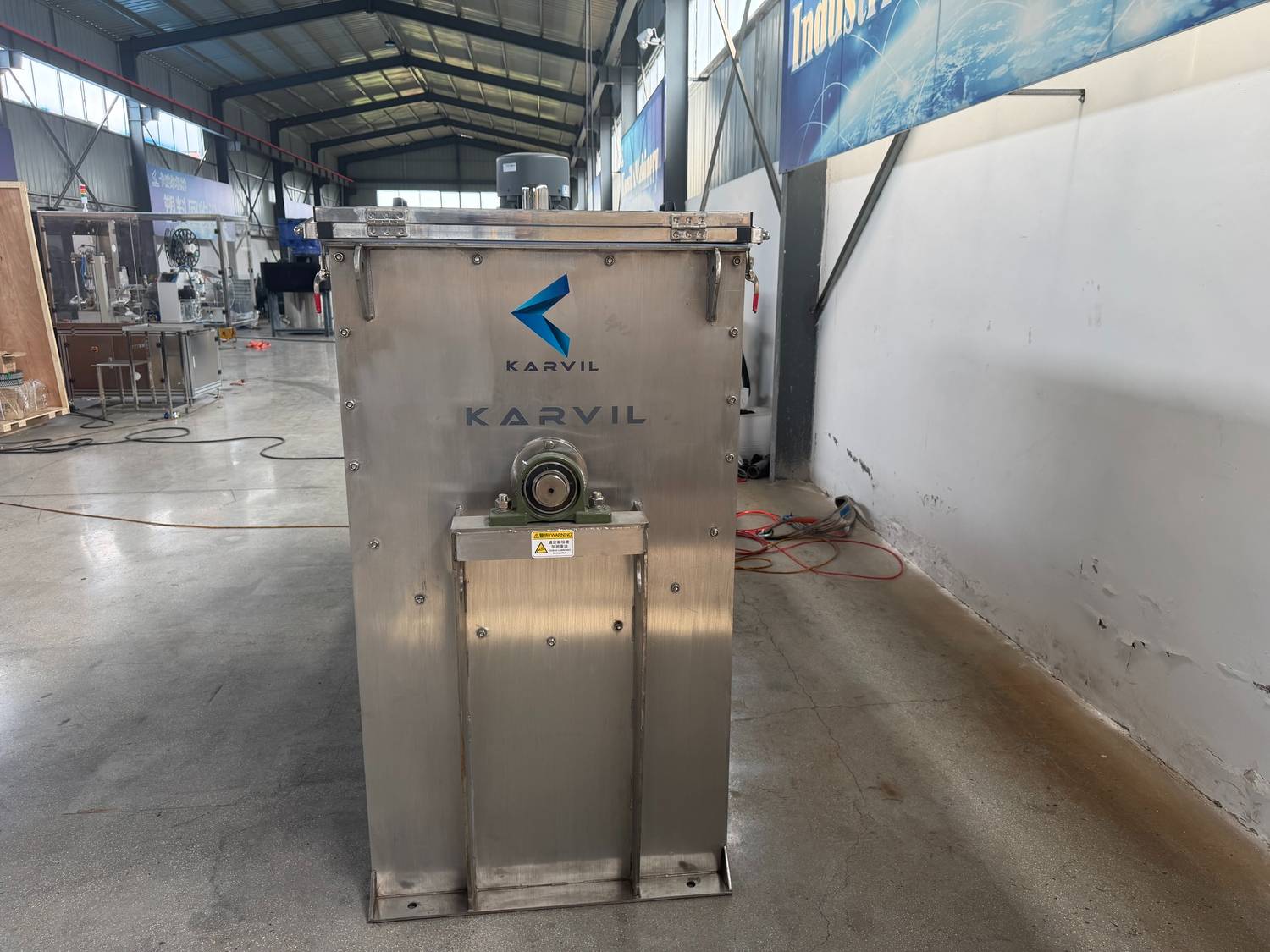

Machine in Action: Factory Walkthrough & Test Run
Seeing is believing. At Karvil Machinery, every piece of equipment undergoes rigorous factory testing before delivery to ensure 100% reliability.
Watch the 1000L stainless steel paddle mixer during factory testing at Karvil Machinery. The test demonstrates the paddle shaft rotation, variable-speed operation and overall running performance before delivery to our customer in Uzbekistan.
Spec | WLDH-100 | WLDH-300 | WLDH-500 | WLDH-1000 | WLDH-1500 | WLDH-2000 | WLDH-3000 | WLDH-4000 | WLDH-6000 | WLDH-8000 | WLDH-10000 |
Total volume(L) | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
Mixed amount/batch (L) | 30-60 | 90-180 | 150-300 | 400-600 | 450-900 | 600-1200 | 900-1800 | 1200-2400 | 1800-3600 | 2400-4800 | 3000-6000 |
Power (Kw) | 1.5-4 | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
Rotating speed (RPM) | 65 | 65 | 65 | 46 | 38 | 33 | 28 | 28 | 28 | 24 |
At Karvil Machinery, we don’t just manufacture standard equipment; we deliver customized, turnkey powder mixing solutions tailored to your specific facility requirements. With decades of industry experience, we have successfully installed thousands of production lines globally. Explore some of our recent global installations below:
Why use a pneumatic bottom discharge?

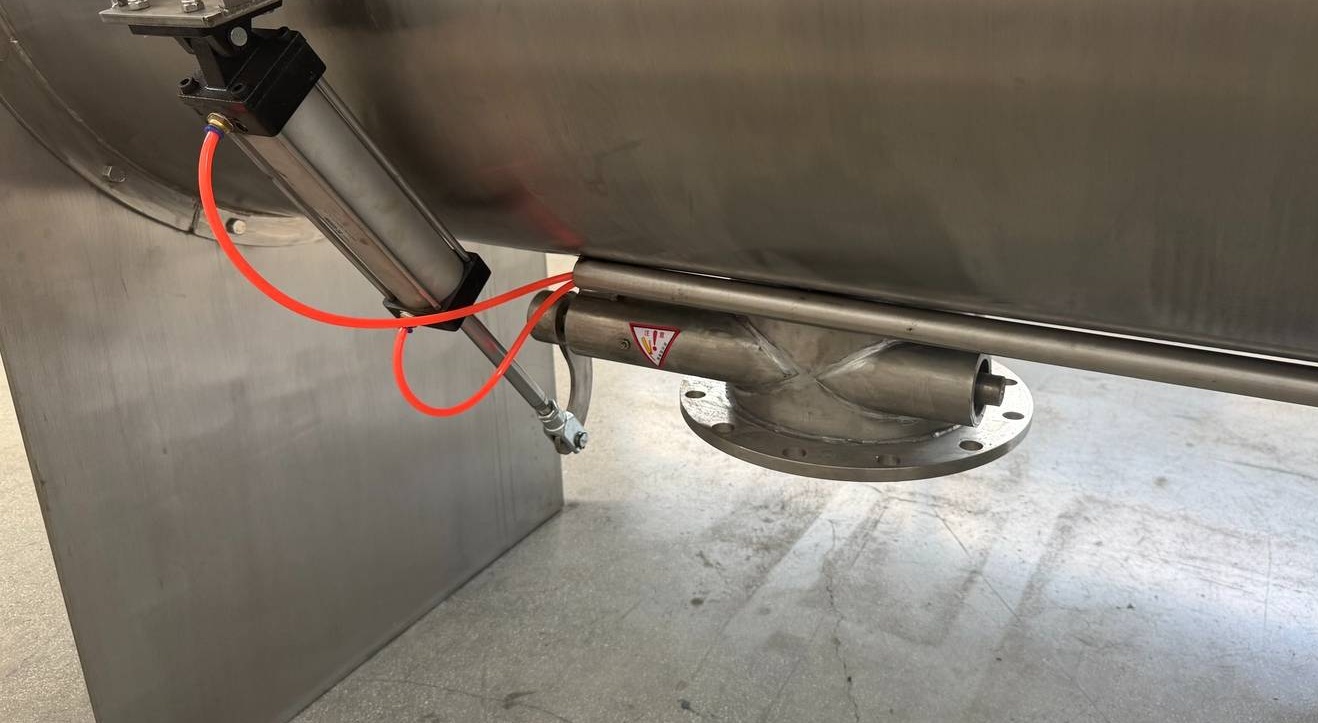

The pneumatic flap allows the mixed material to be discharged quickly and conveniently from the bottom of the mixer, reducing manual handling.
Can I customize the size and design of my cabinets?
Can the mixing speed be adjusted?
Can the machine mix different spice formulations?
Can the mixer be customized?
