If you work with silicone rubber (HTV, RTV, or LSR), you know the headache: Viscosity.
We aren't talking about mixing paint or oil. Raw silicone gum is tough. It has a viscosity that can easily exceed 1,000,000 centipoise (cps). It behaves more like a solid piece of muscle than a liquid.I see many manufacturers try to use standard High-Speed Dispersers or Planetary Mixers for this. The result is almost always the same:
Dead spots: The mixer blade spins, but the material just sits there.
Overheating: The intense friction burns the material.
Broken Shafts: Standard mixers simply don't have the torque.
To process silicone properly, you don't need speed. You need brute force. This is why the Sigma Mixer (Kneader) is the industry standard.

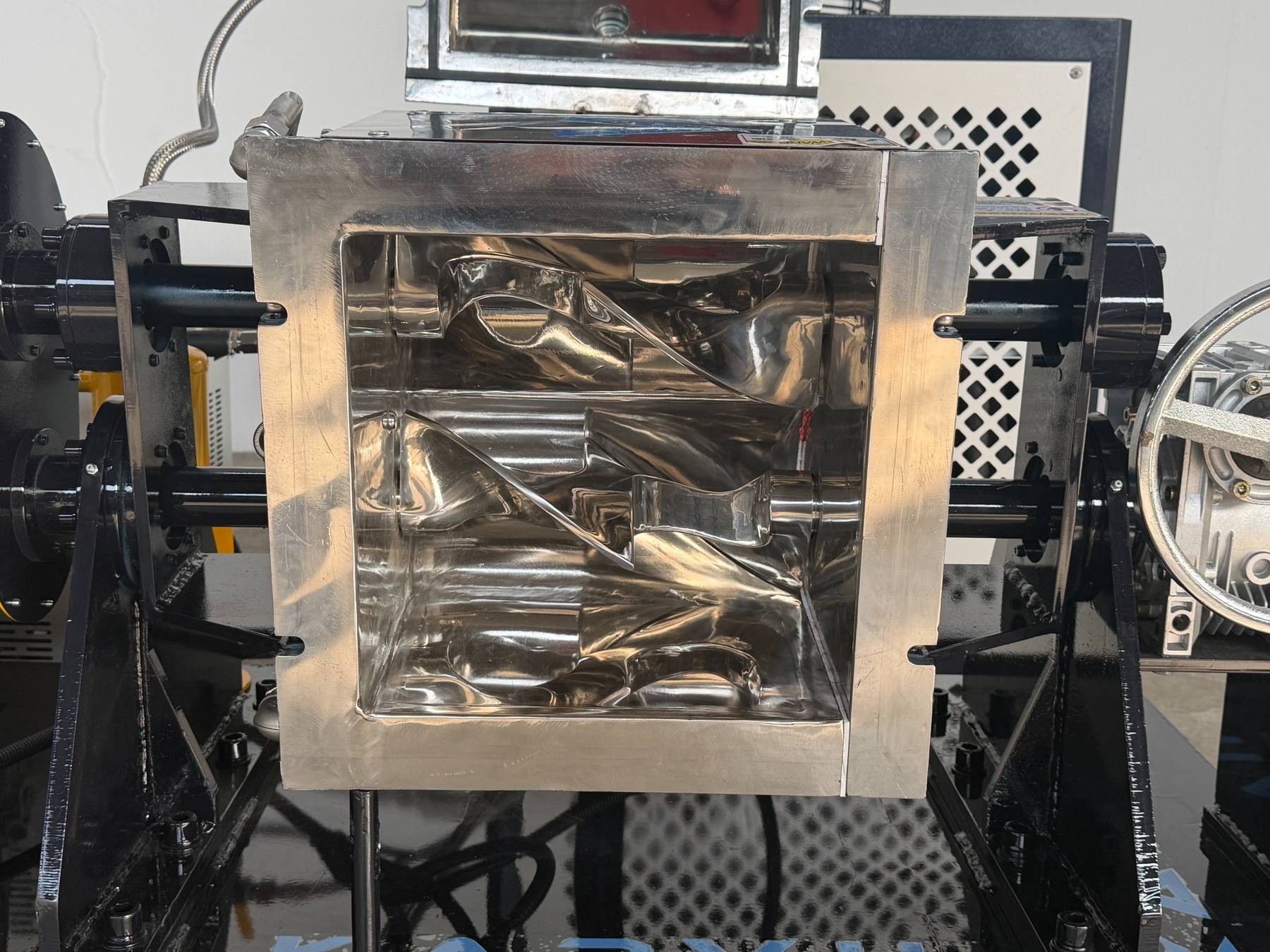

The Sigma Mixer (or Z-Blade Mixer) works differently from any other agitator.
It uses two heavy-duty, Z-shaped steel blades sitting in a W-shaped trough.
The Differential: The blades rotate at different speeds. For example, the front blade might run at 30 RPM while the back one runs at 20 RPM.
The Action: This speed difference creates a powerful shearing action. It stretches, folds, and tears the silicone gum continuously.
This is the only way to physically force fillers (like fumed silica) into the rubber matrix evenly without leaving powder pockets.
This is the part that ruins most batches.
When you mash a thick material like silicone, you create Shear Heat. The friction is so intense that the temperature inside the bowl can spike rapidly.
The Risk: If silicone gets too hot, it can scorch (begin to cure prematurely) or degrade.
The Requirement: You usually need heat to start the process (to soften the gum), but you need cooling to finish it.
The Solution: A Dual-Loop System

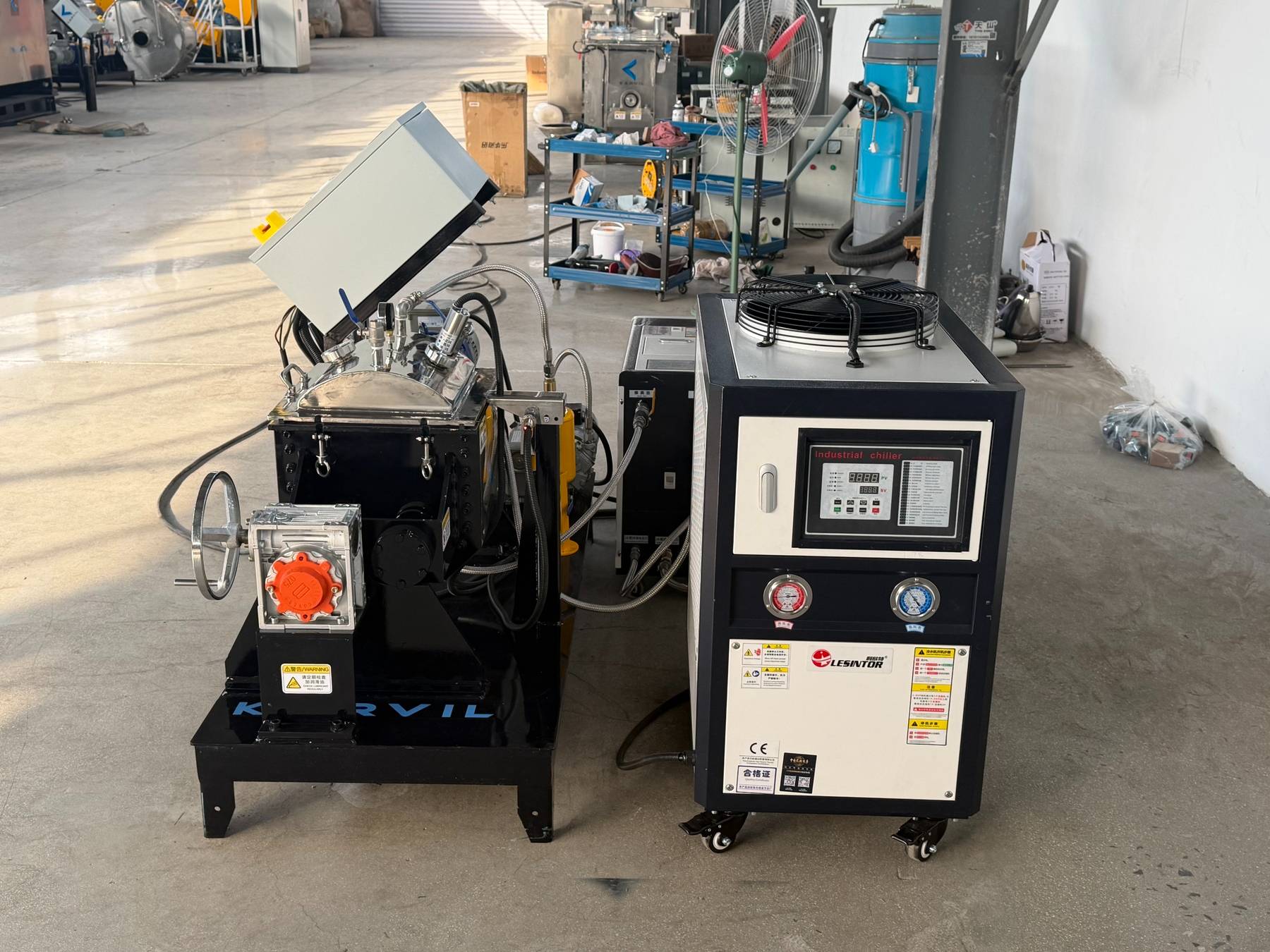

A proper Kneader for silicone must have a Jacketed Bowl connected to two external units:
Heater (Mold Temp Controller): Brings the temp up to ~140°C-160°C to soften the base gum and drive off moisture.
Chiller: Once the mixing gets aggressive, you switch to cooling water (10°C) to keep the batch safe (usually under 60°C).
If your machine doesn't have a Chiller connection, you are flying blind.
Silicone rubber is often used for electrical insulation, medical parts, or transparent molds.
Air bubbles are the enemy.
Because the material is so thick, trapped air cannot float to the top and escape like it does in water. It stays trapped forever—unless you force it out.
A Vacuum Kneader seals the entire mixing chamber. By running the mixer under vacuum (negative pressure), you expand the air bubbles, and the folding action of the blades brings them to the surface where they are sucked away. This is how you get that perfect, dense, bubble-free compound.
If you are looking for a kneader for your lab or production line, ignore the fancy marketing terms. Just check these four things:
Blade Material: Must be Stainless Steel (304/316L). Carbon steel will rust and contaminate your white silicone.

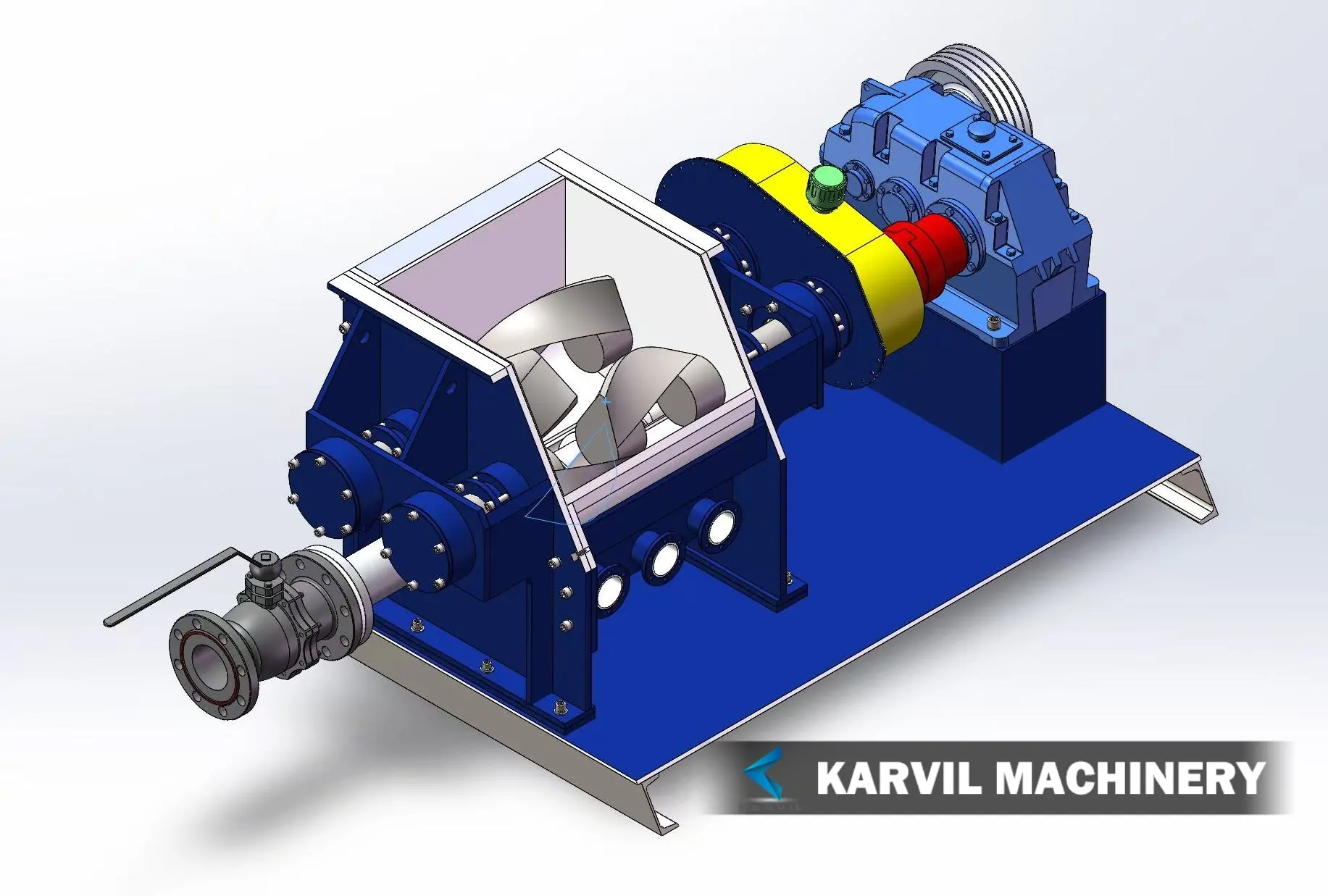

Discharge: For lab sizes (like 24L), a Manual or Hydraulic Tilt is best. Screw discharge is good for huge production, but a nightmare to clean in a lab.
Jacket Pressure: Ensure the jacket can handle both hot oil and cold water pressure.
Vacuum Seal: Ask the manufacturer about their seal design. Leaky seals mean bubbles in your product.
