High-viscosity production rarely fails because a mixer cannot turn. Trouble more often starts with small process changes. One operator runs the blades longer, another raises temperature too quickly, or discharge begins before the compound reaches the right condition. These shifts can alter viscosity, air content, cure behavior, and yield.
Karvil Machinery develops mixers for high-viscosity, powder, food, pharmaceutical, chemical, adhesive, coating, and ceramic applications. Its company background describes custom equipment supplied to more than 50 countries and regions. You can also review the wider industrial mixer range when another process stage needs a ribbon blender, planetary mixer, or dispersing system.
A sigma mixer, also called a Z blade mixer or sigma kneader, applies strong shear and folding action to materials that do not flow like ordinary liquids. Silicone rubber, sealants, hot-melt adhesives, carbon paste, chewing gum, and protein bars place changing loads on the machine. Control must cover blade movement, time, temperature, vacuum, lid status, and discharge.
A PLC runs the sequence, while the HMI gives your operator a clear screen for speed, time, direction, temperature, and discharge. Stored recipes help repeat stages such as slow wetting, stronger kneading, a temperature hold, vacuum degassing, and unloading.
Small changes matter. A short delay keeps adding heat to a thick compound. Recipe control reduces drift and makes changeovers less dependent on memory or handwritten notes. It can also store alarms and operating data for later checks.
The HMI can show actual values beside set values, helping your team spot a slow temperature rise or abnormal motor load. Alarm messages direct maintenance staff toward the affected circuit or safety condition.

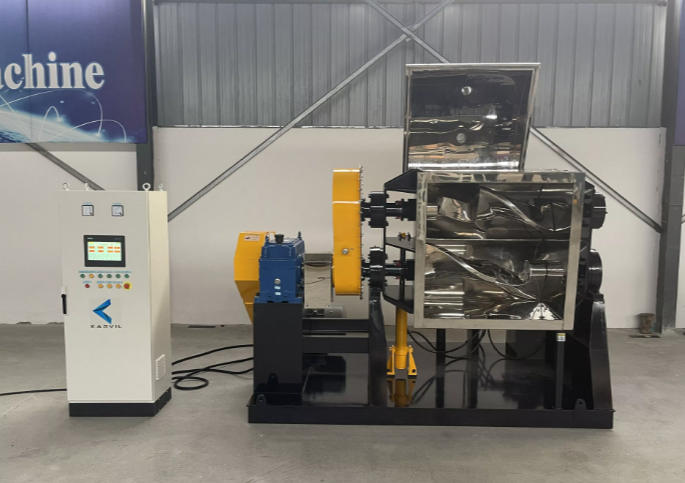

The featured Tilt Kneader Mixer with PLC System combines mechanical kneading with programmable control. The listed unit has a 500 L total vessel, 350 L working capacity, a 22 kW main motor, 37 and 21 rpm blade speeds, mirror-polished SUS 304 contact surfaces, and hydraulic tilting discharge.
The system handles motor start and stop, forward and reverse blade movement, speed selection, cylinder tilting, reset, and circuit protection. Your operator can follow one sequence from the HMI instead of moving between separate switches.
Working capacity also matters. A 500 L vessel is not meant to hold 500 L of dense compound. Thick material needs room to fold and circulate.
Hydraulic tilting turns the vessel toward the collection point, helping remove material that will not flow from a fixed trough. Screw extrusion may be better when the next stage needs metered or shaped output. Tilting is often simpler for open transfer and cleaning.
The platform can also use screw extrusion or bottom discharge. Choose by viscosity, downstream equipment, residue limits, and cleaning practice.
A PLC becomes useful when it controls the variables that affect your formula. Speed and time are only the start. Temperature, vacuum, and discharge behavior often decide whether the batch passes inspection.
Jacket options include electric heating, thermal oil, steam, water heating, and water cooling. Laboratory sigma mixers may also use electromagnetic induction heating for heat-sensitive materials. Electric heating suits standard work, thermal oil supports even high-temperature treatment, and steam transfers heat quickly where a suitable supply exists.
Vacuum can remove trapped air, limit oxidation, and improve density or surface quality. A water-ring vacuum pump and buffer tank are available for degassing. The HMI should display the relevant values rather than leaving temperature and vacuum as separate manual jobs. Further examples appear in the application center.
Product-contact parts can use SUS 304 or SUS 316, while mild steel may suit less corrosive work. Food and pharmaceutical production usually needs polished surfaces, clean welds, low-residue discharge, and practical cleaning access.
Karvil Machinery states that its product materials have passed EU food-contact material testing and comply with Regulation (EC) No. 1935/2004. This matters for chewing gum, protein bars, candy, and other food applications.
Automation should never replace physical protection. A safe kneader combines its PLC with guards, interlocks, covered transmission parts, circuit protection, and emergency-stop functions.
The featured mixer has a limit switch that stops operation when the lid opens. Karvil Machinery also covers drive positions so operators cannot reach moving transmission parts. This matters during charging, sampling, cleaning, and maintenance. A productive mixer is useful. A mixer that refuses to run under an unsafe access condition is better.
Karvil Machinery lists CE, ATEX, and FCM certification capabilities. CE supports European safety requirements. ATEX configurations address explosive atmospheres, which may apply to propellant compounds, explosives, solvent-rich sealants, or combustible dust. FCM covers materials intended to contact food.
Confirm certificate scope against the exact machine, zone classification, destination, and custom options. One build does not automatically cover every variation. That small check can prevent a large delay.
PLC and HMI control brings the most value when material properties change during a batch or quality records matter.
Sigma kneaders serve adhesives, silicone compounds, sealants, rubber, BMC, carbon paste, chewing gum, protein bars, explosives, and aerospace materials such as rocket propellant compounds. Planetary mixers may handle battery slurry, dental materials, sealants, and some aerospace formulas. Ribbon mixers suit powders such as flour, ice-cream powder, and dry mortar. The mixer type changes, but the goal stays the same: repeat the process and reduce avoidable variation.
Provide your viscosity range, batch size, temperature limits, vacuum target, cleaning method, hazardous-area status, discharge needs, and local power supply. Capacity, contact material, motor type, safety level, jacket, and control logic can then be matched to the job. Technical resources in the download center can support review before final drawings and factory testing.
A good HMI helps daily work, but overseas buyers also need clear documents and quick technical answers.
Karvil Machinery provides a one-year warranty and lifetime technical consultation when support is needed. Professional engineers offer remote installation guidance, video instruction, and online troubleshooting. Equipment is supplied with a full English operation manual and electrical drawings, giving your maintenance team a useful reference after commissioning.
Q1: What Is the Main Difference Between a PLC and an HMI?
A: The PLC runs the control logic. The HMI lets you enter settings, view process data, receive alarms, and select stored recipes.
Q2: Can PLC Control Reduce Batch Variation?
A: Yes. It repeats speed, time, temperature, vacuum, blade direction, and discharge steps more consistently than manual operation.
Q3: Is Hydraulic Tilting Suitable for Sticky Materials?
A: Yes. It helps remove high-viscosity, non-self-flowing material. Screw extrusion may suit controlled or shaped discharge.
Q4: Can a Sigma Mixer Be Made for Food Production?
A: Yes. Karvil Machinery can use polished SUS 304 or SUS 316 contact parts and provide food-contact documentation for the specified build.
Q5: What Information Is Needed for a Custom Quote?
A: Provide the material, viscosity, batch size, temperature range, vacuum need, hazardous-area rating, cleaning method, discharge preference, and power supply.
