NH-5
Karvil

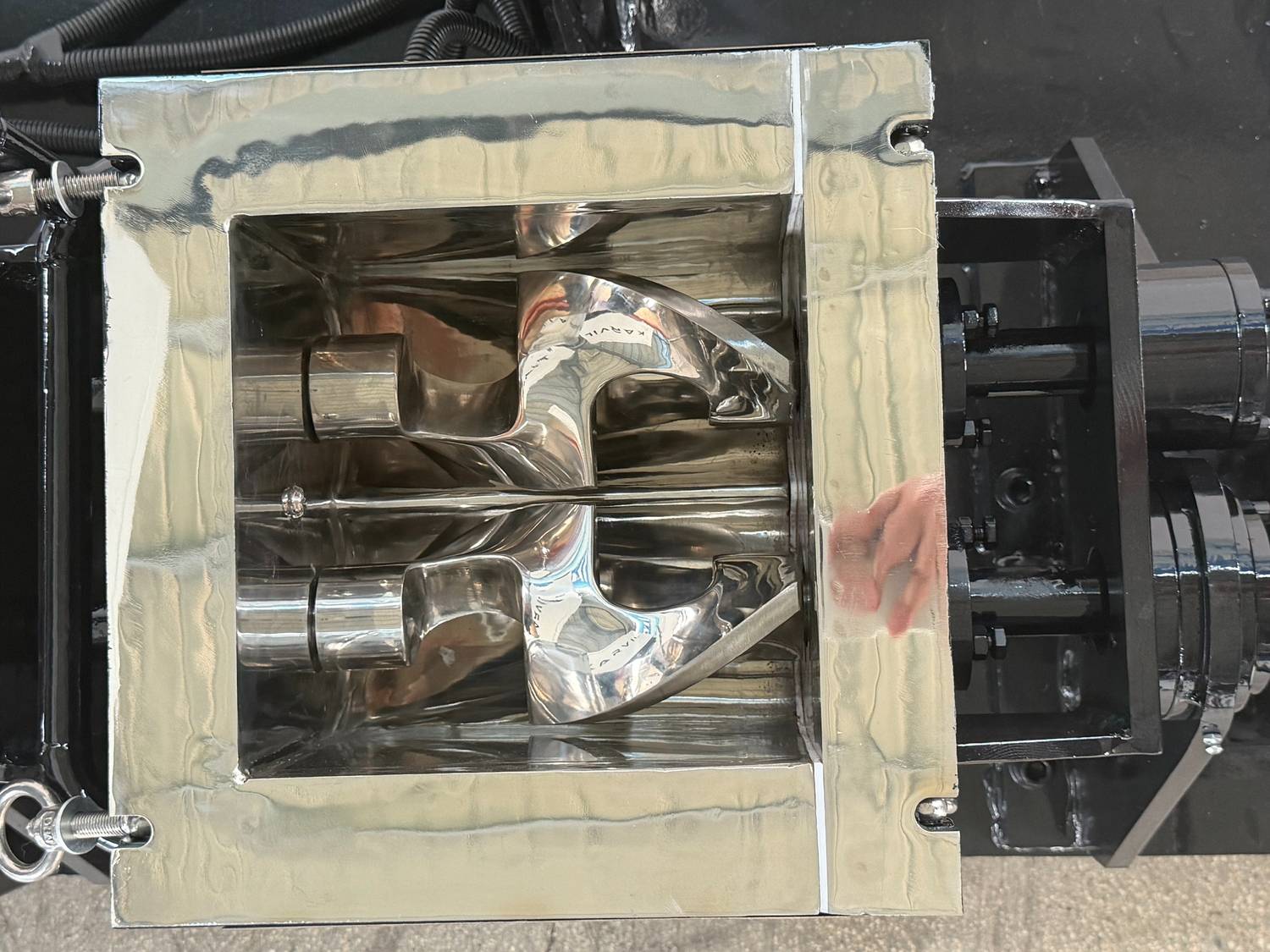

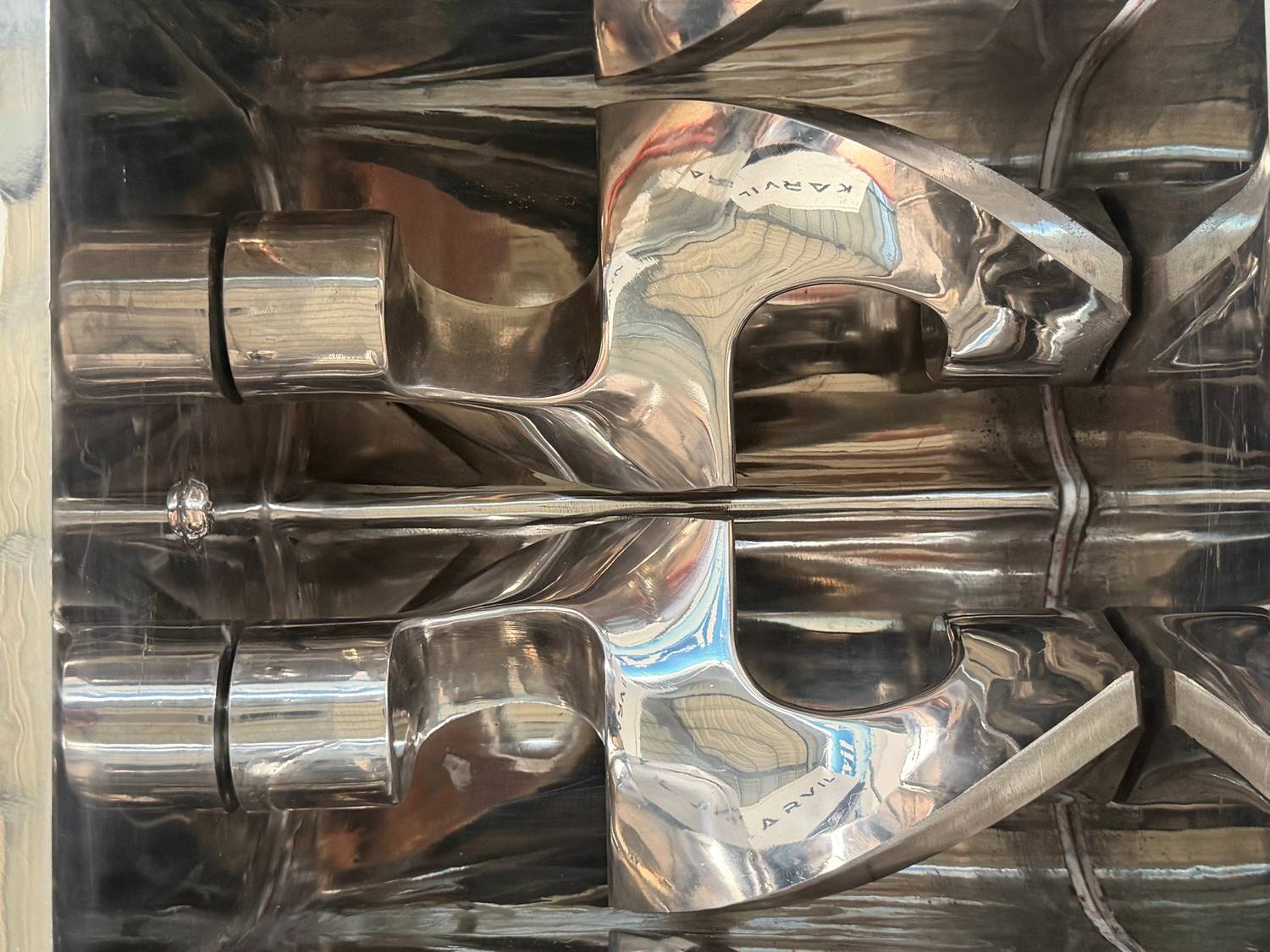

All material contact parts (blades, cylinder, lid) are made of SS304 with a high-level mirror polish. Safe for chewing gum and food-grade applications.
Features an automatic safety limit switch (the mixer stops instantly when the lid is opened), an emergency stop button, and an electrical protective cover.

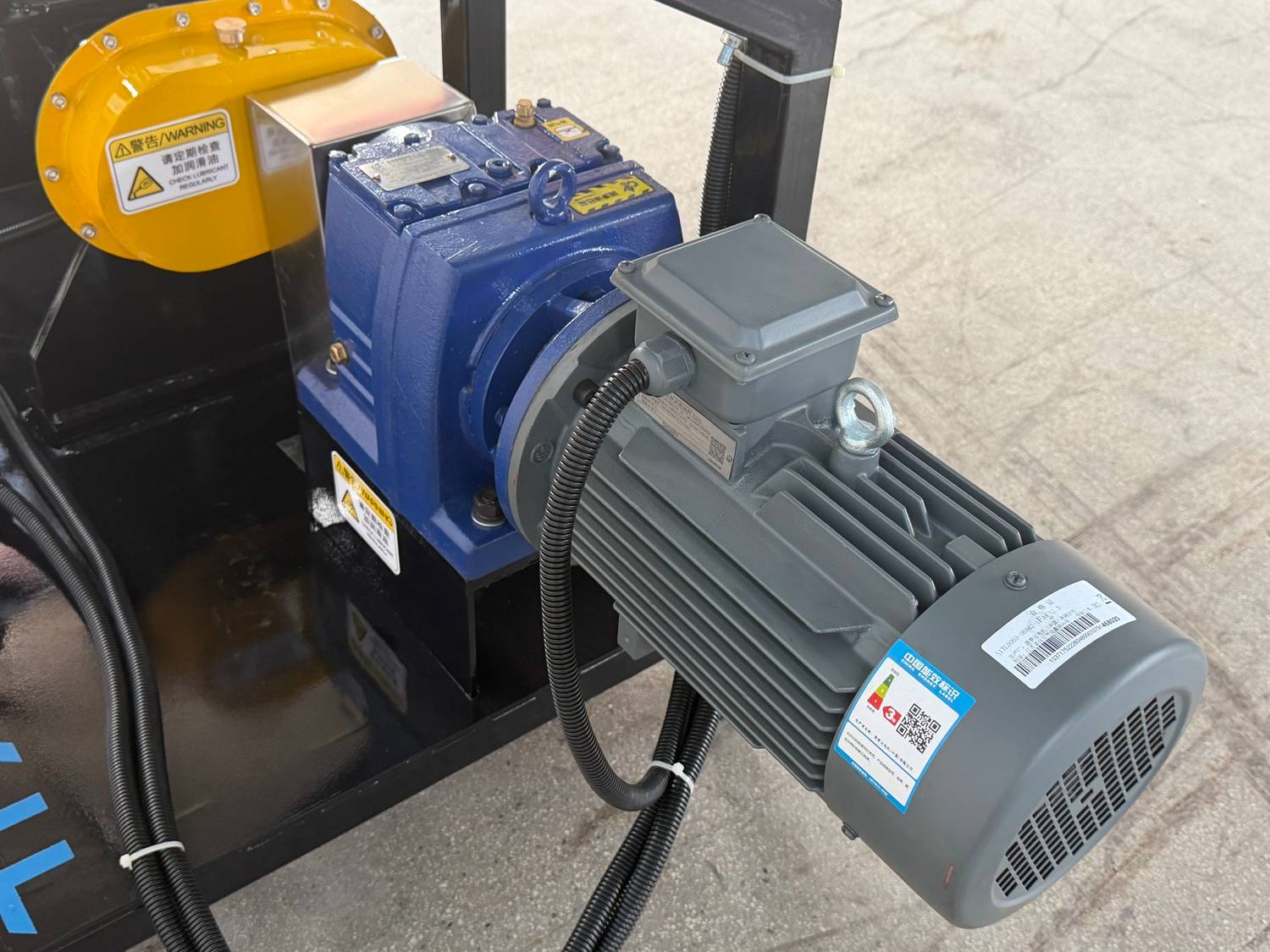

Powered by a 1.5KW Siemens motor, Fuling inverter, and Schneider electric components to ensure heavy-duty reliability and long service life.
Built-in 2.4KW electric heating system (supports thermal oil or purified water) with real-time temperature display for strict formula control.

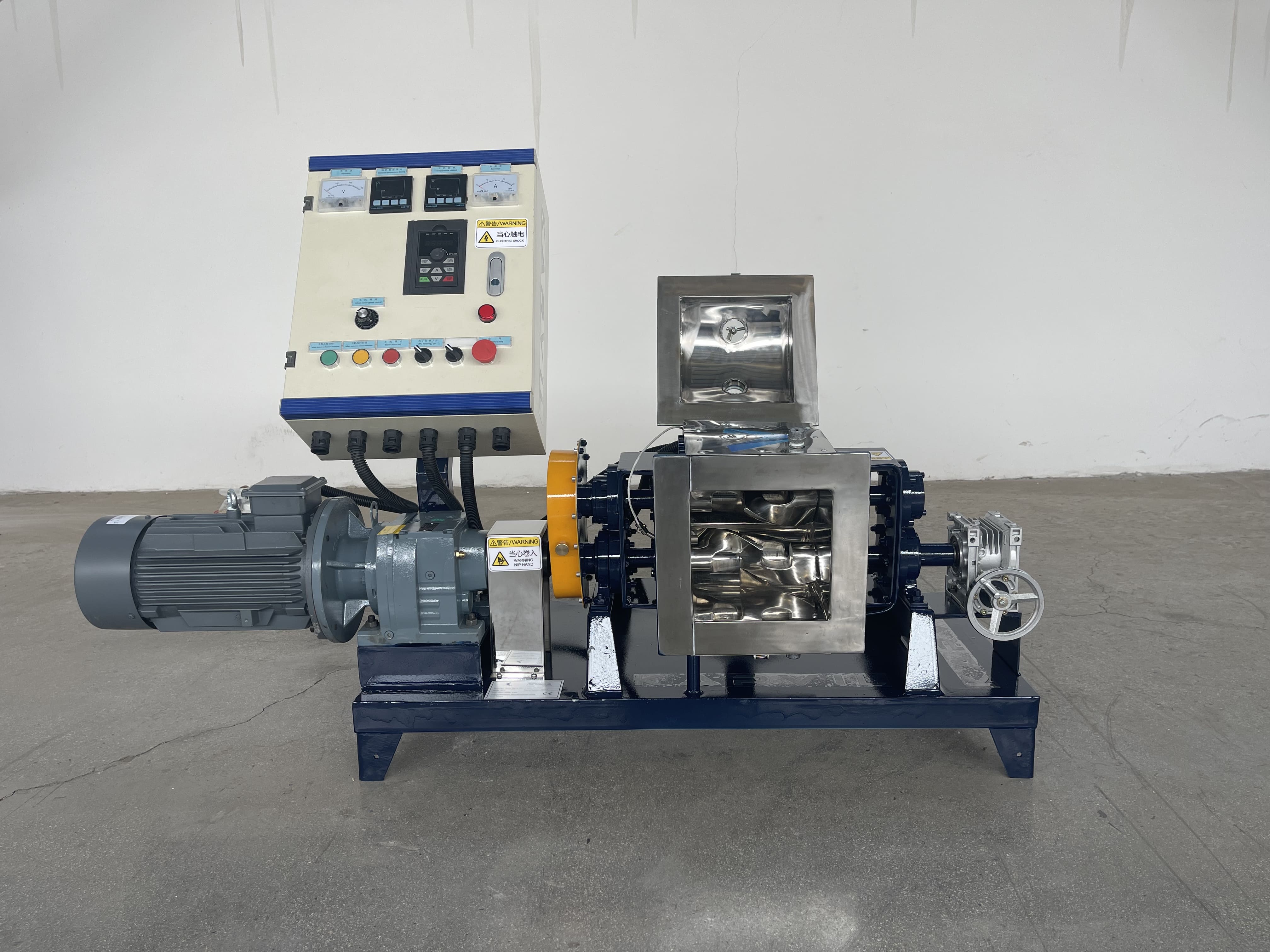

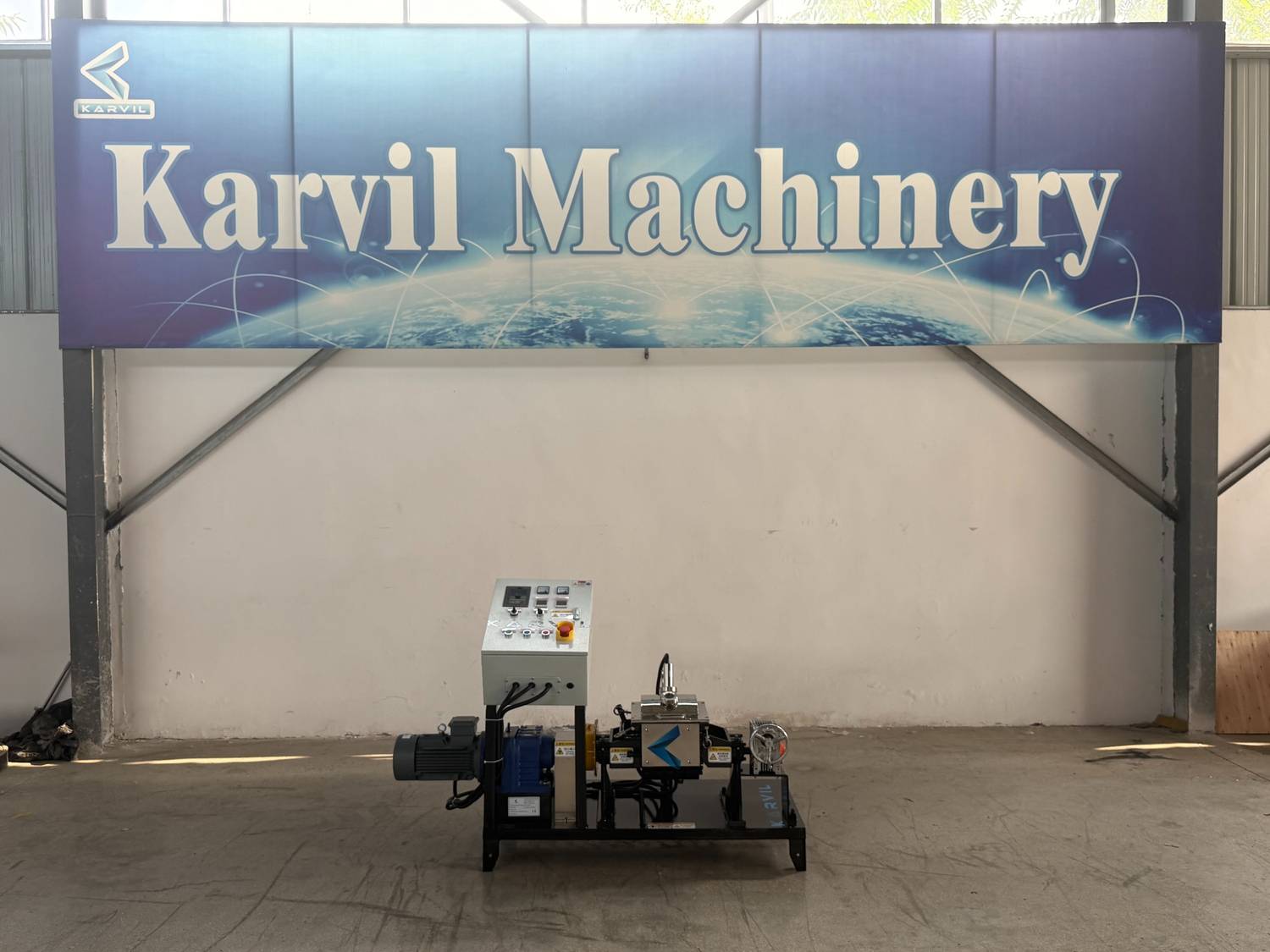

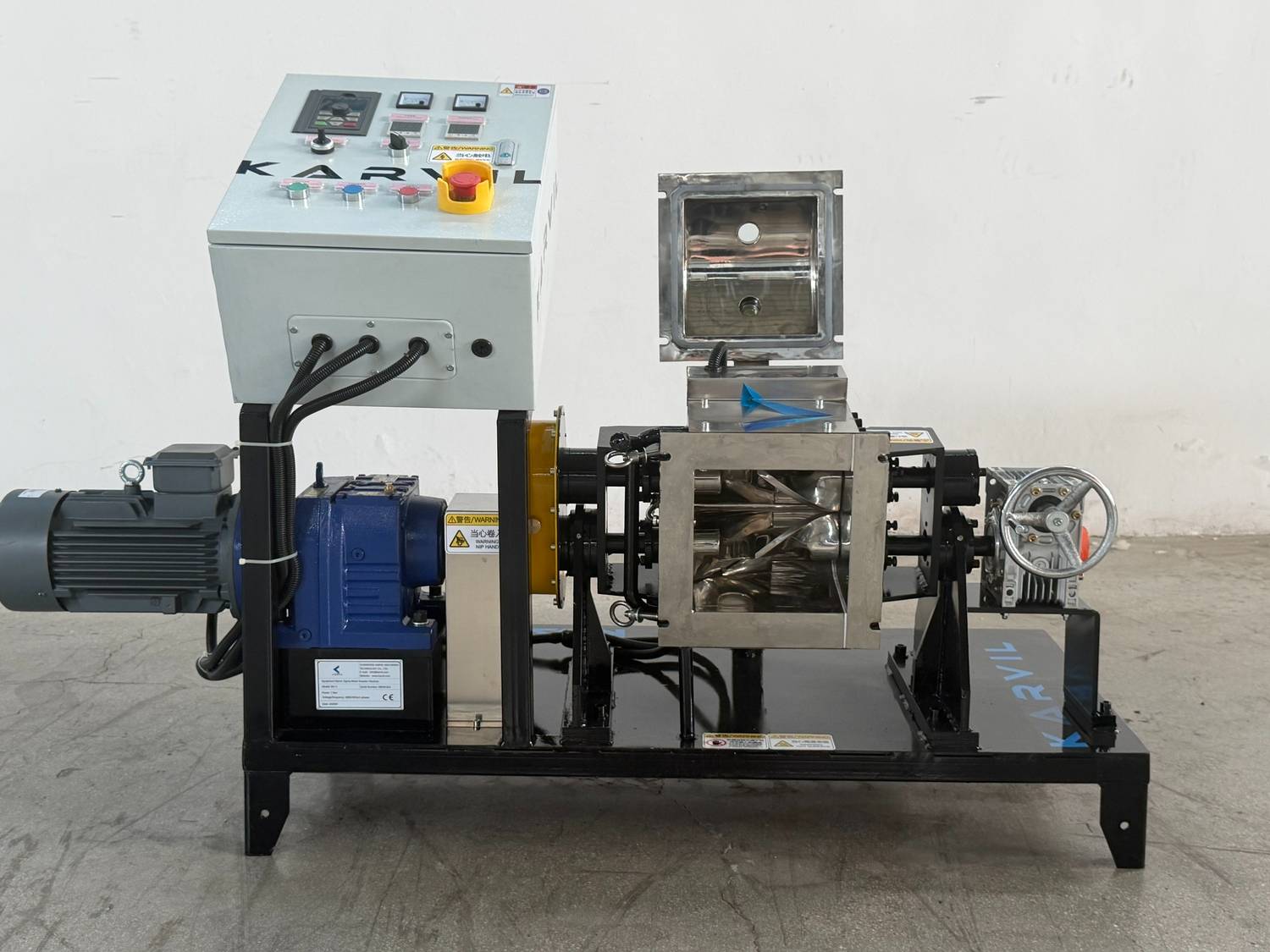

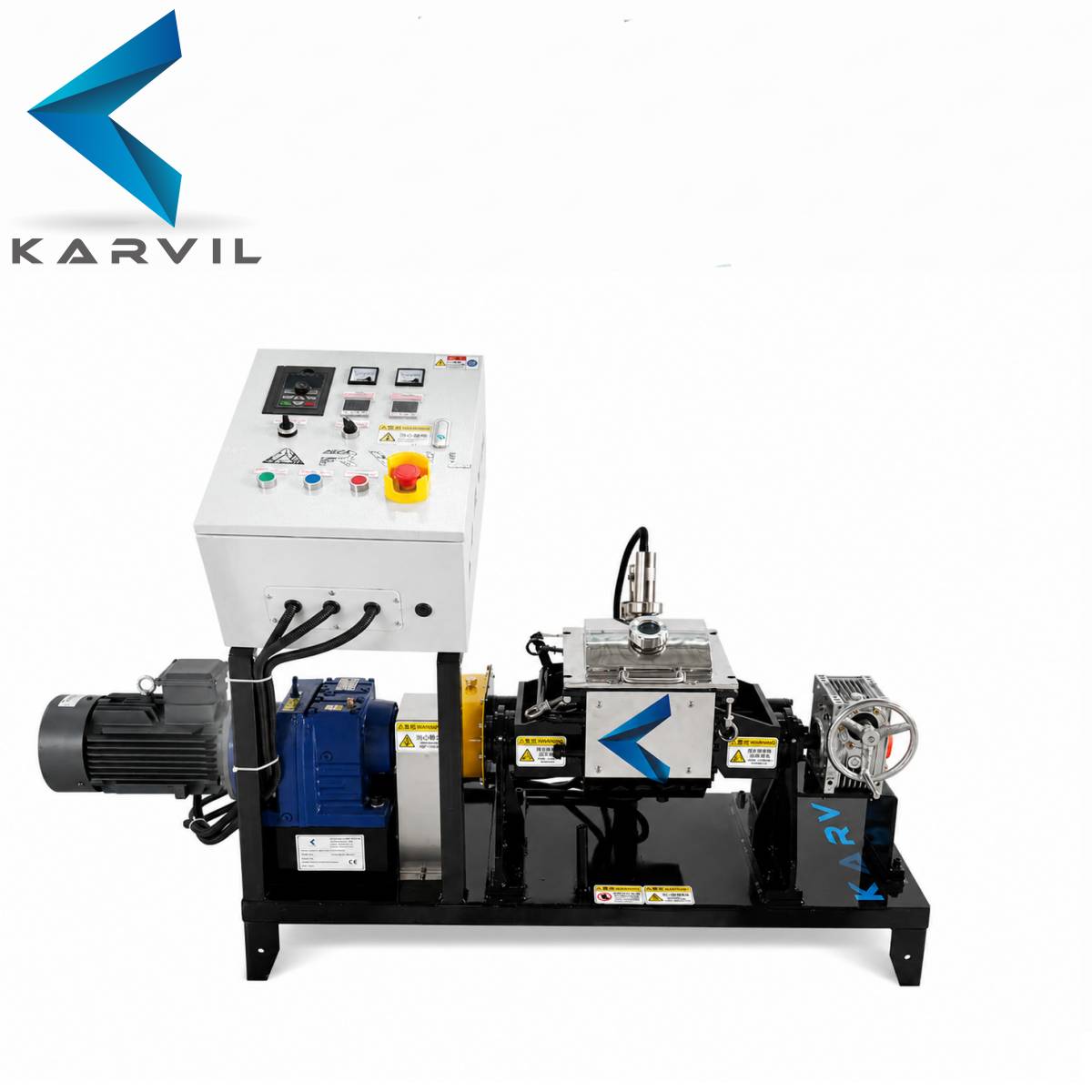

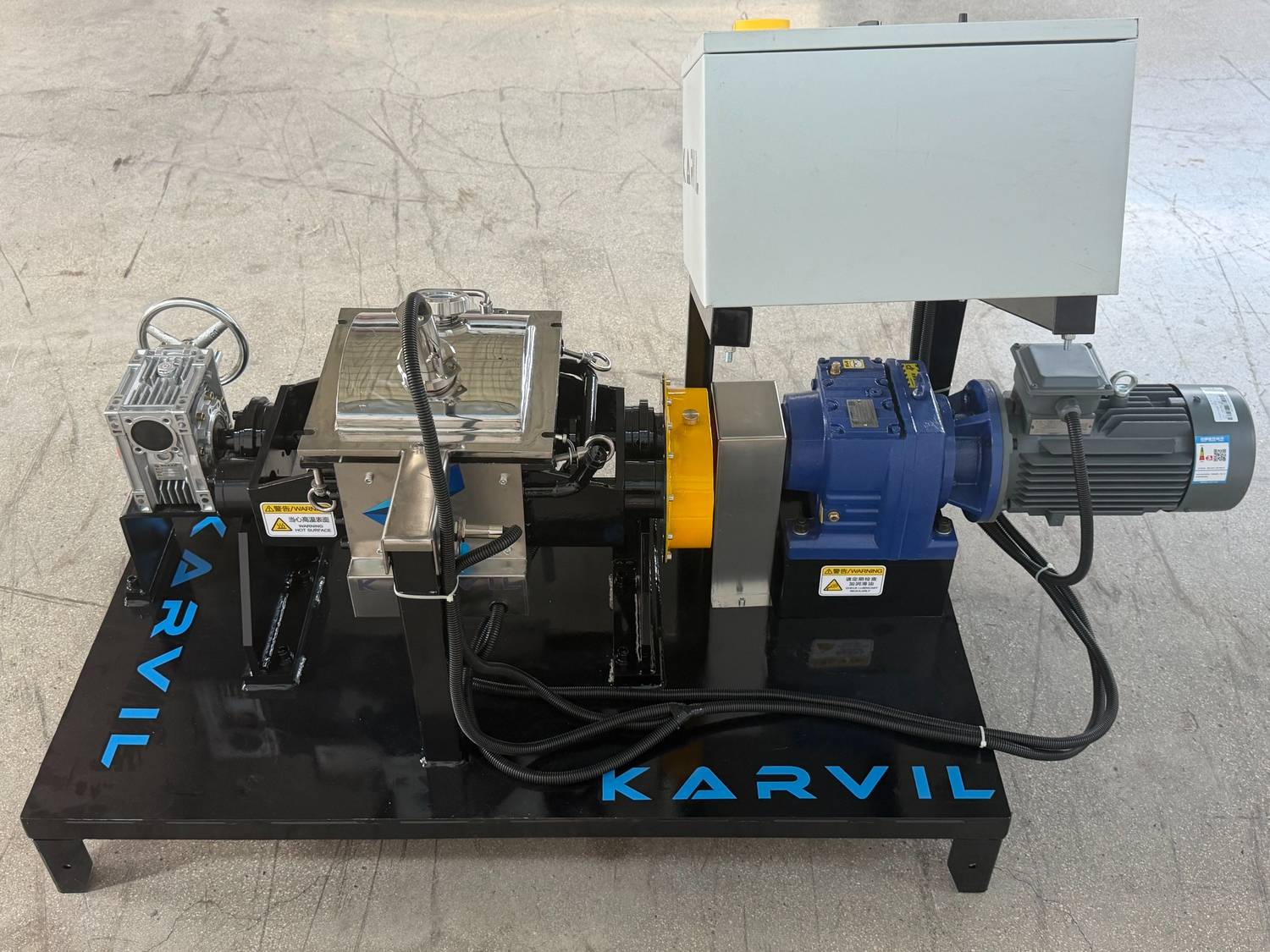

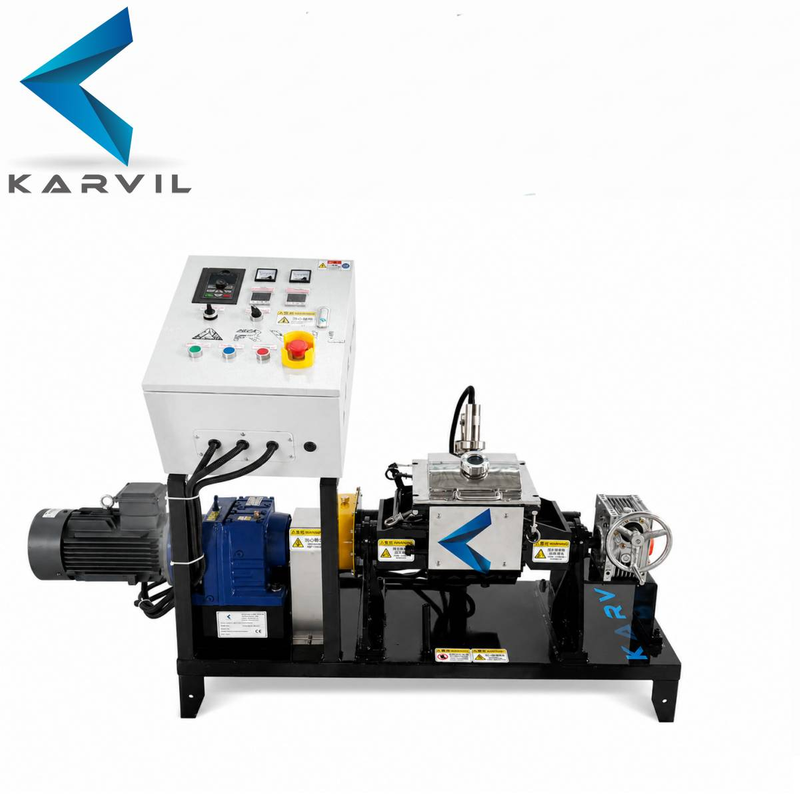

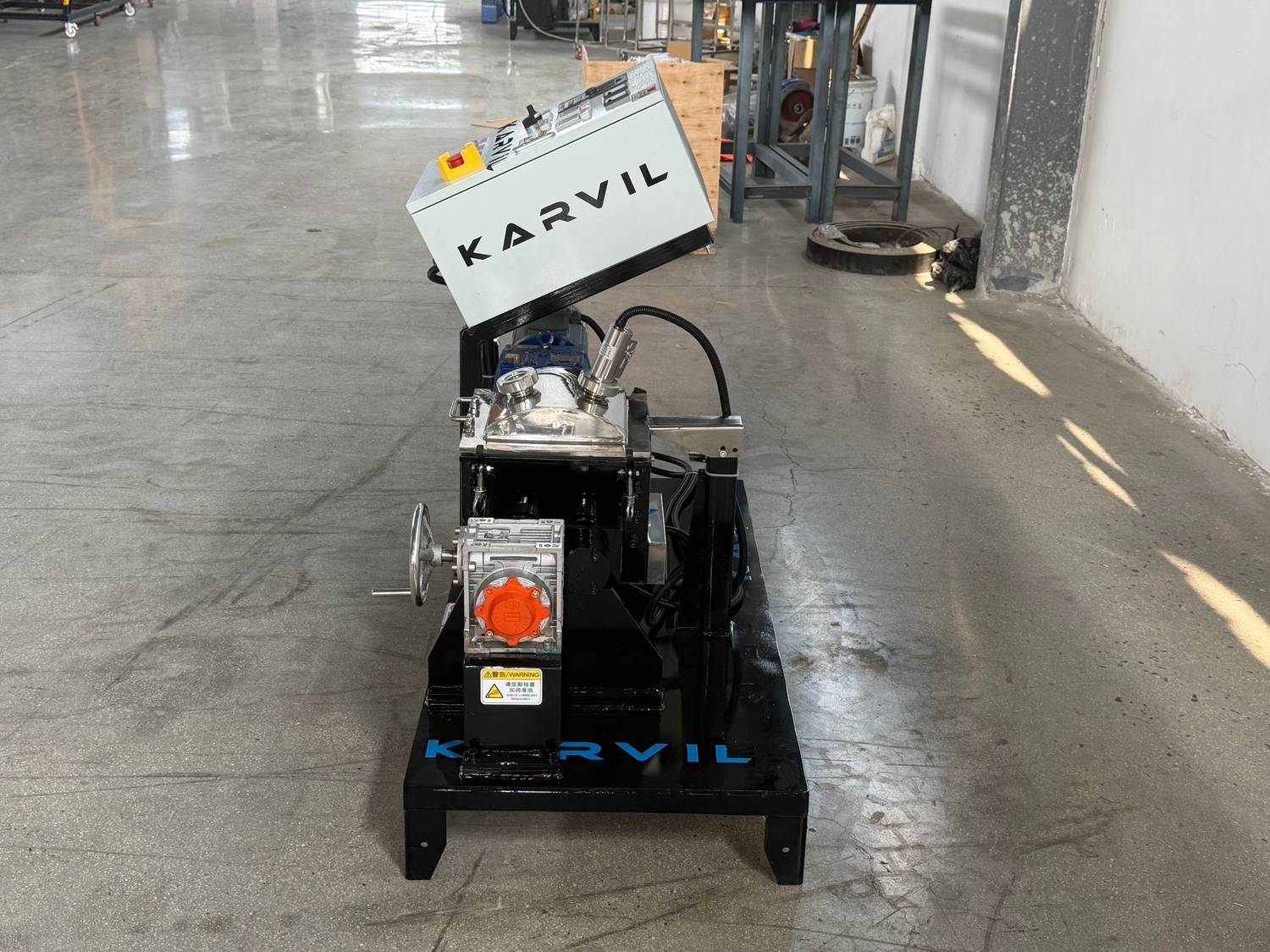

Take a closer look at our latest 5L Electric Heating Sigma Blade Mixer, custom-built for a chewing gum manufacturer in Germany.
In this factory testing video, you can witness the smooth power of the Siemens motor, the premium SS304 mirror-polished finish for food safety. Designed specifically for R&D labs and small-batch high-viscosity mixing, it offers unmatched stability and precision.
Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | |
Total Volume (L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |
Mixed amount/batch (L) | 1.5-3.5 | 3.0-7 | 30-70 | 90-210 | 150-350 | 300-700 | 450-1050 | 600-1400 | 900-2100 | 1200-2800 | 1500-3500 | |
Rotation Speed (rpm) | 42/34 | 42/34 | 37/21 | 37/22 | 37/23 | 37/26 | 37/22 | 30/21 | 30/21 | 30/20 | 28/18 | |
Main Motor Power (Kw) | 0.75-1.5 | 1.1-3 | 5.5-11 | 7.5-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 | |
Heating Methods | Steam Pressure (MPa) | Jacket for steam | ||||||||||
Electric Power (Kw) | 2.4 | 2.4 | 6 | 12 | 18 | 30 | 45 | 54 | 72 | 72 | 90 | |
Vacuum (MPa) | 0~ -0.096Mpa (Vacuum Kneader) | |||||||||||
Discharging Method | Tilting cylinder | |||||||||||
Screw extrusion | ||||||||||||
Trusted by Global Manufacturers in 50+ Countries. From silicone to adhesives, see how our Sigma Kneaders are solving complex mixing challenges for industry leaders worldwide.
Our modern, fully equipped technical center is at your disposal. We welcome you to test your products to experience the advantages of our industrial mixers firsthand.
Specializing in mixers, grinding, and recycling machines, Karvil's experienced engineering team constantly explores new technologies to create perfect solutions for you.
Is this mixer suitable for highly sticky food materials like chewing gum?
Yes, absolutely. This specific model is tailored for food-grade, highly viscous applications. All contact parts are made of SS304 stainless steel with a high-level mirror polish, which significantly reduces material adhesion. The powerful 1.5KW Siemens motor and the precise 3mm clearance between the blades and the wall ensure uniform kneading even for tough materials like chewing gum, bubble gum, or dough.
How does the heating system work?
How easy is it to discharge the material and clean the machine?
Is this machine safe for laboratory use?
The specifications state 380V, 50Hz, 3-Phase. Can you customize the voltage for my country?
