NBR rubber compounding is not a gentle mixing job. The material is sticky, dense, slow to flow, and sensitive to air, heat, shear, and discharge method. When the batch contains rubber, fillers, plasticizers, additives, or solvent-related ingredients, a normal mixer often reaches its limit quite fast. A vacuum sigma kneader gives you stronger kneading force, better bubble removal, tighter temperature control, and safer operation for high-viscosity production.
NBR rubber is usually processed as a high-viscosity or semi-solid material. It does not move like powder or low-viscosity liquid. Once the batch becomes heavy, the mixer needs enough torque and shear to fold, press, stretch, and recombine the material again and again.
A sigma mixer, also called a Z blade mixer or sigma kneader mixer, is built for kneading and mixing high-viscosity materials such as silicone rubber, adhesive, graphite, chewing gum, sealant, butyl rubber, ink, carbon paste, and other sticky compounds. For NBR rubber, this matters because poor kneading can leave filler clusters, soft spots, or uneven additive distribution.
The double sigma blade structure gives the material a repeated cutting and folding action. It is not just stirring. It is forced kneading. That is the real difference.
A vacuum sigma mixer removes trapped air from the batch. In rubber compounding, bubbles may look small during mixing, but later they can affect density, surface quality, sealing performance, or downstream forming. Vacuum mixing also helps reduce oxidation risk when the formula is sensitive to air.
This is why vacuum is not an “extra nice feature” for many NBR rubber plants. It is part of process control.
Before choosing a machine, the real question is not only capacity. You also need to know what production problems the kneader can reduce. In NBR rubber, most buyer concerns are very practical: batch stability, temperature control, operator safety, cleaning, and discharge.
A vacuum system helps remove bubbles and improve material purity during kneading. For rubber compounds, this can support more stable density and fewer visible defects. It is especially useful when fillers, oils, or additives tend to trap air during feeding.
For example, if one batch looks smooth and the next batch has tiny voids, the problem may not be the formula alone. It can also come from air being pulled into the mix at the wrong stage.
NBR rubber compounding often needs controlled heating, not random overheating. A sigma kneader can use jacket temperature control. Common systems include electric heating, water heating, oil heating, and steam heating. For lab-scale or pilot formula work, heating systems may also include electric heating for standard operation, thermal oil circulation for more even high-temperature treatment, steam for quick heat transfer, and electromagnetic induction heating for more gentle control of heat-sensitive materials.
For industrial rubber batches, thermal oil jacket heating is often a smart choice when you need steadier heat across a dense material mass. It may cost more than simple electric heating, but it usually gives better heat transfer for heavier production.

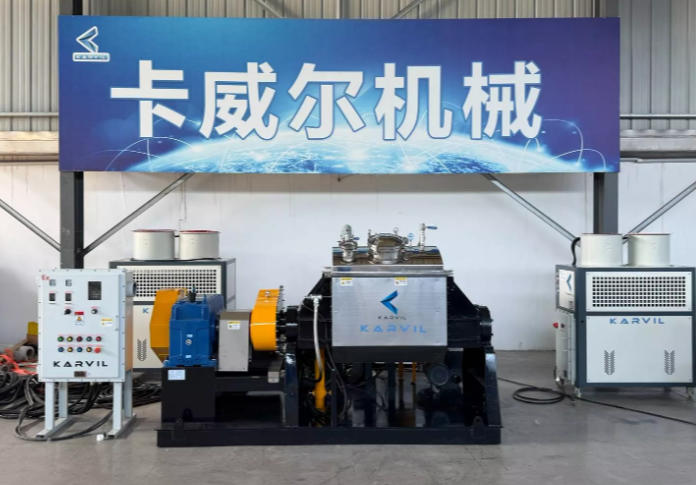

A production kneader should match your material, plant safety rules, and cleaning routine. The 300L Explosion-Proof Sigma Kneader is a good fit when you need a mid-size industrial machine for sticky, high-viscosity, or solvent-related materials.
A 300L sigma kneader is not too small for industrial trials and not too large for controlled batch work. It suits customers who need more than lab testing but still want process flexibility. For NBR rubber, sealants, adhesives, and similar materials, this size helps you test process timing, feeding order, heating curve, vacuum stage, and discharge method before scaling further.
Karvil Machinery also offers mixer solutions across different capacities and machine types, so buyers can compare sigma kneaders, ribbon mixers, planetary mixers, dispersing mixers, reactors, and complete production lines through the Karvil Machinery product range.
NBR rubber compounding may involve solvent-related ingredients, dust, or flammable working conditions depending on the formula. In these cases, an explosion-proof motor and electrical design become serious buying points, not decorative words in a quotation.
Karvil Machinery designs equipment with customer safety requirements in mind. Practical safety details can include emergency stop when the cover is opened, covered transmission positions, and guarded moving parts so operators cannot easily touch dangerous areas. The company also provides CE, ATEX explosion-proof certification, and FCM certification for relevant applications.
For overseas purchasing, safety and compliance are often checked before price. A machine may look acceptable on paper, but if it cannot match your plant audit, food-contact requirement, or explosive-atmosphere rule, it can delay the whole project.
Karvil Machinery has global compliance certification covering CE for safety and performance standards, ATEX for equipment used in explosive atmospheres, and FCM for materials intended to contact food. This is important because sigma kneaders are used not only for rubber and adhesives, but also for chewing gum, protein bars, and other food-related high-viscosity materials.
For food applications, product-contact materials are a big concern. Karvil Machinery can design sanitary contact parts and mirror-polished stainless steel structures. Product materials have passed the EU food contact material test and comply with (EC) No.1935/2004 regulations. That gives food buyers a clearer basis for material safety checks.
A good kneader should not let operators get close to exposed transmission parts. Open-cover emergency stop, covered drive areas, guarded movement zones, and safe control logic all matter. This is one of those details that may not sound exciting, but the plant manager will care about it on day one.
NBR rubber is only one use case. The same kneading logic also fits other sticky, dense, or difficult materials. That is why the application experience of the supplier matters.
Karvil Machinery equipment is used in chemical, food, pharmaceutical, fine chemical, cosmetic, adhesive, paint, ink, dye, paste, organic solvent, and ceramic applications. For sigma kneaders, typical materials include silicone rubber, sealant, hot melt adhesive, butyl rubber, adhesive, ink, carbon paste, chewing gum, protein bars, explosives, wear-resistant materials, and modified asphalt.
In more demanding sectors, kneaders and planetary mixers may also be used for aerospace-related materials, including rocket propellant processing. Different projects need different blade forms, sealing systems, vacuum levels, temperature control, and discharge methods. A standard machine does not always solve a non-standard material problem.
You can review more use cases through the Karvil Machinery application fields.
Karvil Machinery has exported equipment to more than 50 countries and regions, covering many markets in Europe and the Americas. The company supports customized equipment based on capacity, control system, material, safety level, discharge method, heating method, cooling method, and vacuum configuration.
For NBR rubber, you may need hydraulic tilt discharge. For non-self-flowing paste, screw extrusion may be better. For food compounds, mirror-polished SS304 or SS316 contact parts may be needed. The boring details decide whether the machine is easy to use after installation. That is just how factory equipment works.
A vacuum sigma kneader is not bought like a simple motor. Before ordering, your technical team should check material behavior, batch size, process temperature, safety zone, cleaning needs, and discharge method.
Ask these points clearly:
l What is the real working volume per batch?
l Is the material free-flowing, sticky, rubber-like, or non-self-flowing?
l Does the formula need vacuum degassing or anti-oxidation?
l Does the process need electric heating, thermal oil, steam, water cooling, or another jacket system?
l Is the area explosion-proof?
l Should contact parts be SUS304, SUS316, or another material?
l Do you need hydraulic tilting, screw extrusion, or bottom discharge?
l Do you need PLC touch screen control or button control?
Karvil Machinery provides one-to-one material testing, formula advice, and equipment selection support. You can also check technical documents and company materials through the Karvil Machinery download center.
Buying a kneader from another country is not only about the machine. You also need clear manuals, drawings, remote support, spare parts advice, and a supplier that understands export packaging and delivery.
Karvil Machinery provides a one-year warranty for sold products. When customers need longer support, the team can also provide lifetime technical consultation to keep the equipment running well over time. Professional engineers offer remote guidance, video teaching, online maintenance support, and practical troubleshooting.
To make daily use easier, the equipment comes with a full English operation manual and circuit diagram. That saves time for your maintenance team, especially during installation, operator training, and electrical checks.
Karvil Machinery also has its own manufacturing base and processing equipment, covering sheet metal, welding, assembly, and testing. This helps control quality and delivery time. To learn more about its background, visit Karvil Machinery or read more about the company through Karvil Machinery manufacturing experience.
Q1: Why Is a Vacuum Sigma Kneader Useful for NBR Rubber Compounding?
A: It gives strong shear for dense rubber materials and removes trapped air during kneading. This helps improve batch density, surface quality, and material consistency.
Q2: Can the 300L Explosion-Proof Sigma Kneader Handle Solvent-Based Materials?
A: Yes, it is designed for safer production where explosion-proof configuration is needed. For solvent-related formulas, you should confirm the plant safety zone, motor type, sealing design, and electrical requirements before ordering.
Q3: What Heating System Is Better for NBR Rubber Mixing?
A: Thermal oil jacket heating is often preferred for dense rubber batches because it gives more even heat transfer. Electric heating, steam heating, water heating, and cooling systems can also be selected based on the process.
Q4: Is the Machine Suitable Only for Rubber?
A: No. It can also be used for adhesives, sealants, hot melt adhesive, butyl rubber, ink, carbon paste, chewing gum, protein bars, explosives, wear-resistant materials, and other high-viscosity materials.
Q5: What After-Sales Support Does Karvil Machinery Provide?
A: Karvil Machinery provides a one-year warranty, lifetime technical consultation when needed, remote engineer support, video guidance, online maintenance help, English operation manuals, and circuit diagrams for easier use.
