Food-grade sigma mixing matters because sticky confectionery bases do not behave like ordinary liquids. Chewing gum, dense candy fillings, protein-bar pastes, and similar formulas need folding and shear to distribute ingredients, while temperature, hygiene, and discharge determine whether the process can be repeated in real production.

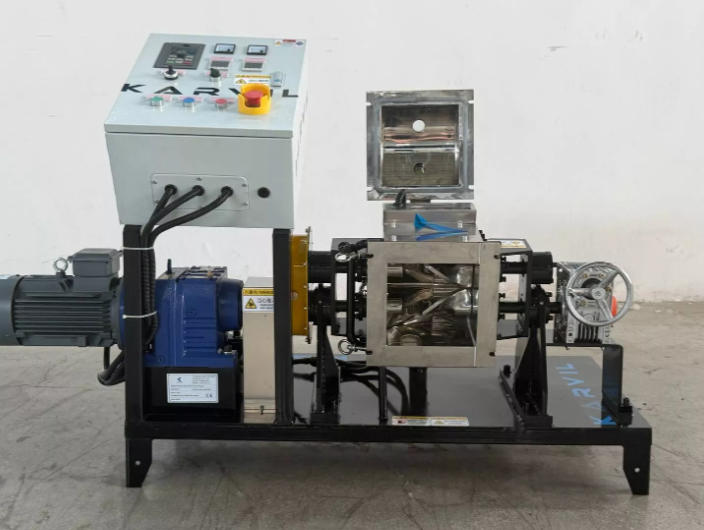

The 5L Lab Sigma Blade Mixer from Karvil Machinery is positioned as a food-grade Z-blade kneader for chewing-gum and sticky product development. Its role is to test process behavior at a practical laboratory scale before a larger line is selected.
Sticky formulas often contain a continuous base, powders, syrups, flavors, colors, and inclusions. A propeller mixer can rotate around the material without forcing the dense mass to fold. Sigma blades work through the batch and repeatedly compress, stretch, and turn it, creating the mechanical action needed for distribution.
The process must still protect texture. Too little work leaves streaks and dry pockets; too much shear or heat can damage structure, drive off flavor, or make the batch difficult to cut and form. A food R&D trial should therefore define a controlled endpoint rather than simply mixing for a fixed long time.
The order of base, syrup, powders, emulsifiers, flavors, and inclusions changes wetting and torque. Powders added too quickly can form lumps or overload the drive, while sensitive flavors added too early may be exposed to excess heat. The approved sequence should be written as part of the formula.
Temperature affects viscosity and the way ingredients disperse. A warmer mass may knead and discharge more easily, but excessive temperature can change flavor, color, or final bite. Record actual product temperature, not only the jacket setting.
Low speed can support controlled charging, while a higher or staged speed may improve folding and dispersion. Time should be linked to a measurable endpoint such as uniformity, moisture, density, texture, or torque trend.
Nuts, fibers, protein powders, minerals, or flavor particles change resistance and can be damaged by prolonged kneading. Trials should use the intended inclusion size and loading so the final product texture and equipment demand are represented.
Hygiene Area | What to Inspect | Why It Matters |
Contact material | Grade, finish, welds, and documentation | Supports food-contact compliance and cleanability |
Blade ends and seals | Crevices and product retention | Reduces cross-contamination risk |
Discharge area | Residue and access | Controls yield loss and cleaning time |
Cover and openings | Ingredient charging and foreign-body control | Protects the batch during mixing |
Cleaning method | Water, detergent, temperature, and disassembly | Determines changeover practicality |
Lubrication and drive separation | Potential contamination paths | Protects food-contact zones |
The term food grade should be supported by the exact contact materials, surface treatment, weld quality, seal arrangement, and documentation required by the destination market. A small mixer should be inspected with the same hygiene discipline expected from production equipment.
A 5L batch is large enough to reveal how the mass folds, heats, and releases, while remaining manageable for recipe development. The team can compare formulations using the same batch fill, ingredient sequence, speed stages, temperature profile, and endpoint tests.
The trial should record yield after discharge and the amount left on blades and walls. Sticky residue affects both economics and allergen or flavor changeover. If manual scraping is needed, the production line may require a different discharge method or a cleaning design that reduces retained product.
• Visual uniformity and distribution of colors or inclusions.
• Texture, hardness, extensibility, or chew after conditioning.
• Moisture or water activity where relevant to the product.
• Bulk density and air content.
• Temperature at discharge.
• Product loss remaining in the mixer.
• Cleaning time and any residue from the previous formula.
Sensory approval is important, but it should be paired with measurable process data. A batch that tastes right once may still be difficult to reproduce if temperature and kneading endpoint were not controlled.
Confectionery lines may process milk, nuts, soy, gluten, colors, and strong flavors. The buyer should define the cleaning validation and product sequence before equipment selection. Smooth contact surfaces help, but seals, blade hubs, covers, and discharge areas must also be accessible.
Where wet cleaning is used, drainage and drying must prevent water from remaining in hidden areas. Where dry cleaning is preferred, the process must remove powder and sticky films effectively. The cleaning method should be tested during the laboratory phase rather than left for the production team to solve later.
One mistake is approving the formula from a planetary or hand-mixed sample and assuming the same texture will appear in a sigma mixer. Another is scaling only by batch weight without considering blade geometry, drive load, heat-transfer area, and discharge. A third is treating cleaning as downtime rather than part of the cycle.
A more reliable approach is to create a process sheet that defines charge order, working volume, speed, temperature, kneading time, endpoint, discharge condition, and cleaning. This sheet becomes the bridge between R&D and production.
Provide the formula category, batch mass, density, target output, ingredient sequence, maximum temperature, texture endpoint, inclusion size, allergen plan, cleaning method, and preferred discharge. Samples or videos of the approved 5L trial help explain material behavior more accurately than a product name alone.
The team can then review Karvil production lines and discuss larger equipment with a defined food process. This keeps the conversation focused on repeatability, hygiene, and product quality.
Food-grade sigma mixing gives sticky confectionery formulas the folding and shear they need while making temperature, hygiene, and discharge visible during development. A 5L trial helps determine whether the recipe is truly ready for scale-up.
The strongest outcome is not one attractive sample. It is a repeatable process and a production brief that protects texture, cleaning, yield, and food-contact requirements.
Q1: What Is the Difference Between a Sigma Mixer and a Planetary Mixer?
A: A sigma mixer kneads dense material with two Z-shaped blades, while a planetary mixer is generally better suited to materials that can circulate around rotating tools. The correct choice depends on viscosity and required shear.
Q2: Can the Mixer Be Used for Chewing Gum?
A: The 5L model is positioned for chewing-gum and sticky food trials. The exact formula, temperature, working volume, and food-contact requirements should be confirmed.
Q3: Why Is Product Temperature Important?
A: Temperature changes viscosity, flavor retention, texture, discharge, and possibly shelf-life-related properties. It should be measured throughout the trial.
Q4: How Can Cleaning Be Tested?
A: Run the planned cleaning procedure after the real formula, inspect blades, seals, walls, and discharge areas, and record time, residue, water or solvent use, and drying.
Q5: What Data Should Be Carried Into Scale-Up?
A: Carry forward batch density, ingredient order, speed stages, temperature profile, kneading endpoint, torque or load trend, discharge behavior, yield, and cleaning results.
