Silicone resins initially appear to behave in a stable fashion at the start of a batch. However, as the mix is subjected to shear, friction and heat from reaction, its behavior can rapidly change. As temperature increases, the viscosity of the resin can fall rapidly reducing the working life and potentially affecting other additives that are sensitive to temperature. In addition, volatile components in the formula are at increased risk of vaporization.
A chiller is not simply an optional accessory placed beside a mixer. It forms part of the process-control system. To choose the right cooling setup, you first need to know where the heat comes from and what it does to the batch.
A sigma mixer uses two Z-shaped blades to stretch, fold, compress, and knead thick material. This strong shear is exactly why it works well with silicone resin, sealants, adhesives, carbon paste, chewing gum, and other products that an ordinary liquid agitator cannot move properly.
However, much of the motor’s mechanical energy eventually becomes heat. The effect grows as viscosity, solids content, blade speed, and mixing time increase. A lab batch may rise several degrees even without external heating. It is easy to miss this during a short trial, then find a much larger temperature rise after production scale-up.
Silicone resin viscosity normally falls as temperature rises. At first, the material may circulate more easily. If the temperature keeps climbing, though, fillers may disperse differently, volatile components may evaporate faster, and the reaction or curing rate may change.
Your set temperature, displayed temperature, and actual material temperature should stay reasonably close. A sensor mounted far from the active kneading zone may react too slowly, so the batch can become hotter than the screen suggests. Stable cooling helps you repeat the same mixing result instead of adjusting every batch by feel.
One part of the cooling system removes process heat, the other part is explosion-proof and reduces the risk of ignition for electrical and mechanical parts. Two completely different objectives.

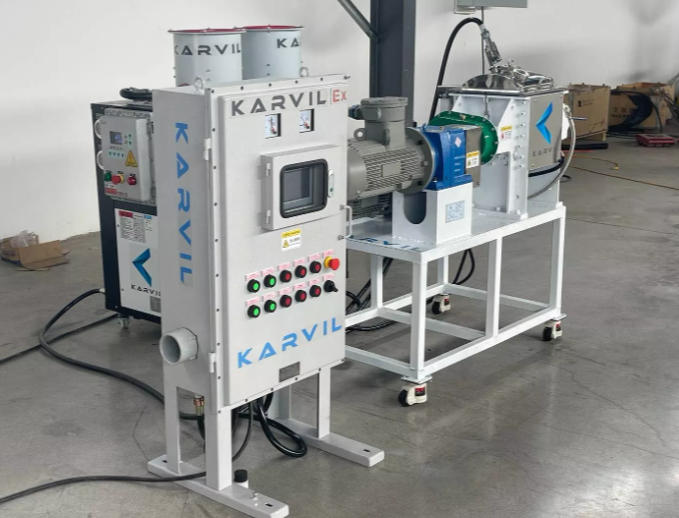

The Explosion Proof Sigma Mixer with Chiller uses a dedicated water chiller positioned behind the mixer. Coolant circulates through the jacket and carries heat away from the vessel wall.
This system is useful when your formula contains heat-sensitive resin, solvent, catalyst, pigment, or functional additive. It can also keep viscosity within a workable range before screw discharge. There is a practical point here: a batch that mixes well but becomes too stiff to unload is still a failed process.
A basic cooling-water connection depends on the factory water temperature and flow. During summer or long production shifts, both may change. A dedicated chiller provides more stable coolant conditions and gives you better control over the material temperature.
Cooling capacity must match the real heat load. Mixer size alone is not enough. Your supplier also needs blade power, starting temperature, target temperature, cycle time, room conditions, material heat capacity, and possible reaction heat.
Silicone resin formulations may contain volatile or flammable ingredients. Vapors can collect near covers, seals, outlets, and electrical controls. An explosion-proof design reduces the chance that motors, switches, controls, or hot surfaces become ignition sources.
The product uses an explosion-proof PLC control cabinet and an explosion-proof limit switch. When the top cover opens, the mixer stops. Transmission areas can also be enclosed so operators cannot touch moving parts. These controls support safer work, but they do not replace plant ventilation, grounding, vapor assessment, or hazardous-zone classification.
Cooling works best when the blade system, seals, contact materials, controls, and discharge method suit the formula. One weak part can make the whole process harder to repeat.
The 10-liter mixers are equipped with dual sigma blades for mixing. The fast-blade area can be set from 0 to 42 rpm and the slow-blade area from 0 to 35 rpm. Due to the variable-frequency drive the speed can be increased after the powder has been added to the mixing chamber for the kneading phase. With the increasing temperature or torque the speed can be decreased again.
The unit has a 2.2 kW motor and an explosion-proof PLC control system. Its nominal 10-liter chamber is intended for laboratory work and small-batch development, where you need to test mixing time, temperature, ingredient order, and cooling response before buying a larger machine.
All product-contact parts on this model are mirror-polished SS316. The end plates use PTFE sealing. These materials support corrosion resistance, cleaning, and controlled processing when the formula contains reactive ingredients.
Mirror polishing also gives sticky resin fewer surface irregularities to grip. It does not create a truly residue-free chamber, but cleaning is usually easier than with rough welds or poorly finished steel.
The 10L explosion-proof sigma kneader uses screw discharge with a DN40 manual ball valve. The screw applies positive force, so you do not have to rely on gravity to remove a non-flowing batch.
This matters after cooling. Lower temperature may protect the formula but also raise viscosity. A screw helps move the finished resin in a controlled stream and cuts down heavy manual scraping.
Some silicone resin processes need both functions. The material may require warming during early wetting, then cooling once shear or reaction heat begins to rise.
Laboratory sigma mixers can use several jacket systems. Electric heating is convenient for standard operation. Thermal-oil circulation supports even treatment at higher temperatures. Steam transfers heat quickly. Electromagnetic induction offers gentler, more precise control for heat-sensitive materials.
The wider industrial mixer range can also be configured with water heating, oil heating, steam heating, water cooling, jacket cooling, vacuum systems, and several discharge methods.
For correct equipment selection, provide your batch volume, density, viscosity range, solvent content, flash point, target temperature, maximum permitted temperature, mixing time, discharge form, and hazardous-area classification.
A material sample is even better. Karvil Machinery offers material testing and equipment-selection support, while its application center shows how different mixer structures fit adhesives, food materials, ceramics, powders, pharmaceuticals, and other products.
A purchasing decision should cover more than capacity and motor power. Documentation, operator protection, maintenance access, and technical support often decide whether the mixer works smoothly after installation.
Karvil Machinery lists CE certification for European safety and performance requirements, ATEX certification for equipment used in explosive atmospheres, and FCM certification for food-contact applications.
For an ATEX project, confirm the exact zone, gas or dust group, temperature class, motor rating, control cabinet, sensors, and mechanical components included in the certified scope.
For sanitary projects, product materials have passed EU food-contact material testing and comply with Regulation (EC) No. 1935/2004. Food processors should also check steel grade, weld finish, seals, cleaning access, and all surfaces that touch the product.
Sigma mixers can process adhesives, sealants, silicone rubber, explosives, rocket propellants, chewing gum, and protein bars. Ribbon mixers are better suited to powders such as flour, ice-cream powder, and dry mortar. Planetary mixers often handle battery slurry, dental materials, sealants, and aerospace compounds.
These applications overlap, which is why material behavior should guide the choice rather than the industry name alone. Capacity, blade geometry, cooling load, vacuum level, contact material, control method, and safety grade can all be customized.
Karvil Machinery provides a one-year warranty for sold equipment and lifetime technical consultation when support is needed. Professional engineers can provide remote installation guidance, video assistance, and online troubleshooting. The equipment also comes with an English operation manual and electrical drawings.
You can review general documentation through the technical download center. Before shipment, also request wiring diagrams, spare-parts lists, inspection records, chiller settings, and recommended maintenance intervals.
Q1: Why Is a Chiller Needed for Silicone Resin Mixing?
A: Strong sigma-blade shear creates heat. A chiller removes that heat, keeps viscosity more stable, and protects heat-sensitive resin components.
Q2: Does Explosion-Proof Equipment Remove Every Fire Risk?
A: No. It reduces potential ignition sources, but your plant still needs correct ventilation, grounding, operating rules, and hazardous-area classification.
Q3: What Is the Capacity of This Explosion-Proof Sigma Mixer?
A: The laboratory model has a 10-liter total capacity and is designed for material trials, formula development, and small-batch production.
Q4: Can the Mixer Both Heat and Cool the Material?
A: Yes. Karvil Machinery can configure jacket heating through electricity, thermal oil, steam, or other systems, together with water or chiller cooling.
Q5: What Information Is Needed to Select the Chiller?
A: Provide the batch size, material type, starting and target temperatures, mixing time, motor power, reaction heat, room conditions, coolant temperature, and maximum allowed product temperature.
