Karvil
| Screw Diameter: | |
|---|---|
| Output range: | |
| Voltage: | |
Main features and advantages
1.This type of crushing and cleaning crusher adopts an integrated structure, due to which the processed materials can be cleaned twice at the same time
2.The main body is welded by a uniquely designed double-layer steel plate , and the interlayer is welded to strengthen the vertical plate, which improves the fatigue resistance and impact resistance of the body and effective sound insulation. Theeasy-to-disassemble movable screen bottom can be replaced at any time according to different material specifications.
3.This model is equipped with an automatic opening device for tool change or fastening bolts without manual opening.
Technical Parameters
Model | KR400 | KR450 | KR550 | KR600 | KR700 |
Body Width(mm) | 500 | 600 | 800 | 1000 | 1200 |
Rotation Diameter (mm) | 400 | 450 | 550 | 600 | 700 |
Spindle Speed N (r/min) | 700 | 700 | 700 | 650 | 650 |
Spindle drive power P(KW) | 18.5 | 22 | 30 | 45 | 55 |
Total number of tools T(B) | 5 | 8 | 10 | 10 | 13 |
Total Weight(KG) | 1400 | 2000 | 2600 | 4000 | 7300 |
Production capacity Q(KG/H) | 300-500 | 300-450 | 500-600 | 700-1000 | 1200-1500 |
Length of washing barrel(mm) | 2500 | 3000 | 3300 | 4000 | 4300 |
Washing drive power(KW) | 7.5 | 7.5 | 11 | 15 | 18.5 |
Product Details
Application Range

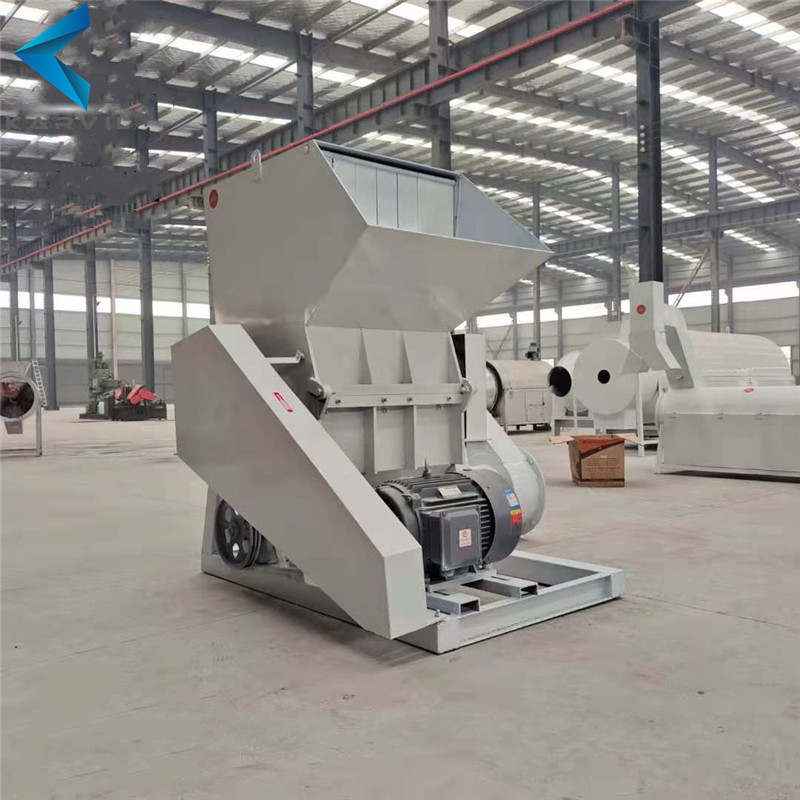

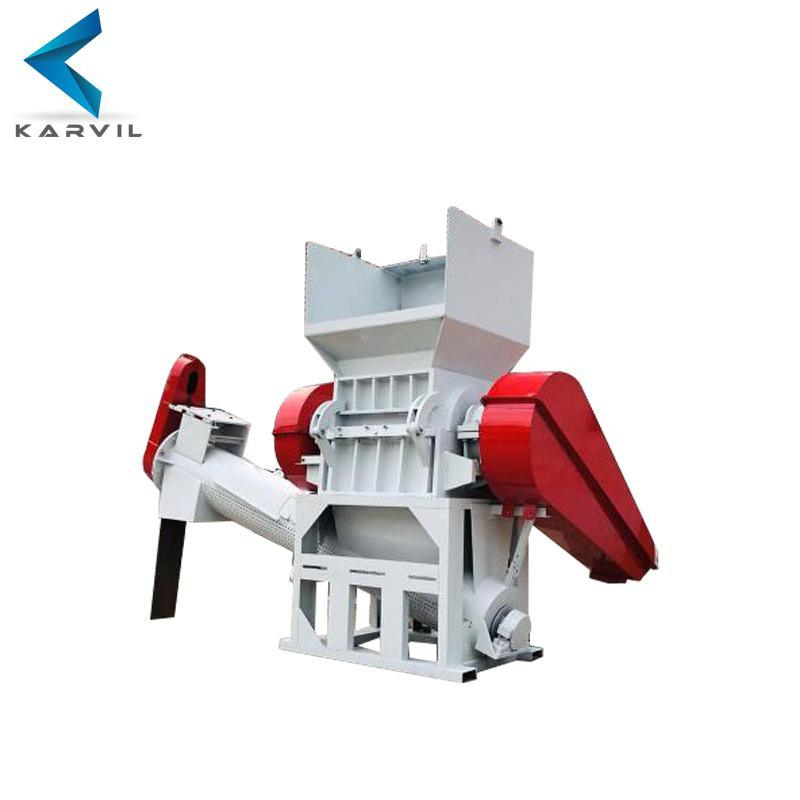

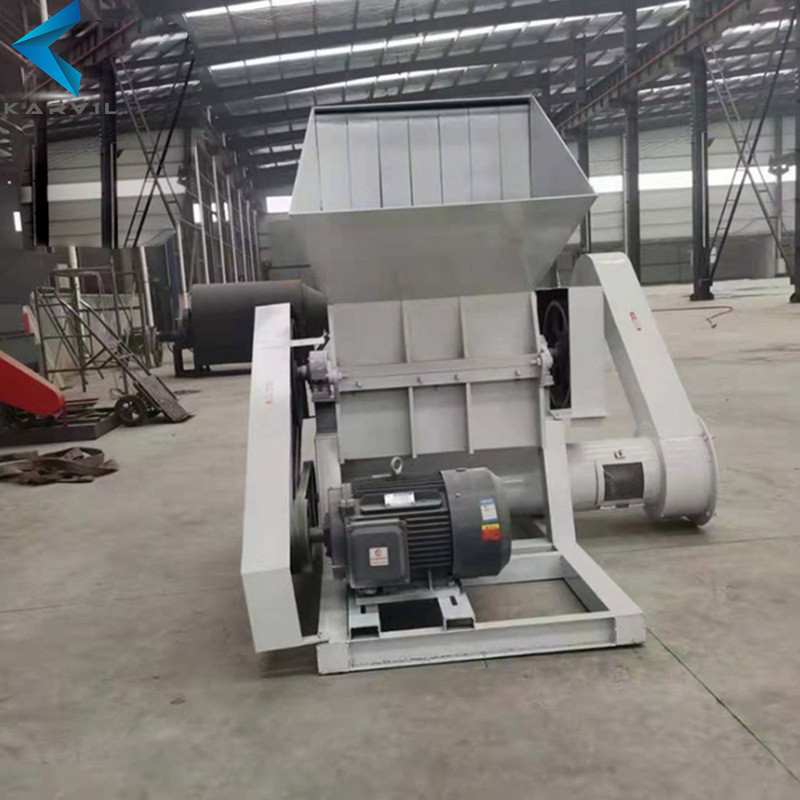

This waste pe pp plastic film grinder machine is mainly used for size reduction of soft PP/PE plastic film, plastic bags, woven bags, as well as rigid plastic PET bottles, PP/PE bottles, buckets, hollow containers and so on.
Main features and advantages
1.This type of crushing and cleaning crusher adopts an integrated structure, due to which the processed materials can be cleaned twice at the same time
2.The main body is welded by a uniquely designed double-layer steel plate , and the interlayer is welded to strengthen the vertical plate, which improves the fatigue resistance and impact resistance of the body and effective sound insulation. Theeasy-to-disassemble movable screen bottom can be replaced at any time according to different material specifications.
3.This model is equipped with an automatic opening device for tool change or fastening bolts without manual opening.
Technical Parameters
Model | KR400 | KR450 | KR550 | KR600 | KR700 |
Body Width(mm) | 500 | 600 | 800 | 1000 | 1200 |
Rotation Diameter (mm) | 400 | 450 | 550 | 600 | 700 |
Spindle Speed N (r/min) | 700 | 700 | 700 | 650 | 650 |
Spindle drive power P(KW) | 18.5 | 22 | 30 | 45 | 55 |
Total number of tools T(B) | 5 | 8 | 10 | 10 | 13 |
Total Weight(KG) | 1400 | 2000 | 2600 | 4000 | 7300 |
Production capacity Q(KG/H) | 300-500 | 300-450 | 500-600 | 700-1000 | 1200-1500 |
Length of washing barrel(mm) | 2500 | 3000 | 3300 | 4000 | 4300 |
Washing drive power(KW) | 7.5 | 7.5 | 11 | 15 | 18.5 |
Product Details
Application Range
This waste pe pp plastic film grinder machine is mainly used for size reduction of soft PP/PE plastic film, plastic bags, woven bags, as well as rigid plastic PET bottles, PP/PE bottles, buckets, hollow containers and so on.
