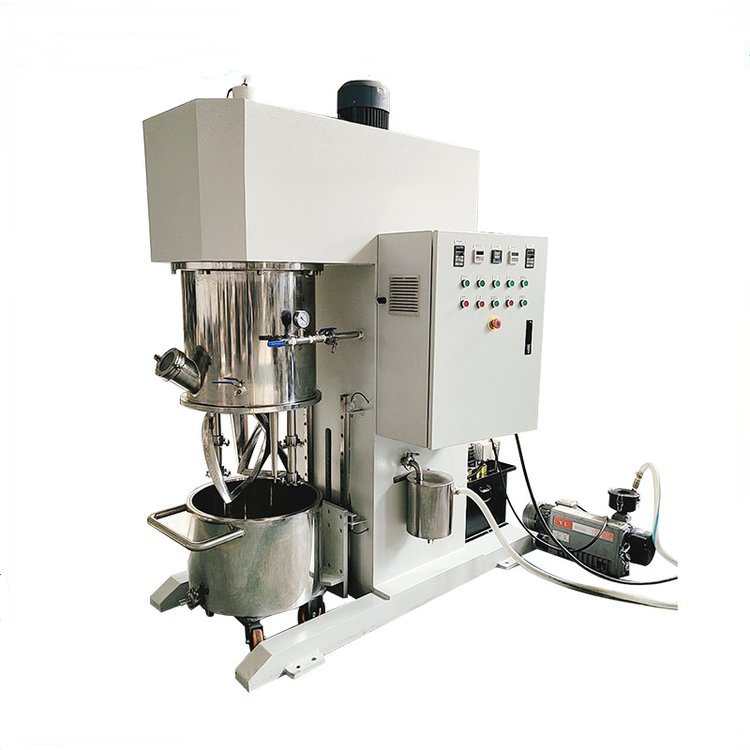

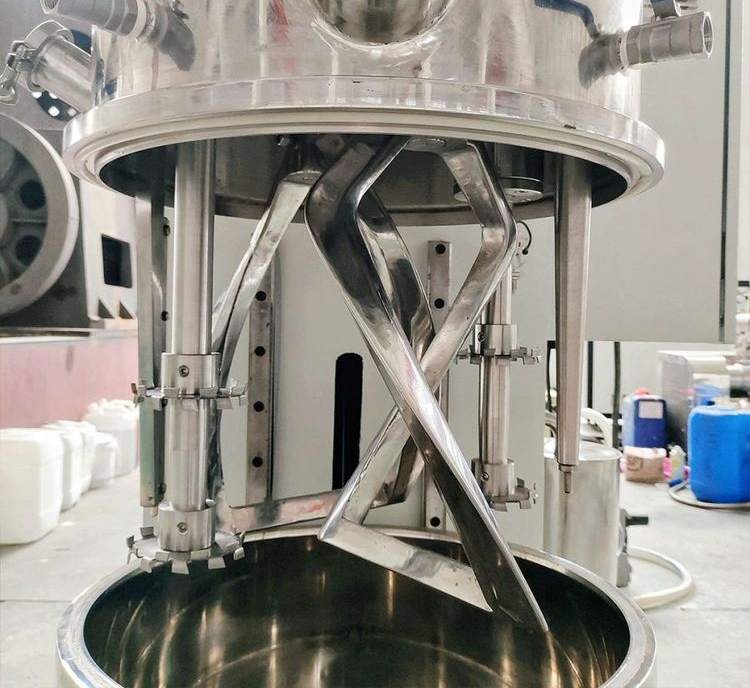

The planetary mixer is a high-efficiency mixing equipment integrating dispersion and mixing. It is equipped with a low-speed stirring component and a high-speed dispersing component. The low-speed stirring component adopts planetary gear transmission. The stirring paddle also rotates during revolution, making the material move up, down and around. , thereby achieving the ideal mixing effect in a shorter time.
The planetary mixer is a high-efficiency mixing equipment integrating dispersion and mixing. It is equipped with a low-speed stirring component and a high-speed dispersing component. The low-speed stirring component adopts planetary gear transmission. The stirring paddle also rotates during revolution, making the material move up, down and around. , thereby achieving the ideal mixing effect in a shorter time.
Model (L) | 5 | 15 | 30 | 50 | 100 | 300 | 500 | 1000 | |
Tank Dia (mm) | 280 | 280 | 400 | 480 | 550 | 850 | 960 | 1160 | |
Tank height (mm) | 180 | 325 | 325 | 365 | 550 | 650 | 810 | 1100 | |
Revolution motor (kW) | 1.5 | 2.2 | 3 | 4 | 5.5 | 18.5 | 22 | 30-37 | |
Revolution speed (rpm) | 0-60 | 0-60 | 0-84 | 0-62 | 0-70 | 0-45 | 0-35 | 0-35 | |
Wall scraper rev (rpm) | 0-60 | 0-60 | 0-84 | 0-62 | 0-70 | 0-45 | 0-35 | 0-35 | |
Rotation speed (rpm) | 0-100 | 0-100 | 0-130 | 0-75 | 0-110 | 0-62 | 0-60 | 0-45 | |
Dispersing motor (kw) | 1.1 | 2.2 | 2.2 | 5.5 | 5.5 | 11 | 30 | 37 | |
Dispersing rev (rpm) | 0-1500 | ||||||||
Vacuum (MPa) | ≤-0.098 | ||||||||
Lift travel (mm) | 360 | 400 | 430 | 650 | 700 | 900 | 1000 | 1100 | |
External dimension (mm) | L | 1500 | 1700 | 1700 | 1700 | 1700 | 2500 | 2700 | 2700 |
W | 900 | 900 | 900 | 900 | 1100 | 1200 | 1500 | 1800 | |
H | 1700 | 2100 | 2300 | 2300 | 2300 | 2700 | 2900 | 3100 | |
Weight (kg) | 500 | 800 | 1000 | 2000 | 2300 | 2700 | 3500 | 5000 |
