Graphite slurry production is not a light mixing job. The material is dense, sensitive to air, often high in solid content, and the solvent system brings safety pressure from the first batch test. For a graphite slurry manufacturer, the mixer is not just a tank with blades. It affects slurry stability, coating quality, worker safety, cleaning time, and whether the same formula can be repeated next Monday without another long adjustment.
Graphite slurry looks simple on a formula sheet, but it behaves differently inside a production mixer. Particle size, binder ratio, solvent volatility, batch temperature, and vacuum level all change the final slurry. A small air bubble problem in the mixer can later become a pinhole, coating mark, or batch rejection. This is why many buyers move from ordinary mixers to planetary mixing systems.
Graphite has high density and can settle if flow is weak. When solid content rises, slurry viscosity climbs fast, and the material near the vessel wall may move slower than the center. A mixer must pull material from different zones, not only stir the middle.
A double planetary mixer helps because the blades rotate and revolve at the same time. The material moves up, down, and around the vessel. For thick graphite slurry, this motion gives stronger bulk movement and better contact between graphite, binder, solvent, and additives.
During slurry mixing, air can enter the material. If bubbles remain, coating may show pinholes or small defects. Later rolling can turn trapped bubbles into micro cracks. In battery slurry production, this can affect compaction density, conductivity, and cycle performance. It sounds small, but coating people know this is where trouble often starts.
Vacuum mixing is therefore not a decoration. It helps remove bubbles, lowers oxidation risk, and improves slurry density. For graphite and other electrode materials, vacuum design is usually one of the first points to check.
Solvent based slurry brings flammable vapor risk. If your production area has an explosion risk zone, the motor, electrical control, sealing, and moving parts cannot be treated like normal workshop equipment. Equipment selection has to include explosion proof design, safe access, and certification documents.
That is why many manufacturers prefer an explosion proof double planetary mixer rather than a general purpose mixer with later modifications.
A double planetary mixer is suited for high viscosity, high solid content, and slurry processes that need vacuum degassing. For buyers comparing equipment, the key point is not only “can it mix?” The better question is whether it can keep the batch stable, safe, and repeatable at production scale.
The planetary blades rotate around their own axes while revolving around the tank. This movement reduces dead zones and helps the slurry travel through the whole mixing space. For graphite slurry, this means fewer dry pockets, fewer uneven binder areas, and better dispersion before coating.
The industrial mixer range includes planetary mixers for battery slurry, sealants, dental materials, adhesives, electronic pastes, and other high viscosity materials. These industries often share similar pain points: sticky materials, difficult discharge, strict batch consistency, and a need for clean internal surfaces.
A vacuum planetary mixer can remove air during mixing. This is important for graphite slurry because bubbles are not always visible before coating. Vacuum also helps reduce oxygen and moisture contact for sensitive materials.
A practical configuration may include:
· Vacuum interface and vacuum pump
· Buffer tank and vacuum gauge
· Jacket for heating or cooling
· PLC or button control
· Speed, time, temperature, and vacuum monitoring
For solvent based graphite slurry, the Explosion-Proof Double Planetary Mixer is a more suitable choice because it combines planetary mixing, vacuum processing, and explosion proof design in one system.
High viscosity slurry tends to stick to the inner wall and bottom. A movable scraper can scrape the material from the wall back into the mixing zone. This reduces residue, helps heat transfer, and makes batch discharge cleaner.
This point is often overlooked during purchasing. A buyer may compare motor power first, but wall scraping, blade clearance, and vessel polishing can matter more in real production. If slurry sticks to the wall for too long, it may have different viscosity from the main batch.
Safety is not a small accessory on solvent based mixing equipment. It affects operator protection, audit documents, insurance review, and whether the equipment can enter certain markets. Before ordering, you should ask how the machine is designed, not only whether a certificate exists.
For solvent based graphite slurry, ATEX explosion proof certification is a strong signal for use in explosive atmospheres. Equipment in such areas needs proper motor selection, electrical safety, material choice, and control of possible ignition sources.
Karvil Machinery has CE, ATEX, and FCM related certification support. CE relates to European safety and performance expectations. ATEX is important for explosive atmospheres. FCM is important where machine parts contact food materials.
You can also review its wider application fields to see how mixing equipment is used across new energy, chemicals, adhesives, food, pharmaceuticals, ceramics, coatings, inks, and organic solvent processes.
A good mixer should help prevent direct contact with dangerous moving parts. For customized equipment, safety details can include an emergency stop when the lid is opened, covered transmission positions, guarded rotating areas, and control logic that prevents unsafe operation.
For solvent based materials, this is not just for audit files. It also helps reduce mistakes during cleaning, charging, sampling, and maintenance. Workers need simple safe routines, especially when production runs more than one shift.
Food industry buyers usually check material hygiene, product contact surfaces, and whether the machine can be cleaned properly. Even for graphite slurry, similar thinking helps. Smooth surfaces, proper polishing, low residue design, and easy access reduce cross contamination and cleaning time.
For food related machines, product materials have passed the EU food contact material test and comply with (EC) No.1935/2004 regulations. That shows attention to contact material safety. The same design mindset is useful for slurry buyers who care about purity and batch changeover.
No single mixer works best for every material. Graphite slurry, sealant, rocket propellant, chewing gum base, protein bar material, flour, ice cream powder, and dry mortar all need different mixing action. A reliable supplier should ask about your material before quoting a model. A cheap machine selected too quickly can become expensive after three months of unstable production.
For graphite slurry, you should confirm working volume, viscosity range, solid content, solvent type, target vacuum, and discharge method. Stainless steel 304 or 316L may be selected for product contact parts. Controls can be manual, button based, or PLC touch screen.
Useful questions include:
· What is the batch size and working volume?
· Does the slurry need vacuum degassing?
· Is heating or cooling required?
· Is the workshop an explosion risk area?
· Does the process need speed changes during mixing?
· How will the material discharge into the next step?
Graphite slurry may need temperature control because viscosity can change during mixing. A jacket can support water, steam, electric heating, or thermal oil, depending on the process. Cooling may also be needed when shear heat affects the formula.
Discharge also matters. High viscosity slurry does not flow like water. A removable tank, bottom discharge, pressure assisted discharge, or matched downstream transfer system may be discussed. Small details here save a lot of operator time.
For new formulas, lab or pilot equipment can help test mixing time, speed curve, vacuum level, and temperature range. Once the process is stable, the machine can be scaled for production. The same idea applies to other high viscosity fields, including sealants, dental materials, aerospace materials such as rocket propellants, and various adhesives.
For document preparation, buyers can also check the download center for more machine information before sending an inquiry.
A graphite slurry mixer is a long term production asset. After installation, you may still need support for recipe adjustment, operator training, troubleshooting, spare parts, and maintenance. This is where supplier experience becomes very practical. A fast answer from an engineer can save a batch, and sometimes save a customer meeting too.
Karvil Machinery has exported equipment to more than 50 countries and regions, covering many markets in Europe and the Americas. Its equipment is used in chemical, food, pharmaceutical, new energy, adhesives, carbon products, waterproof materials, ceramics, paints, inks, dyes, pastes, and organic solvent related processes.
That matters because different regions ask for different voltage, safety habits, documents, packaging, and shipping routes. Export experience reduces small but annoying delays.

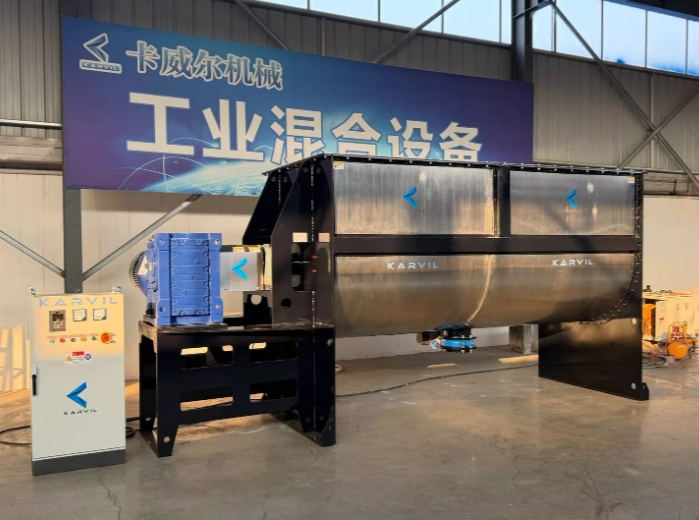

The company’s customization experience covers several mixer types. Kneaders are used for explosives, aerospace materials such as rocket propellants, adhesives, sealants, chewing gum, and protein bars. Ribbon mixers are used for powder materials such as flour, ice cream powder, additives, and dry mortar. Planetary mixers are used for battery slurry, dental materials, sealants, adhesives, and some aerospace materials.
This cross industry experience helps when your graphite slurry process has special requirements. You can start with a standard planetary structure, then discuss explosion proof level, vessel material, vacuum system, jacket design, scraper form, control panel, and safety devices.
Karvil Machinery provides a one year warranty for sold equipment, plus long term technical consultation when customers need it. The professional engineer team can offer remote technical support, installation guidance, video teaching, and online maintenance help.
For easier daily use, equipment can be supplied with a full English operation manual and electrical drawings. This is useful for international plants where operators, maintenance staff, and project engineers may work in different teams. Nobody wants to guess a wiring point at 10 p.m., that is just real factory life.
Q1: Why do graphite slurry manufacturers prefer double planetary mixers?
A: They prefer double planetary mixers because graphite slurry is dense, high in solid content, and sensitive to bubbles. Planetary motion helps move material through the whole vessel, while vacuum degassing helps reduce air bubbles before coating.
Q2: Is an explosion proof mixer necessary for solvent based graphite slurry?
A: Yes, it is often necessary when the solvent system creates flammable vapor risk. An explosion proof mixer with ATEX related design can better match solvent based production areas and safety audit needs.
Q3: Can a double planetary mixer handle both mixing and degassing?
A: Yes. A suitable double planetary mixer can combine blade mixing, wall scraping, vacuum degassing, and heating or cooling. This helps improve slurry consistency and lowers the risk of coating defects caused by trapped air.
Q4: How does after sales service affect graphite slurry production?
A: Good after sales service helps you solve installation, operation, maintenance, and process adjustment problems faster. Remote engineer support, English manuals, circuit diagrams, warranty terms, and long term technical consultation can reduce downtime after the machine enters production.
