Designed for uniform blending of fine mineral salts, trace minerals, lime powder, magnesium oxide, and other dry powders.
0–27 rpm variable-speed control gives operators flexibility to adjust the mixing process to different powder formulations.

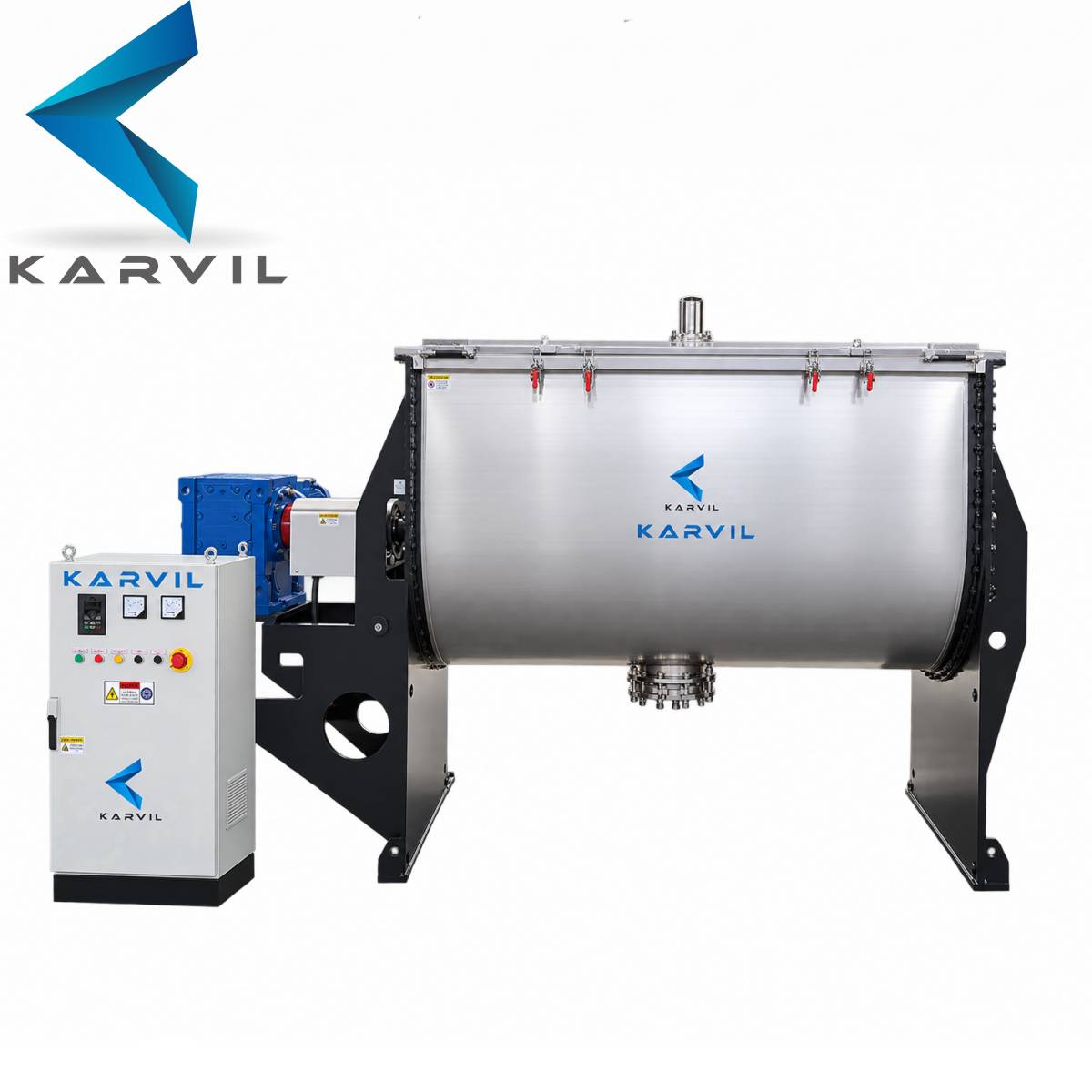

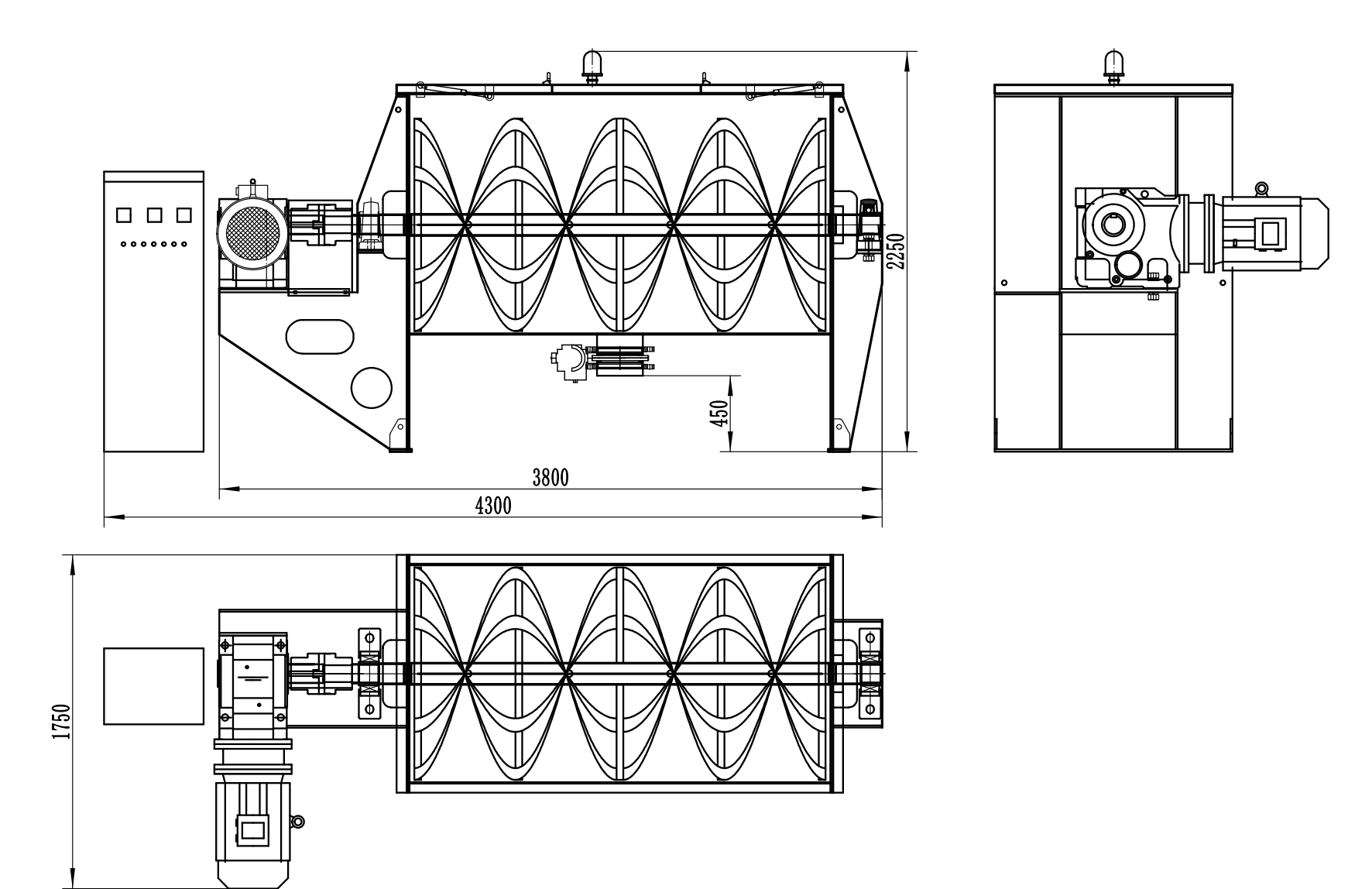

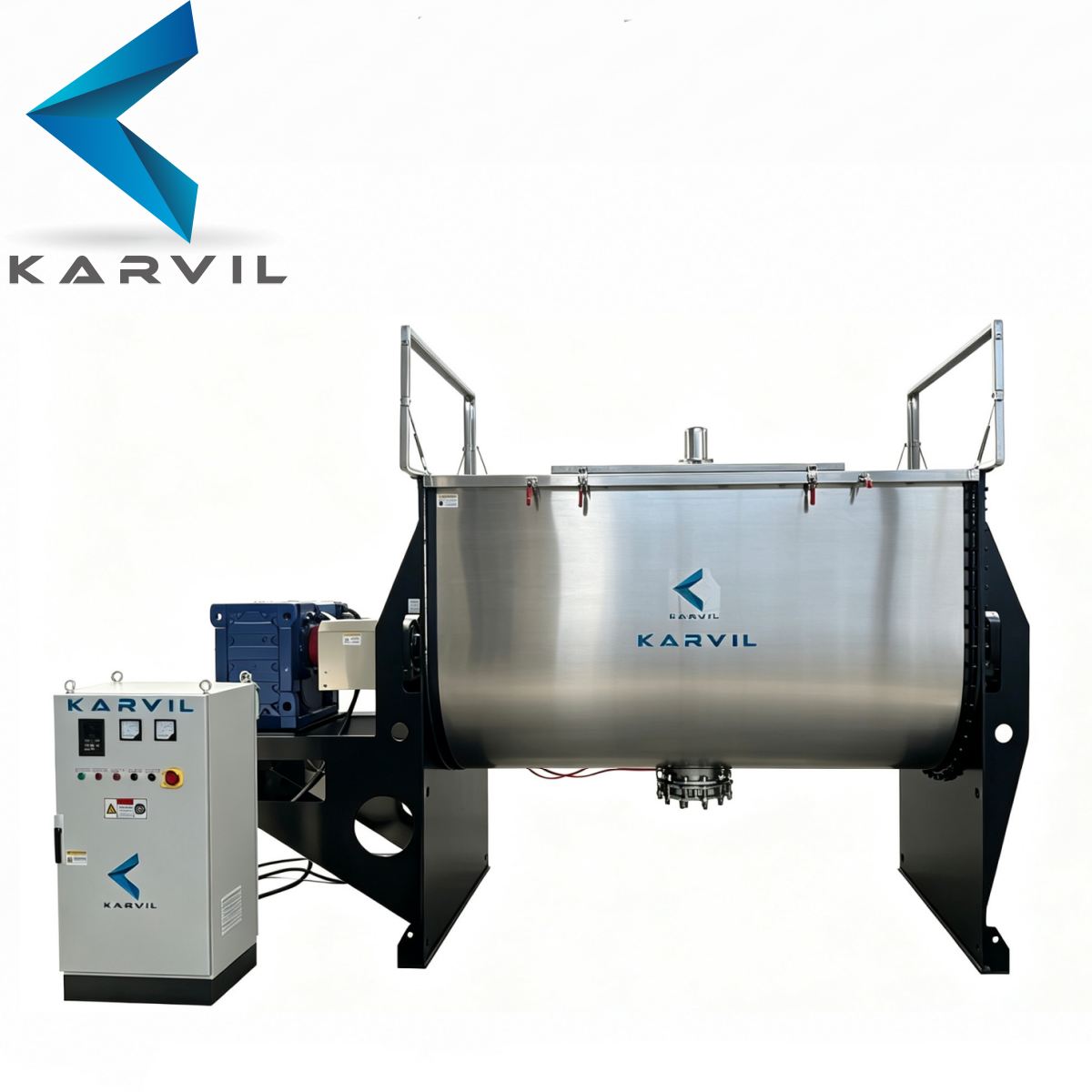

WLDH-3300
Karvil
Fine powders require more than simply putting ribbons inside a tank. Mixing performance depends on material characteristics, ribbon design, clearance, speed, and discharge configuration.
Uniform Powder Blending: Horizontal ribbon movement helps distribute fine powders throughout the batch.
Adjustable Mixing Speed: Variable-speed control from 0–27 rpm allows the operator to adjust the process.
Reduced Material Retention: Bottom discharge provides a direct path for powder unloading.
Industrial-Duty Construction: Robust shaft, gearbox, bearings, and SS304 construction are designed for production use.
Contact Materials: 304 Stainless Steel 316 optional
Interior Surfaces: Mirror Polish
Support Steel: 304 or 316 Stainless Steel
Exterior Surfaces: Finishing Polish
Discharge: Swing away flush valve with pneumatic actuation
Control: Manual / PLC / Automatic
Drive: Hollow Bore SEW Eurodrive
Feeding System: Screw conveyors, vacuum feeders, bucket elevators and other options.
Loading → Ribbon Mixing → Uniform Blending → Bottom Discharge

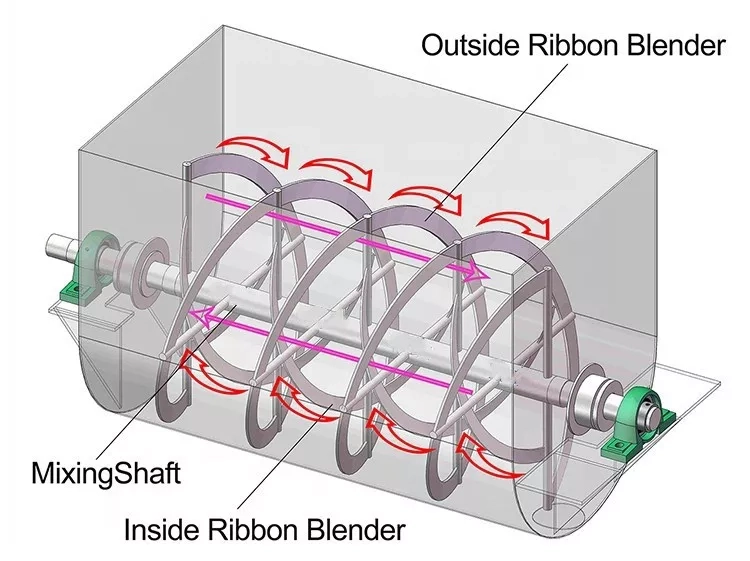

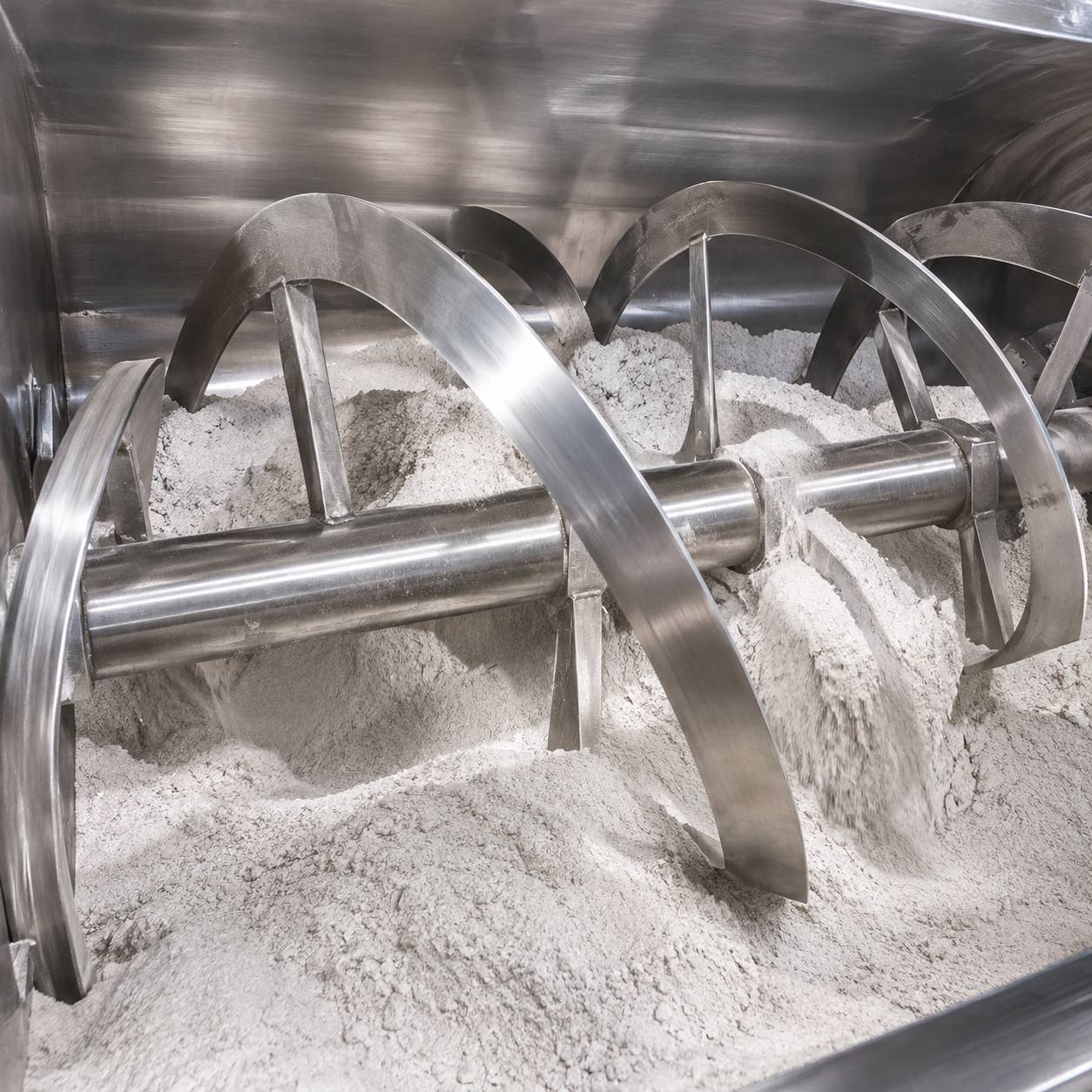

The horizontal ribbon mixer uses inner and outer ribbons to create continuous material movement inside the mixing chamber.
As the ribbons rotate, material moves both along the length of the mixer and across the working area. This helps distribute different powder ingredients throughout the batch.
Reliable equipment, efficient mixing and customized solutions for your production needs.
Capacity
Different mixer sizes according to batch requirements.
Material
Carbon steel, SS304, SS316 and other options.
Process
Heating, cooling, different discharge and control configurations.
Application Consultation
Support for mixer selection based on your material and process.
Project Customization
Equipment designed around your production requirements.
Export Experience
32equipment has been supplied to customers in more than 50 countries.
Heavy-Duty Construction
Built for continuous industrial operation.
Precision Fabrication
Carefully manufactured mixing components and structure.
Long Service Life
Designed for reliable long-term performance.

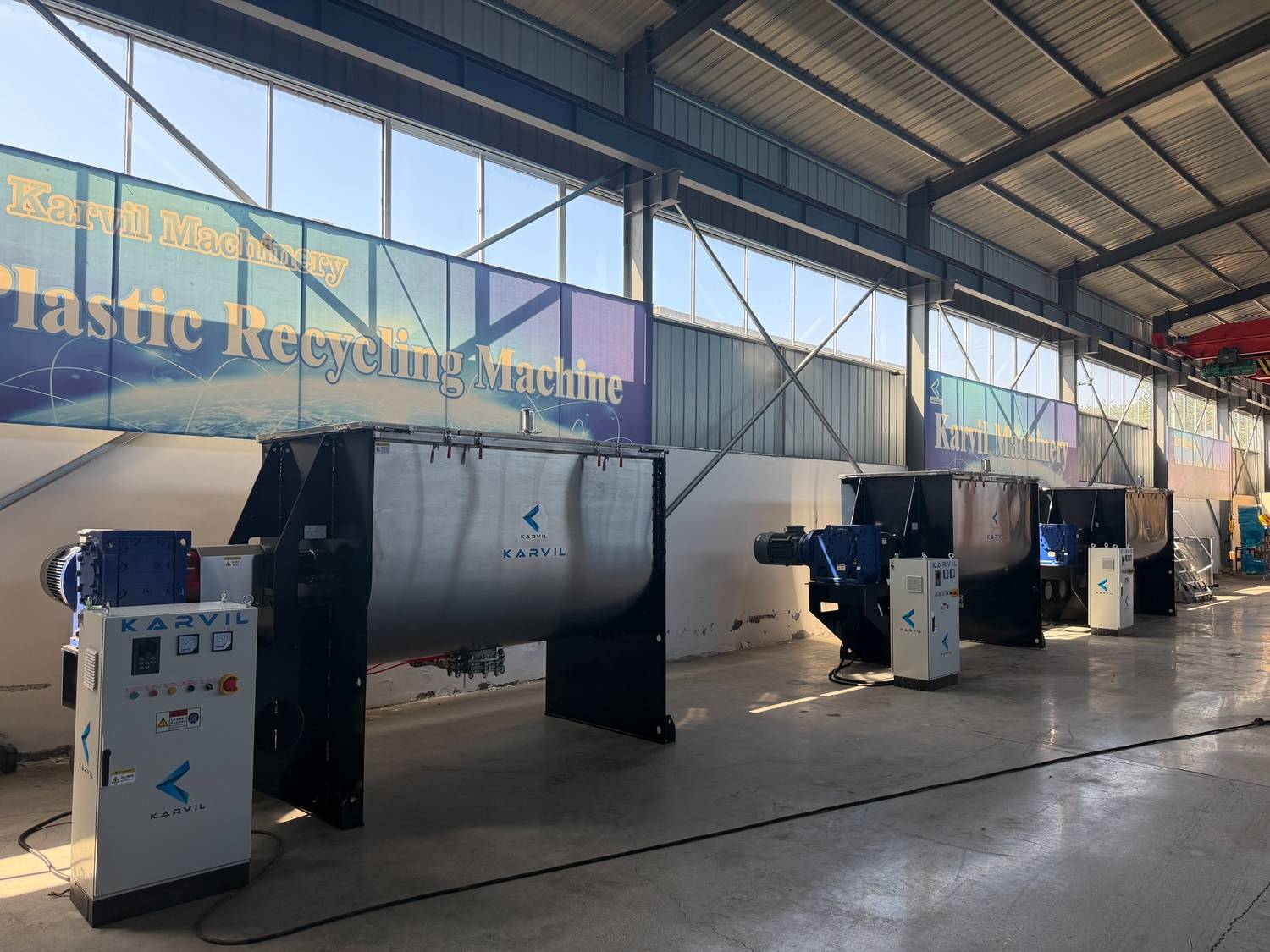

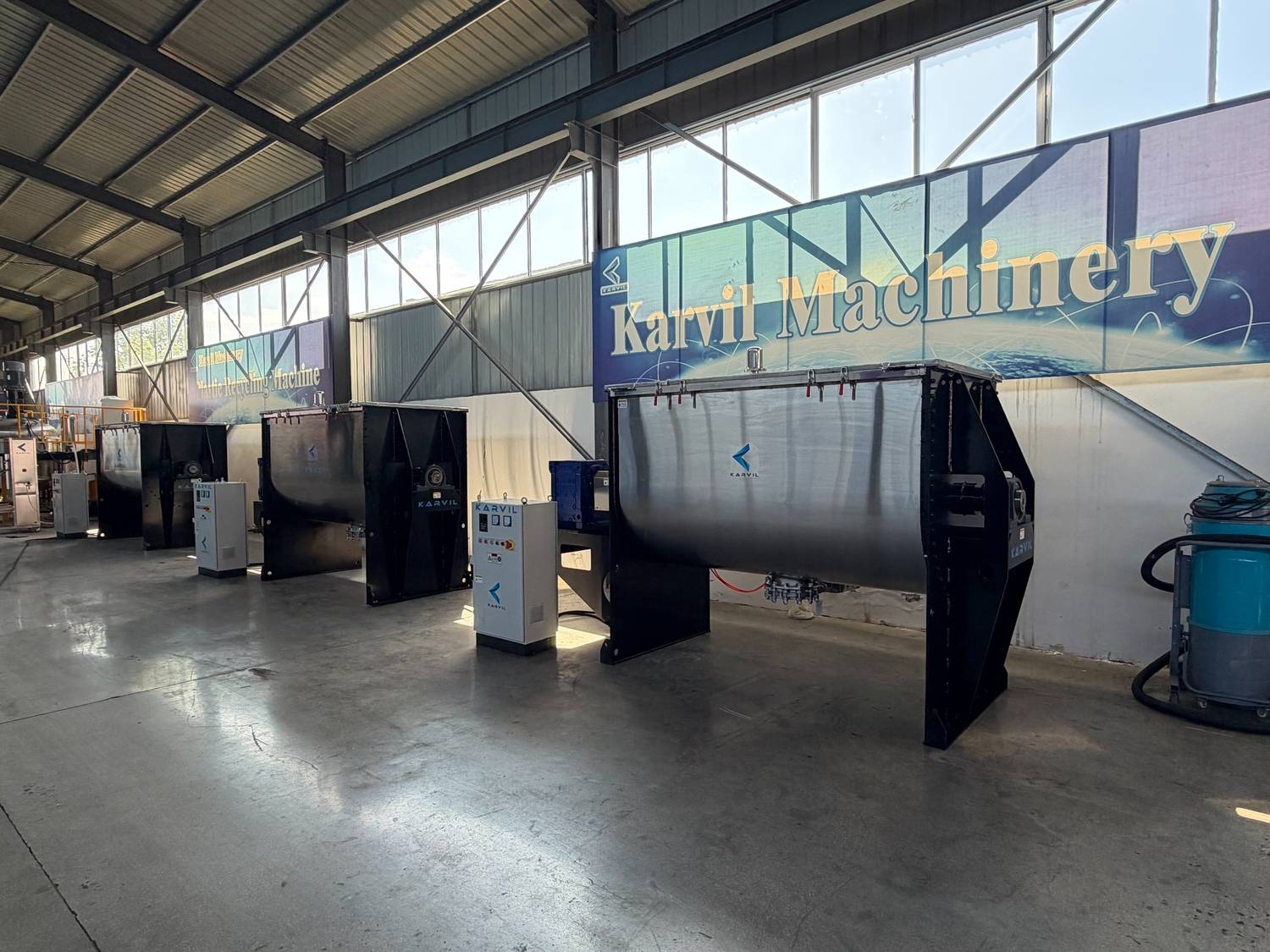

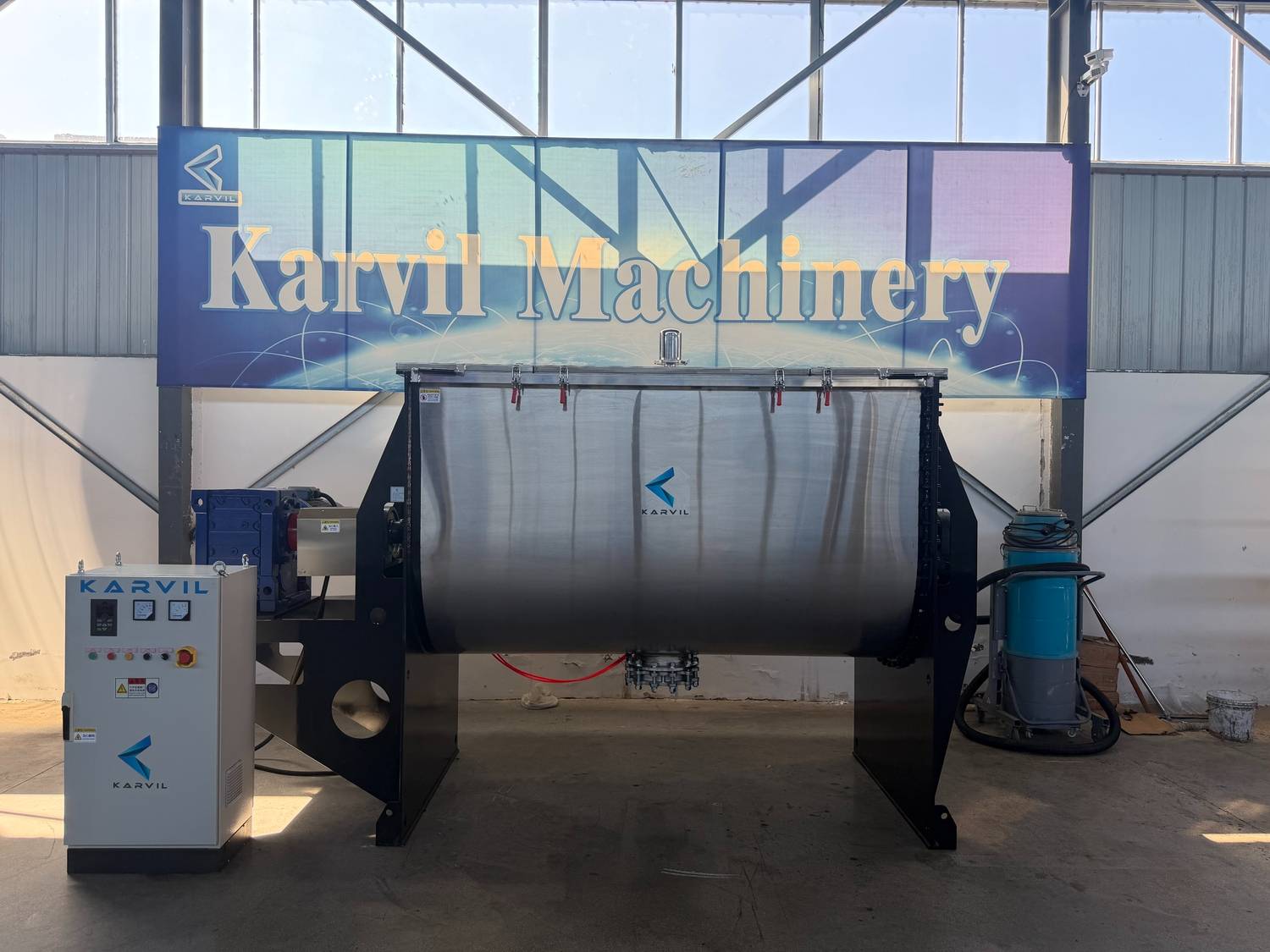

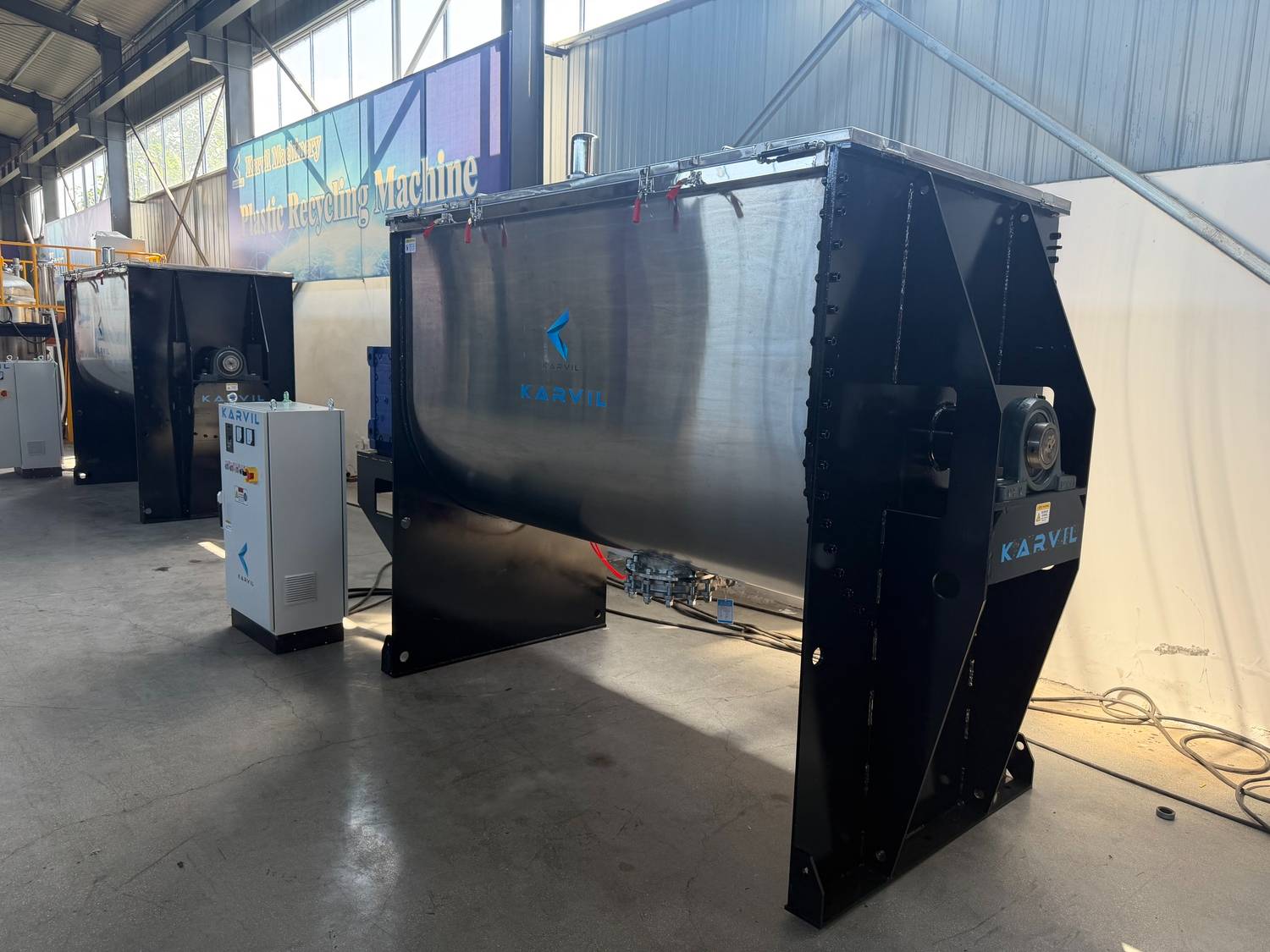

Machine in Action: Factory Walkthrough & Test Run
Before shipment, we engineers inspect the mixer and test the main functions to ensure that the equipment meets the agreed specifications.
Depending on the project, testing can include:
Ribbon rotation
Variable-speed control
Discharge valve operation
Safety and emergency stop
Overall equipment inspection
Spec | WLDH-100 | WLDH-300 | WLDH-500 | WLDH-1000 | WLDH-1500 | WLDH-2000 | WLDH-3000 | WLDH-4000 | WLDH-6000 | WLDH-8000 | WLDH-10000 |
Total volume(L) | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
Mixed amount/batch (L) | 30-60 | 90-180 | 150-300 | 400-600 | 450-900 | 600-1200 | 900-1800 | 1200-2400 | 1800-3600 | 2400-4800 | 3000-6000 |
Power (Kw) | 1.5-4 | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
Rotating speed (RPM) | 65 | 65 | 65 | 46 | 38 | 33 | 28 | 28 | 28 | 24 |
At Karvil Machinery, we don’t just manufacture standard equipment; we deliver customized, turnkey powder mixing solutions tailored to your specific facility requirements. With decades of industry experience, we have successfully installed thousands of production lines globally. Explore some of our recent global installations below:
Can the ribbon mixer be customized?
Yes. Karvil can customize the capacity, ribbon design, material, discharge system, feeding system, heating/cooling system, and controls according to the application.
Why is the ribbon-to-wall clearance controlled at 5 mm?
How does the bottom discharge work?
Can I test my material before ordering?
