Buying a lab sigma kneader for R&D is not the same as buying a simple lab mixer. You are testing formulas, adjusting process windows, recording small batch data, and often dealing with sticky materials that refuse to flow by themselves. The wrong processing machine can rapidly burn through valuable raw materials, obscure processing problems or deliver results that are not scalable. Before you even place your order for a lab size processing machine, you must check the viscosity of materials that you intend to process through it, its ability to create a vacuum, the temperature of heating that is available, the configuration of the blades, the safety features, the level of sanitation that it affords and most importantly, what kind of support the supplier of the machine will provide you after it has been delivered. A simple appearing lab size processing machine can have many details that will make or break your trial processing run – soon turning into a massive exercise in frustration and messy, failed testing.
The first thing to check is not motor power. It is your material. A sigma kneader, also called a z blade mixer or sigma kneader mixer, is built for high viscosity, semi-solid, rubber-like, and paste-like materials. Ordinary mixers work better for liquids, light slurries, or particles. Once your material becomes adhesive, rubbery, heavy, or hard to discharge, the blade structure matters more than a larger motor.
For silicone rubber, sealant, hot melt adhesive, butyl rubber, carbon paste, graphite paste, ceramic slurry, chewing gum base, or protein bar dough, you need strong kneading force. The two Z-type blades cut, fold, stretch, and compress the batch. That action helps the material absorb powder, wet fillers, and reach a more even texture.

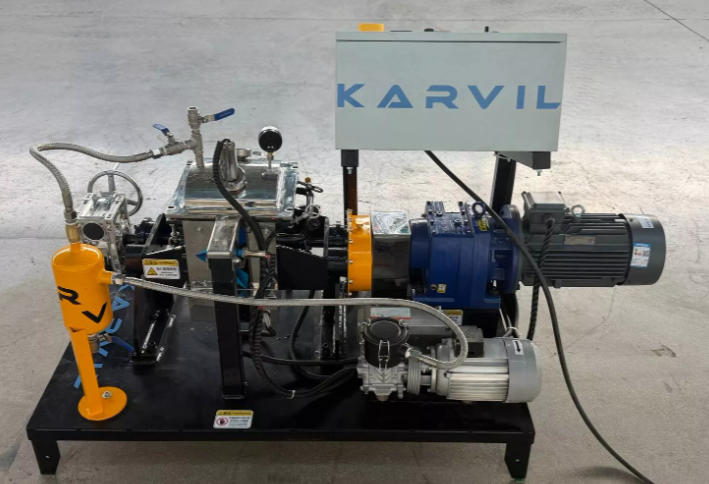

The Lab Vacuum Sigma Kneader is a 7L laboratory model with a 2.1 to 5L working volume. That batch size is practical for R&D because you can run enough material for testing while still saving expensive additives. For many labs, wasting 10kg of specialty polymer in one bad trial is not funny at all.
A lab sigma kneader suits ultra-high viscosity or rubber materials. A planetary mixer works better for high-viscosity slurries that need all-around mixing and degassing, such as battery slurry, dental materials, electronic paste, and sealants. A ribbon blender is mainly for medium and low viscosity powders, such as flour, ice cream powder, dry mortar, seasoning, or feed additives.
Before ordering, write down the real material state after all ingredients are added. Not just the starting material. Many formulas begin as loose powder or liquid, then turn into a thick paste after 15 minutes.
R&D trials are not only about mixing. You may need to test different blade speeds, heating curves, vacuum levels, and mixing times. If the machine gives you only one fixed speed and rough temperature control, your trial data may be hard to repeat.
A useful lab kneader should let you adjust speed based on material behavior. The 7L model uses inverter-controlled blade speeds, with a fast blade range of 0 to 42 rpm and a slow blade range of 0 to 35 rpm. This matters when your formula changes from a loose premix into a heavy paste. Starting too fast can splash powder or overload the batch. Running too slow may leave dry pockets.
You can also review the wider product range when your R&D work may later move to pilot or production scale. It is better to test with a machine family that has a clear path from small batches to larger units.
Temperature control is often where small machines disappoint. A formula may look fine at room temperature, then fail when heated. Adhesives, polymer compounds, chewing gum, protein bars, and ceramic binders can all change texture with heat.
The lab sigma mixers can be equipped with various jacketed heating systems to suit specific material requirements, including Electric Heating for convenient standard operations, Thermal Oil Circulation for uniform high-temperature processing, Steam Heating for rapid heat transfer, and Electromagnetic Induction Heating for gentle, precise control of heat-sensitive materials. For R&D, this gives you room to test melting, softening, wetting, and filler absorption. If your material is heat-sensitive, ask whether cooling or jacket cooling is available on the model you plan to buy. The goal is simple: your set temperature, measured temperature, and actual material temperature should stay close enough for repeatable testing.
Bubbles are not a small defect in many R&D formulas. They can cause pinholes in coatings, weak points in sealants, density problems in ceramic pastes, or poor appearance in food and pharmaceutical materials. In some electronic and medical formulas, bubbles can ruin the whole batch.
A vacuum sigma mixer removes air during kneading. That helps with degassing, anti-oxidation, and cleaner material quality. For formulas sensitive to air, moisture, or bubbles, this feature is not optional.
The machine should include a proper vacuum pump, buffer tank, metal hose, and reliable seal system. The lab unit uses an easy-to-replace combination seal box with PTFE packing and PTFE seals. That is a small detail, but it saves trouble. Frequent vacuum leakage during trials can make you doubt your formula when the real problem is only the seal.
For many vacuum kneaders, the vacuum level can reach around 0 to -0.096 MPa. You should confirm the target value with your supplier based on your material. Dense sealant and light ceramic paste do not behave the same way. Some materials rise under vacuum. Some foam badly. A short material test before final configuration is worth doing, especially for aerospace propellant-related materials, energetic materials, or expensive specialty adhesives.
Safety is easy to ignore when buying a small lab machine, but R&D work often involves new formulas, solvents, powders, heat, and unknown behavior. A lab unit still has moving blades, transmission parts, heating systems, and sometimes vacuum or explosion-proof requirements.
A good design should stop the mixer when the top cover is opened. The product page lists an automatic stop limit switch on the top cover. For real lab work, you should also ask whether all transmission positions are covered, so operators cannot touch moving parts during operation. It is a basic requirement, but basic does not mean unimportant.
For powder, solvent, energetic material, or explosive atmosphere applications, ask about explosion-proof design. The manufacturer’s background shows global compliance experience, including CE, ATEX, and FCM certifications. You can check more company information through the manufacturer background page before shortlisting the equipment.
If your formula enters food, pharmaceutical, or personal care production later, do not wait until scale-up to discuss hygiene. Product-contact parts should be stainless steel, usually SS304 or SS316, with mirror polishing where needed. Mirror-polished SS304 contact parts help reduce material adhesion and make cleaning easier.
For food applications, you should ask for material certification. Product materials have passed the EU food contact material test and comply with (EC) No.1935/2004 regulations. That point is worth placing in your procurement file, especially when the end product is chewing gum, candy, protein bars, sauce, or other material that touches food standards.
A lab sigma kneader should not be treated as a catalog-only machine. R&D recipes vary too much. Capacity, material, blade form, discharge method, vacuum system, heating method, control panel, and safety level may all need adjustment.
Common options include SUS304, SUS316, or mild steel construction; tilting discharge, screw extrusion, or bottom discharge; electric heating, water heating, oil heating, or steam heating; water cooling or jacket cooling; explosion-proof motor; and manual, button, or PLC control.
Manual tilt discharge may work for a 7L lab batch. For very sticky materials, screw extrusion may be better in pilot production. For non-self-flowing paste, do not assume gravity discharge will be clean. Ask this early, not after the first batch sticks in the chamber.
The manufacturer has exported equipment to more than 50 countries and regions, with broad coverage across Europe and the Americas. The application range includes adhesives, sealants, silicone rubber, carbon products, clay, waterproof materials, food, pharmaceuticals, ceramics, energetic materials, and aerospace-related materials such as rocket propellants.
This matters because different industries ask different questions. A sealant buyer may care about degassing and residue. A food buyer checks sanitary surfaces and certification. An aerospace-related buyer may focus on safety, traceability, and stable process control. You can review more process fields through the application support page or contact Karvil Machinery
A lab kneader is often used by R&D engineers, not only machine operators. During early trials, questions come quickly. Why is the paste climbing the blade? Why did the vacuum drop? Why is the batch hotter than the set value? Good support saves time.
The equipment comes with a one-year warranty for sold products, and lifetime technical consultation can be provided when customers need long-term help. Remote guidance, video teaching, online maintenance support, and professional engineer support are useful for overseas buyers. For a lab machine, even a small wiring or seal issue can stop a whole week of testing.
You should also ask for full English documents. The equipment is supplied with an English operation manual and electrical diagram, which makes daily use and maintenance much easier for international teams. Technical files, brochures, and related documents can be checked through the download center.
For customized mixing equipment, normal delivery is often around 20 to 30 days, depending on model and quantity. Before shipment, ask for test videos, photos of key production steps, and packaging details. Export-standard packaging matters because lab machines still need protection from moisture, shock, and rough handling during sea or air transport.
Q1: What Is a Lab Sigma Kneader Mainly Used For?
A: It is mainly used for small batch R&D mixing of high-viscosity, semi-solid, rubber-like, and paste-like materials, such as silicone rubber, adhesive, sealant, ceramic slurry, carbon paste, chewing gum base, and protein bar formulas.
Q2: Why Choose a Vacuum Sigma Kneader Instead of an Ordinary Mixer?
A: A vacuum sigma kneader provides stronger shear and vacuum degassing. It can help remove bubbles, reduce oxidation, and improve material purity. Ordinary mixers are usually better for low or medium viscosity liquids, powders, or light slurries.
Q3: What Capacity Is Suitable for R&D Trials?
A: A 7L total volume with 2.1 to 5L working volume is useful for many lab trials because it gives enough material for testing while keeping raw material waste under control. The final choice depends on density, viscosity, and sampling needs.
Q4: What Safety Features Should a Lab Kneader Have?
A: You should check top-cover automatic stop, covered transmission parts, safe electrical design, and explosion-proof options if your material involves solvent, dust, or energetic components. CE, ATEX, and FCM certification can also support international purchasing checks.
Q5: What Documents and Support Should Come with the Machine?
A: At minimum, ask for an English operation manual, electrical diagram, warranty terms, spare parts support, remote installation guidance, and engineer troubleshooting. For food applications, also ask for food contact material certification under EU requirements.
