Selecting the right Sigma Mixer is one of the most important decisions when processing high-viscosity materials. Whether you're producing silicone rubber, adhesives, sealants, ceramics, battery materials, or food products, choosing the right machine directly affects product quality, production efficiency, and operating costs.
With so many models and customization options available, it can be difficult to know where to start. This guide explains the key factors you should consider before investing in a Sigma Mixer.
A Sigma Mixer, also called a Z Blade Mixer or Sigma Kneader, is designed to mix, knead, fold, and disperse materials with medium to extremely high viscosity.

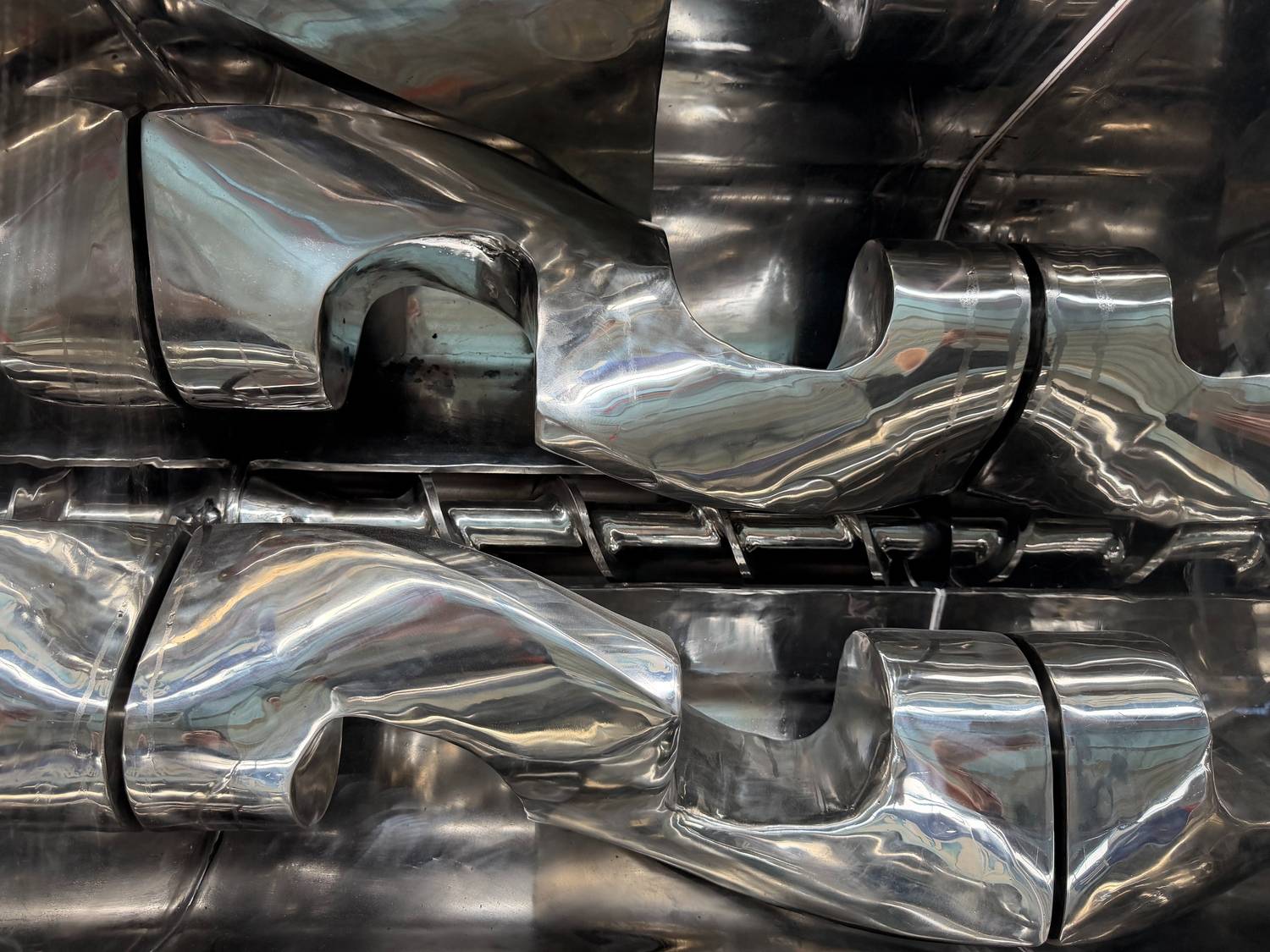

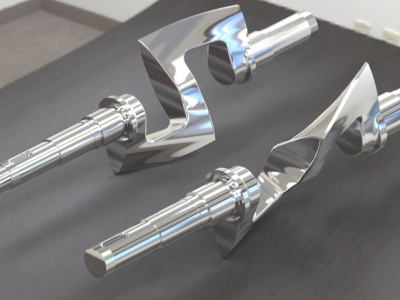

Its two sigma-shaped blades rotate at different speeds, continuously stretching, compressing, and folding the material to achieve excellent mixing performance.
Typical applications include:
Silicone Rubber
BMC & SMC Compounds
Hot Melt Adhesives
Sealants
Putty
Ceramic Paste
Carbon Paste
Graphite Materials
Battery Materials
Food Dough
Protein Bars
Chewing Gum
Chemical Paste
Before choosing a mixer, you should first understand your product.
Ask yourself:
What is the viscosity?
Is the material powder, paste, or dough?
Does it become thicker during mixing?
Is it abrasive?
Is it corrosive?
Does it contain solvents?
Is vacuum mixing required?
For example:
Material | Recommended Configuration |
|---|---|
Silicone Rubber | Heavy-duty Sigma Mixer with hydraulic tilting |
Hot Melt Adhesive | Heating jacket + temperature control |
BMC Compound | High torque motor + cooling jacket |
Battery Paste | Vacuum system + stainless steel contact parts |
Food Products | SS304/SS316 + mirror polished finish |
The more information you provide about your material, the easier it is to recommend the right machine.
One of the biggest mistakes is selecting the mixer based only on batch size.
Remember that Sigma Mixers should not be filled to 100% capacity.
The recommended filling ratio is generally 60%–75% of the total chamber volume.
Example:
Mixer Size | Recommended Batch |
5L | 3–4L |
50L | 30–38L |
100L | 60–75L |
300L | 180–225L |
500L | 300–375L |
1000L | 600–750L |
Choosing the correct size ensures better mixing efficiency and longer equipment life.
Different products require different discharge systems.
Suitable for:
Silicone Rubber
Putty
Ceramic Paste
Adhesives
Sealants
Advantages:
Easy cleaning
Complete discharge
Simple operation
Recommended for:
Very high viscosity materials
Continuous production
Materials difficult to remove manually
Advantages:
Faster unloading
Reduced labor
Continuous feeding to downstream equipment
Many materials require precise temperature control during mixing.
Heating options include:
Electric Heating
Thermal Oil Heating
Steam Heating
Cooling options include:
Cooling Water Jacket
Chilled Water Circulation
Examples:
Hot melt adhesive requires heating.
Silicone rubber often requires cooling.
Some chemical materials need both heating and cooling during different production stages.
Vacuum mixing removes trapped air inside the material.
Benefits include:
Better product density
Reduced bubbles
Improved surface finish
Better dispersion
Higher product quality
Vacuum systems are especially recommended for:
Silicone
Epoxy Resin
Battery Materials
Electronic Sealants
High-performance Adhesives
The machine material depends on your production environment.
Suitable for:
General industrial applications
Non-corrosive materials
Lower equipment cost
Suitable for:
Food
Pharmaceutical
Chemical industries
Recommended for:
Corrosive chemicals
High-purity products
Acidic materials
Karvil also offers customized material combinations, such as a carbon steel frame with stainless steel contact parts to balance performance and budget.
Modern Sigma Mixers should include essential safety features such as:
Emergency Stop
Safety Interlock
Protective Safety Grid
Overload Protection
Temperature Monitoring
PLC Automatic Control
For hazardous environments, explosion-proof motors, electrical cabinets, and ATEX-compliant designs are available.
Automation can significantly improve production efficiency.
Available options include:
Manual Control
Semi-Automatic Operation
PLC Touch Screen Control
Recipe Storage
Automatic Temperature Control
Automatic Timing
Variable Frequency Speed Control
Remote Monitoring
For factories producing multiple products, PLC control greatly simplifies operation and improves consistency.
Price is important, but long-term reliability is even more valuable.
When comparing suppliers, consider:
Manufacturing experience
Engineering capabilities
Customization ability
Quality control
International certifications
After-sales service
Spare parts availability
Installation support
An experienced manufacturer can recommend the best solution based on your material rather than simply selling a standard machine.
Before placing an order, prepare the following information:
What material will be mixed?
What is the batch size?
What is the required production capacity?
Is heating or cooling required?
Is vacuum mixing needed?
What discharge method is preferred?
What voltage is used in your factory?
Do you require explosion-proof equipment?
Is the mixer part of a complete production line?
Providing these details helps ensure the equipment is configured specifically for your process.
With more than 20 years of experience in industrial mixing equipment, Karvil Machinery supplies customized Sigma Mixers to customers in over 50 countries.
Our Sigma Mixers are designed for demanding industrial applications and can be tailored to meet different production requirements.
Batch sizes from laboratory models to large industrial mixers
Custom heating, cooling, and vacuum systems
Hydraulic tilting or screw extruder discharge
Carbon steel, SS304, or SS316 construction
PLC automatic control
Explosion-proof configurations
Complete mixing production line solutions
Professional engineering support before and after sales
Every project begins with understanding your material and production process, ensuring the equipment delivers reliable performance and long service life.
Choosing the right Sigma Mixer is about much more than selecting a machine size. Material characteristics, production capacity, discharge method, temperature control, automation, and safety all play an important role in achieving efficient and consistent production.
Working with an experienced manufacturer ensures that every component of the mixer is matched to your application, helping reduce operating costs while improving product quality.
If you're planning a new production line or upgrading your existing equipment, the Karvil engineering team is ready to help you select the most suitable Sigma Mixer for your process.
Need help choosing the right Sigma Mixer? Contact Karvil Machinery today for a free technical consultation and customized solution.
Choose a mixer based on your actual batch size, keeping the filling level between 60% and 75% of the mixing chamber for optimal performance.
Tilting discharge is ideal for most batch processes and easier to clean, while screw extruder discharge is better for extremely high-viscosity materials and continuous production.
Yes. With appropriate blade design, temperature control, and adjustable speed, one mixer can often process multiple products. However, compatibility depends on the material properties and cleaning requirements.
Vacuum mixing is recommended when your product must be free of air bubbles or requires high-density, high-quality mixing, such as silicone, sealants, epoxy resins, and battery materials.
Yes. Karvil offers customized capacities, materials, heating systems, cooling systems, vacuum configurations, discharge methods, PLC controls, and complete production line solutions based on your specific process requirements.
