When selecting a lab mixer there are more considerations than just the size of the tank and the motor power. For lab mixers that work with volatile solvents, sticky pastes and heat sensitive chemical formulas, the focus should be on how the mixer will maintain the batch in a stable, safe, clean and repeatable state throughout the test. A small lab trial can often determine the production route for a formula so poor mixing data can mean poor scale-up. When selecting a lab mixer, consider the following factors: viscosity, vacuum, temperature, seal design, discharge, cleaning, and safety. Once you have determined that these factors will work for you it is time to order.
Many materials used in adhesives and sealants, in battery slurry, in dental materials, in rocket propellant, in chewing gum, in protein bars, and in specialty chemicals are non-liquids. Some climb the blade. Some trap bubbles. Some harden when overheated. Some contain organic solvents or dust that require explosion-proof design. That is why a lab mixer should be selected as a process tool, not just a small machine. You can also compare typical mixer choices through the wider Karvil product range before deciding which structure fits your material.
Before comparing mixer types, you need a clear material profile. This step sounds basic, but in real buying work, many mistakes start here. A buyer may ask for a “lab mixer,” while the material actually needs kneading, vacuum degassing, jacket cooling, or an explosion-proof motor. That gap can waste several rounds of testing.
A sigma mixer or z blade mixer/sigma kneader mixer is a tool for strong kneading and high shear in the mixing of high-viscosity and semi-solid products. Common materials that can be mixed with such a tool are: Silicone rubber. Sealants. Hot melt adhesive. Butyl rubber. Graphite. Ink. Carbon paste. Chewing gum. These are examples of products which are very difficult to mix using a simple stirrer.
Also sticky materials which do not self-discharge have to be checked on their discharge behavior. For such materials like paste-like materials hydraulic tilting, screw extrusion or even bottom discharge can be an option. A good mix does not automatically mean that the material will also discharge well at the end of the batch. This has to be tested in the lab and has to be planned in order to avoid leftovers in the extruder, in order to be able to calculate the yield correctly and in order to be able to clean up well.
Heat-sensitive materials need more than a strong blade. You need controlled shear, stable jacket temperature, and sometimes vacuum mixing at lower temperature. A mixer with electric heating, water heating, oil heating, steam heating, jacket cooling, or water cooling gives you more room to test process windows.
For formulas with additives that cannot tolerate heat, the actual temperature curve matters. The set temperature, measured temperature, and real material temperature should stay close. If they do not match, the formula may look unstable even though the real problem is heat transfer. For lab tests, it is smart to record speed, batch volume, jacket temperature, vacuum level, and mixing time together.
Different mixers solve different problems. One machine cannot be the best answer for every powder, paste, slurry, and solvent-based formula. The right choice depends on whether your main task is kneading, powder blending, degassing, dispersing, or temperature control.

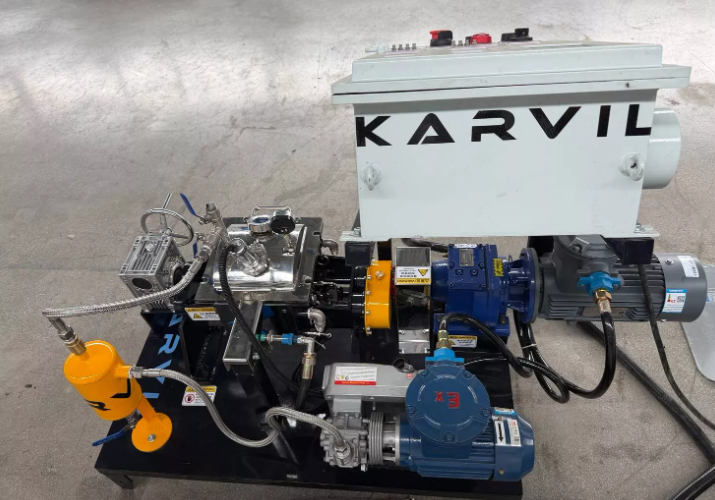

For volatile, sticky, and high-viscosity formulas, the Lab Scale Explosion-Proof Vacuum Sigma Kneader is a strong choice when you need kneading, vacuum degassing, and explosion-proof protection in small-batch development. It suits lab trials for adhesives, sealants, rubber-like compounds, chewing gum base, protein bar materials, explosives-related materials, and aerospace formulas such as rocket propellant.
Vacuum technology removes air from the filling process in order to prevent bubbles, to prevent oxidation, and to improve the purity of the filling material. Since bubbles can negatively affect the coating, the sealing, the conductivity and the look of the filled articles, this feature is very important. For volatile materials the design of the vacuum technology and the sealing has to be checked very carefully and should not be treated as a nice decoration. A water-ring vacuum pump, a buffer tank and the right vacuum gauge, make the daily testing easier to handle.
A planetary mixer is used to mix materials that need to be moved from different directions. A planetary mixer has an agitator that revolves and also rotates, plus a scraper to scrape material off the bottom and walls of the mixing container. Battery slurry, dental materials, adhesives and sealants, electronic pastes, and high-solid-content products are typically mixed in planetary mixers.
Vacuum mixing of battery slurry is not merely about removing air from the mix. Also critical is the prevention of bubbles in the mix, which may form pinholes and micro cracks during the subsequent coating and rolling steps. For graphite and other active materials in the slurry, vacuum also can be used to remove oxidized and moist surface layers, a critical step in making a good battery. So, for lab work focused on slurry density, coating stability and consistency from batch to batch, a planetary mixer is better than a simple kneader.
A ribbon mixer works well for powder-to-powder mixing and powder with a small amount of liquid. It uses inner and outer helical ribbons in a U-shaped trough, moving material in opposite directions to form convection and shear. It is often used for flour, ice cream powder, seasoning, dry mortar, fertilizer, seeds, protein powder, additives, and similar dry materials.
But for very sticky or highly agglomerated materials, a standard ribbon mixer is usually not the first choice. You may need an arch breaker, plow structure, or another mixer type. For powder formulas, also check filling level. In many cases, a ribbon mixer works best around 60% to 80% filling. Overfilling slows mixing; underfilling can reduce blade contact. It is a boring number, yes, but it saves many bad batches.
Safety is a key buying point when materials are volatile, dusty, solvent-based, or food-contact. A lab machine may be small, but the risk is not small. Ask for the safety design before discussing price, because retrofitting safety parts later is rarely neat or cheap.
For volatile solvents and explosive atmospheres, the mixer should use explosion-proof components where needed. ATEX certification is especially important for equipment used near flammable gases, vapors, mists, or dust. CE certification also matters for European safety and performance requirements.
Good machine safety is also physical. Open-cover emergency stop, covered transmission positions, guarded moving parts, and access protection reduce operator contact with dangerous areas. For ribbon or powder systems, safety locks, valve position detection, bearing temperature monitoring, and correct clearance between moving parts and the body can reduce ignition and mechanical risk.
If your material is food-related, such as chewing gum, protein bars, sauces, powders, or additives, hygiene becomes part of process quality. Contact parts should use suitable stainless steel, often SUS304 or SUS316L, with smooth or mirror-polished surfaces where needed.
Karvil Machinery states that product materials have passed the EU food contact material test and comply with (EC) No.1935/2004 regulations. For food buyers, this matters because food-contact parts should not release harmful substances into the material during normal use. FCM certification is not only paperwork; it helps purchasing teams answer internal quality and audit questions faster.
A lab mixer should help you move from formula test to pilot or production with fewer surprises. That means the supplier should understand your material, not just sell a standard tank.
Useful lab controls include variable speed, temperature display, vacuum gauge, timing, discharging control, and PLC touch screen options. Manual buttons may be enough for simple tests. PLC control is better when you need repeated test curves, recipe comparison, or operator consistency.
Also check whether the mixer can support heating, cooling, vacuum, explosion-proof design, anti-corrosion material, food-grade polishing, and special discharge. If one formula needs vacuum kneading and another needs low-temperature testing, modular design gives you more room.
Export experience is a real signal for B2B buyers. Karvil Machinery has sold equipment to more than 50 countries and regions, with strong coverage across Europe and the Americas. Its application experience includes silicone rubber, carbon products, adhesives, clays, waterproof materials, pharmaceuticals, food, organic solvents, ceramics, battery slurry, dental materials, sealants, explosives-related fields, and aerospace materials.
This matters because volatile and sticky materials often need small adjustments: seal type, blade gap, jacket method, discharge angle, scraper design, motor power, and cleaning access. A supplier with broad application experience is more likely to ask useful process questions before production.
A lab mixer may run in an R&D room, but it still needs clear documents and fast technical help. Before ordering, ask what support you will receive after the machine arrives.
Karvil Machinery provides a one-year warranty for sold products and can also provide lifetime technical consulting when customers need long-term support. The equipment comes with English operation manuals and electrical diagrams, which helps local teams install, test, and maintain the machine with less back-and-forth.
Professional engineers can offer remote technical support, including installation guidance, video teaching, online maintenance help, material testing advice, formula suggestions, and equipment selection support. You can also review public company and service information through the Karvil about page and related download resources.
Q1: What Is the Best Lab Mixer for Sticky High-Viscosity Materials?
A: A vacuum sigma kneader is often the better choice for sticky, semi-solid, and rubber-like materials. It provides strong kneading, vacuum degassing, controlled temperature options, and practical discharge methods such as tilting or screw extrusion.
Q2: When Should You Choose an Explosion-Proof Lab Mixer?
A: Choose explosion-proof design when your material contains flammable solvents, volatile components, combustible dust, or explosive-risk ingredients. ATEX-related design and explosion-proof motors are important for these working conditions.
Q3: Can One Lab Mixer Handle Adhesives, Battery Slurry, and Food Materials?
A: Not always. Adhesives and sealants may suit a sigma kneader or planetary mixer. Battery slurry often needs vacuum planetary mixing and scraping. Food materials need hygienic contact parts, smooth surfaces, and FCM-related compliance.
