Views: 13 Author: Site Editor Publish Time: 2026-06-18 Origin: Site
Mixing high-viscosity materials like silicone rubber is one of the toughest challenges in the chemical processing industry. It’s thick, it’s sticky, and it demands absolute precision. Traditional mixers often struggle with three major headaches: uneven mixing, poor temperature control, and the nightmare of manual discharge.

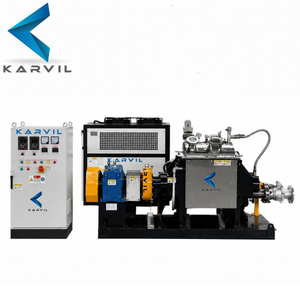

At Karvil Machinery, we engineer equipment designed to solve these exact problems. Recently, we customized a 100L Screw Extrusion Vacuum Kneader (equipped with a Hot/Cold TCU) for a client in Brazil, specifically for processing heavy silicone. Let’s break down why this specific configuration is a game-changer for your production line.
The Pain Point: Tilting a heavy mixing tank to pour out sticky silicone is inefficient. Having operators scrape the material out by hand is not only labor-intensive but also a severe safety hazard and leads to massive material waste.
The Karvil Solution: Our 100L Kneader features a built-in Screw Extruder at the bottom of the mixing trough. Once the kneading cycle is complete, the machine simply switches into extrusion mode. The heavy-duty screw acts like a powerful pump, discharging the dense silicone smoothly, continuously, and completely.
Result: 100% hands-free operation, zero dead corners, and significantly faster batch turnaround times.

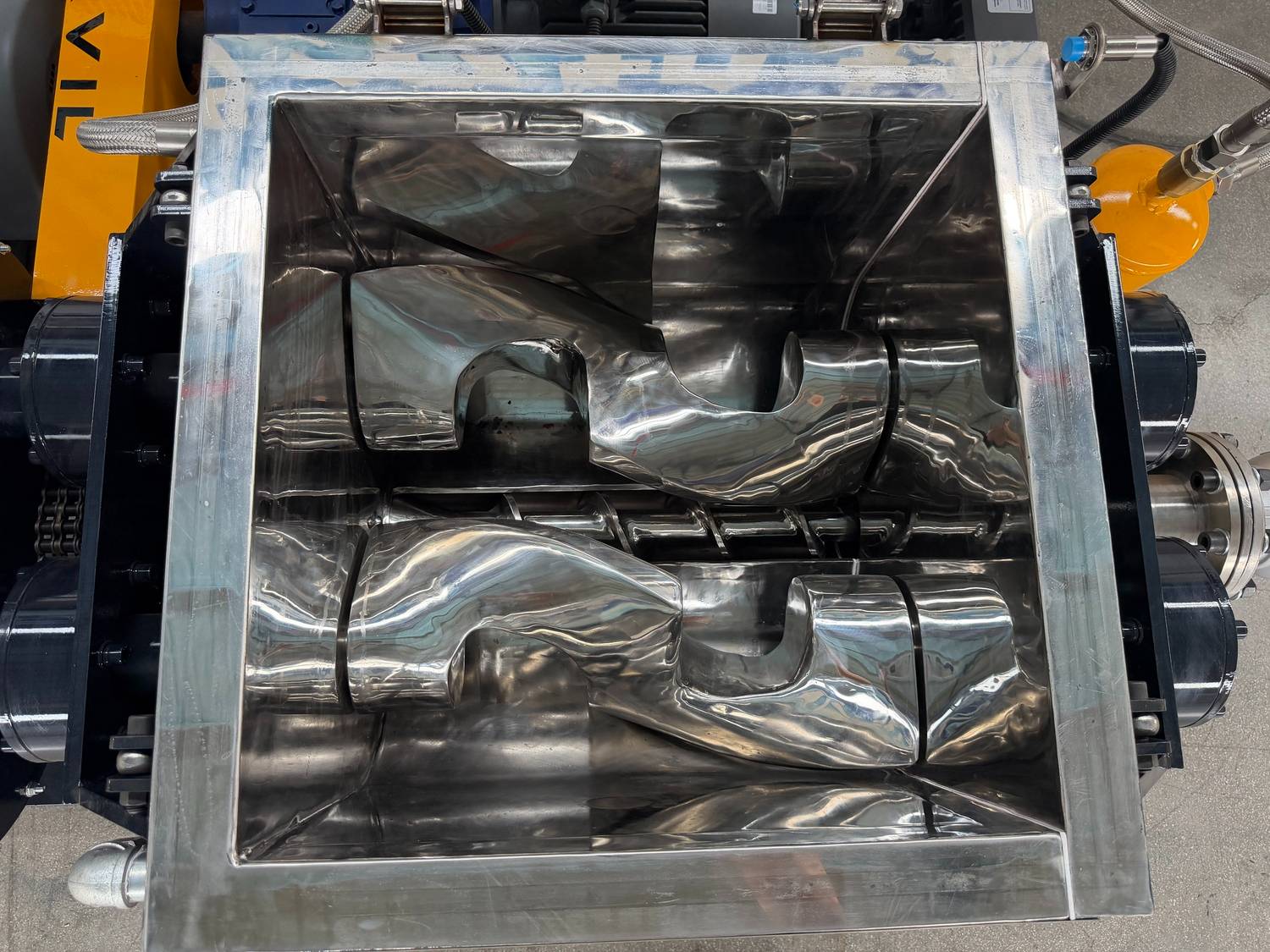

The Pain Point: The powerful shearing force generated by the dual Sigma (Z-type) blades creates massive internal friction. If this heat is not controlled, the silicone can suffer from premature curing (vulcanization) or structural degradation during mixing.

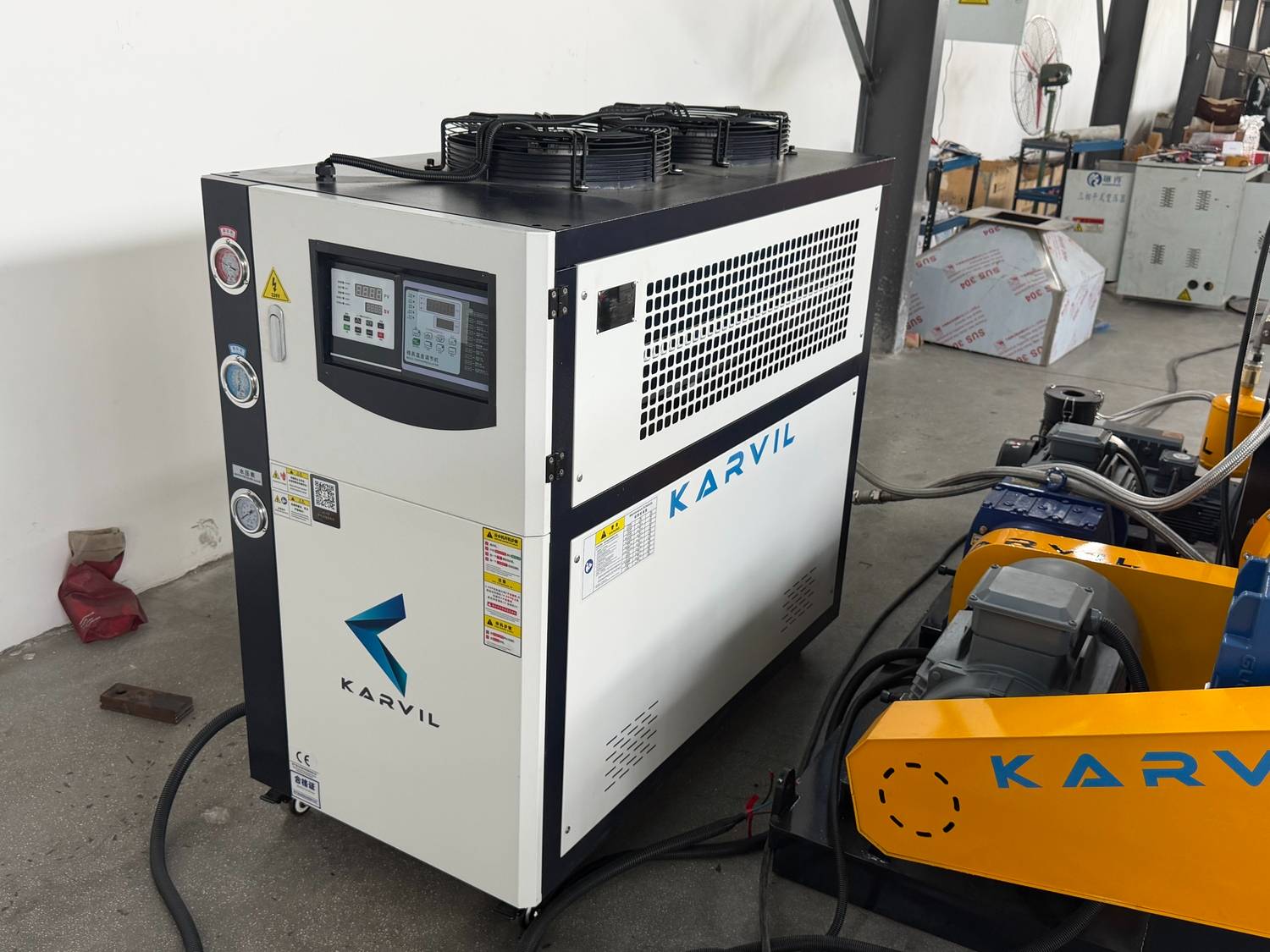

The Karvil Solution: We don't just rely on standard cooling. This unit is designed with a customized heating/cooling jacket and is seamlessly paired with an external Hot & Cold Temperature Control Unit (TCU).
Result: Operators can set precise target temperatures. The TCU automatically circulates thermal fluids (water or oil) through the jacket, maintaining the perfect processing environment and protecting the integrity of your silicone formula.
The Pain Point: Air trapped inside viscous silicone during the folding and kneading process creates voids. These bubbles ruin the physical properties and aesthetic finish of the final product.

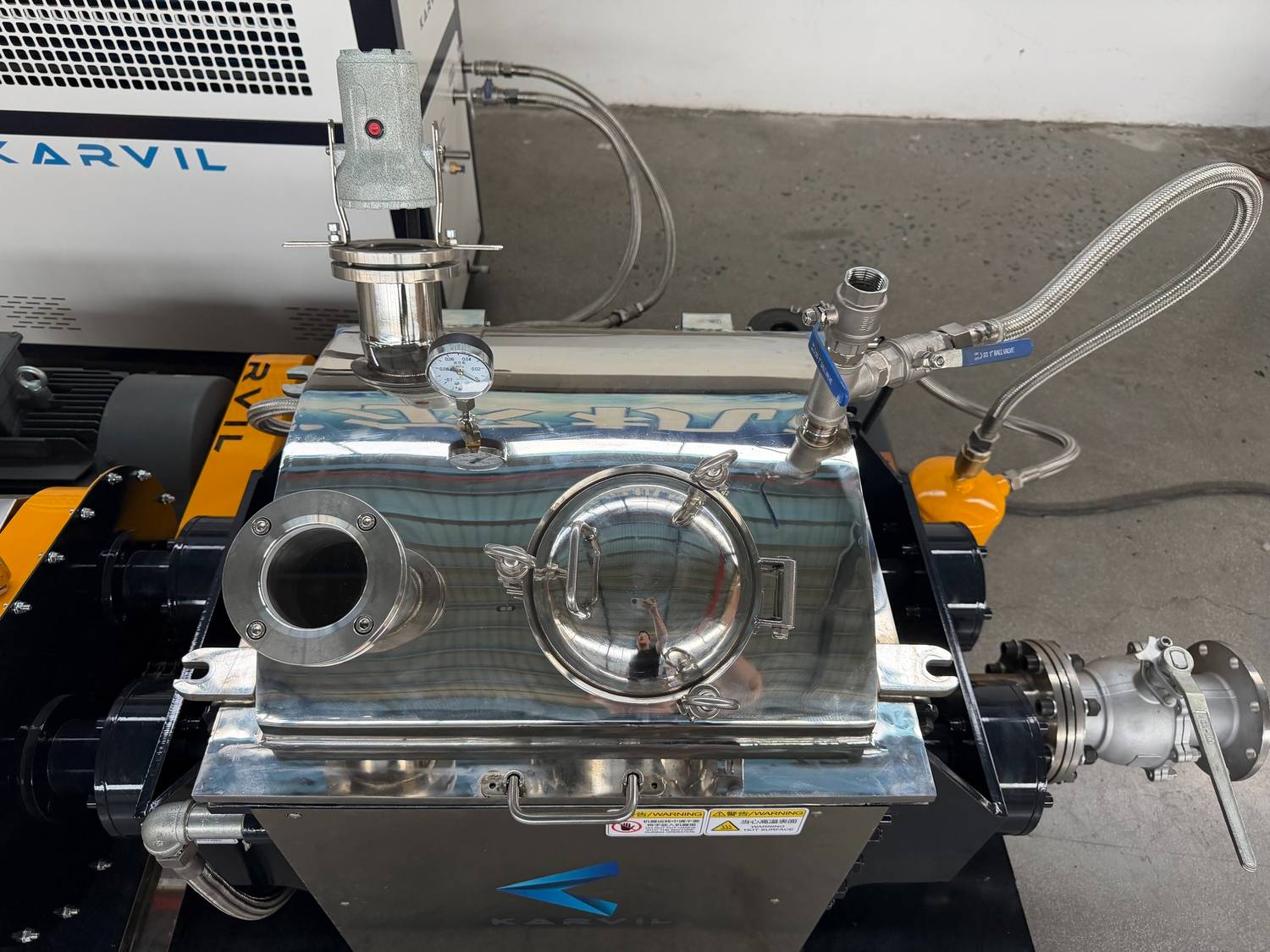

The Karvil Solution: The mixing tank is engineered with premium mechanical seals. During operation, the heavy-duty vacuum pump draws the internal pressure down to an ultra-low -0.096MPa.
Result: As the material is constantly stretched and folded by the Sigma blades, the vacuum environment aggressively extracts all trapped air and moisture. The final silicone output is dense, flawless, and ready for high-end applications.
Don't just take our word for it. We recently conducted a comprehensive Factory Acceptance Test for a major client from Brazil. As you can see in the video above, the high-viscosity silicone was mixed uniformly under vacuum and extruded flawlessly. The precise temperature control ensured the material remained in optimal condition throughout the test.
At Karvil Machinery, we understand that every chemical formula is unique. Whether you are processing silicone sealants, hot melt adhesives, or BMC/SMC materials, we can customize the capacity, motor power, and discharge methods to fit your exact needs.
Want to see how your material performs in our machines? We offer free factory testing! Send us your material samples, and our engineers will provide a full video report of the test run.
