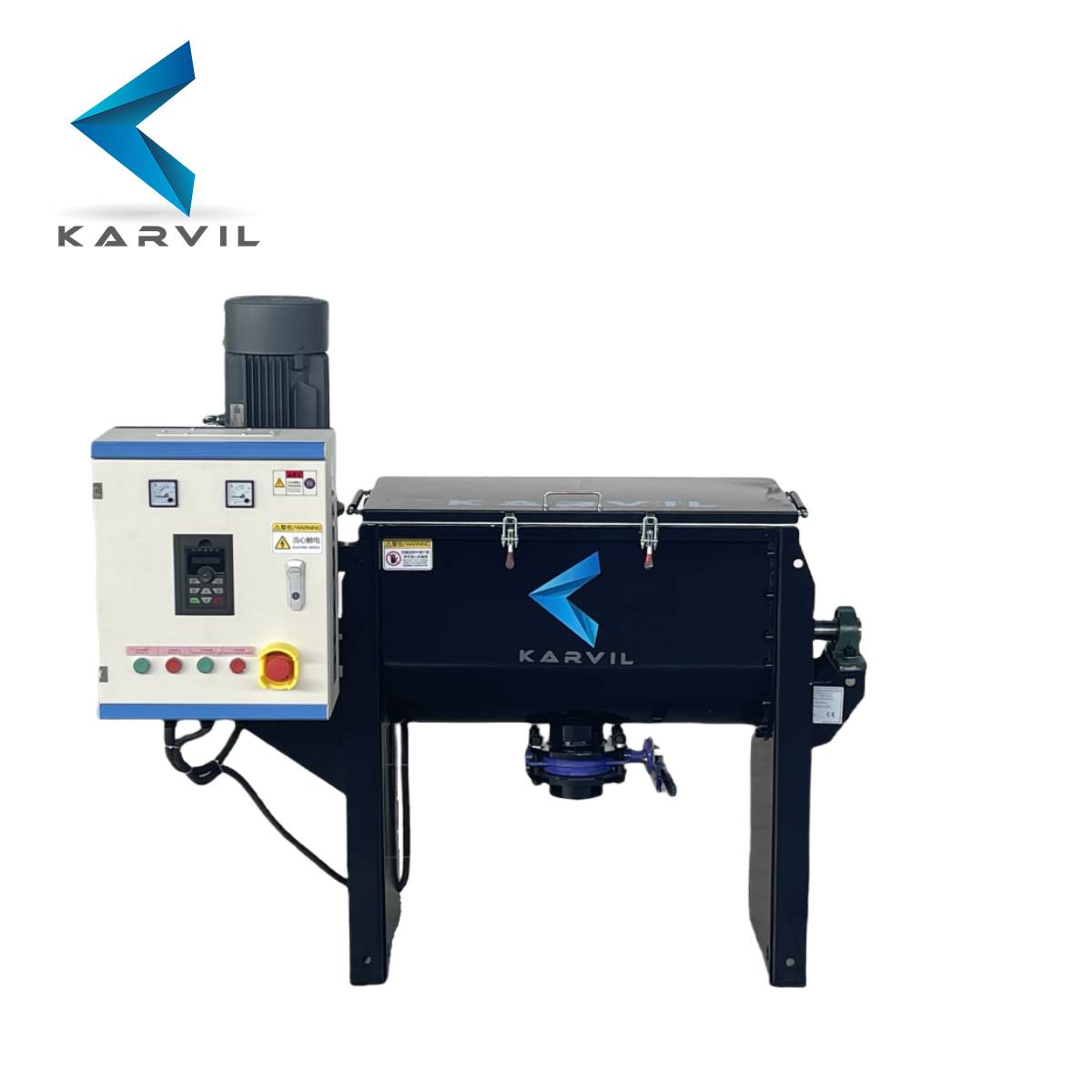

Carbon Steel Ribbon Blender

Name: Carbon Steel Ribbon Blender
Brand: KARVIL
Rating: 5.0 (78 reviews)

Specifications:

Volume: 100 liters
Material of Construction: Carbon Steel (powder-coated)

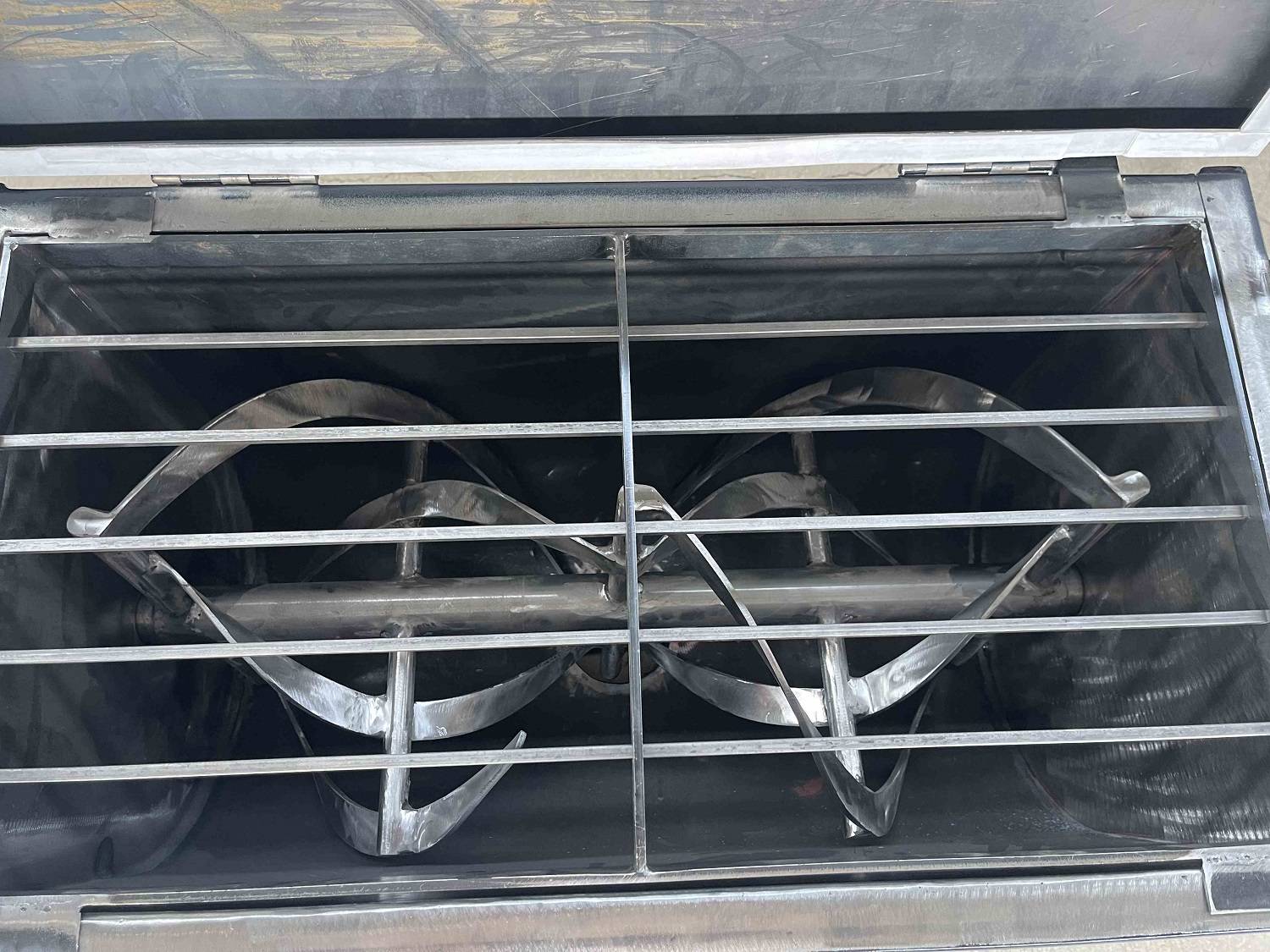

Mixing System: Dual-layer ribbon agitator

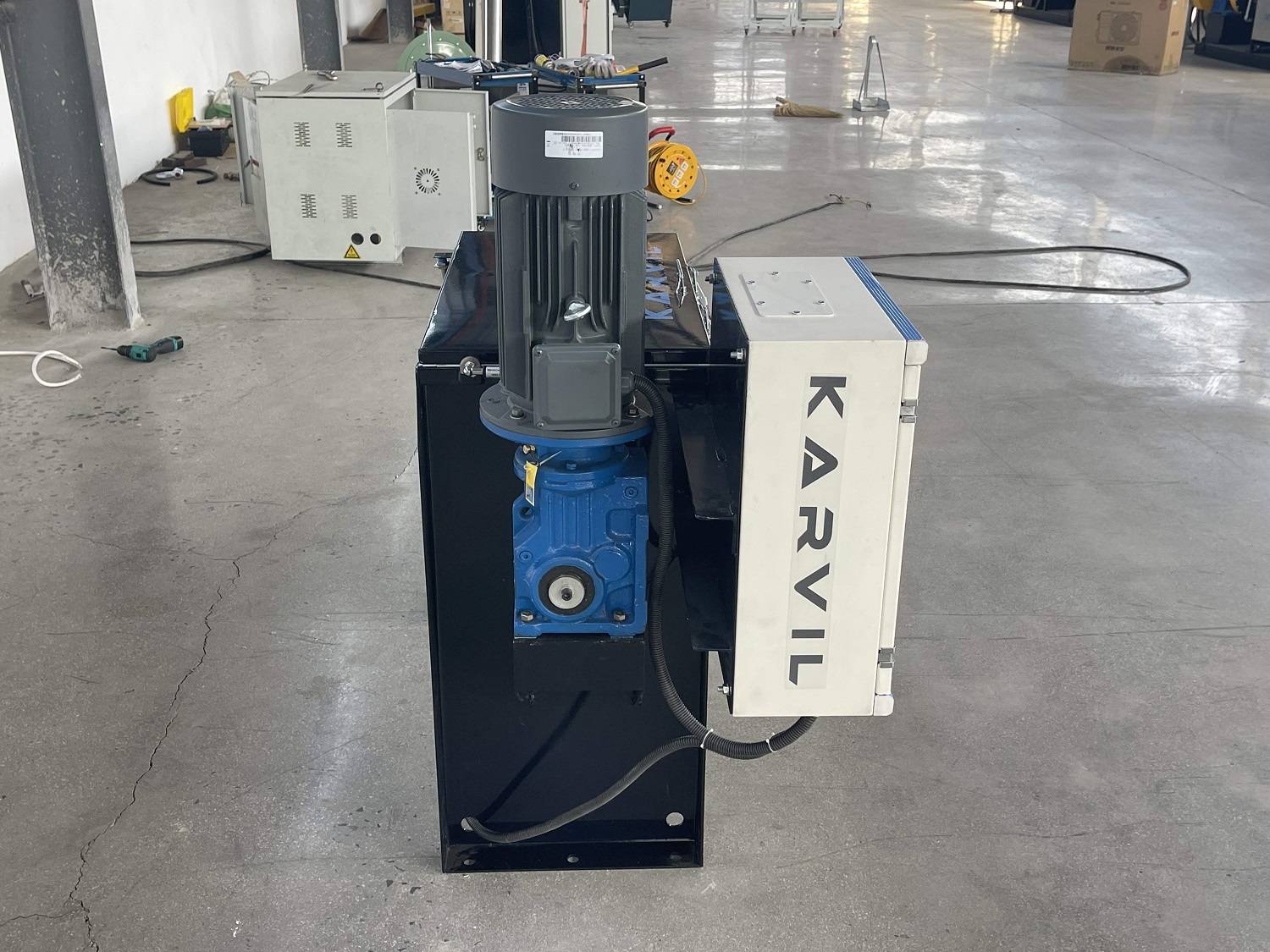

Drive Type: Direct-coupled motor and reducer (customizable)

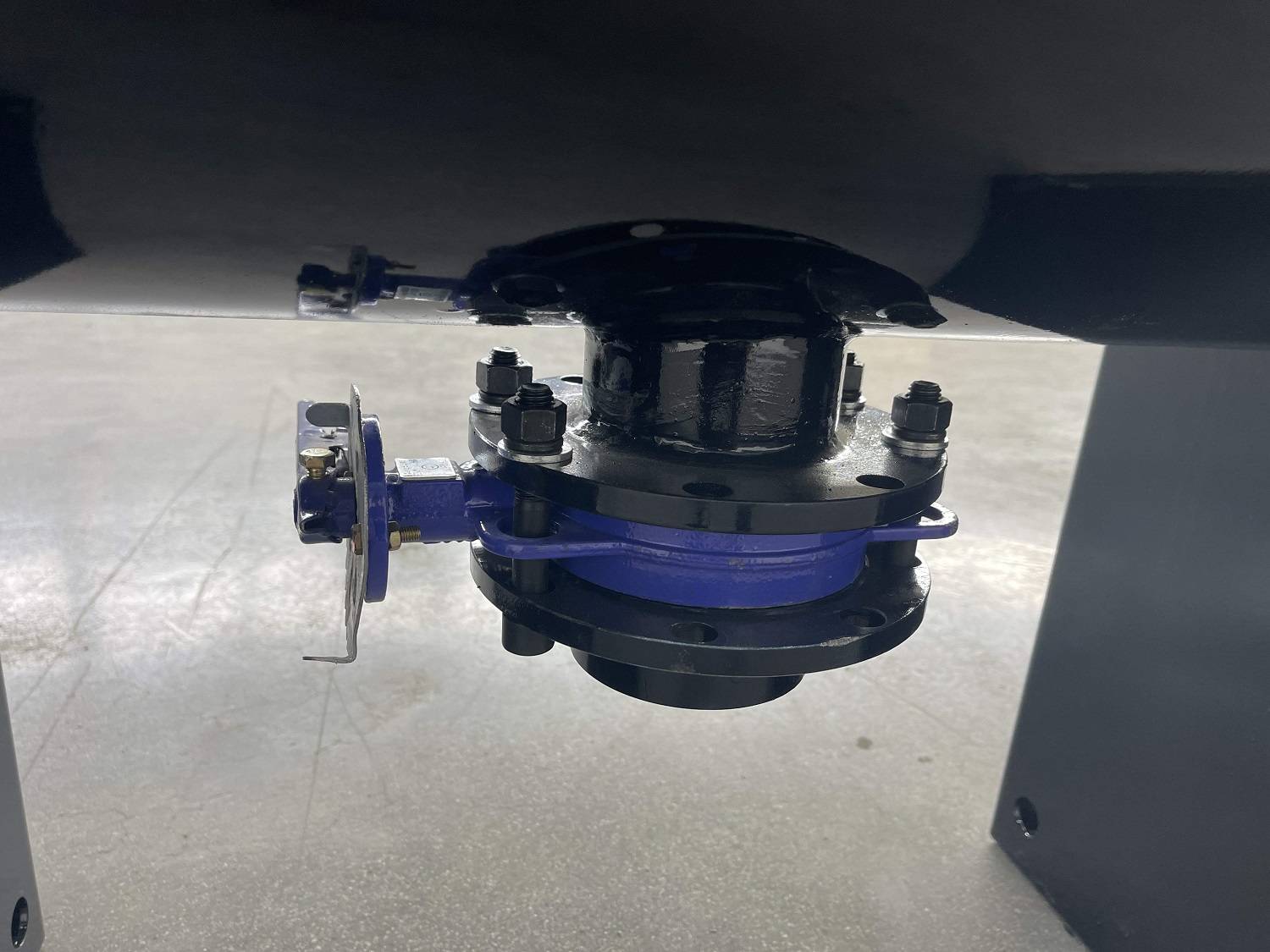

Discharge Method: Pneumatic valve or manual butterfly valve
Control Option: Standard electrical control box (PLC optional)
Finish: Industrial-grade anti-corrosion coating

Horizontal ribbon mixer is a highly efficient and uniform powder mixing equipment, suitable for all kinds of dry powder, granular materials and powder-liquid mixing processes. It is widely used in chemical, food, pharmaceutical, building materials, mining, feed and other industries

Model:
WLDH-100
Brand:
KARVIL


Availability:



Inquiry

KARVIL horizontal ribbon mixer

Ribbon Mixer Standard Design（Customizable）:

Contact Materials: 304 Stainless Steel 316 optional

Interior Surfaces: Mirror Polish

Support Steel: 304 or 316 Stainless Steel

Exterior Surfaces: Finishing Polish

Discharge: Swing away flush valve with pneumatic actuation

Working Capacities: 3 to 10,000 Cubic Feet

Drive: Hollow Bore SEW Eurodrive

Loading: Loading Cover(s) with Welded Grate

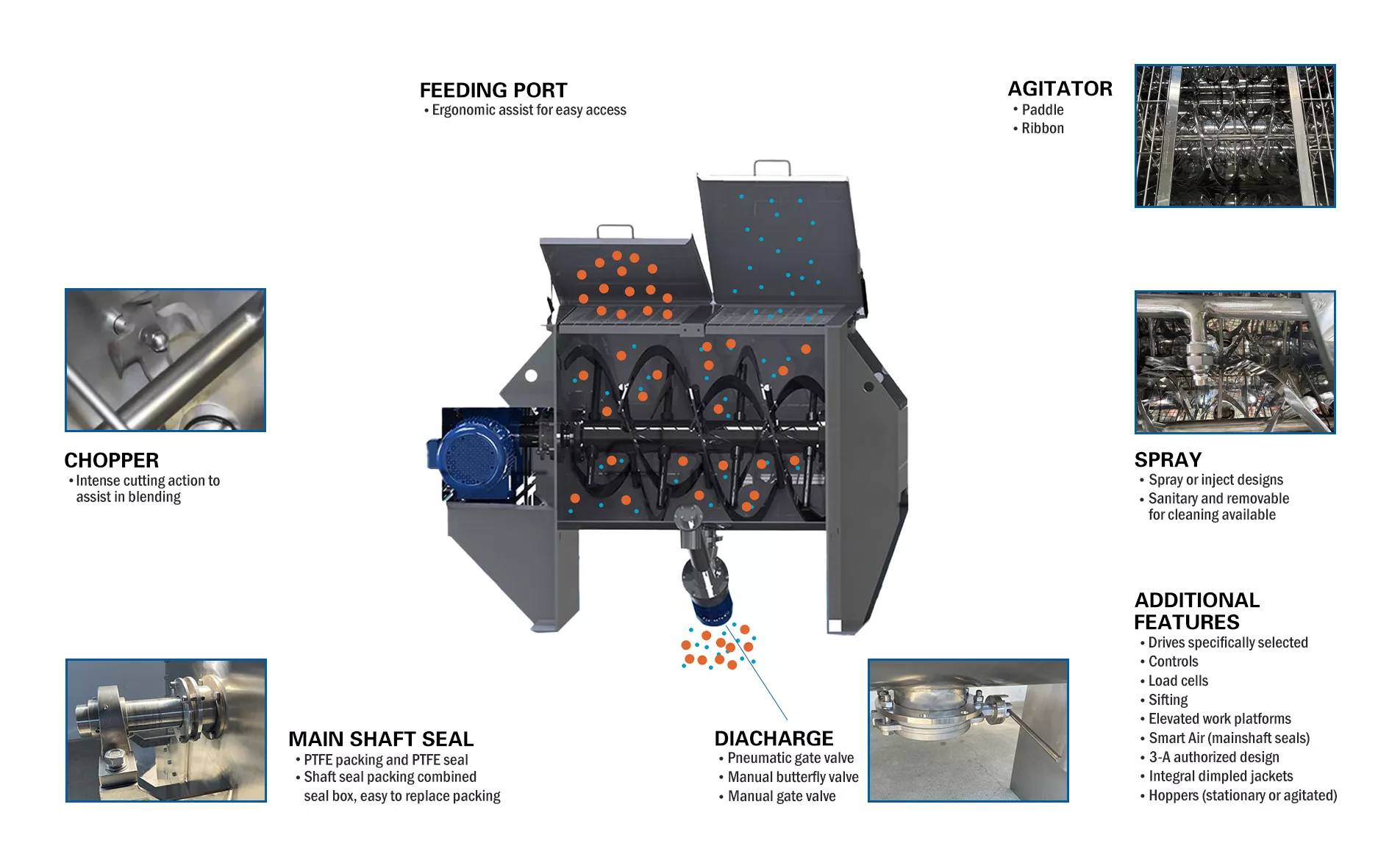

Ribbon-Mixer-Working-Principle-karvil-machinery-min

Karvil-Machinery-Horizontal-Ribbon-Mixer-6

Safety - All Karvil Machinery ribbon blenders include CE markings and are manufactured in accordance with ISO9001 accreditation; Safety limit switch prevents agitator from running when cover is open; Available with customizable safety grilles, automatic valves and a variety of other operator-friendly options.

Customizable - Special structural materials can be provided according to raw materials, such as wear-resistant, corrosion-resistant or other； Heavy duty, high horsepower ribbon mixers to meet high-density mixing requirements; Mechanical seals, end wall scrapers, load cell systems and other upgrades available.

Technical Parameters

Spec	WLDH-100	WLDH-300	WLDH-500	WLDH-1000	WLDH-1500	WLDH-2000	WLDH-3000	WLDH-4000	WLDH-6000	WLDH-8000	WLDH-10000
Total volume(L)	100	300	500	1000	1500	2000	3000	4000	6000	8000	10000
Mixed amount/batch (L)	30-60	90-180	150-300	400-600	450-900	600-1200	900-1800	1200-2400	1800-3600	2400-4800	3000-6000
Power (Kw)	1.5-4	3-5.5	4-11	7.5-15	11-18.5	15-22	18.5-30	22-37	37-55	37-55	45-75
Rotating speed (RPM)	65	65	65	46	38	33	28	28	28	24	21

Applications

Our Services

Professional Consultation

Karvil Machinery provides expert guidance and consultation to help customers choose the right horizontal mixer for their specific needs. This may involve discussing the type of materials to be mixed, batch size, required mixing speed, and other relevant factors.

karvil-machinery-sigma-mixer-ribbon-mixer_副本

Installation&Training

Karvil Machinery provides installation services or guidance to ensure that the mixer is set up correctly and safely at the customer's facility.

We offer training programs for operators and maintenance personnel. This ensures that the equipment is used efficiently and safely

karvil-machinery-sigma-mixer-and-ribbon-mixer

Laboratory Test

In order to be able to demonstrate the advantages and modes of action of Karvil Machinery industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.

d3decc020c846de83e6cd0ddfddaae9

Why Choose Karvil Machinery?

Karvil Machinery has been a trusted manufacturer of ribbon mixers for over 20 years, delivering customized mixing solutions to clients in more than 50 countries worldwide. Our ribbon blenders are engineered for efficiency, consistency, and durability, making them ideal for a wide range of powder and granular materials.

1. Customized Design for Every Application

We offer customized solutions to match the specific characteristics of your material—whether it's dry mortar, food powders, chemicals, or minerals. You can choose from carbon steel, stainless steel (SS304/SS316), or other materials based on your needs.

2. Robust Construction, Long Lifespan

Built with high-quality materials and precision welding, Karvil ribbon mixers are designed for industrial-level durability, even in demanding environments.

3. Flexible Discharge & Control Options

Available with manual or pneumatic discharge valves, optional PLC control systems, and temperature control features (e.g., cooling/heating jackets), giving you full process control.

4. Global Support, Proven Quality

With installations across North America, Latin America, Europe, and Southeast Asia, our ribbon mixers are proven in real-world industrial production. We provide after-sales support and spare parts globally.

Contact Karvil Machinery today to discuss your mixing requirements and request a custom quote.
