Horizontal Ribbon Mixer

  • Food grade stainless steel material
  • Dual screw structure- mixing the food powder more effectivly
  • U-Shape tank bottom, better for food powder discharge and cleaning
  • Gear box drive the auger shaft, low noise and long using life
  • Pneumatic cylinder to control the discharge exit
  • Heating, cooling function can be realized
  • PLC controlled, equipped with weigh modular
  • Customized ribbon blender available

【Application Industry】:
 Horizontal ribbon mixer is used for powder and powder mixing, powder with a small amount of liquid mixing, suitable for food, building, chemical, agricultural and other industries, such as food powder, dry mortar powder, fertilizer, seeds, spices, coffee powder, etc.
  • WLDH-500
  • Karvil
Availability:

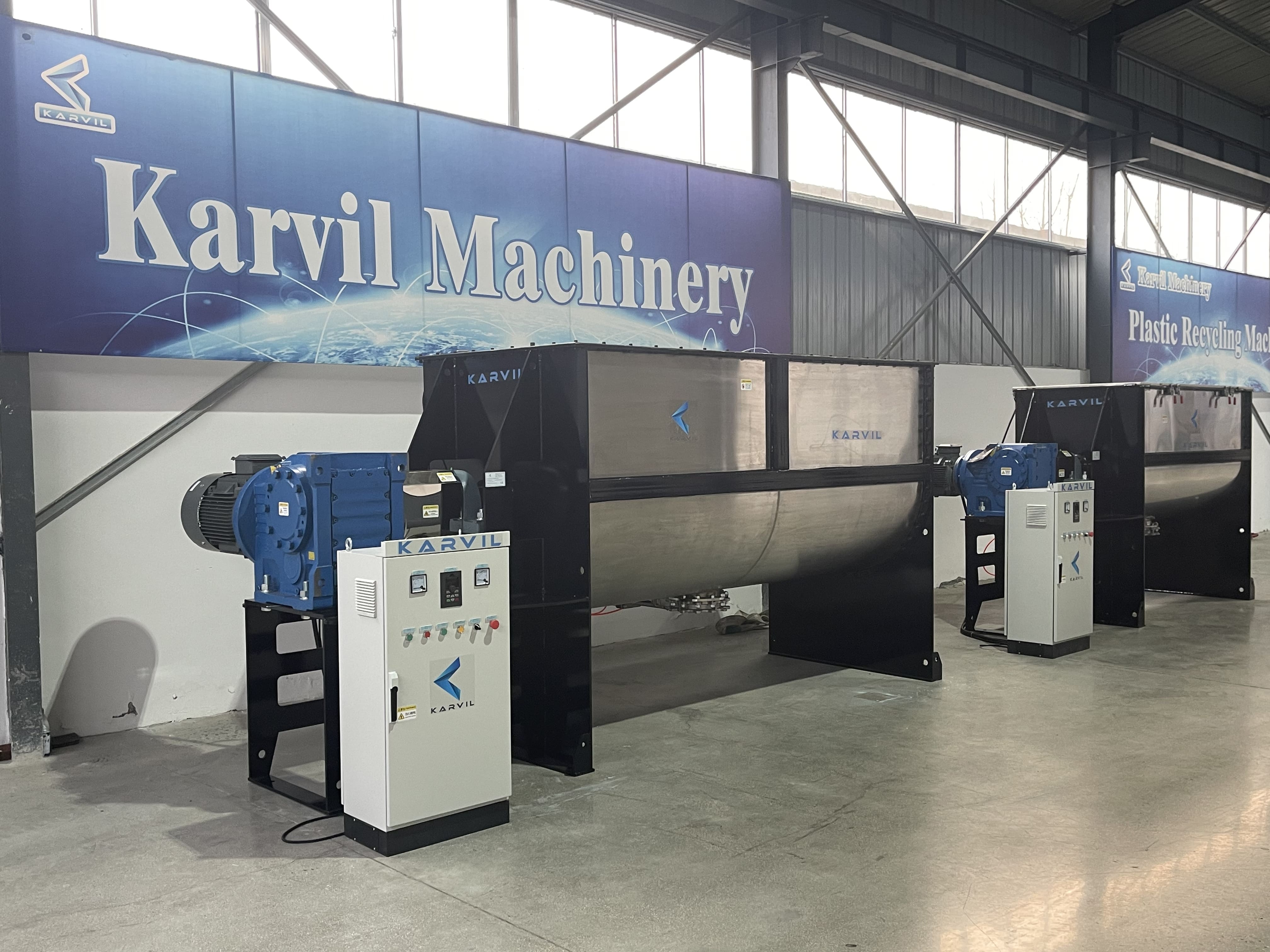

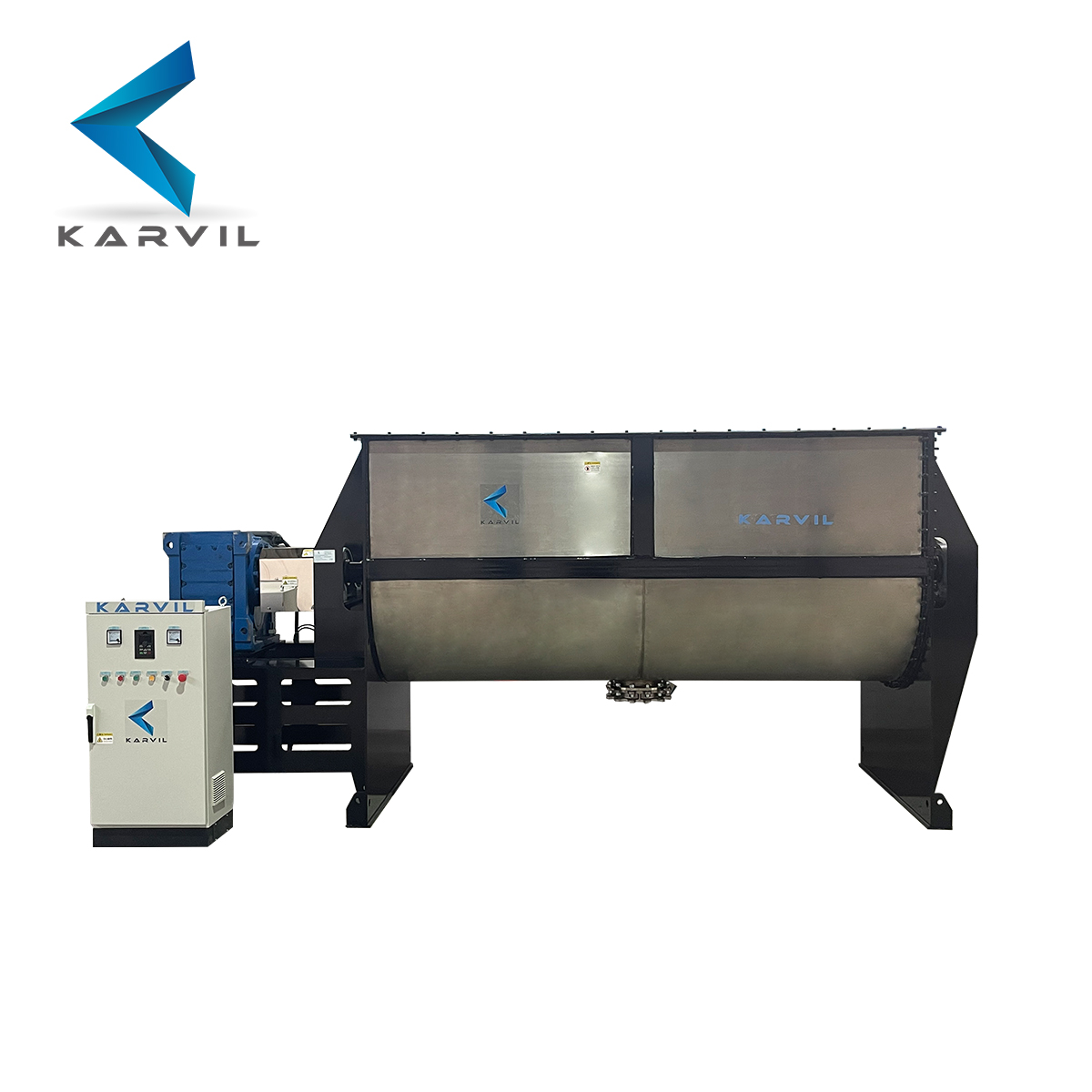

Horizontal-Ribbon-Mixer-KARVIL

Standard Design(Customizable):


Contact Materials: 304 Stainless Steel 316 optional

Interior Surfaces: Polished 180 Grit

Support Steel: 304 or 316 Stainless Steel

Exterior Surfaces: Glass Bead Blasted

Discharge: Swing away flush valve with pneumatic actuation

Working Capacities: 3 to 10,000 Cubic Feet

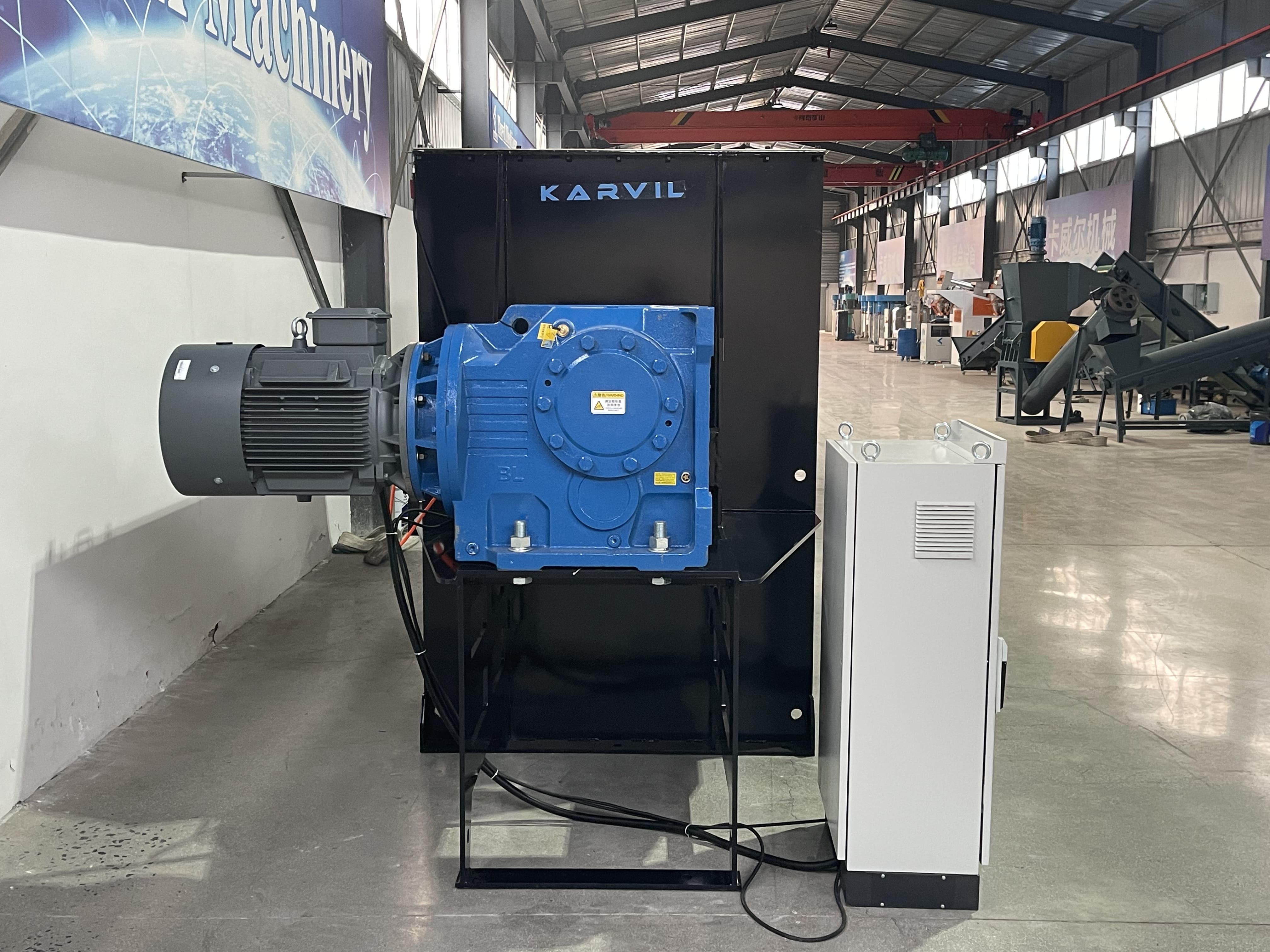

Drive: Hollow Bore SEW Eurodrive

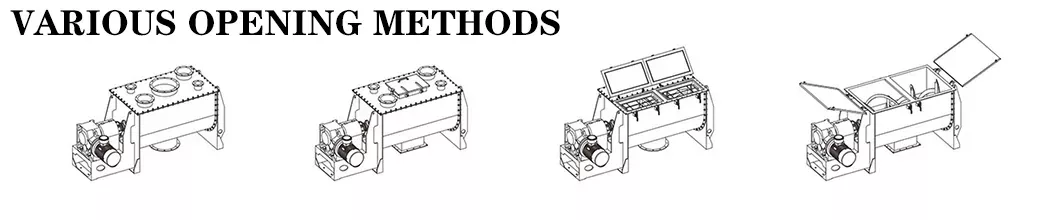

Loading: Loading Cover(s) with Welded Grate

Safety: Magnetic Safety Switch(s) on Main

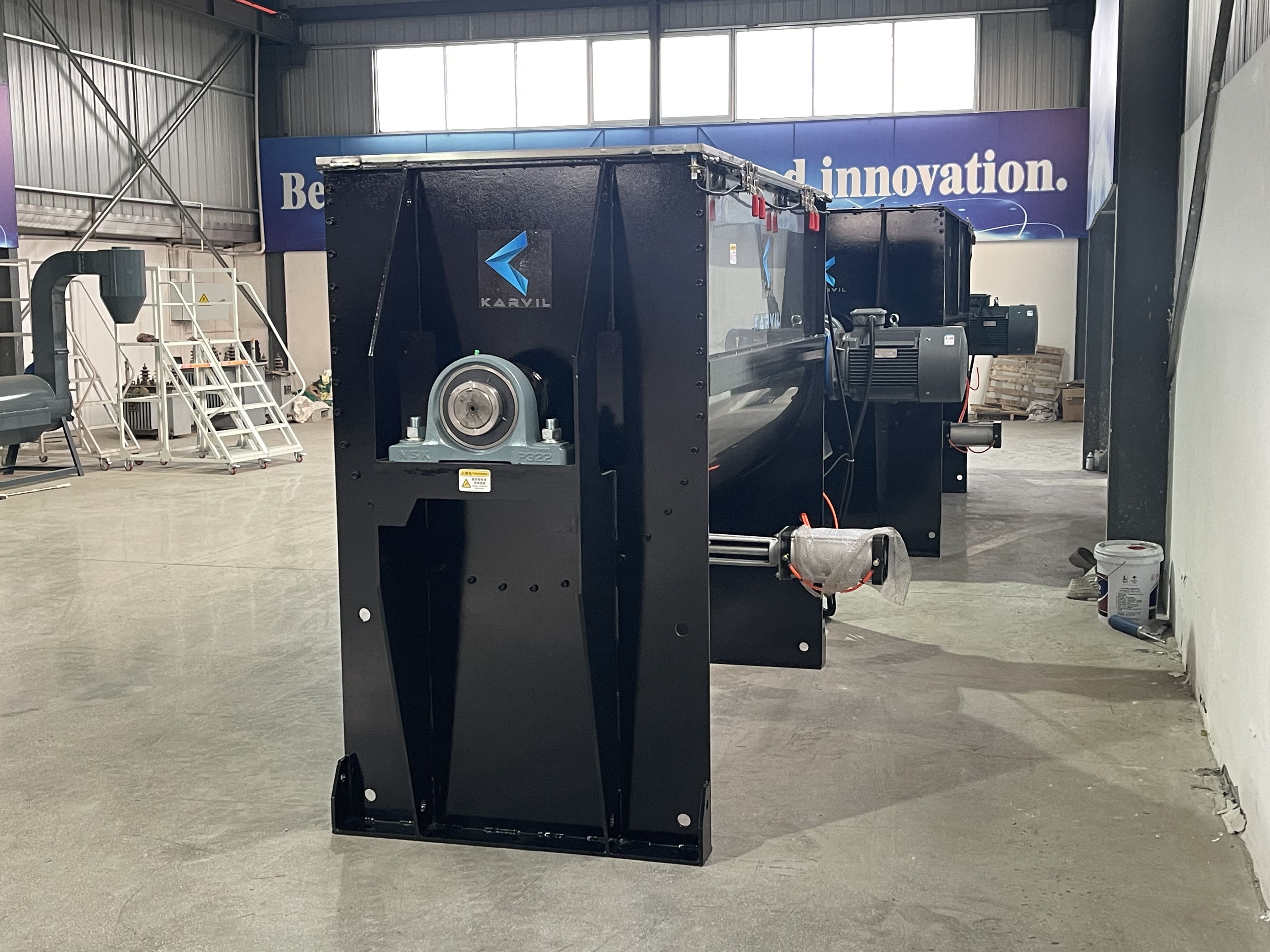

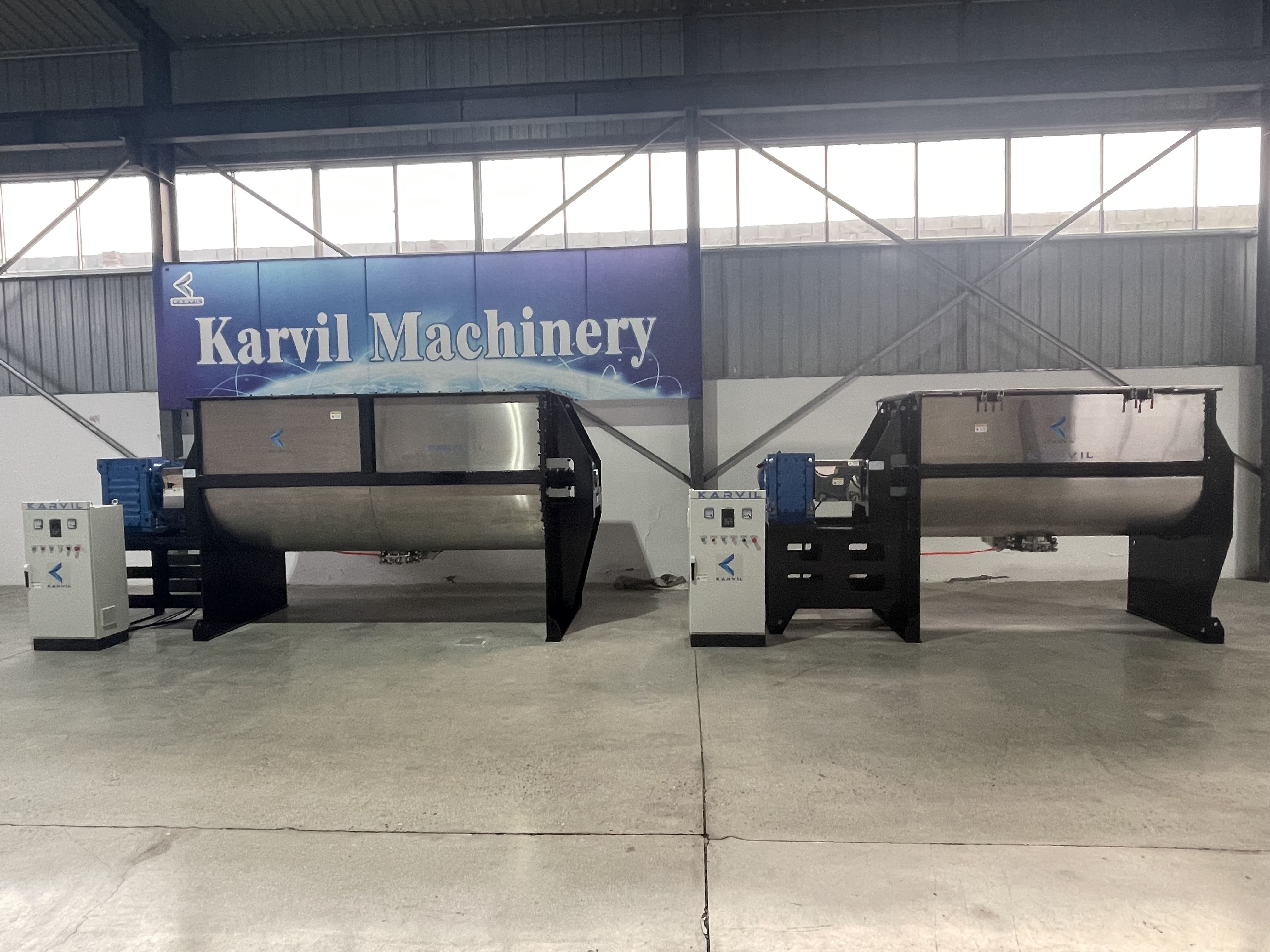

Horizontal-Ribbon-Mixer

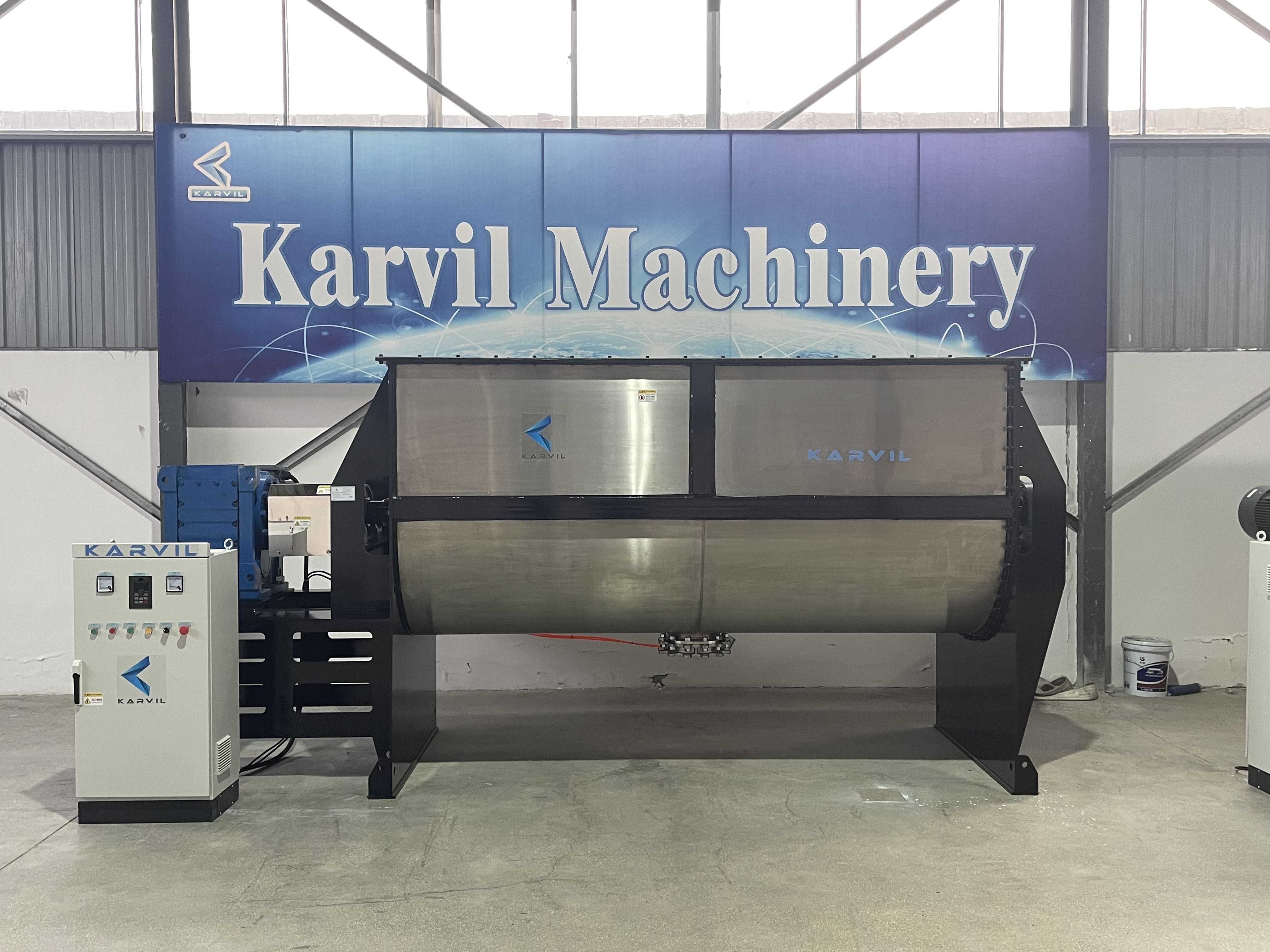

Horizontal-Ribbon-Mixer-2

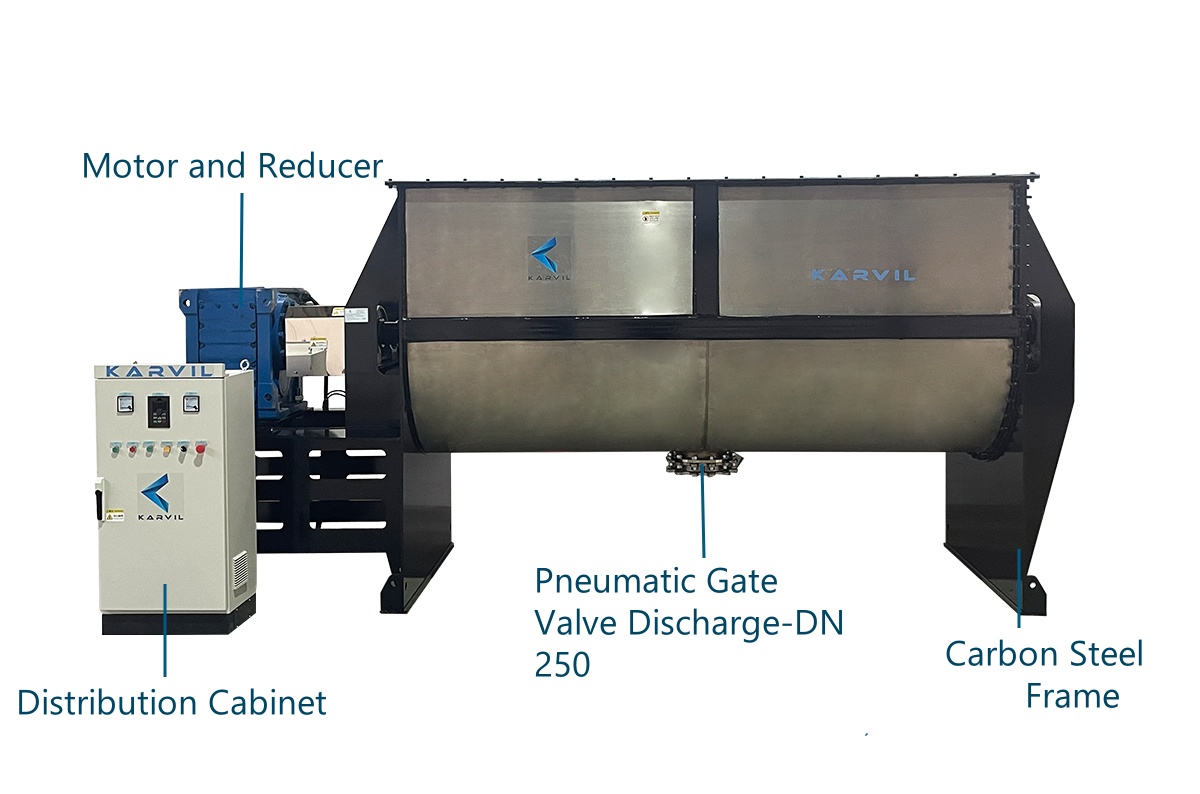

  • Horizontal ribbon mixer consists of drive disk assembly, double layer ribbon agitator, and U-shape cylinder.

  • The outer spiral belt pushes inward and the inner spiral belt pushes outward so that the materials can be flexibly sheared and dislocated to achieve the purpose of fast and uniform stirring.

  • Material outlets are located in the middle of the cylinder bottom. Outside ribbon driven by the main shaft moves materials to discharge to ensure no discharging dead zone.


Technical Parameters

Equipment Type Equipment Volume
(L)
Production Volume
(L/Batch)
Mixing Quantity
(Kg/Batch)

Power(Kw)

Speed of Main Shaft
(R/Min)
External Dimensions
(Mm)
Equipment Weight
(Kg)
WLDH-100

100

30-60 <100 3 0-60 1500*500*700 400
WLDH-1000 1000 300-600 <600 11 33 2700*1000*1450 1800
WLDH-4000 40000 1000-2500 <2500 30 33 4100*1400*2000 4000
WLDH-8000 10000

3000-6000

<5000 45 12 6000*1800*2500 8500


Applications

-0--- karvil-grain-horizontal-ribbon-blender-mixer-machine Food-Grade-Hrizontal-Ribbon-Blender-Mixer-4 Food-Grade-Hrizontal-Ribbon-Blender-Mixer-6
karvil-fertilizer-horizontal-ribbon-blender-mixer-machine Stainless-Steel-Horizontal-Ribbon-Blender-Mixer-for-Spices-5 karvil-nutrition-horizontal-ribbon-blender-mixer-machine karvil-medicine-mixer-machine
