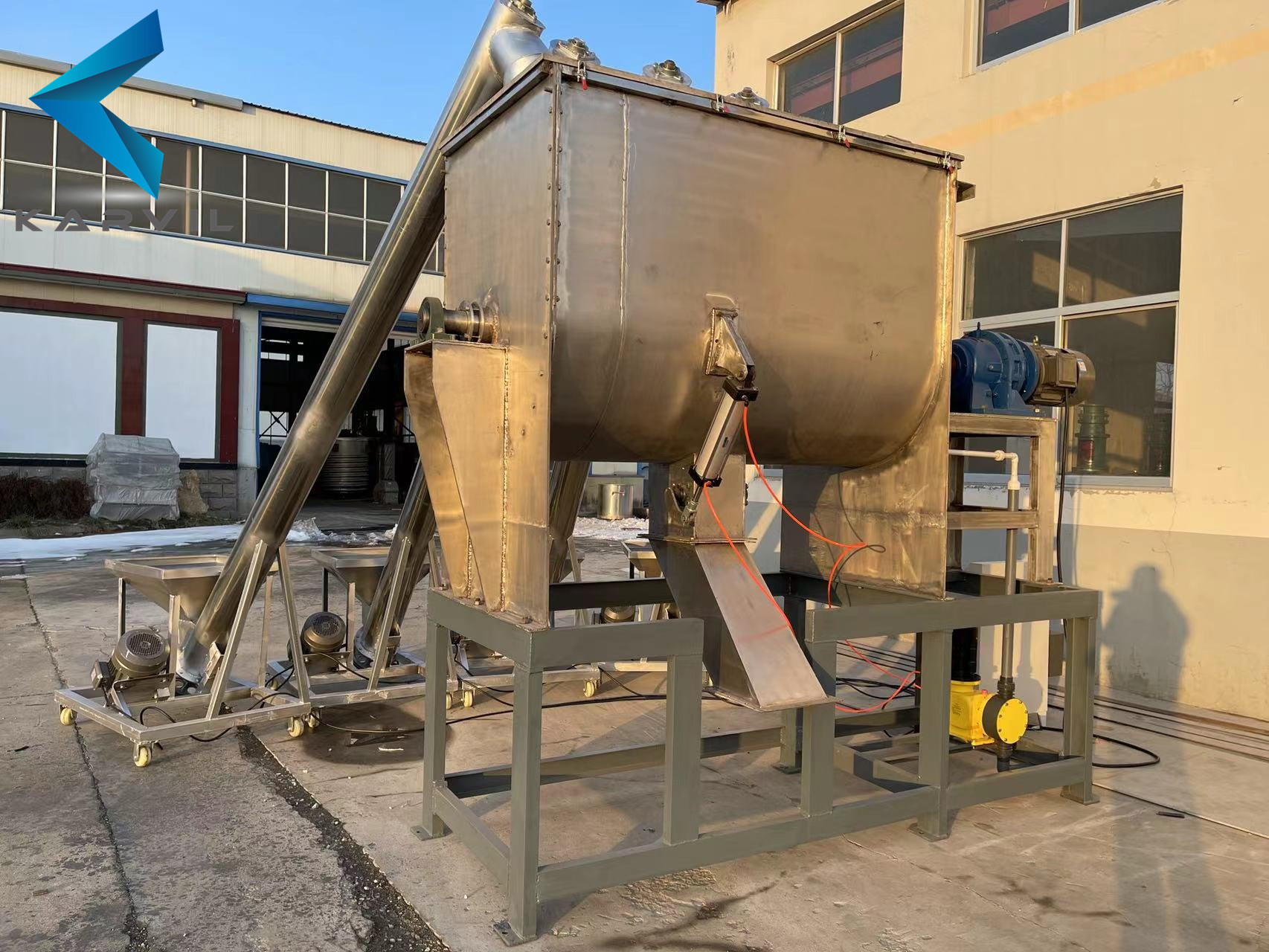

Unit of Ribbon Blender Machine for Animal Feed

  • Food grade stainless steel material

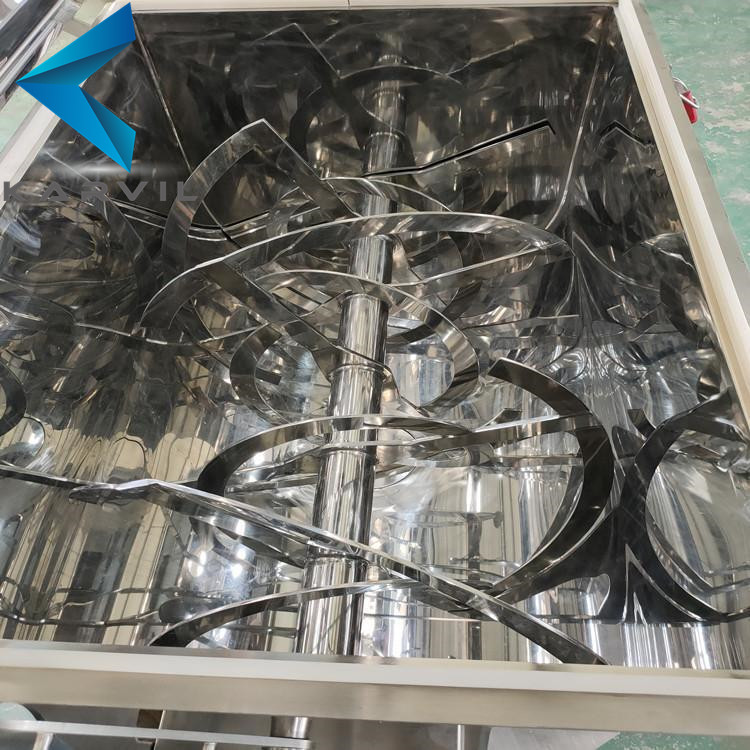

  • Dual screw structure- mixing the powder more effectively
  • U-Shape tank bottom, better for powder discharge and cleaning
  • Gearbox drive the auger shaft, low noise and long using life
  • Pneumatic cylinder to control the discharge exit
  • Heating and cooling functions can be realized
  • PLC controlled, equipped with weighing modular
  • Customized ribbon blender available

【Application Industry】:
  Horizontal ribbon mixer is used for powder and powder mixing, powder with a small amount of liquid mixing, suitable for food, building, chemical, agricultural and other industries, such as food powder, dry mortar powder, fertilizer, seeds, spices, coffee powder, etc.
  • WLDH
  • KARVIL
Availability:


Unit-of-Ribbon-Blender-Machine-for-Animal-Feed

Standard Design(Customizable):

Contact Materials: 304 Stainless Steel 316 optional

Interior Surfaces: Polished 180 Grit

Support Steel: 304 or 316 Stainless Steel

Exterior Surfaces: Glass Bead Blasted

Discharge: Swing away flush valve with pneumatic actuation

Working Capacities: 3 to 10,000 Cubic Feet

Drive: Hollow Bore SEW Eurodrive

Loading: Loading Cover(s) with Welded Grate

Safety: Magnetic Safety Switch(s) on Main Cover


CE-Certification-Horizontal-Ribbon-Blender-for-Mixing-Powder


CE-Certification-Horizontal-Ribbon-Blender-for-Mixing-Powder-2

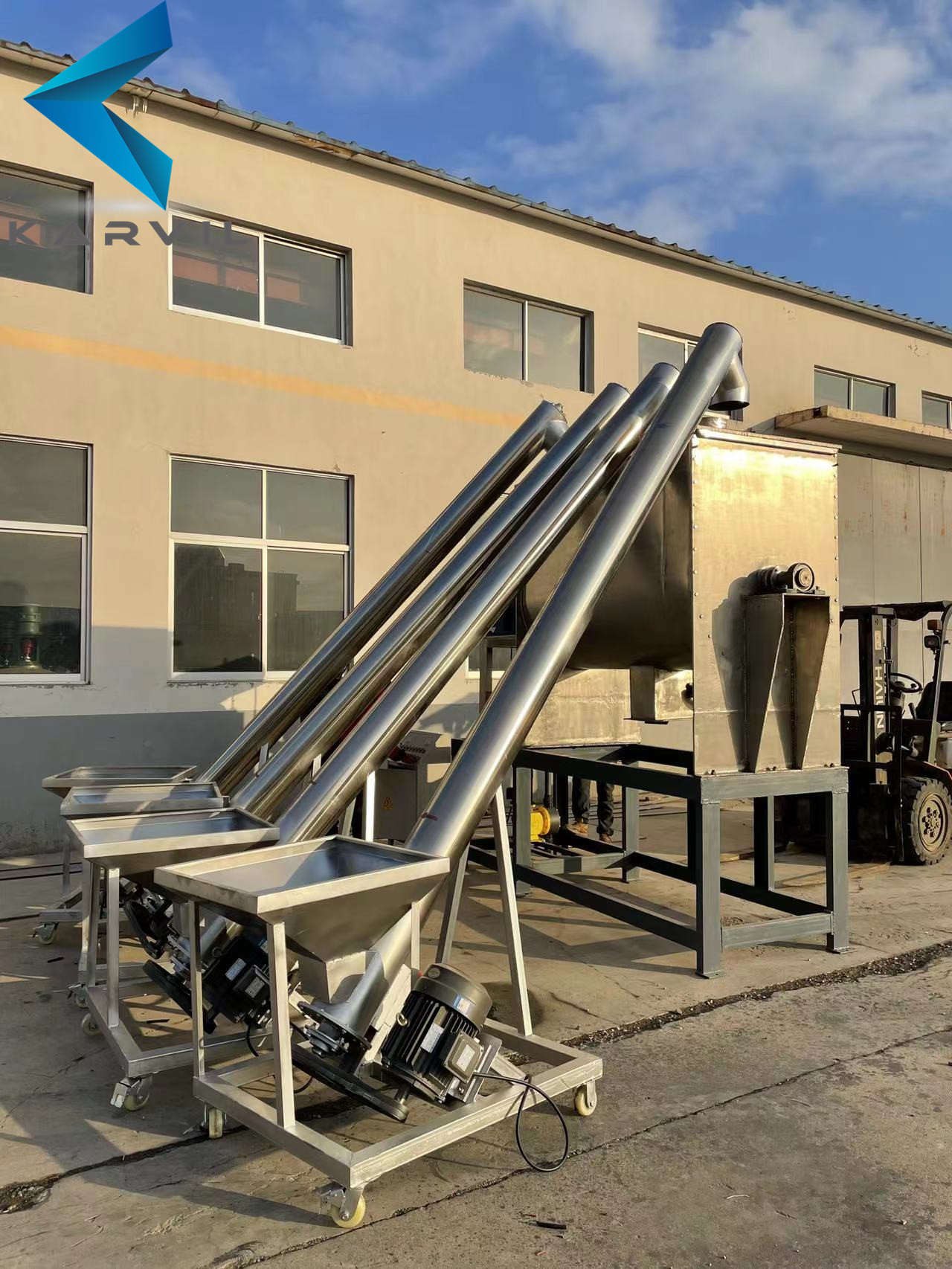

Horizontal mixing machines are most often found in large feed and food production lines for farm animals


THE LINE INCLUDES:

  • Initial scales for dosing ingredients

  • Hammer mill

  • Horizontal screw feeder with a hopper

  • Inclined screw conveyor

  • Packing machine with mechanical and electronic scales

  • Control cabinet

  • Customize equipment according to the needs

Technical Parameters

Equipment Type Equipment Volume
(L)
Production Volume
(L/Batch)
Mixing Quantity
(Kg/Batch)

Power(Kw)

Speed of Main Shaft
(R/Min)
External Dimensions
(Mm)
Equipment Weight
(Kg)
WLDH-100

100

30-60 <100 3 0-60 1500*500*700 400
WLDH-1000 1000 300-600 <600 11 33 2700*1000*1450 1800
WLDH-4000 40000 1000-2500 <2500 30 33 4100*1400*2000 4000
WLDH-8000 10000

3000-6000

<5000 45 12 6000*1800*2500 8500


Applications



karvil-dry-mortar-powder-mixer-machine karvil-soil-horizontal-ribbon-blender-mixer-machine Food-Grade-Hrizontal-Ribbon-Blender-Mixer-4 1-
karvil-feed-horizontal-ribbon-blender-mixer-machine Stainless-Steel-Horizontal-Ribbon-Blender-Mixer-for-Spices-4 karvil-medicine-mixer-machine karvil-grain-horizontal-ribbon-blender-mixer-machine



Our Services




d3decc020c846de83e6cd0ddfddaae9



LABORATORY TEST


In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.


  4cc6a298bf03570b88509020de7d969




PROFESSIONAL ENGINEERFood-Powder-Horizontal-Ribbon-Mixer-2_副本


The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine.  Karvil explores new technical points constantly to create perfect solutions for customers.


                   4cc6a298bf03570b88509020de7d969


d1e139188cac52c6159e923028a9a7b_副本


e5105655ad36bdba6d25397a9594f37_副本



DIRECT FACTORY


Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.


4cc6a298bf03570b88509020de7d969
