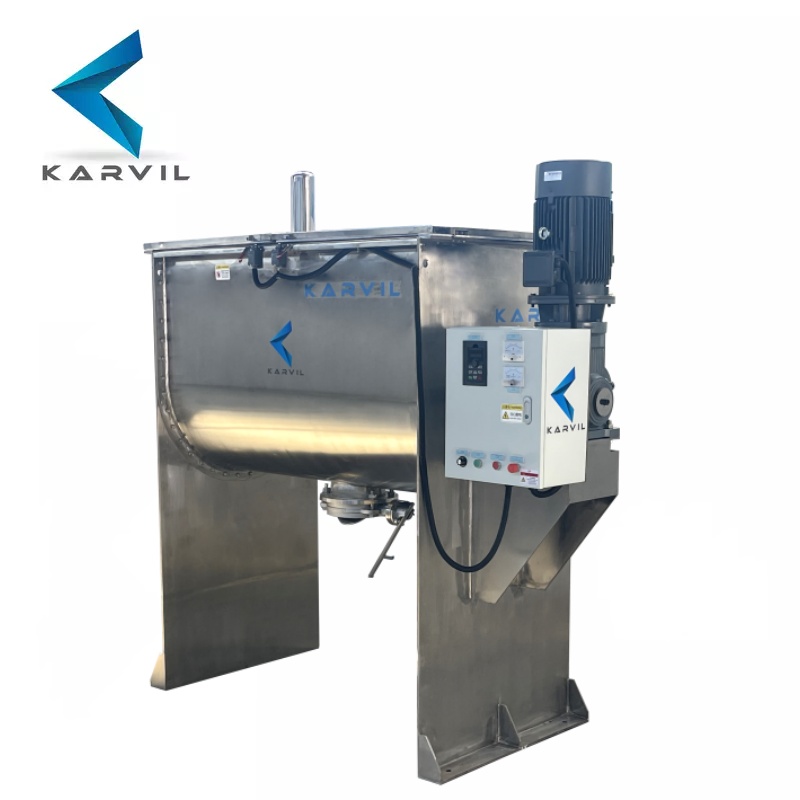

Small Horizontal Ribbon Blender

  • Food grade stainless steel material
  • Dual screw structure- mixing the powder more effectively
  • U-Shape tank bottom, better for powder discharge and cleaning

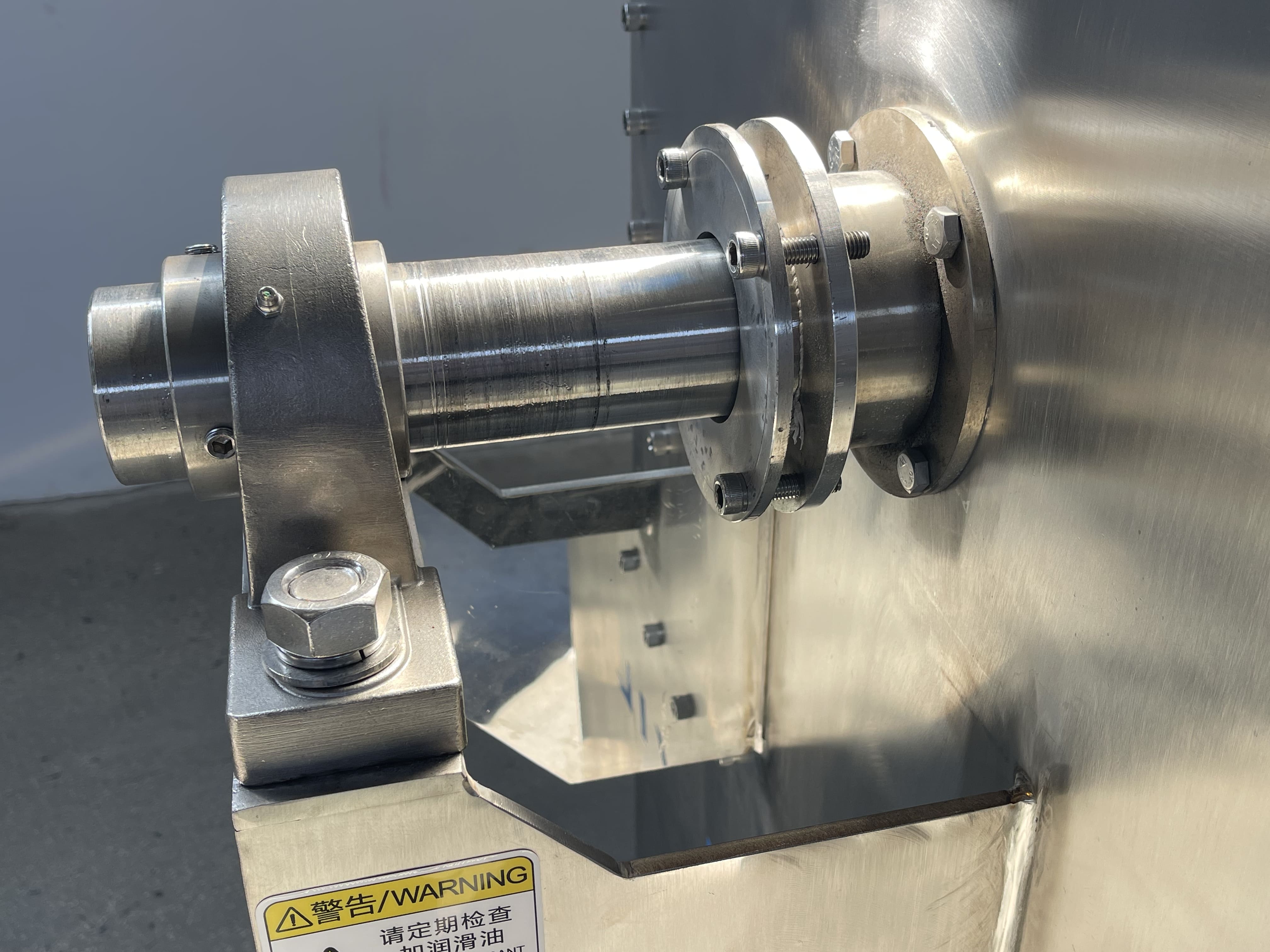

  • Gearbox drive the auger shaft, low noise and long using life
  • Pneumatic cylinder to control the discharge exit
  • Heating and cooling functions can be realized
  • PLC controlled, equipped with weighing modular
  • Customized ribbon blender available

【Application Industry】:
  Horizontal ribbon mixer is used for powder and powder mixing, powder with a small amount of liquid mixing, suitable for food, building, chemical, agricultural and other industries, such as food powder, dry mortar powder, fertilizer, seeds, spices, coffee powder, etc.
  • WLDH-100

  • Karvil

Availability:
113da3070592e25e68b79f7e57ddd29_副本

Standard Design(Customizable):


Contact Materials: 304 Stainless Steel 316 optional

Interior Surfaces: Polished 180 Grit

Support Steel: 304 or 316 Stainless Steel

Exterior Surfaces: Glass Bead Blasted

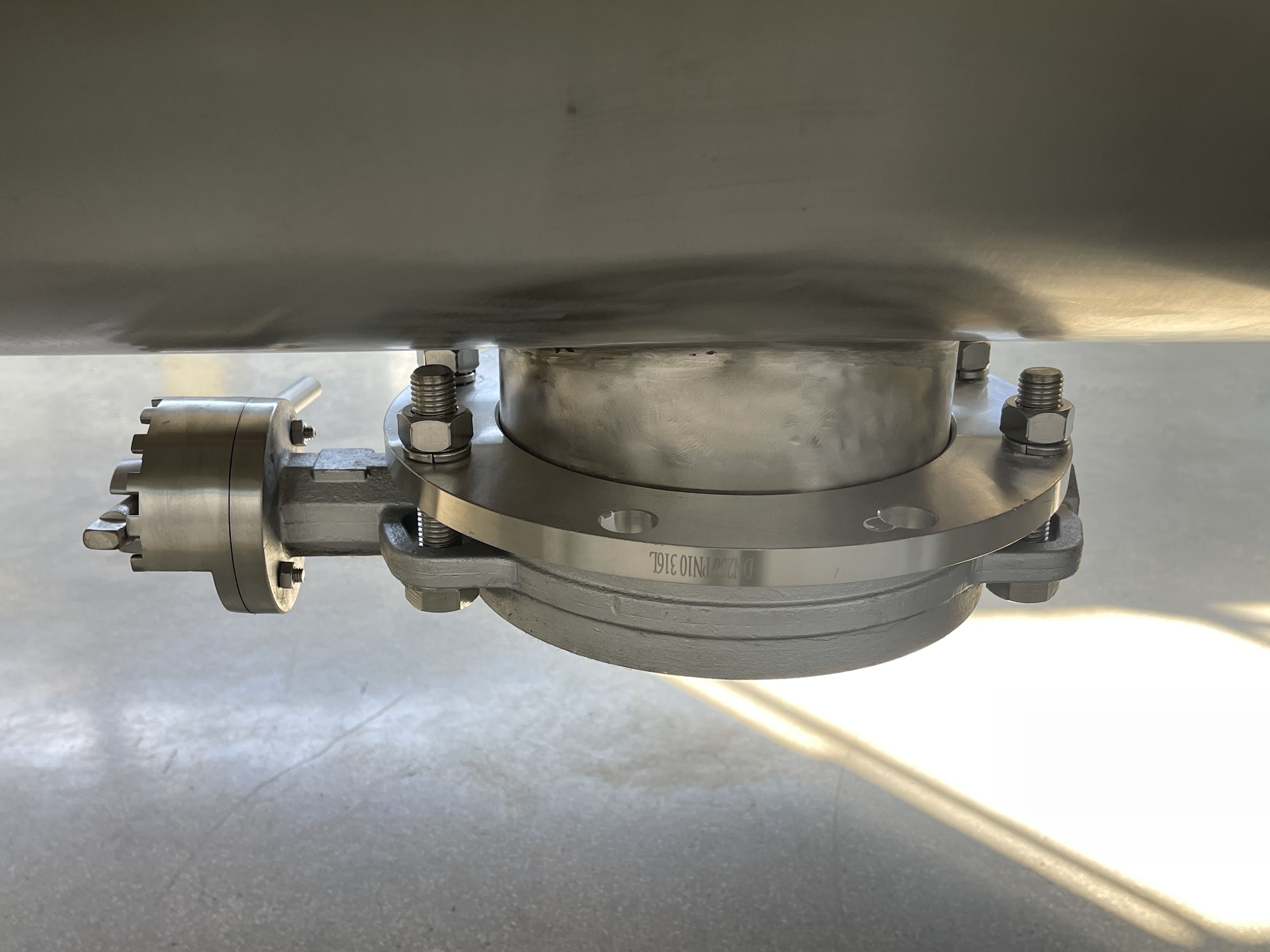

Discharge: Swing away flush valve with pneumatic actuation

Working Capacities: 3 to 10,000 Cubic Feet

Drive: Hollow Bore SEW Eurodrive

Loading: Loading Cover(s) with Welded Grate

Safety: Magnetic Safety Switch(s) on Main Cover


Karvil-Machinery-Horizontal-Ribbon-Mixer-6


  • Horizontal ribbon mixer consists of drive disk assembly, double layer ribbon agitator, and U-shape cylinder.

  • The outer spiral belt pushes inward and the inner spiral belt pushes outward so that the materials can be flexibly sheared and dislocated to achieve the purpose of fast and uniform stirring.

  • Material outlets are located in the middle of the cylinder bottom. Outside ribbon driven by the main shaft moves materials to discharge to ensure no discharging dead zone.

Technical Parameters

Spec WLDH-100 WLDH-300 WLDH-500 WLDH-1000 WLDH-1500 WLDH-2000 WLDH-3000 WLDH-4000 WLDH-6000 WLDH-8000 WLDH-10000
Total volume(L) 100 300 500 1000 1500 2000 3000 4000 6000 8000 10000
Mixed amount/batch (L) 30-60 90-180 150-300 400-600 450-900 600-1200 900-1800 1200-2400 1800-3600 2400-4800 3000-6000
Power (Kw) 1.5-4 3-5.5 4-11 7.5-15 11-18.5 15-22 18.5-30 22-37 37-55 37-55 45-75
Rotating speed (RPM) 65 65 65 46 38 33 28 28 28 24 21

Applications

-0--- 1-= karvil-fertilizer-horizontal-ribbon-blender-mixer-machine karvil-medicine-mixer-machine
karvil-dry-mortar-powder-mixer-machine Stainless-Steel-Horizontal-Ribbon-Blender-Mixer-for-Spices-5 karvil-feed-horizontal-ribbon-blender-mixer-machine karvil-grain-horizontal-ribbon-blender-mixer-machine

Our Services

d3decc020c846de83e6cd0ddfddaae9


LABORATORY TEST


In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.


  4cc6a298bf03570b88509020de7d969


PROFESSIONAL ENGINEERFood-Powder-Horizontal-Ribbon-Mixer-2_副本


The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine.  Karvil explores new technical points constantly to create perfect solutions for customers.


                   4cc6a298bf03570b88509020de7d969


karvil-machinery-sigma-mixer-ribbon-mixer_副本
karvil-machinery-sigma-mixer-and-ribbon-mixer


DIRECT FACTORY


Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.


4cc6a298bf03570b88509020de7d969

F.A.Q.

1. Manufacturer or trading company?

We are a manufacturer with strict production standards in China.

2. Where is your company?

Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.

3. About your company's visit?

We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.

4. What is the main market for your company?

Asia and Africa, Australia, America, Europe.

5. Can you provide customized products?

Yes, we have professional engineers to meet your special design needs, so we can provide customized products.

6. What is your delivery time?

It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.

7. About the product warranty?

Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.

8. What are the payment terms?

T/T, L/C, etc.
