Standard Design(Customizable):
NH-1000
Availability: | |
---|---|
Nano-Scale Yeast & Animal Feed Additive Mixing System

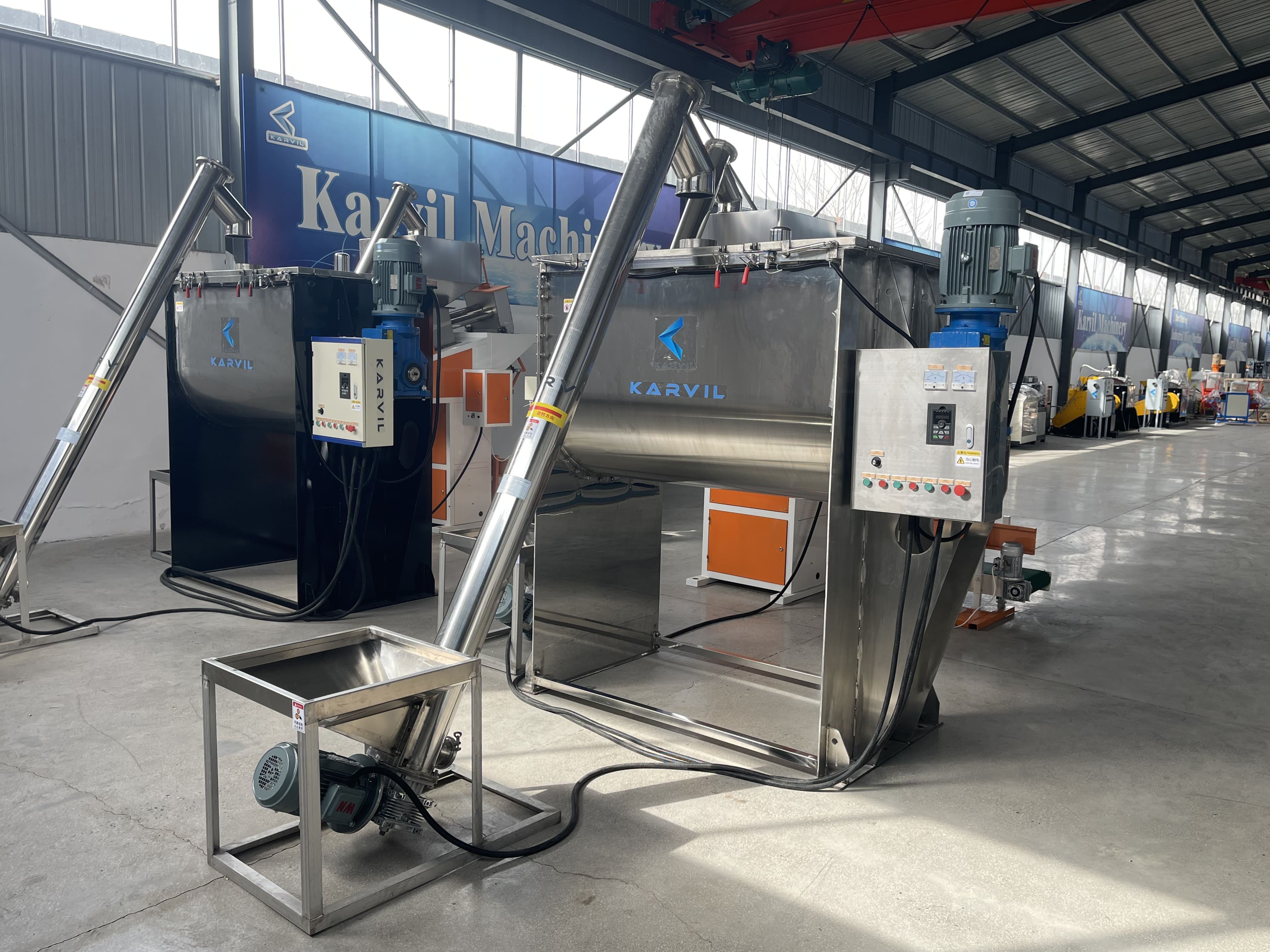

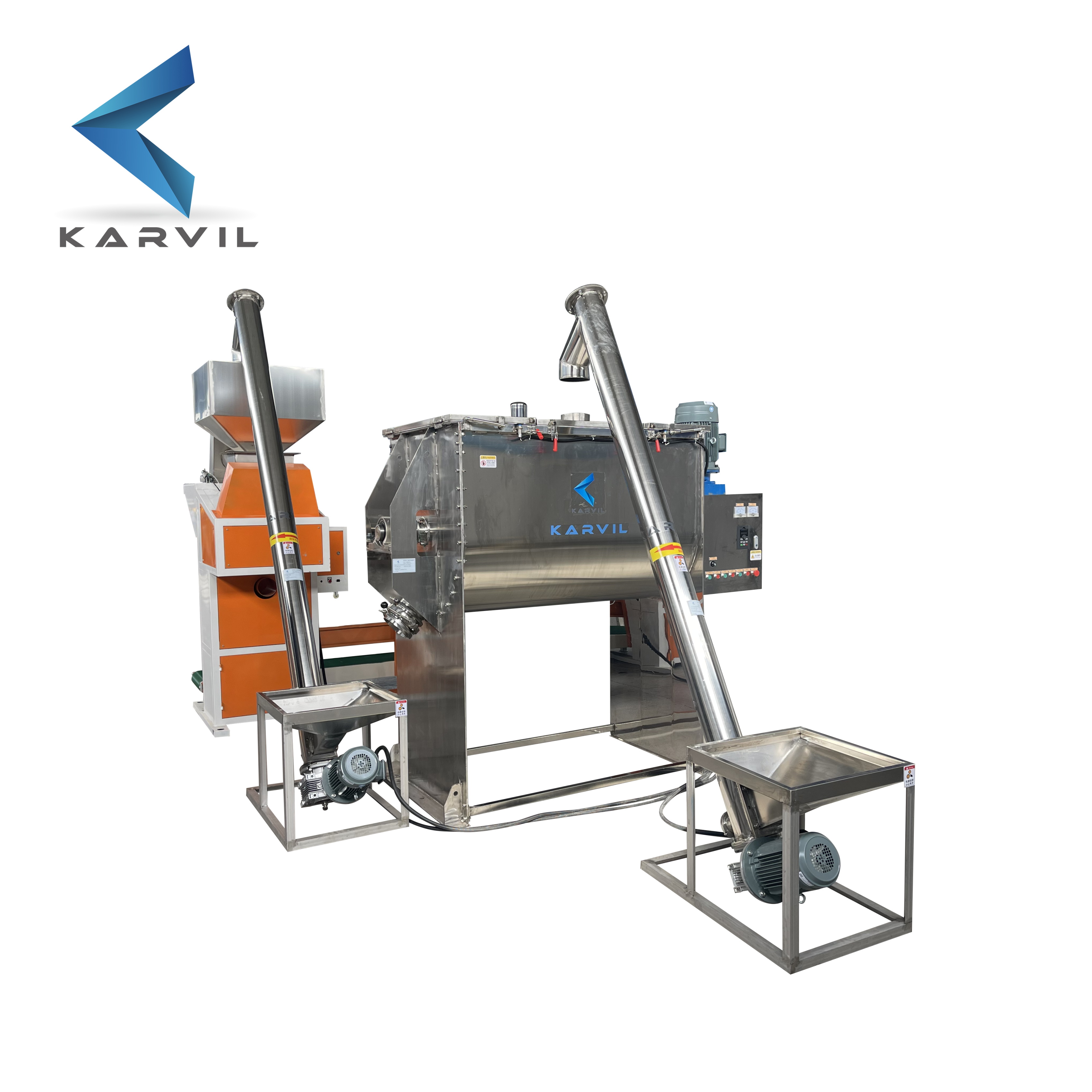

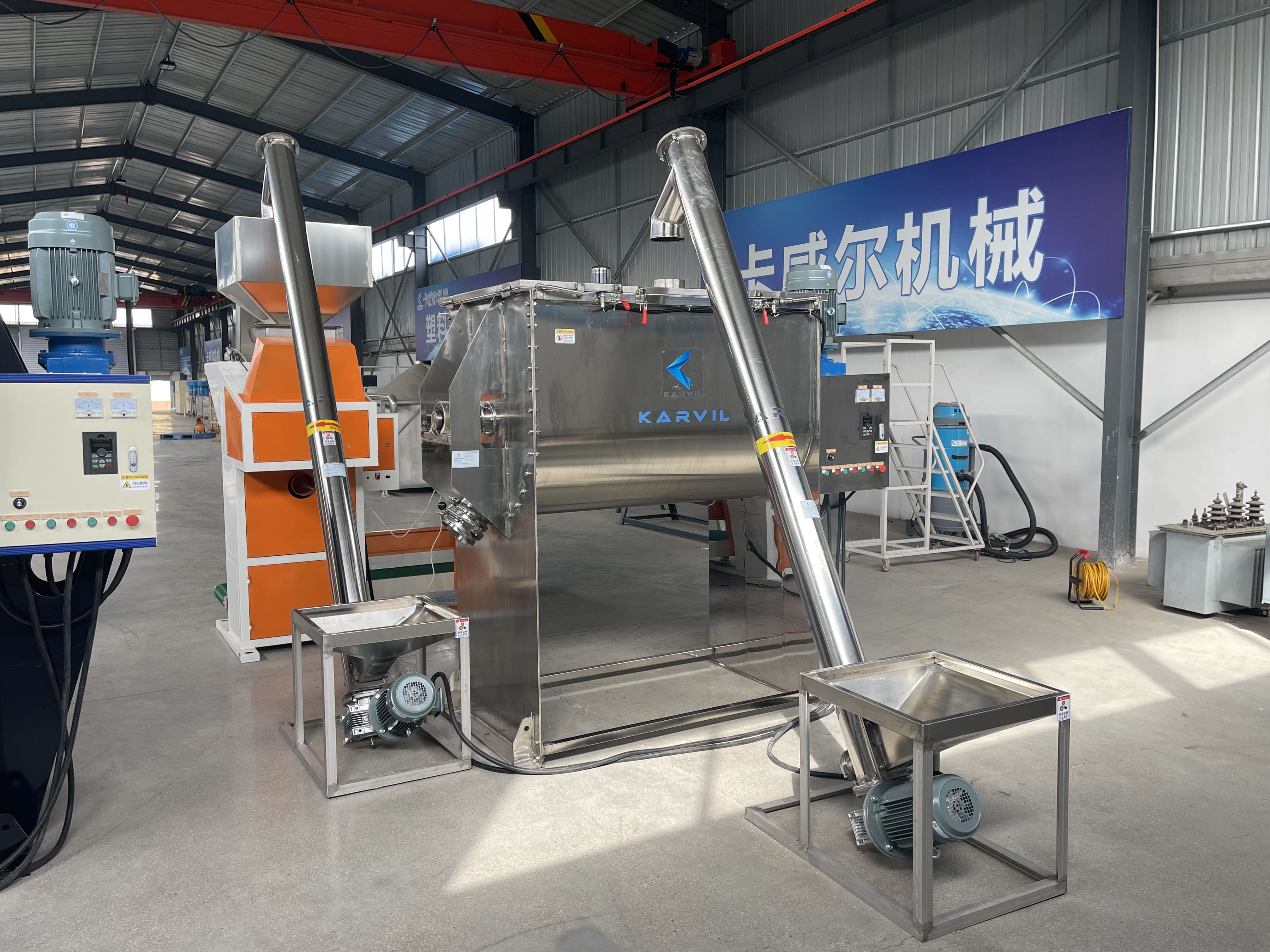

Karvil Machinery’s 1000L SS304 Horizontal Ribbon Blender is a specialized solution for homogenizing nano-scale yeast derivatives (≤500nm) in animal feed production. With full 304 stainless steel construction and anti-degradation design, it ensures contamination-free mixing for sensitive bioactive ingredients.
Ultra-Hygienic Design
Full SS304 interior with electropolished welds (FDA/EC1935 compliant).
No dead zones – ideal for GMP+ feed additive standards.
Precision Nano Mixing
Dual helical ribbons + reverse paddles prevent particle stratification.
0.5-2μm mixing accuracy for yeast β-glucans, MOS, nucleotides.
Moisture & Oxidation Control
Optional vacuum lid (-0.08MPa) reduces moisture absorption.
Argon gas inlet protects sensitive probiotics.
Fast Batch Changeover
WIP (Wash-in-Place) nozzles & 360° inspection ports.
Horizontal ribbon mixer consists of drive disk assembly, double layer ribbon agitator, and U-shape cylinder.
The outer spiral belt pushes inward and the inner spiral belt pushes outward so that the materials can be flexibly sheared and dislocated to achieve the purpose of fast and uniform stirring.
Material outlets are located in the middle of the cylinder bottom. Outside ribbon driven by the main shaft moves materials to discharge to ensure no discharging dead zone.
Spec | WLDH-100 | WLDH-300 | WLDH-500 | WLDH-1000 | WLDH-1500 | WLDH-2000 | WLDH-3000 | WLDH-4000 | WLDH-6000 | WLDH-8000 | WLDH-10000 |
Total volume(L) | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
Mixed amount/batch (L) | 30-60 | 90-180 | 150-300 | 400-600 | 450-900 | 600-1200 | 900-1800 | 1200-2400 | 1800-3600 | 2400-4800 | 3000-6000 |
Power (Kw) | 1.5-4 | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
Rotating speed (RPM) | 65 | 65 | 65 | 46 | 38 | 33 | 28 | 28 | 28 | 24 | 21 |
![]() | LABORATORY TEST In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal. |
PROFESSIONAL ENGINEER The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers. | ![]() |
![]() | DIRECT FACTORY Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products. |
