Food Grade Horizontal Ribbon Blender

  • Food grade stainless steel material
  • Dual screw structure- mixing the food powder more effectively
  • U-Shape tank bottom, better for seeds discharge and cleaning
  • Gearbox drive the auger shaft, low noise, and long using life
  • Pneumatic cylinder to control the discharge exit
  • Heating and cooling functions can be realized
  • PLC controlled, equipped with weighing modular
  • Customized ribbon blender available

【Application Industry】:
Especially suitable for food powder mixing, such as baked food, food additives, instant coffee, milk powder, mineral salt, etc


Availability:
Food-Grade-Horizontal-Ribbon-Blender-Mixer-5_副本

Standard Design(Customizable):


Contact Materials: 304 Stainless Steel 316 optional

Interior Surfaces: Polished 180 Grit

Support Steel: 304 or 316 Stainless Steel

Exterior Surfaces: Glass Bead Blasted

Discharge: Swing away flush valve with pneumatic actuation

Working Capacities: 3 to 10,000 Cubic Feet

Drive: Hollow Bore SEW Eurodrive

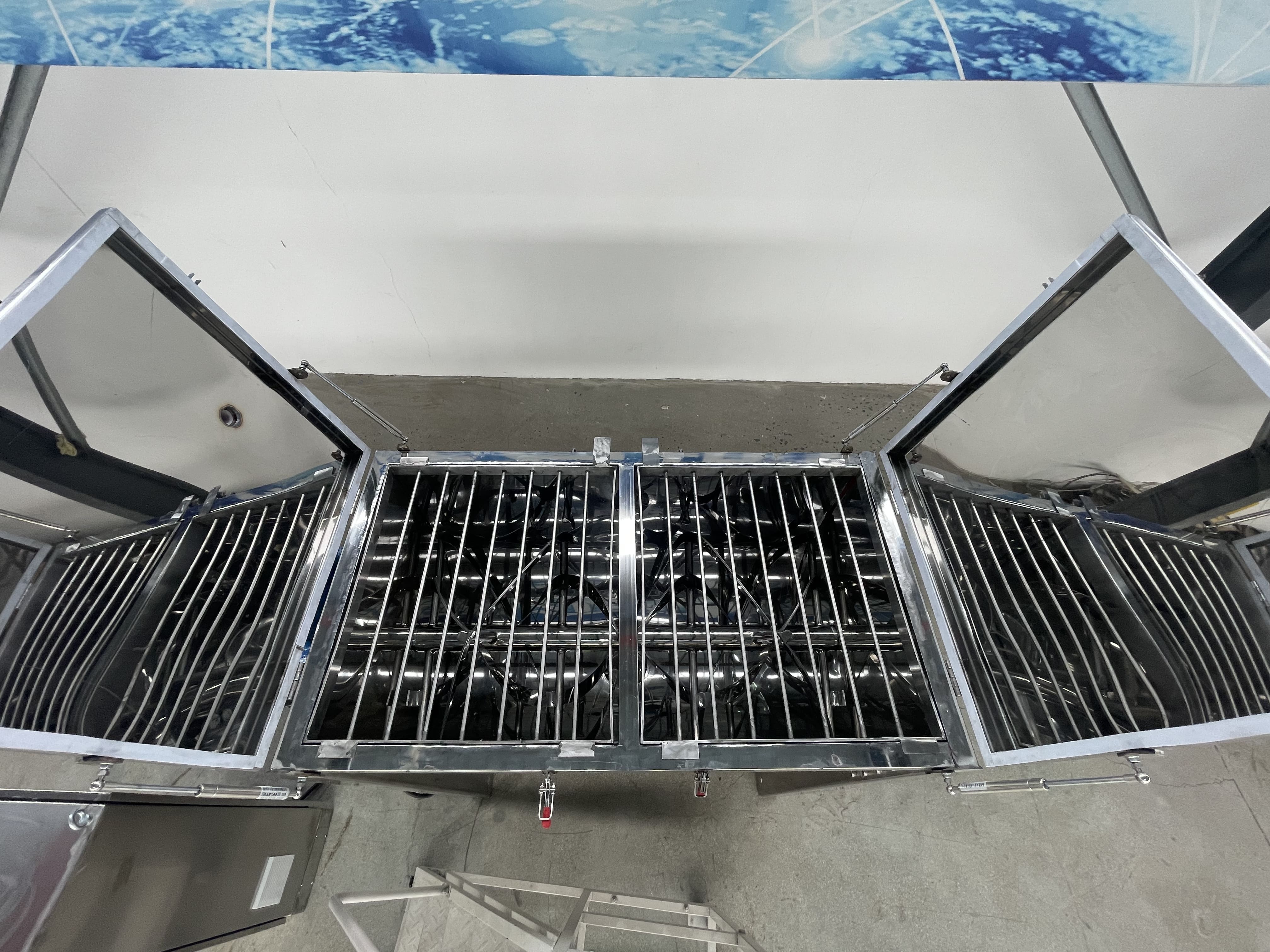

Loading: Loading Cover(s) with Welded Grate

Safety: Magnetic Safety Switch(s) on Main Cover


Food-Grade-Hrizontal-Ribbon-Blender-Mixer-1-7

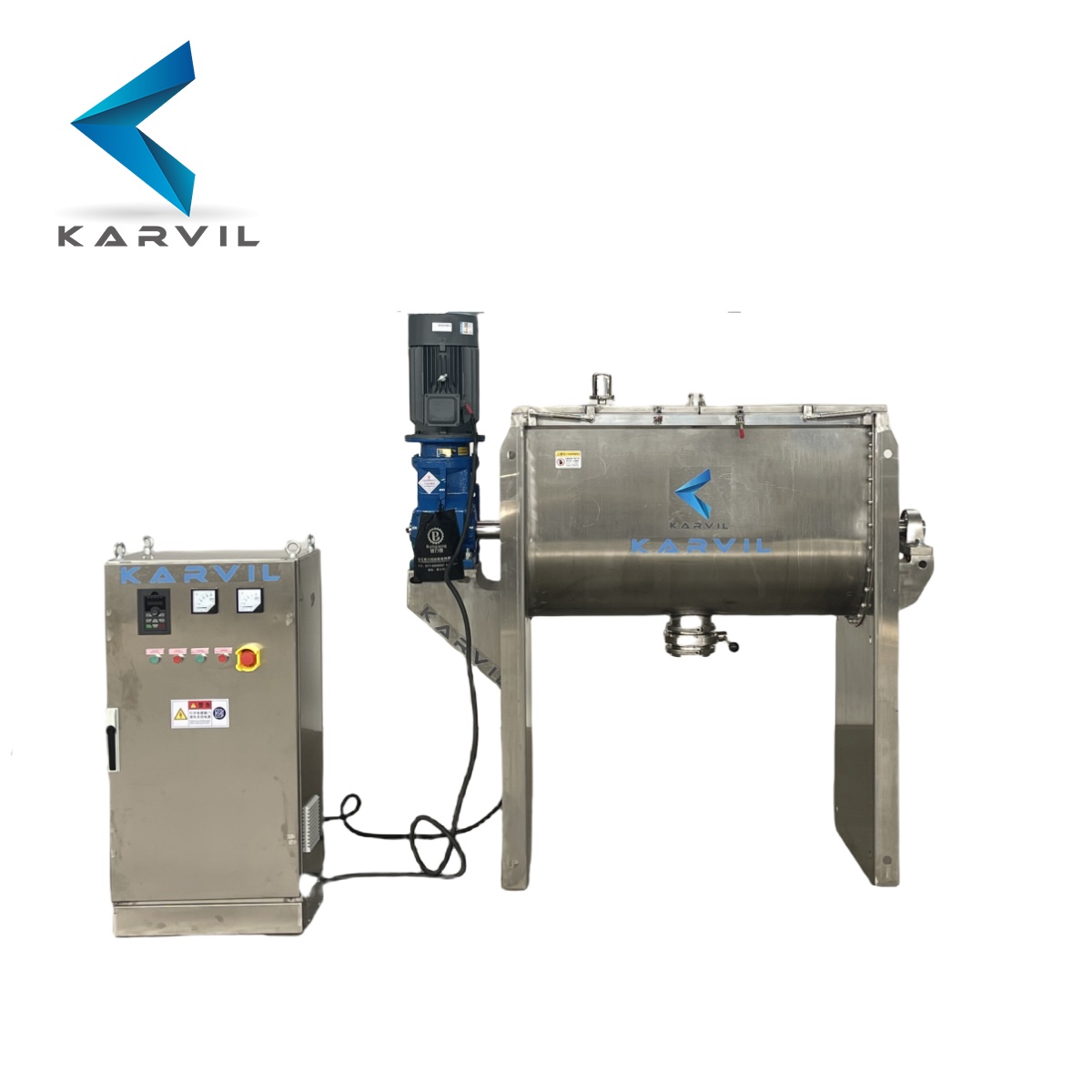

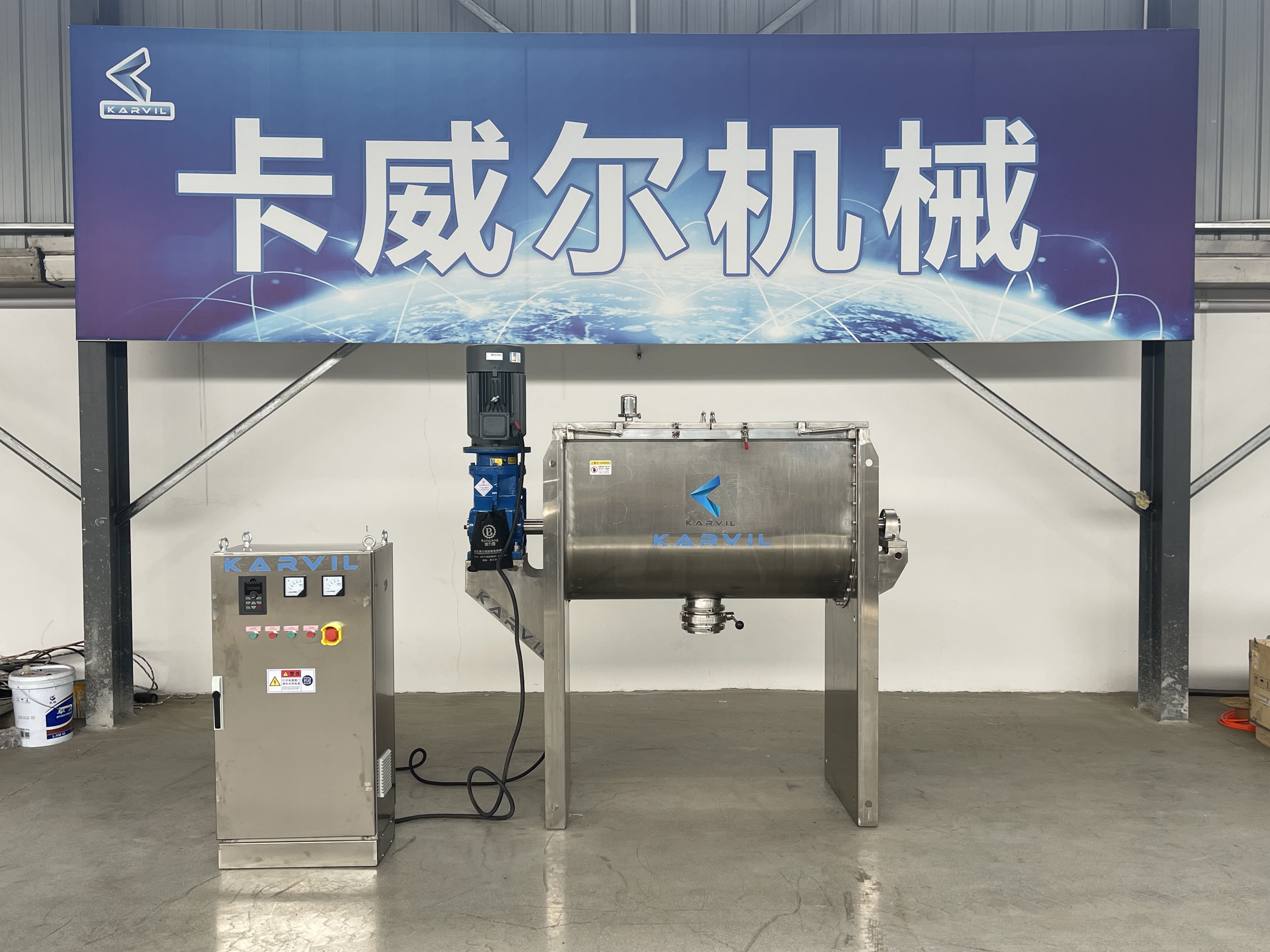

Horizontal ribbon mixer consists of drive disk assembly, double layer ribbon agitator, and U-shape cylinder.


The outer spiral belt pushes inward and the inner spiral belt pushes outward so that the materials can be flexibly sheared and dislocated to achieve the purpose of fast and uniform stirring.

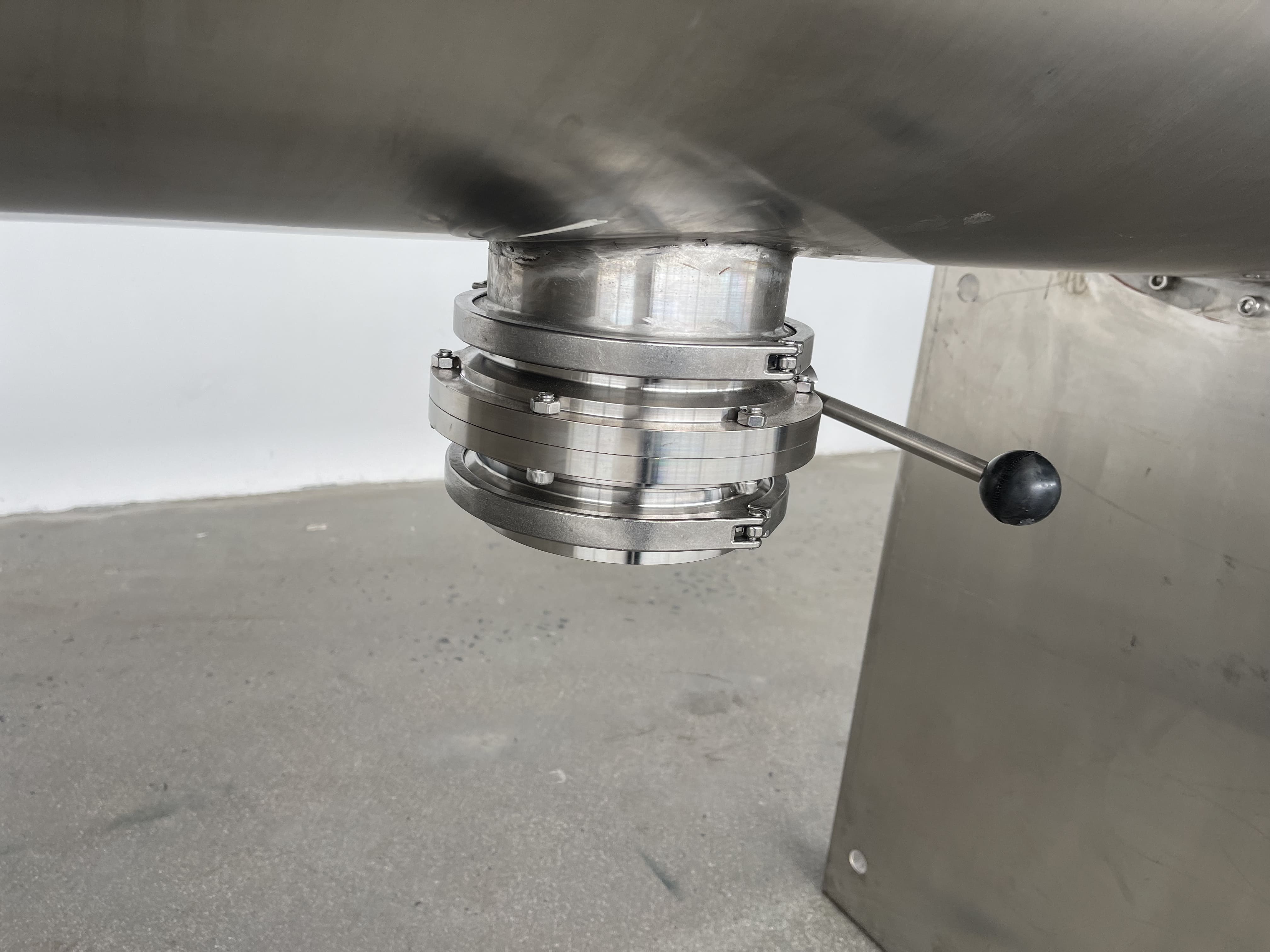

Material outlets are located in the middle of the cylinder bottom. Outside ribbon driven by the main shaft moves materials to discharge to ensure no discharging dead zone.

Food-Grade-Horizontal-Ribbon-Blender

Food-Grade-Horizontal-Ribbon-Blender-2

Technical Parameters


Equipment Type Equipment Volume
(L)
Production Volume
(L/Batch)
Mixing Quantity
(Kg/Batch)

Power(Kw)

Speed of Main Shaft
(R/Min)
External Dimensions
(Mm)
Equipment Weight
(Kg)
WLDH-100

100

30-60 <100 3 0-60 1500*500*700 400
WLDH-1000 1000 300-600 <600 11 33 2700*1000*1450 1800
WLDH-4000 40000 1000-2500 <2500 30 33 4100*1400*2000 4000
WLDH-8000 10000

3000-6000

<5000 45 12 6000*1800*2500 8500


Applications


Food-Grade-Hrizontal-Ribbon-Blender-Mixer-1-5 Food-Grade-Hrizontal-Ribbon-Blender-Mixer-3 Food-Grade-Hrizontal-Ribbon-Blender-Mixer-4 Food-Grade-Hrizontal-Ribbon-Blender-Mixer-6
Stainless-Steel-Horizontal-Ribbon-Blender-Mixer-for-Spices Stainless-Steel-Horizontal-Ribbon-Mixer-Blender-for-Farming-Seeds-4 Stainless-Steel-Horizontal-Ribbon-Blender-Mixer-for-Spices-4 1-



Our Services


d3decc020c846de83e6cd0ddfddaae9



LABORATORY TEST


In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.


  4cc6a298bf03570b88509020de7d969


PROFESSIONAL ENGINEERFood-Powder-Horizontal-Ribbon-Mixer-2_副本


The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine.  Karvil explores new technical points constantly to create perfect solutions for customers.


                   4cc6a298bf03570b88509020de7d969


d1e139188cac52c6159e923028a9a7b_副本
e5105655ad36bdba6d25397a9594f37_副本



DIRECT FACTORY


Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.


4cc6a298bf03570b88509020de7d969
