1000L Horizontal Ribbon Mixer

Standard Design(Customizable):

Contact Materials: 304 Stainless Steel 316 optional

Interior Surfaces: Mirror Polish

Support Steel: 304 or 316 Stainless Steel

Exterior Surfaces: Finishing Polish

Discharge: Swing away flush valve with pneumatic actuation

Working Capacities: 3 to 10,000 Cubic Feet

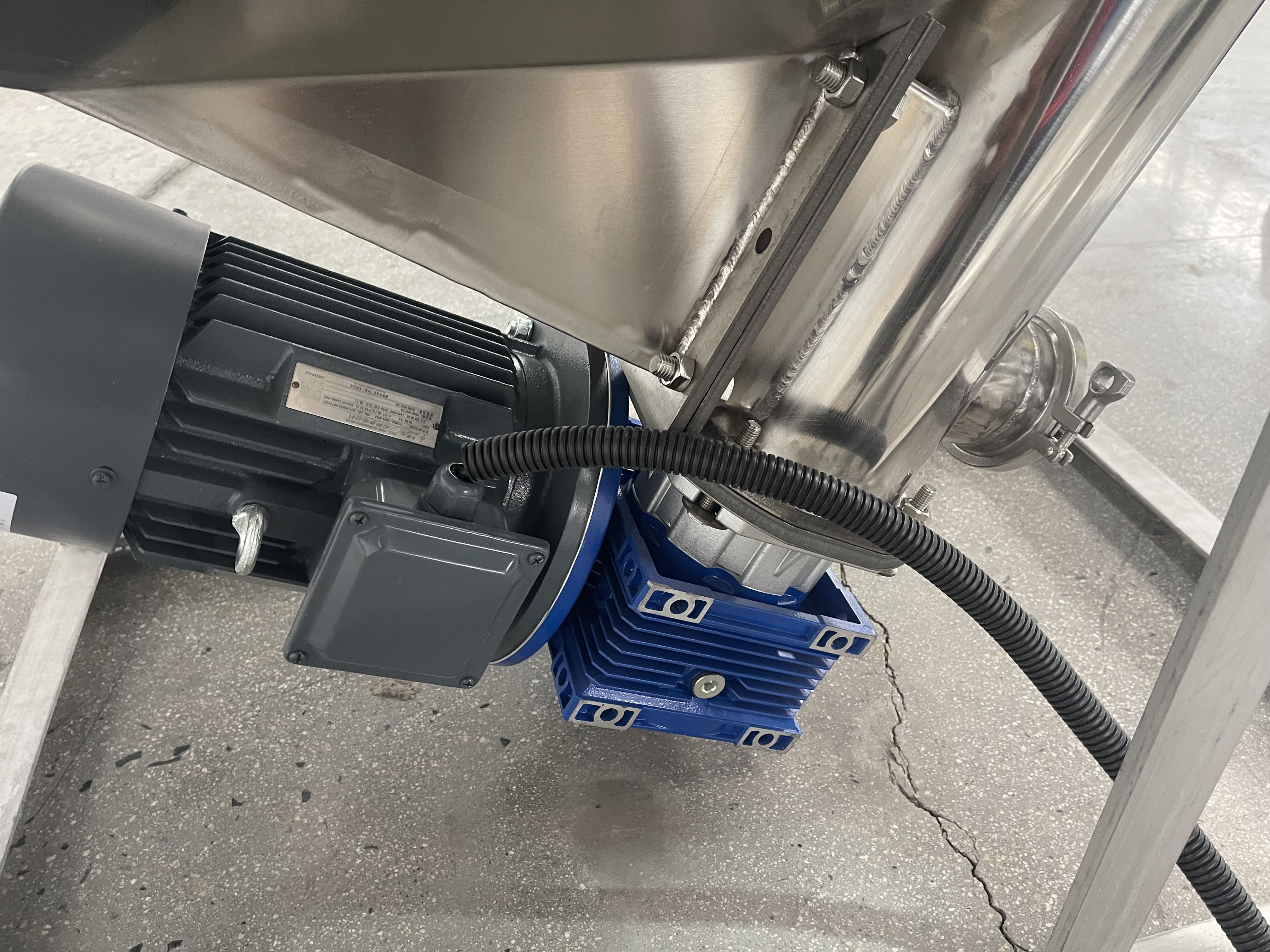

Drive: Hollow Bore SEW Eurodrive

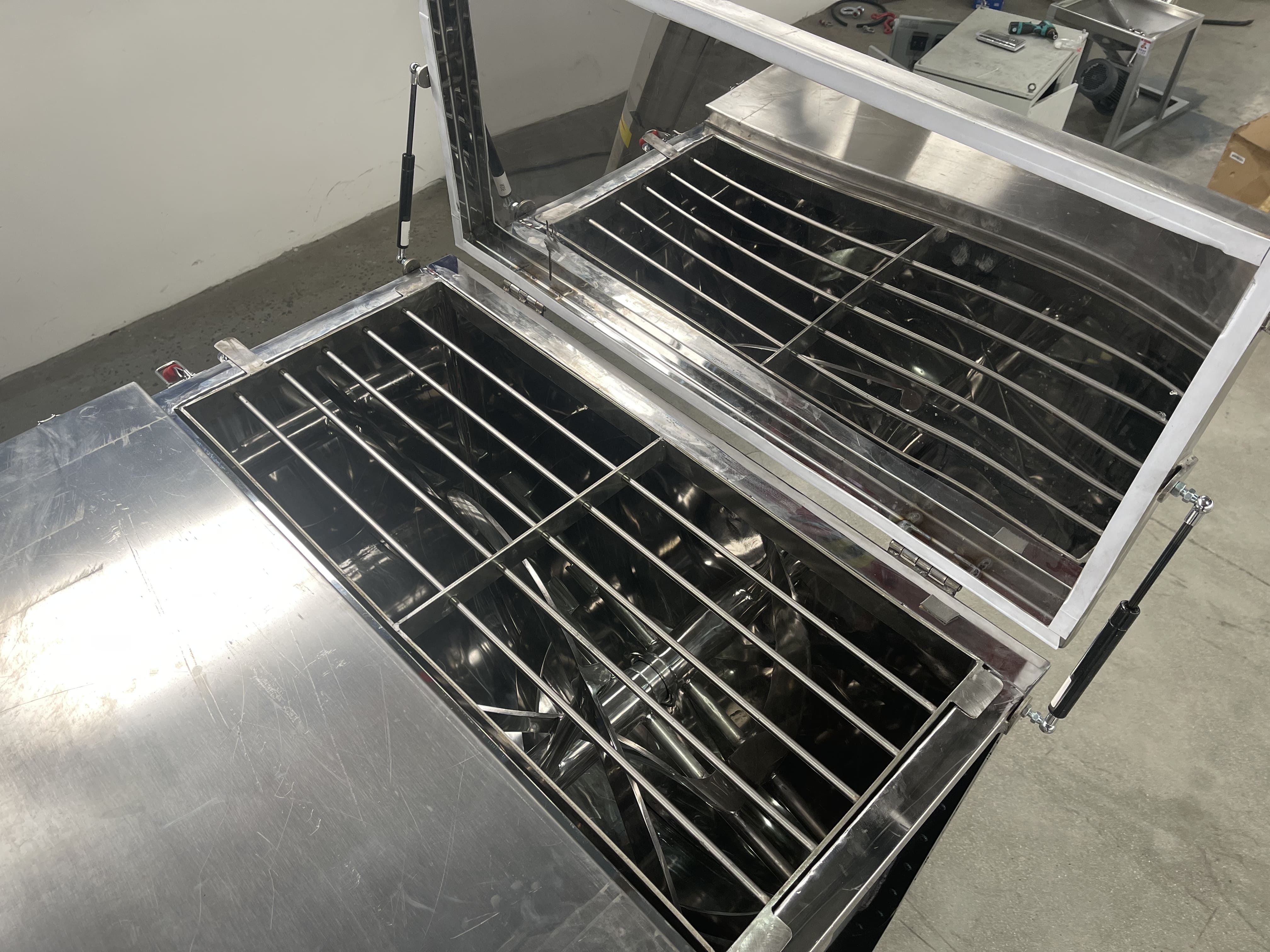

Loading: Loading Cover(s) with Welded Grate

Safety: Magnetic Safety Switch(s) on Main Cover


Application Industry】:
Horizontal ribbon mixer is used for powder and powder mixing, powder with a small amount of liquid mixing, suitable for food, building, chemical, agricultural and other industries, such as food powder, dry mortar powder, fertilizer, seeds, spices, coffee powder, etc.
  • WLDH-1000

  • KARVIL

Availability:

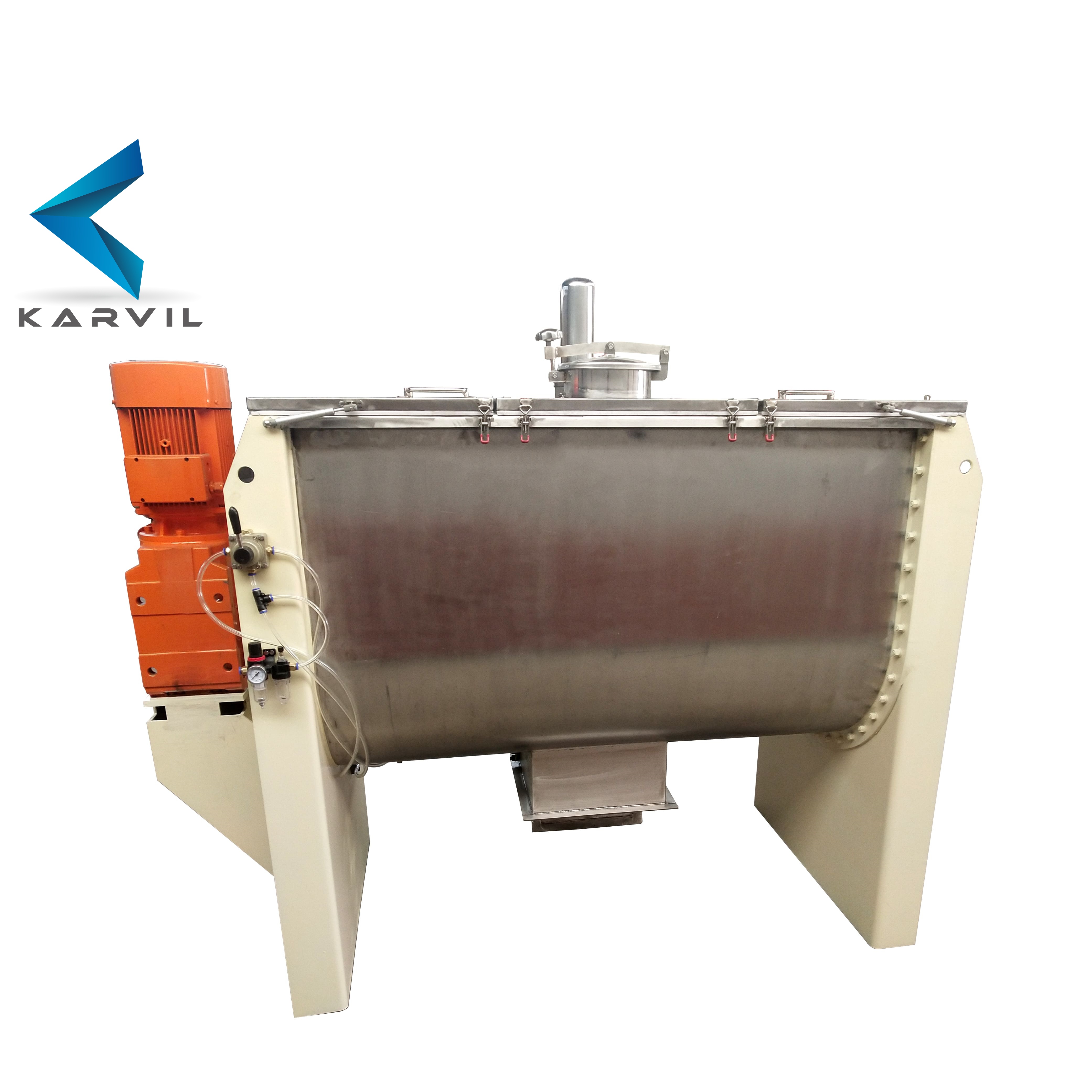

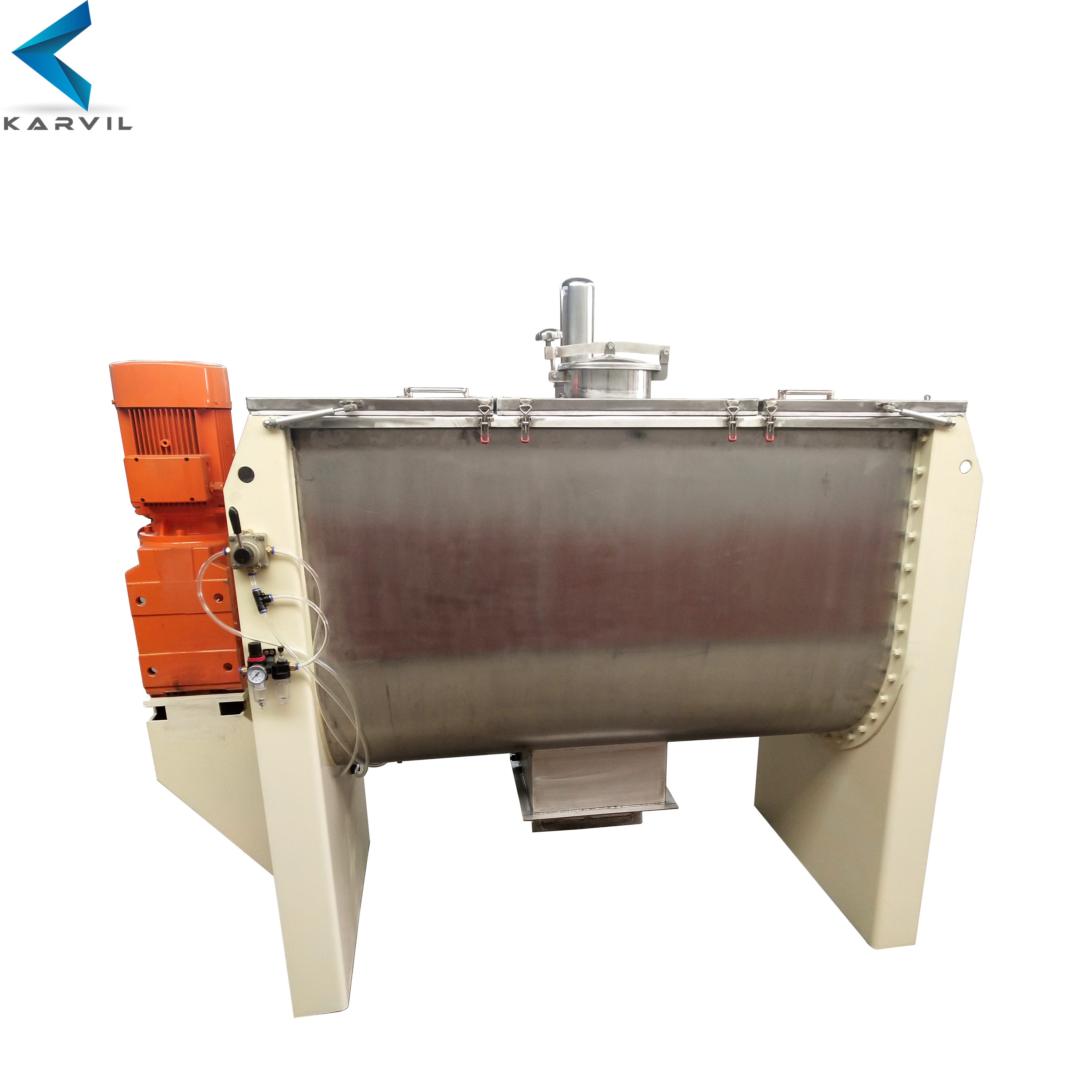

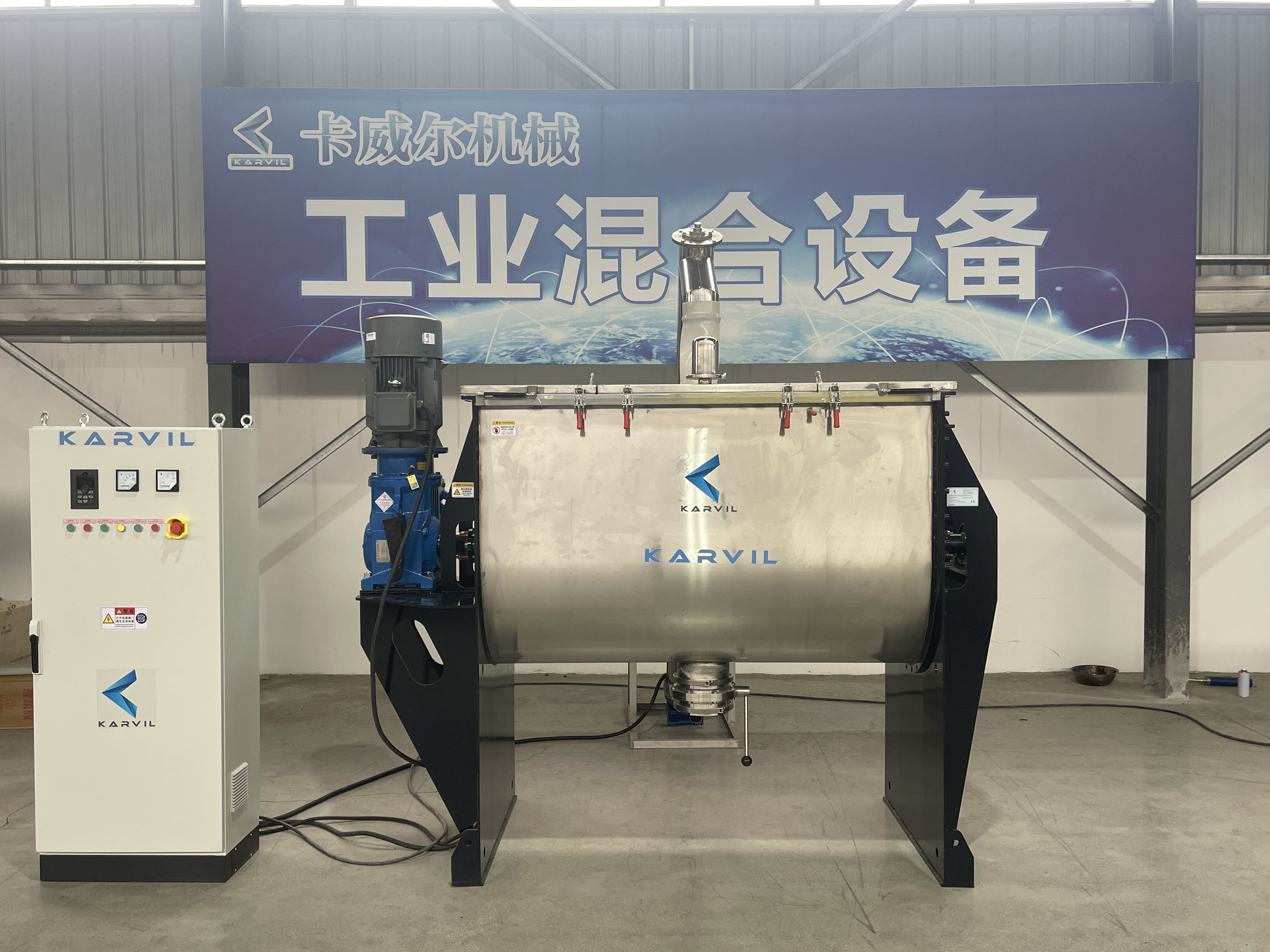

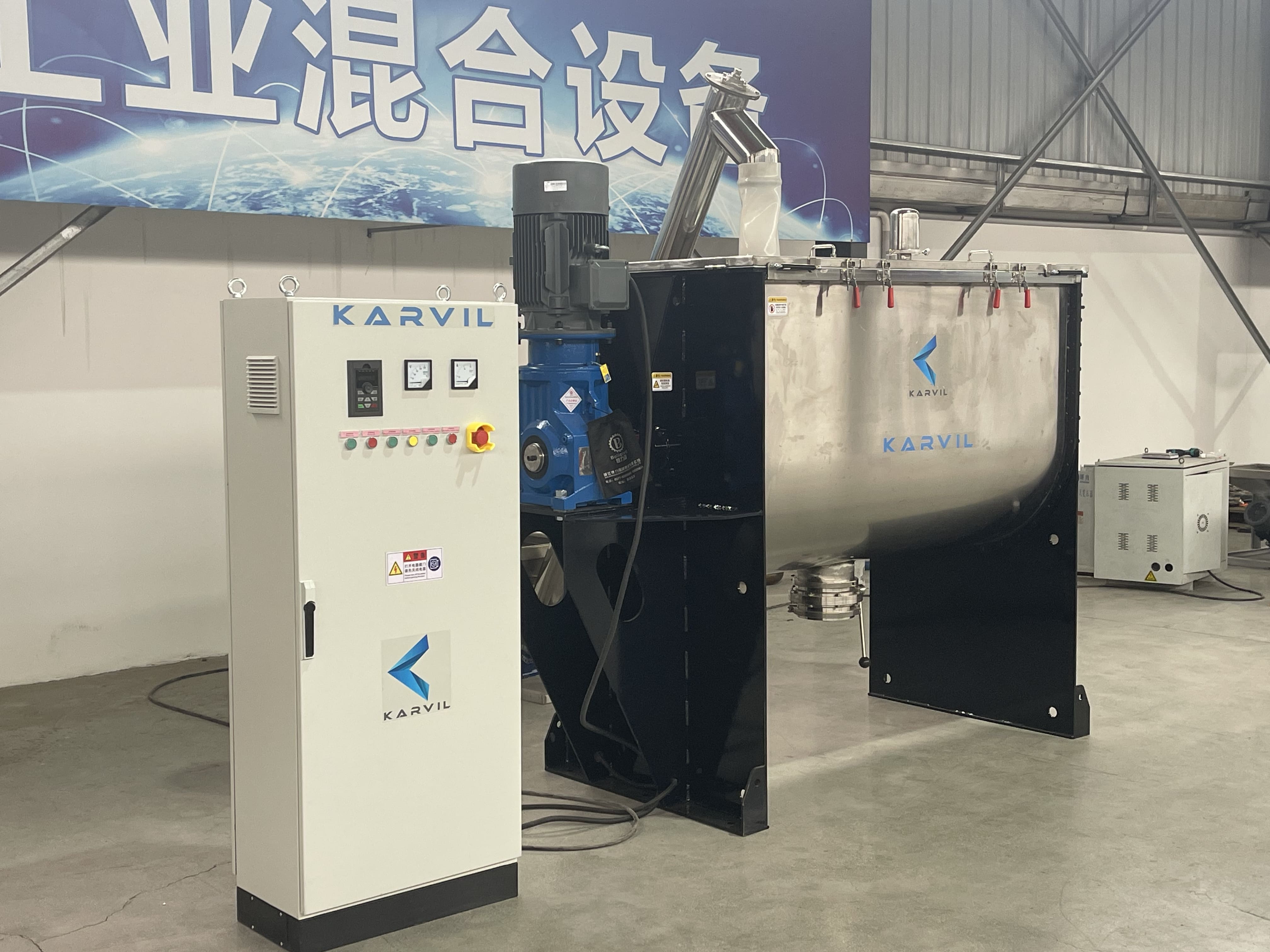

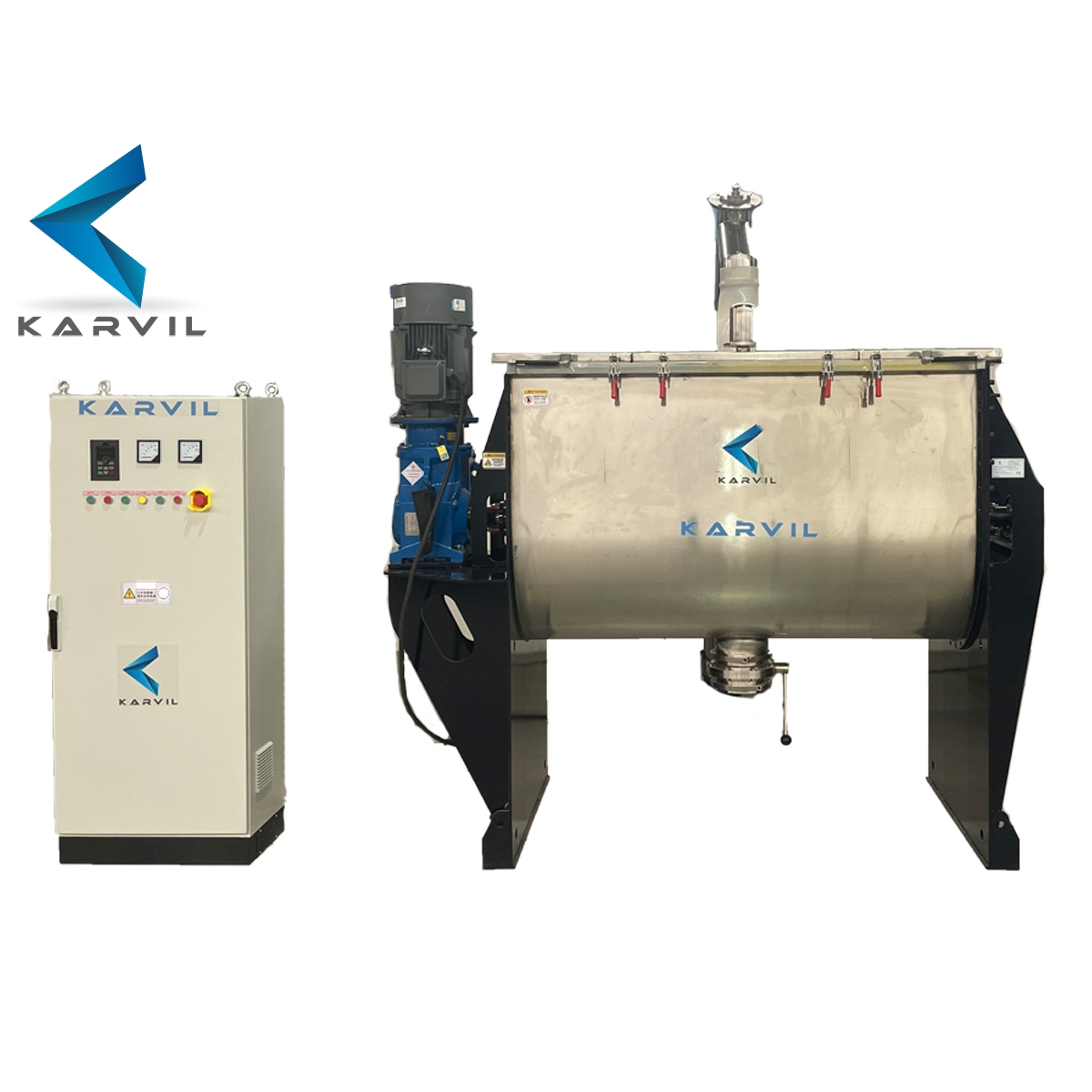

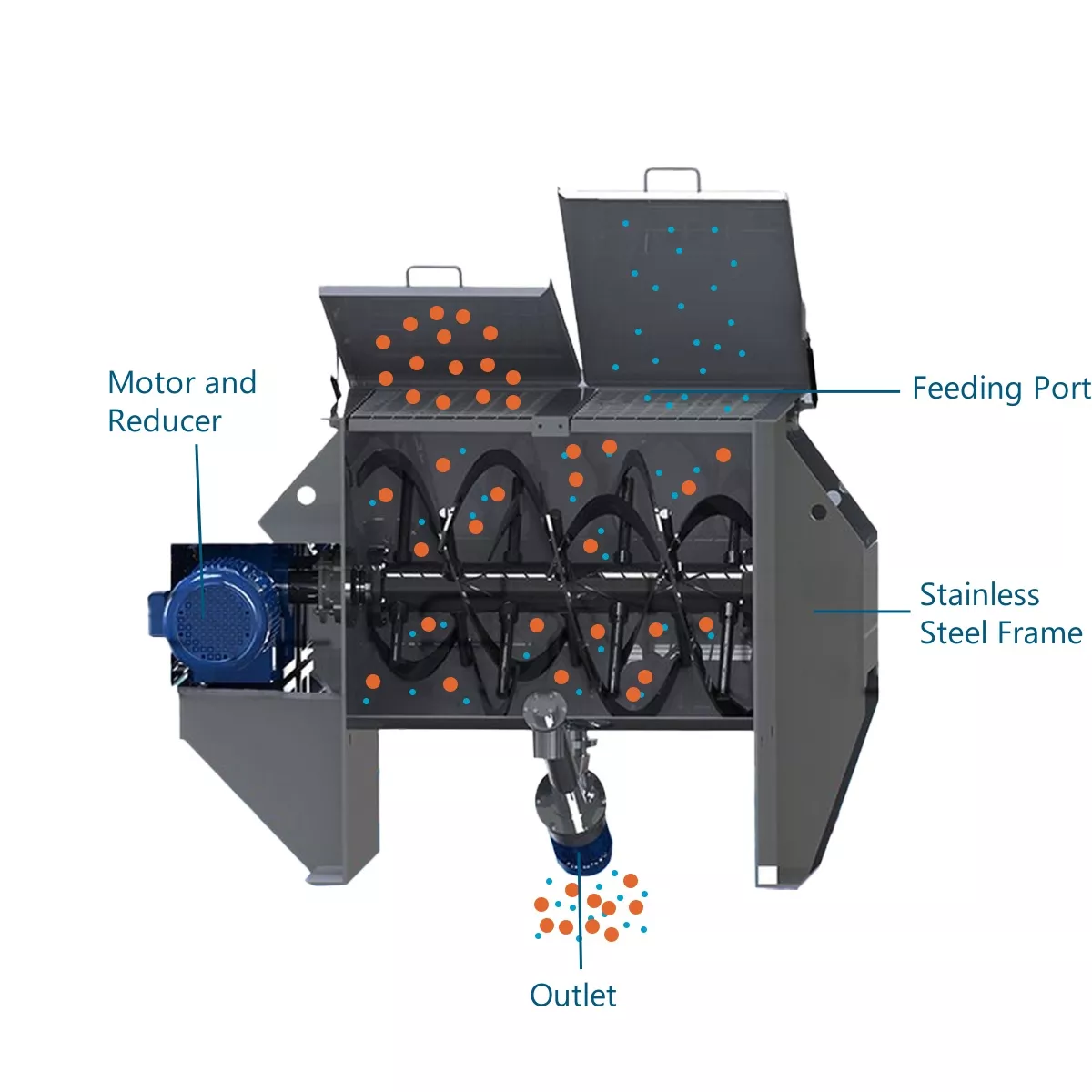

1000L Horizontal Ribbon Mixer Overview

The 1000L horizontal ribbon mixer is a high-efficiency mixing equipment designed for industrial-grade dry powder, granules, and flake materials. It adopts double-helix countercurrent mixing technology to ensure more than 99% uniformity. It is suitable for mass production in the food, chemical, pharmaceutical and other industries and complies with GMP/CE standards.

1743587095603

Karvil-Machinery-Horizontal-Ribbon-Mixer-6

Technical Parameters

Spec WLDH-100 WLDH-300 WLDH-500 WLDH-1000 WLDH-1500 WLDH-2000 WLDH-3000 WLDH-4000 WLDH-6000 WLDH-8000 WLDH-10000
Total volume(L) 100 300 500 1000 1500 2000 3000 4000 6000 8000 10000
Mixed amount/batch (L) 30-60 90-180 150-300 400-600 450-900 600-1200 900-1800 1200-2400 1800-3600 2400-4800 3000-6000
Power (Kw) 1.5-4 3-5.5 4-11 7.5-15 11-18.5 15-22 18.5-30 22-37 37-55 37-55 45-75
Rotating speed (RPM) 65 65 65 46 38 33 28 28 28 24 21

Advantages

High-efficiency mixing design

  • Double helix belt rotates in reverse, bidirectional convection of materials

  • Complete a batch of mixing in 5-8 minutes (30% shorter than traditional equipment)

Industrial-grade durable structure

  • 10mm thickened stainless steel shell, corrosion-resistant and wear-resistant

  • German SKF bearings, continuous working life ≥10,000 hours

Intelligent safety system

  • Overload protection + emergency stop device

  • Optional PLC control panel (records mixing time/temperature)

Easy to clean and low residue

  • Fully open door design, CIP cleaning interface

  • Surface roughness Ra≤0.8μm (in compliance with FDA hygiene standards)


Applications

karvil-dry-mortar-powder-mixer-machine karvil-soil-horizontal-ribbon-blender-mixer-machine Food-Grade-Hrizontal-Ribbon-Blender-Mixer-4 1-
karvil-feed-horizontal-ribbon-blender-mixer-machine Stainless-Steel-Horizontal-Ribbon-Blender-Mixer-for-Spices-4 karvil-medicine-mixer-machine karvil-grain-horizontal-ribbon-blender-mixer-machine

Our Services

d3decc020c846de83e6cd0ddfddaae9



LABORATORY TEST


In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.


  4cc6a298bf03570b88509020de7d969



PROFESSIONAL ENGINEERFood-Powder-Horizontal-Ribbon-Mixer-2_副本


The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine.  Karvil explores new technical points constantly to create perfect solutions for customers.


                   4cc6a298bf03570b88509020de7d969


Karvil Machinery (2)
karvil-machinery-sigma-mixer-and-ribbon-mixer



DIRECT FACTORY


Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.


4cc6a298bf03570b88509020de7d969

F.A.Q.

1. Manufacturer or trading company?

We are a manufacturer with strict production standards in China.

2. Where is your company?

Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.

3. About your company's visit?

We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.

4. What is the main market for your company?

Asia and Africa, Australia, America, Europe.

5. Can you provide customized products?

Yes, we have professional engineers to meet your special design needs, so we can provide customized products.

6. What is your delivery time?

It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.

7. About the product warranty?

Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.

8. What are the payment terms?

T/T, L/C, etc.
