WLDH-1000
KARVIL
Availability: | |
---|---|
Standard Design(Customizable):
Contact Materials: 304 Stainless Steel 316 optional
Interior Surfaces: Polished 180 Grit
Support Steel: 304 or 316 Stainless Steel
Exterior Surfaces: Glass Bead Blasted
Discharge: Swing away flush valve with pneumatic actuation
Working Capacities: 3 to 10,000 Cubic Feet
Drive: Hollow Bore SEW Eurodrive
Loading: Loading Cover(s) with Welded Grate

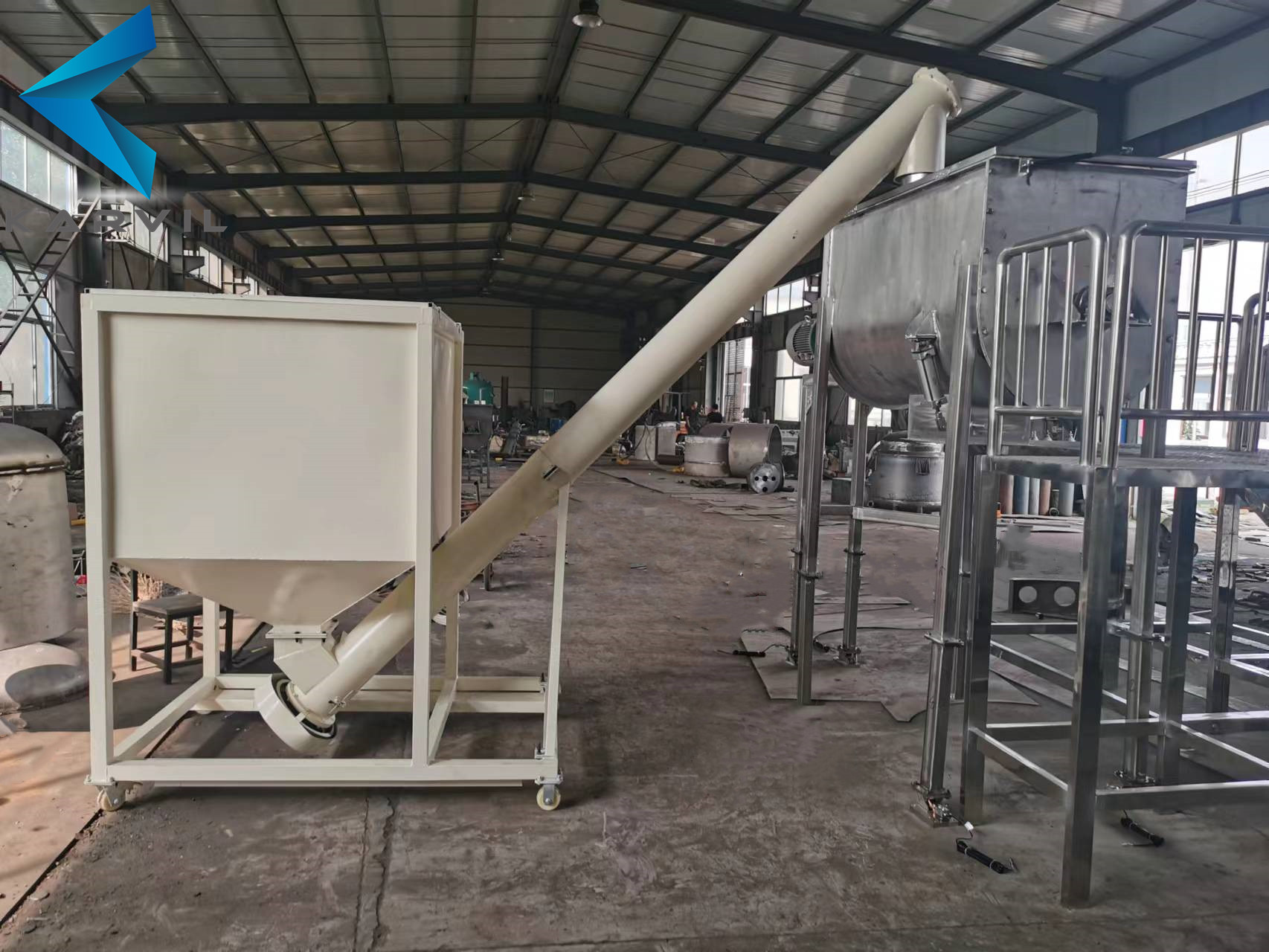

Horizontal ribbon mixer consists of drive disk assembly, double layer ribbon agitator, and U-shape cylinder.
The outer spiral belt pushes inward and the inner spiral belt pushes outward so that the materials can be flexibly sheared and dislocated to achieve the purpose of fast and uniform stirring.
Material outlets are located in the middle of the cylinder bottom. Outside ribbon driven by the main shaft moves materials to discharge to ensure no discharging dead zone.
Technical Parameters
Spec | WLDH-100 | WLDH-300 | WLDH-500 | WLDH-1000 | WLDH-1500 | WLDH-2000 | WLDH-3000 | WLDH-4000 | WLDH-6000 | WLDH-8000 | WLDH-10000 |
Total volume(L) | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
Mixed amount/batch (L) | 30-60 | 90-180 | 150-300 | 400-600 | 450-900 | 600-1200 | 900-1800 | 1200-2400 | 1800-3600 | 2400-4800 | 3000-6000 |
Power (Kw) | 1.5-4 | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
Rotating speed (RPM) | 65 | 65 | 65 | 46 | 38 | 33 | 28 | 28 | 28 | 24 | 21 |
Applications
Our Services
LABORATORY TEST In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal. |
PROFESSIONAL ENGINEER The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers. |
DIRECT FACTORY Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products. |
F.A.Q.
1. Manufacturer or trading company?
We are a manufacturer with strict production standards in China.
2. Where is your company?
Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.
3. About your company's visit?
We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.
4. What is the main market for your company?
Asia and Africa, Australia, America, Europe.
5. Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
6. What is your delivery time?
It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.
7. About the product warranty?
Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.
8. What are the payment terms?
T/T, L/C, etc.
