Fertilizer Powder Production Line

Product Overview

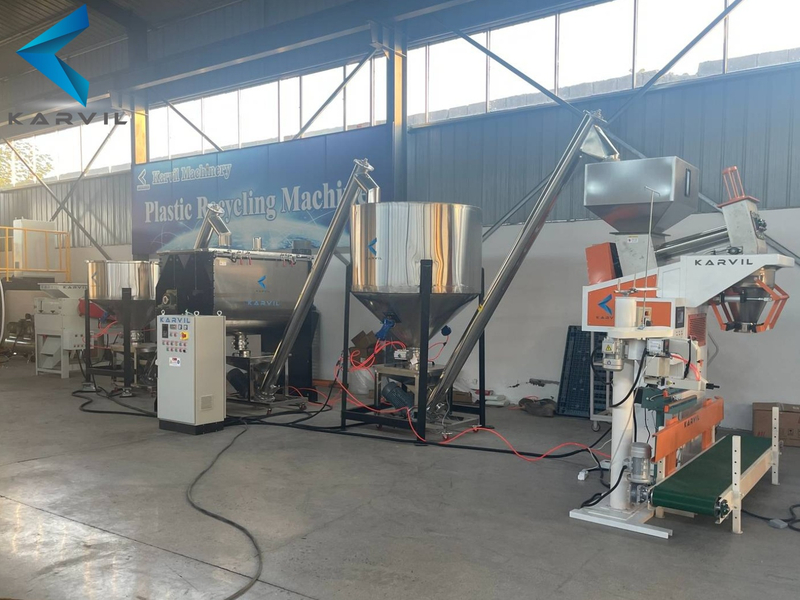

This fully automated powder fertilizer production line is engineered for manufacturers requiring exceptional mixing uniformity, precise ingredient control, and robust operational stability. The system integrates an automated weighing-dosing process with a powerful, variable-speed mixing core, ensuring your final product quality is consistent and industry-leading

Production Line Specifications

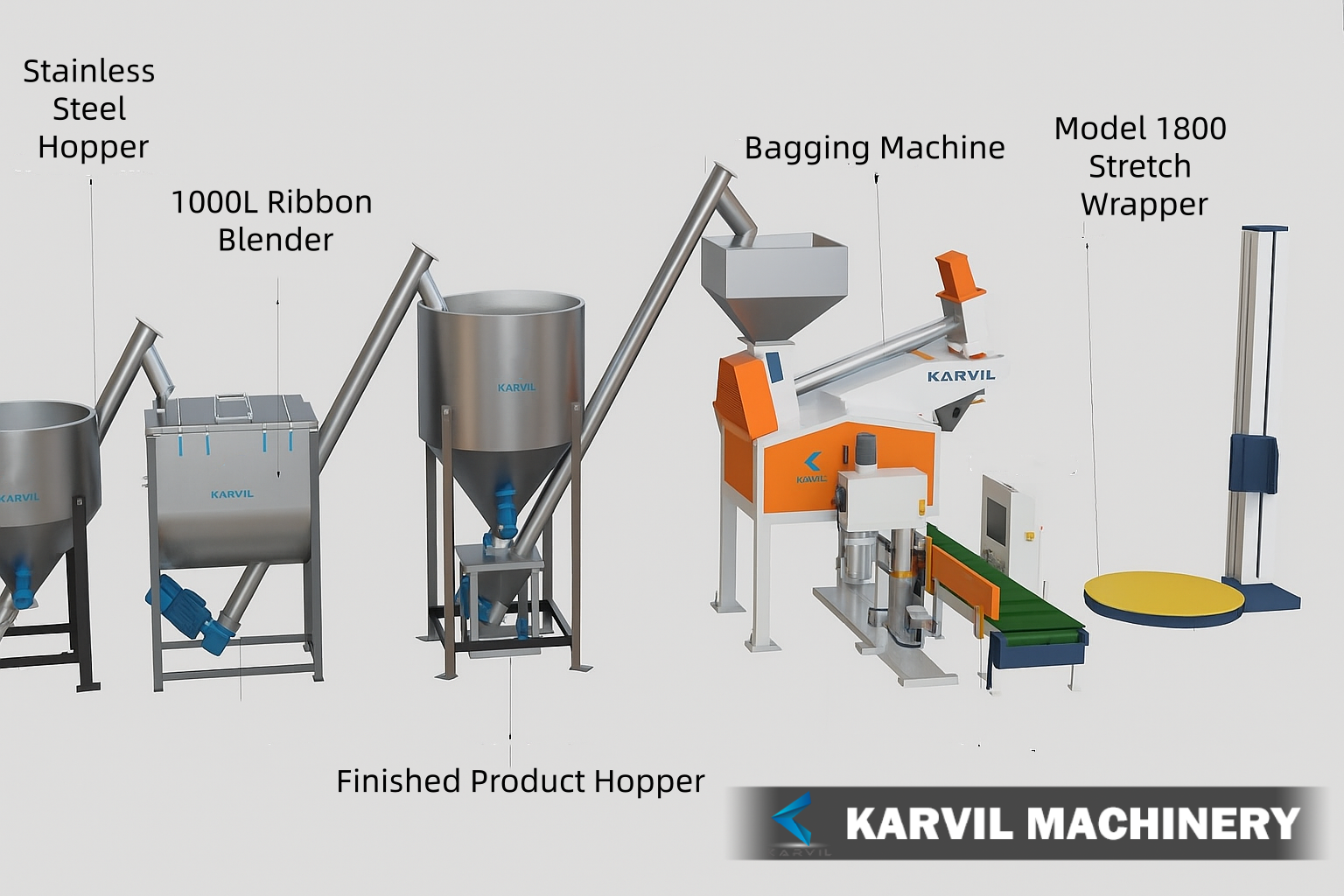

Item No.	Equipment Name	Model	Material (Contact Parts)	Technical Advantage
1.	Dosing & Weighing Hopper	800L	Stainless Steel 304	Bottom pneumatic butterfly valve. Integrated Weighing Module for highly accurate ingredient dosing and input control.
2.	Screw Conveyors	Inlet 2.1m + Outlet 2.4m	Carbon Steel (Casing)	Flexible material transfer between equipment stages, ensuring consistent flow rate.

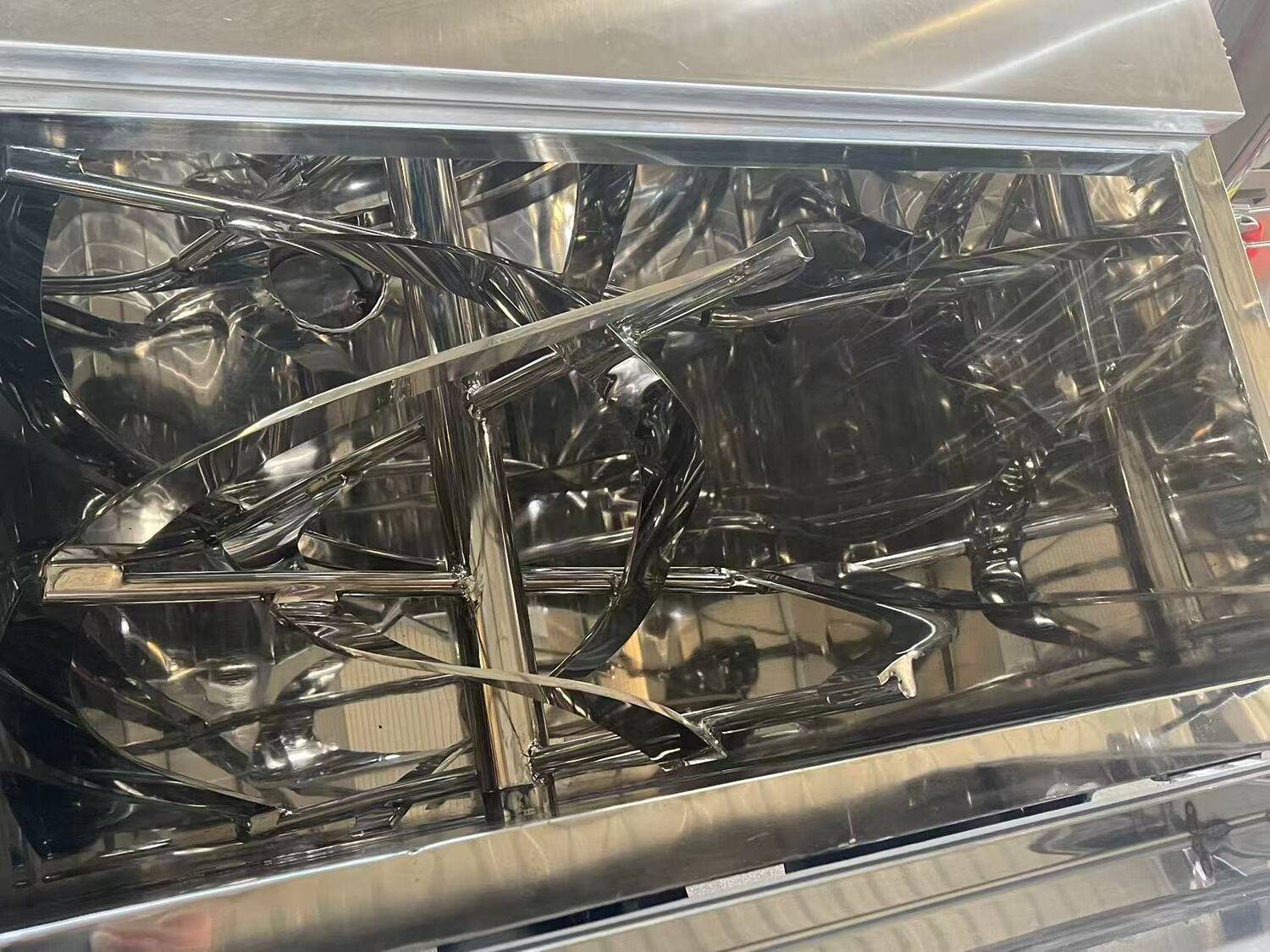

3.	Horizontal Ribbon Blender	1000L	Stainless Steel 304	Main Motor: 7.5 kW Siemens-Bede. Variable Frequency Drive (VFD): Speed 0-46 rpm for process flexibility. Manual butterfly valve discharge.

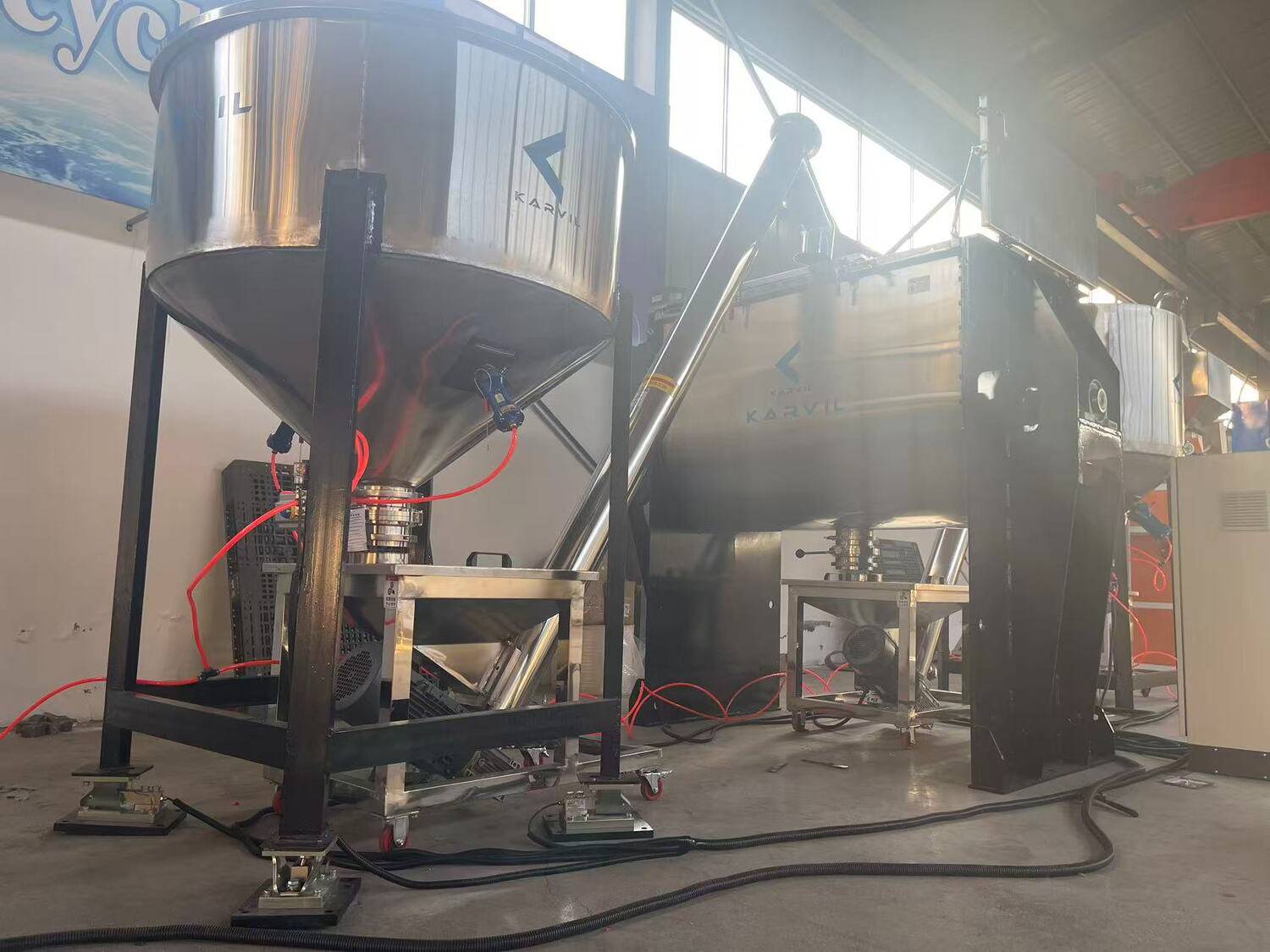

4.	Anti-Bridging Buffer Silo	1600L	Stainless Steel	Equipped with TWO Industrial Vibrators to prevent material bridging and guarantee continuous supply to the packing machine. Pneumatic discharge.
5.	Urea Pulverizer	Model 600	Carbon Steel	Crushes urea lumps and agglomerates after mixing/storage, ensuring fine, consistent particle size for packaging.

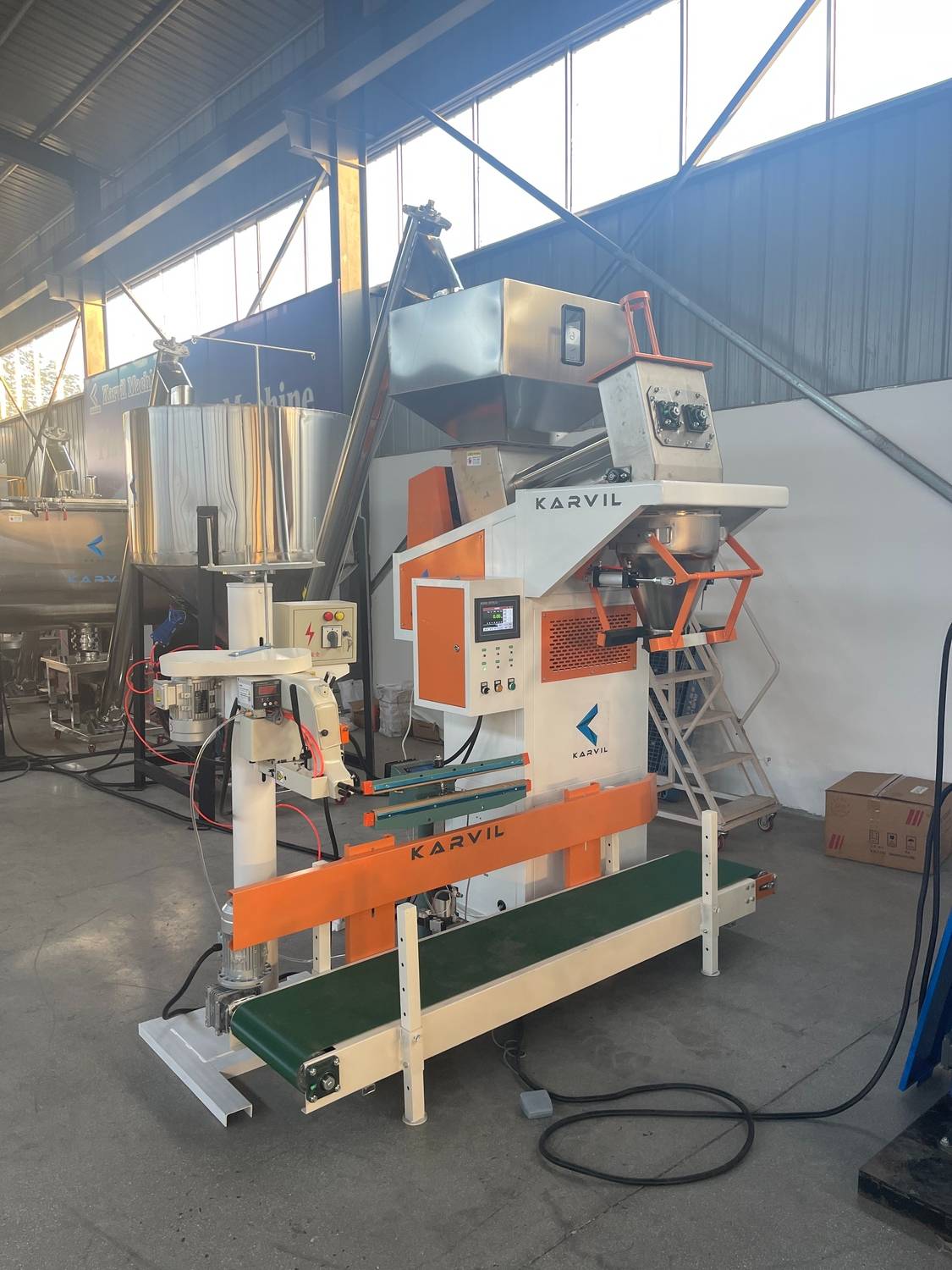

6.	Powder Bagging Machine	25KG/Bag	Stainless Steel	High-accuracy weighing system. Features BOTH Heat Sealing and Sewing Sealing for moisture-proof and structurally secure bags.
7.	Pallet Stretch Wrapper	Model 1800	Carbon Steel	Automatic wrapping of finished pallets, securing loads for transport and storage, and offering moisture protection.

Technical Parameters

Spec	WLDH-100	WLDH-300	WLDH-500	WLDH-1000	WLDH-1500	WLDH-2000	WLDH-3000	WLDH-4000	WLDH-6000	WLDH-8000	WLDH-10000
Total volume(L)	100	300	500	1000	1500	2000	3000	4000	6000	8000	10000
Mixed amount/batch (L)	30-60	90-180	150-300	400-600	450-900	600-1200	900-1800	1200-2400	1800-3600	2400-4800	3000-6000
Power (Kw)	1.5-4	3-5.5	4-11	7.5-15	11-18.5	15-22	18.5-30	22-37	37-55	37-55	45-75
Rotating speed (RPM)	65	65	65	46	38	33	28	28	28	24	21

Applications

Our Services

LABORATORY TEST In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.

PROFESSIONAL ENGINEER The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine.  Karvil explores new technical points constantly to create perfect solutions for customers.

DIRECT FACTORY Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.

F.A.Q.

Q1: Can this system handle fine or cohesive powders like protein or herbal extracts?
A1: Yes, the ribbon mixer and screw conveyors are optimized for cohesive and free-flowing powders alike. The twin-screw packaging machine ensures precise dosing of such materials.

Q2: Is the machine fully made of food-grade materials?
A2: Absolutely. All components in contact with material are mirror-polished SS304 stainless steel, ensuring full compliance with food-grade standards.

Q3: How does the safety interlock work?
A3: When the safety grid is correctly placed, the mixer can operate even with the lid open. If the grid is not in position, the mixer automatically shuts down to prevent accidents.

Q4: Can the system be customized for different bag sizes or packaging formats?
A4: Yes, both packaging machines can be adjusted or replaced based on customer packaging requirements, including pouch, bottle, or jar types.

Q5: Is installation and commissioning support provided?
A5: Karvil provides both remote and on-site commissioning support. Installation manuals, videos, and engineer guidance are available upon request.
