Industrial Powder Mixer Ribbon Blender

Name: Industrial Powder Mixer Ribbon Blender
Brand: KARVIL
Rating: 5.0 (49 reviews)

Specifications:

Total Volume: 6,000 Liters
Effective Working Volume: 3,600 Liters
Main Motor Power: 37 kW (Siemens Beide)
Agitator Shaft Speed: 0-27 r/min (Variable Frequency Control)
Material Contact Parts: SS304 Stainless Steel (Internal mirror polished, external fine brushed)
Non-Contact Parts: Painted Carbon Steel

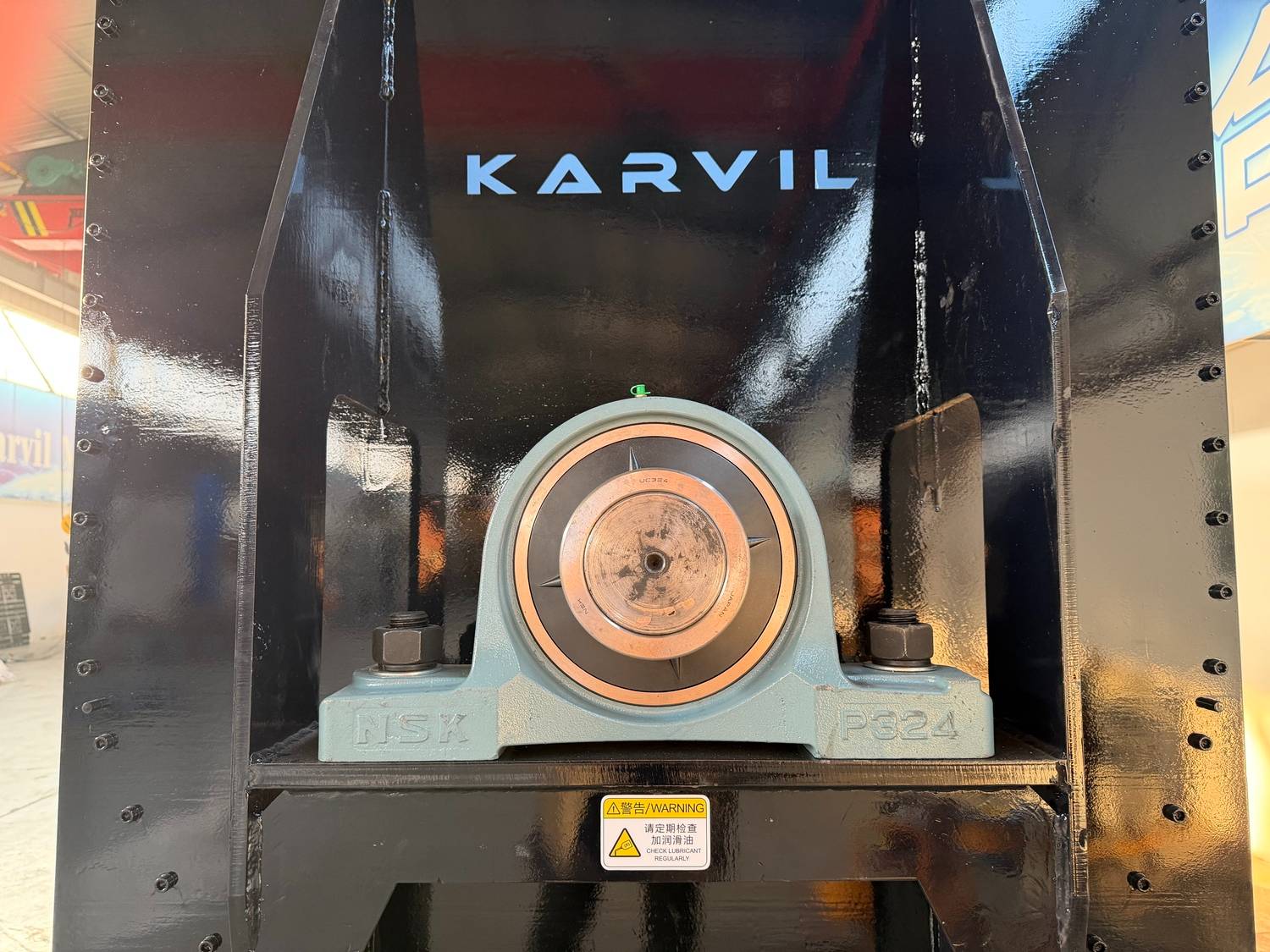

Bearings: NSK

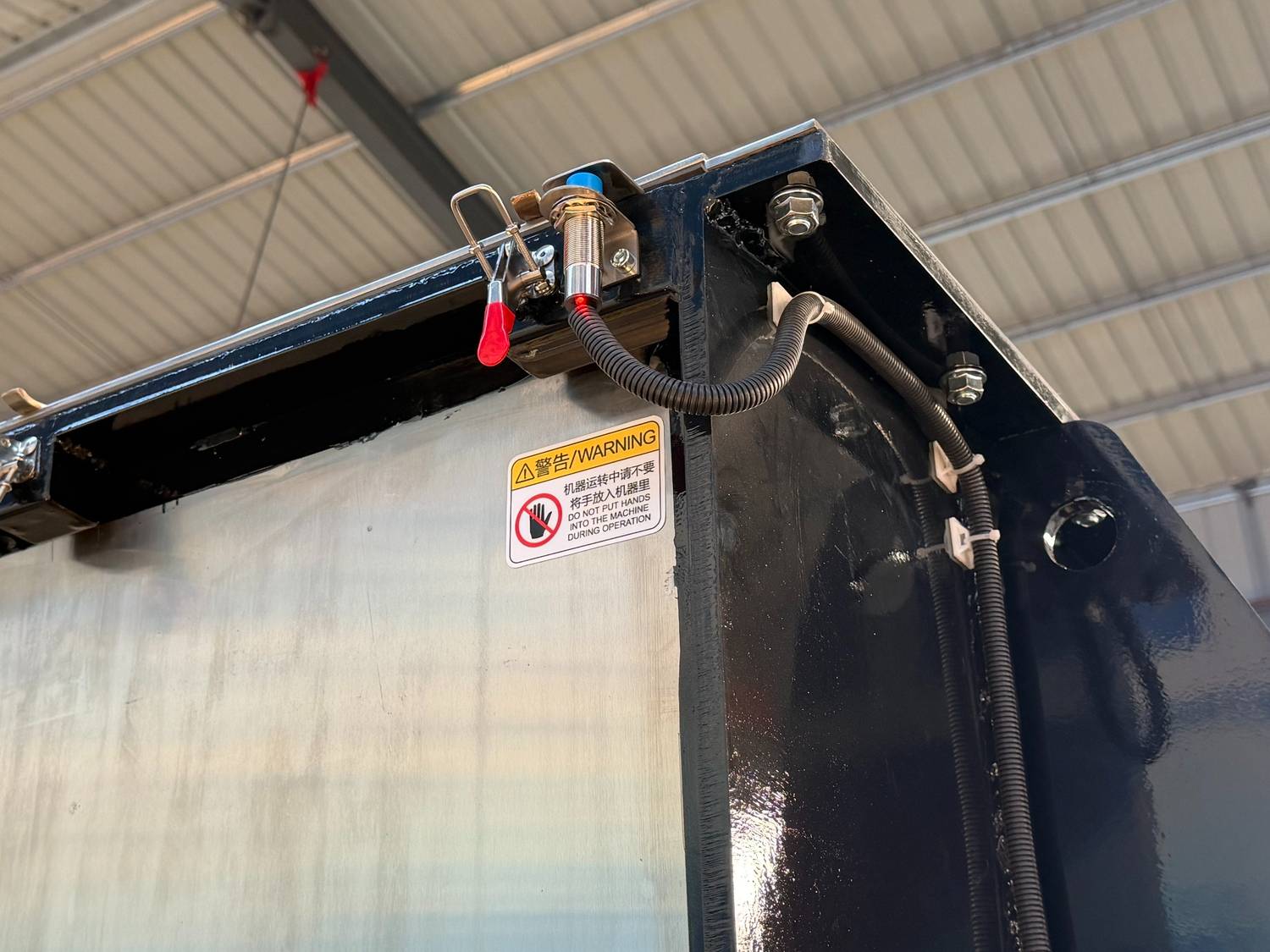

Safety System: Safety grid with lid interlock
Discharge Method: DN250 Bottom Pneumatic Butterfly Valve)

Need a customized mixer for your production line? Contact us for details.

Model:
WLDH-6000
Brand:
KARVIL


Availability:



Inquiry

Product Description

Overview

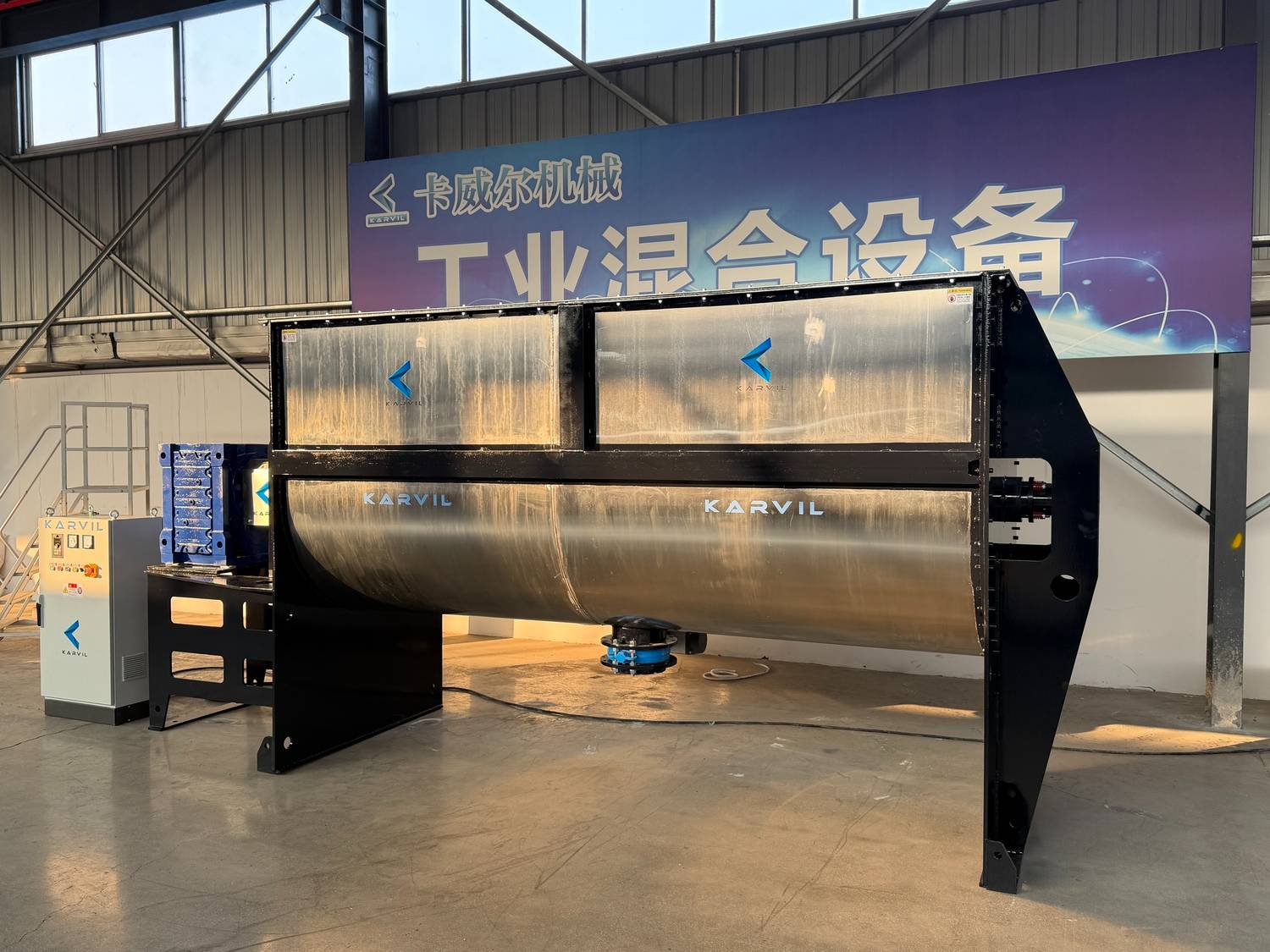

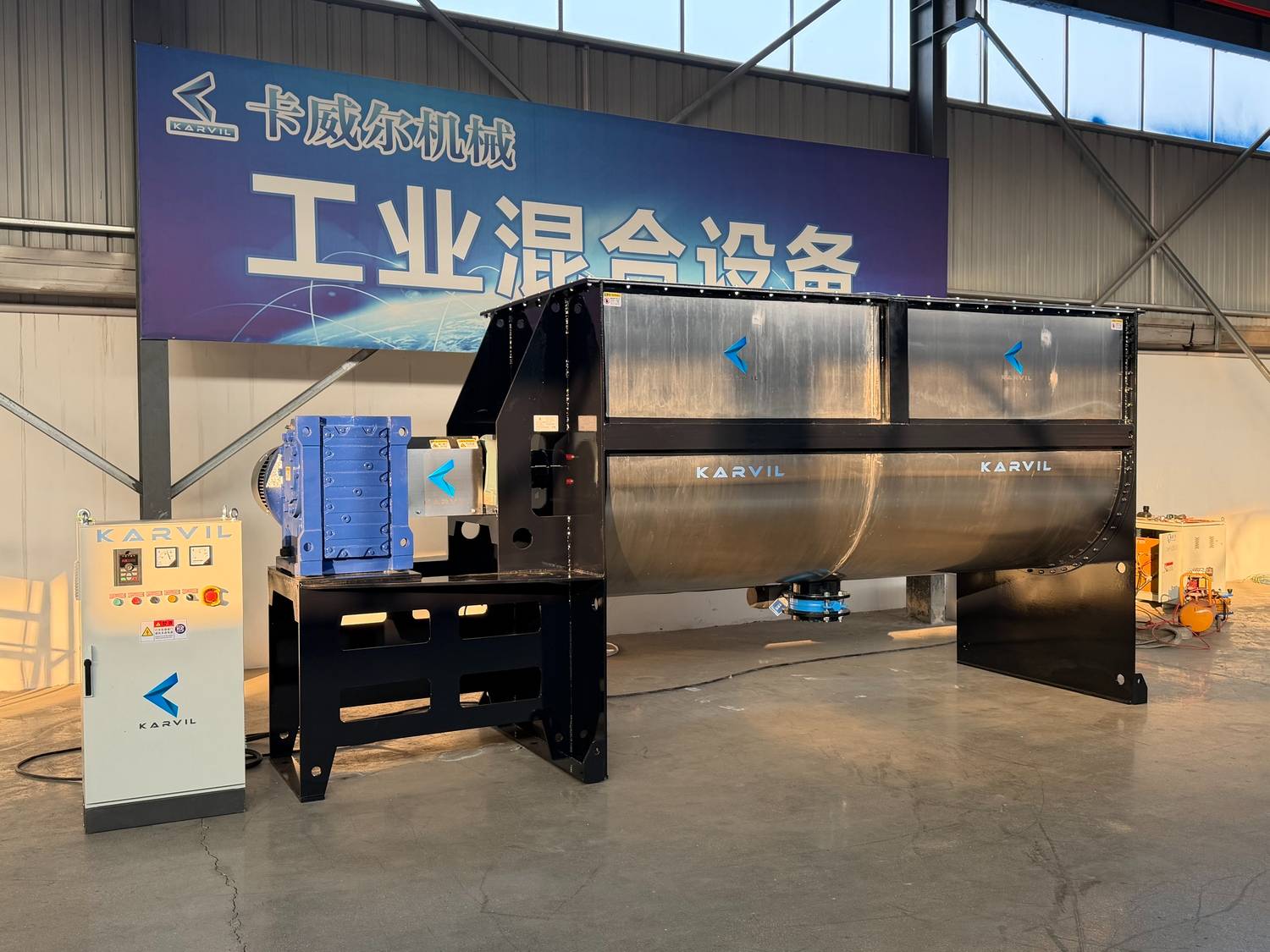

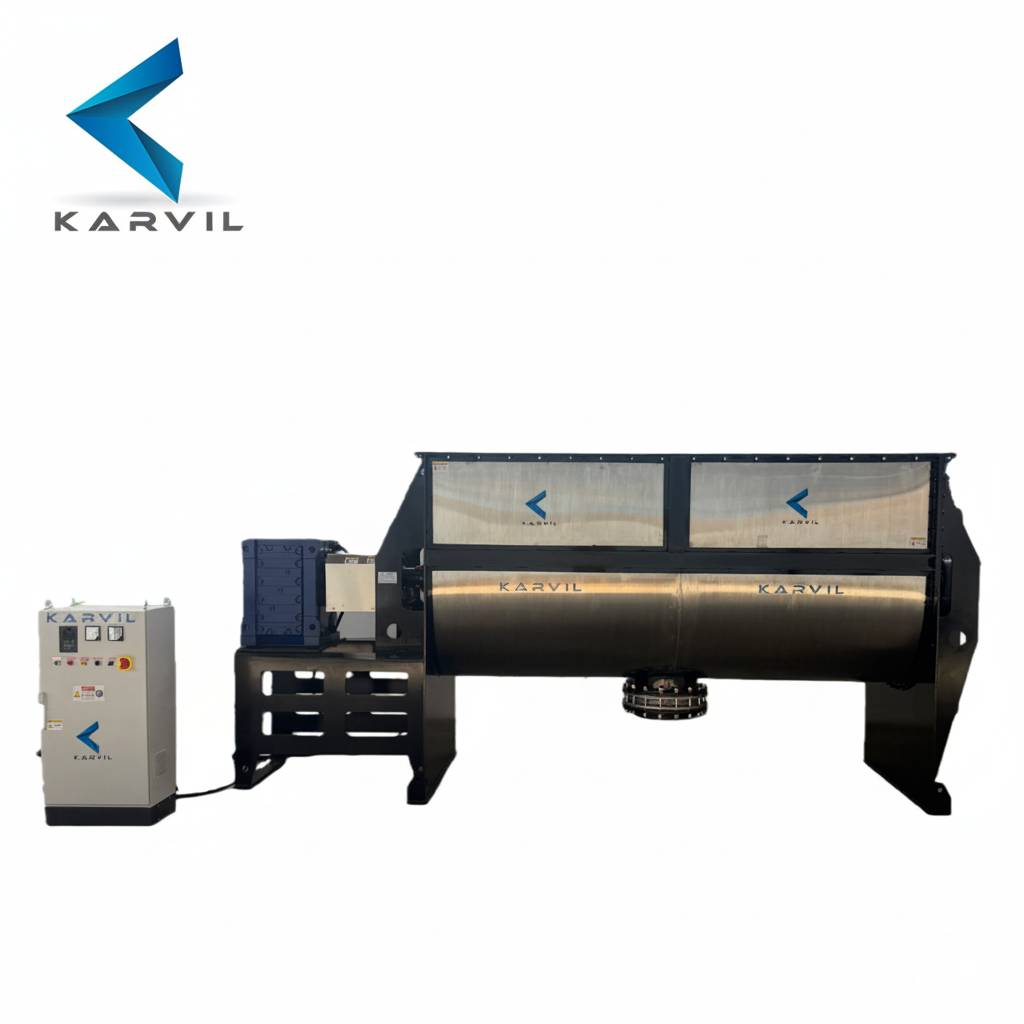

The Karvil WLDH-6000 Horizontal Ribbon Blender is a robust industrial mixing solution engineered for the efficient and homogeneous blending of dry powders and granular materials. Designed for demanding applications in the food, pharmaceutical, chemical, and plastics industries, this blender combines precise engineering with durable construction to deliver superior mixing results.

Ribbon-Mixer-for-Minerals-Lime-Powder (8)

Pneumatic Slide Gate Valve (Curved Flap)

The machine utilizes a pneumatic curved flap valve for discharge.

1. Function: The valve’s curvature matches the mixer drum, eliminating dead pockets where unmixed material could accumulate.

2. Automation: Pneumatic actuation allows for remote control and integration with automated packing lines.

3. Sealing: Provides a tighter seal compared to standard butterfly valves, preventing fine powder leakage during the mixing cycle.

Double Ribbon Agitator

The internal agitator consists of two helical ribbons mounted on a central shaft.

1. Outer Ribbon: Pushes material from the sides toward the center.

2. Inner Ribbon: Pushes material from the center toward the sides.

3. Result: This counter-current flow ensures a homogeneous mix (CV ≤ 5%) within a short batch time (typically 5–10 minutes), suitable for mixing cohesive powders with additives.

Key Features & Benefits:

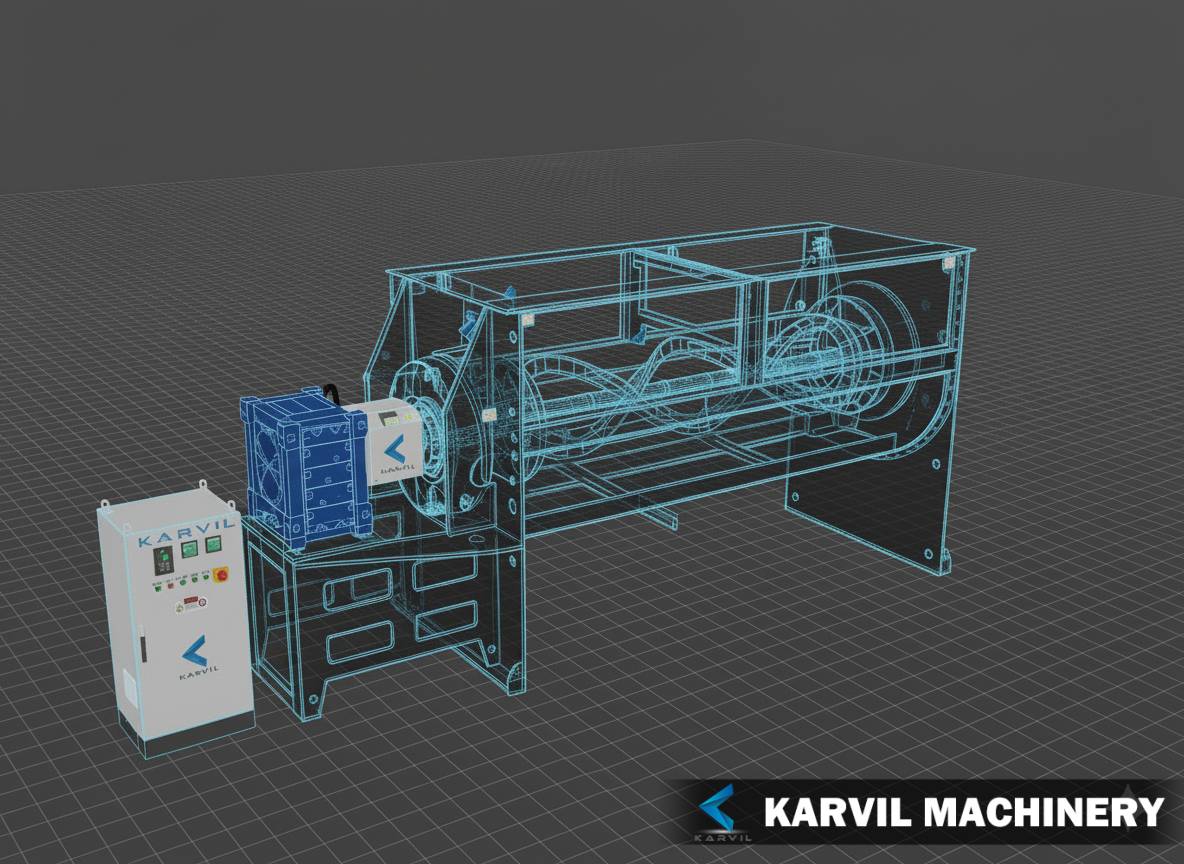

Industrial-Powder-Mixer-Ribbon-Blender (2)-min

1. Optimal Blending Power: Features an effective 3600L capacity (6000L total) driven by a 37 kW Siemens motor with variable speed (0-27 r/min), ensuring precise and powerful mixing for diverse materials.

2. Premium SS304 Hygiene & Durability: Product contact parts are mirror-polished SS304 stainless steel for superior cleanliness, complemented by high-quality NSK bearings and robust overall construction.

3. Advanced Safety & Control: Equipped with an intelligent safety grid system for protected operation/inspection, plus a DN250 pneumatic butterfly valve for secure, dust-free discharge.

4. Superior Mixing Efficiency: Double helical ribbon agitator design guarantees rapid, homogeneous blending, eliminating dead spots for consistent product quality.

Karvil-Machinery-Horizontal-Ribbon-Mixer-6

Video Demonstration: WLDH-6000 Industrial Powder Mixer Ribbon Blender

Safety - All Karvil Machinery ribbon blenders include CE markings and are manufactured in accordance with ISO9001 accreditation; Safety limit switch prevents agitator from running when cover is open; Available with customizable safety grilles, automatic valves and a variety of other operator-friendly options.

Customizable - Special structural materials can be provided according to raw materials, such as wear-resistant, corrosion-resistant or other； Heavy duty, high horsepower ribbon mixers to meet high-density mixing requirements; Mechanical seals, end wall scrapers, load cell systems and other upgrades available.

Technical Parameters

Spec	WLDH-100	WLDH-300	WLDH-500	WLDH-1000	WLDH-1500	WLDH-2000	WLDH-3000	WLDH-4000	WLDH-6000	WLDH-8000	WLDH-10000
Total volume(L)	100	300	500	1000	1500	2000	3000	4000	6000	8000	10000
Mixed amount/batch (L)	30-60	90-180	150-300	400-600	450-900	600-1200	900-1800	1200-2400	1800-3600	2400-4800	3000-6000
Power (Kw)	1.5-4	3-5.5	4-11	7.5-15	11-18.5	15-22	18.5-30	22-37	37-55	37-55	45-75
Rotating speed (RPM)	65	65	65	46	38	33	28	28	28	24	21
