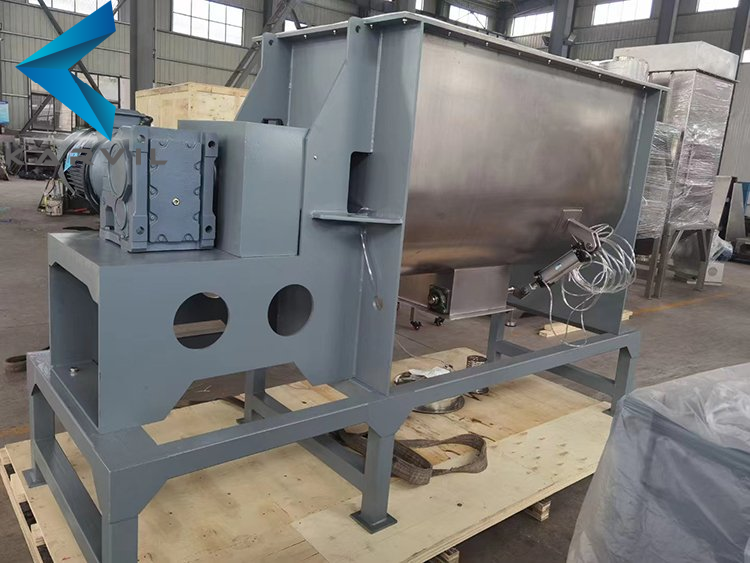

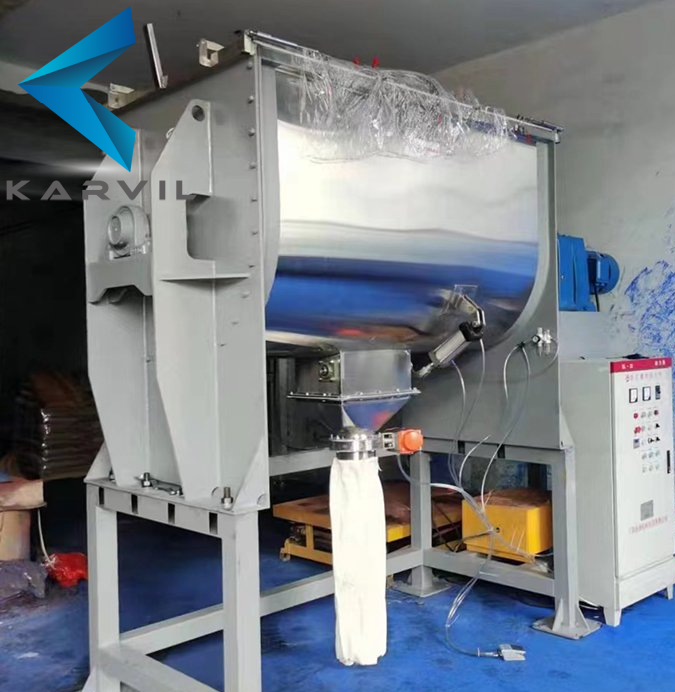

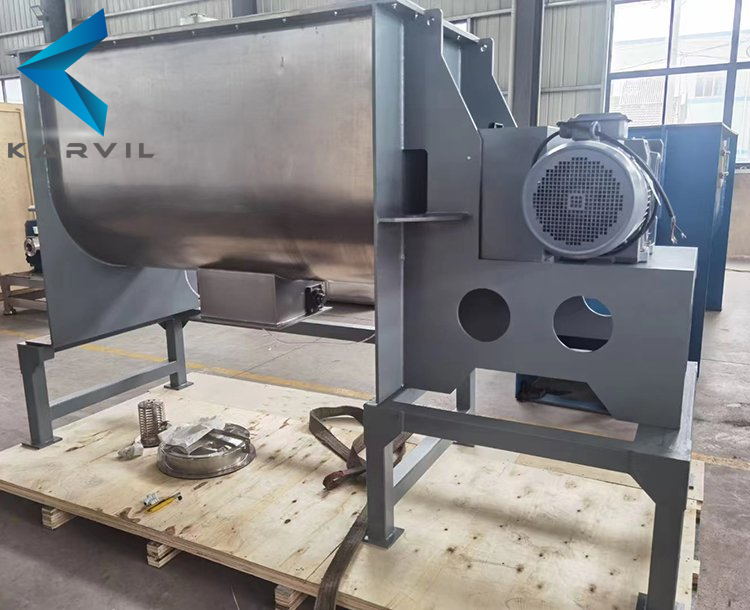

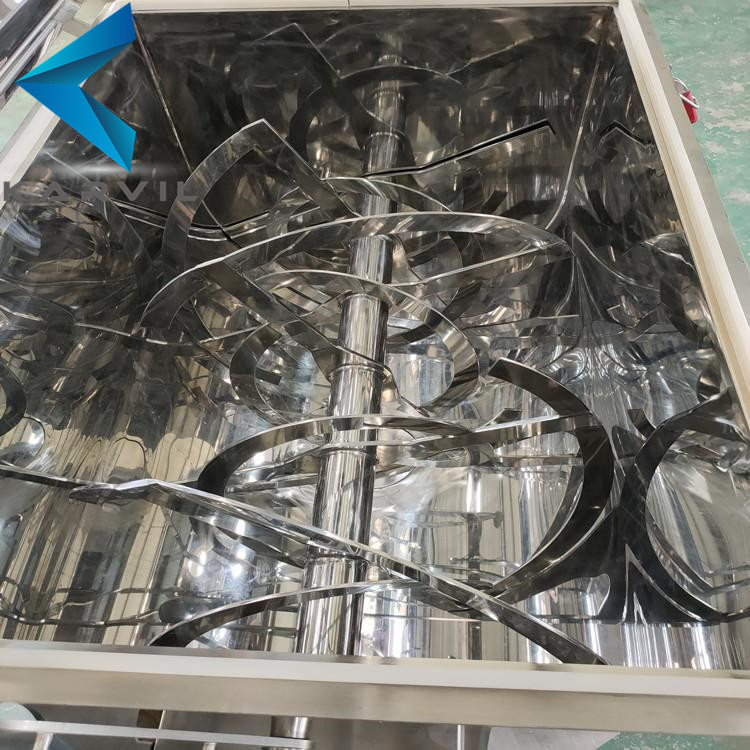

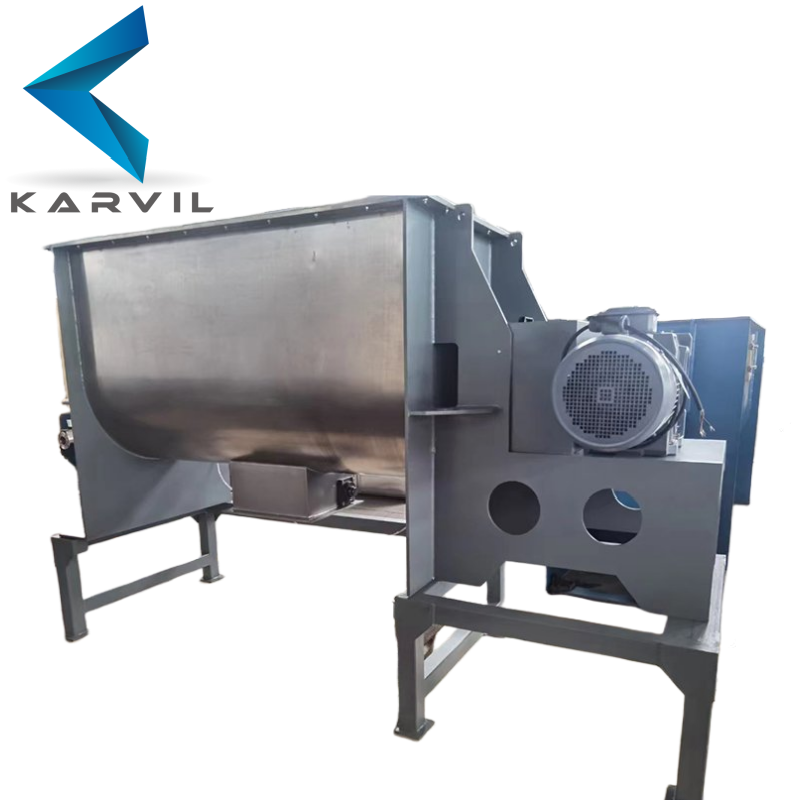

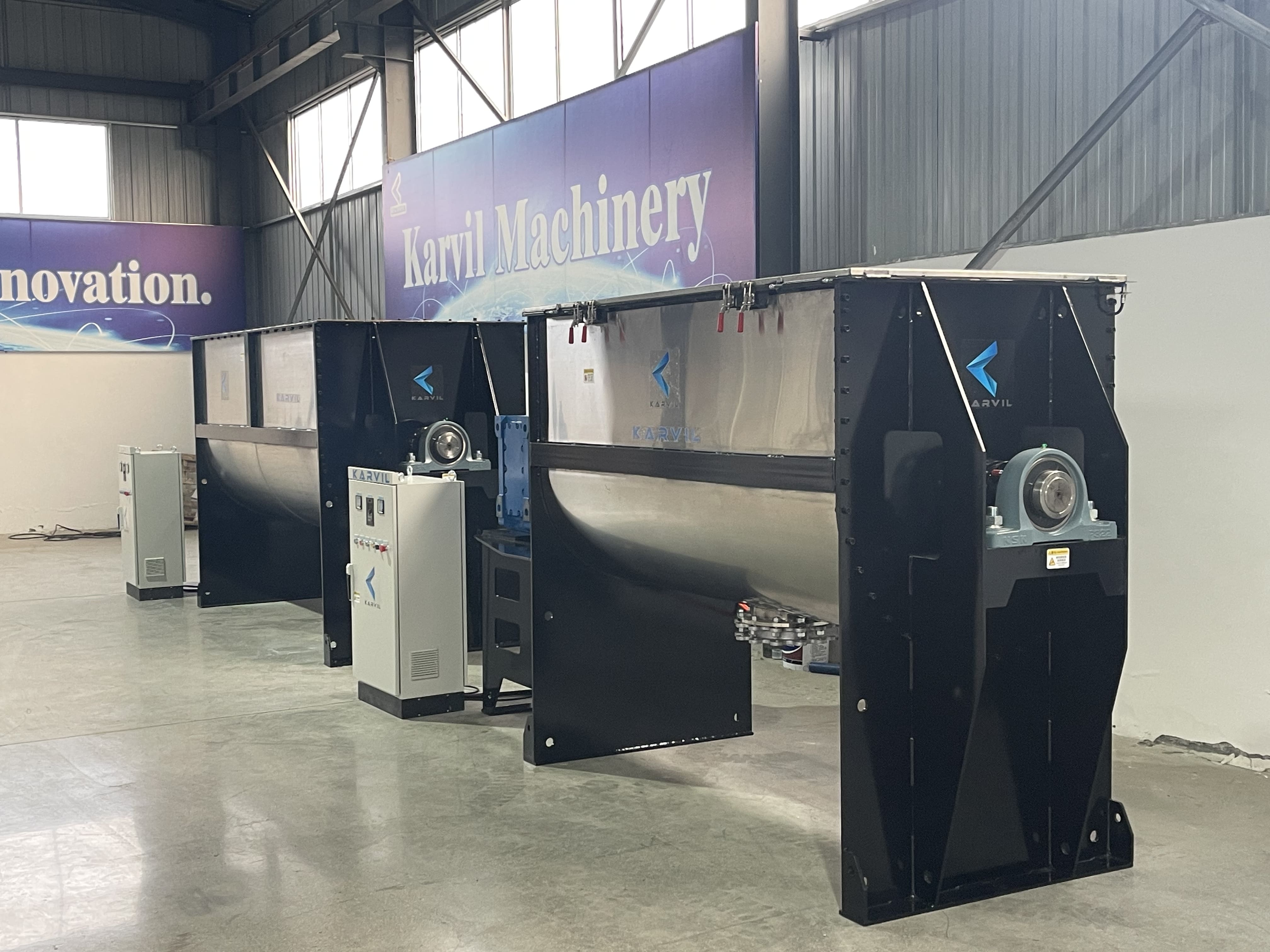

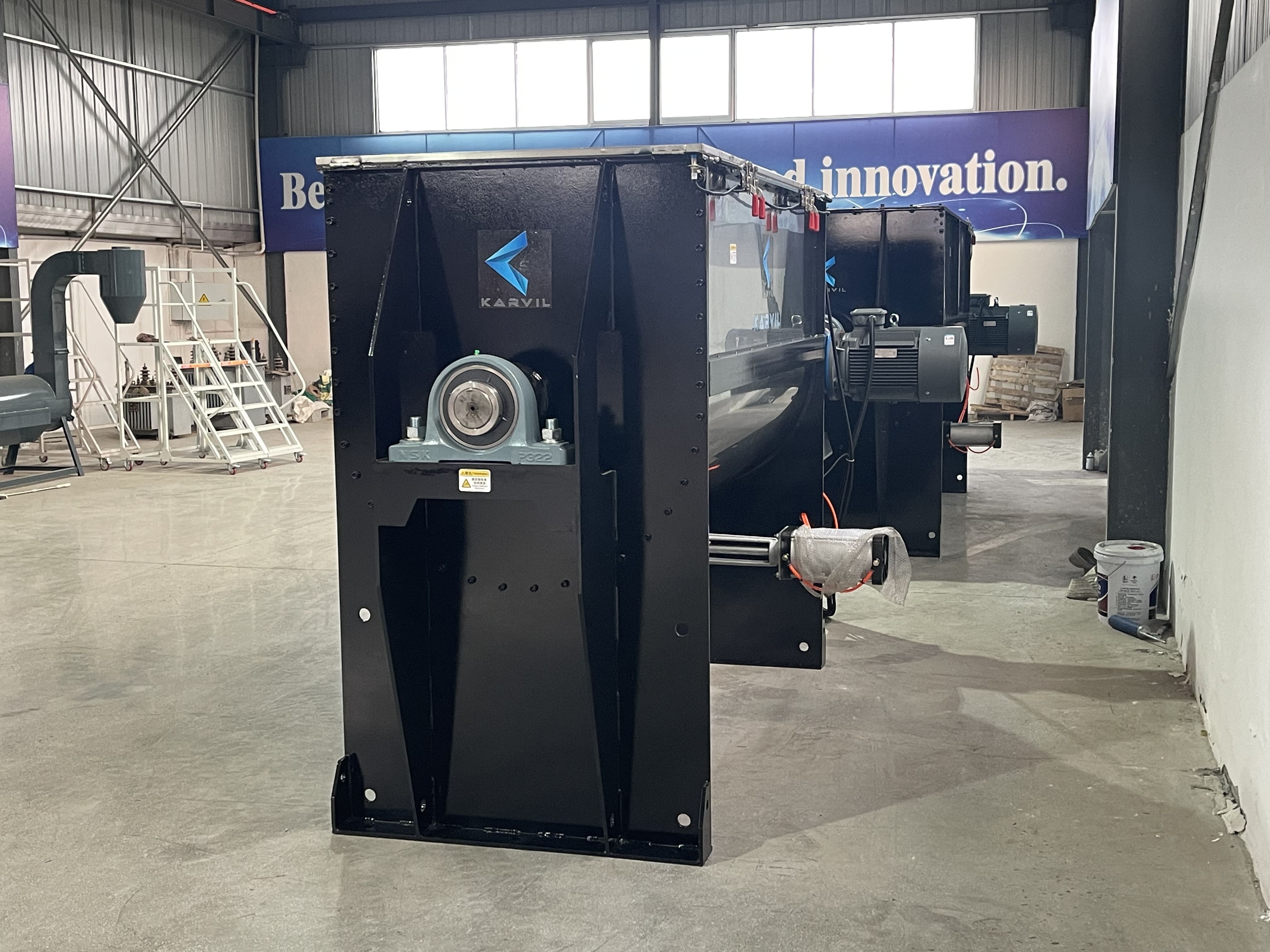

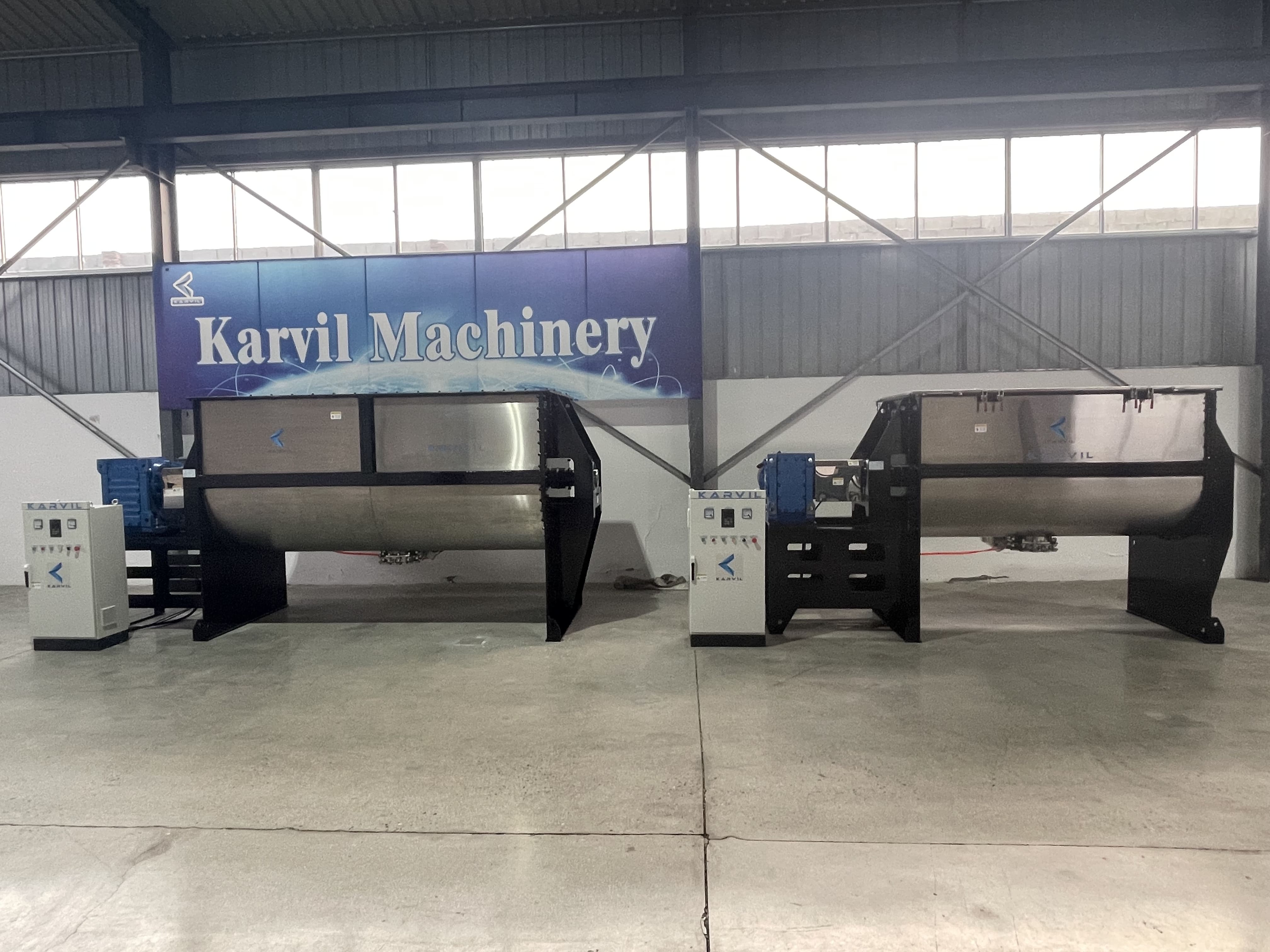

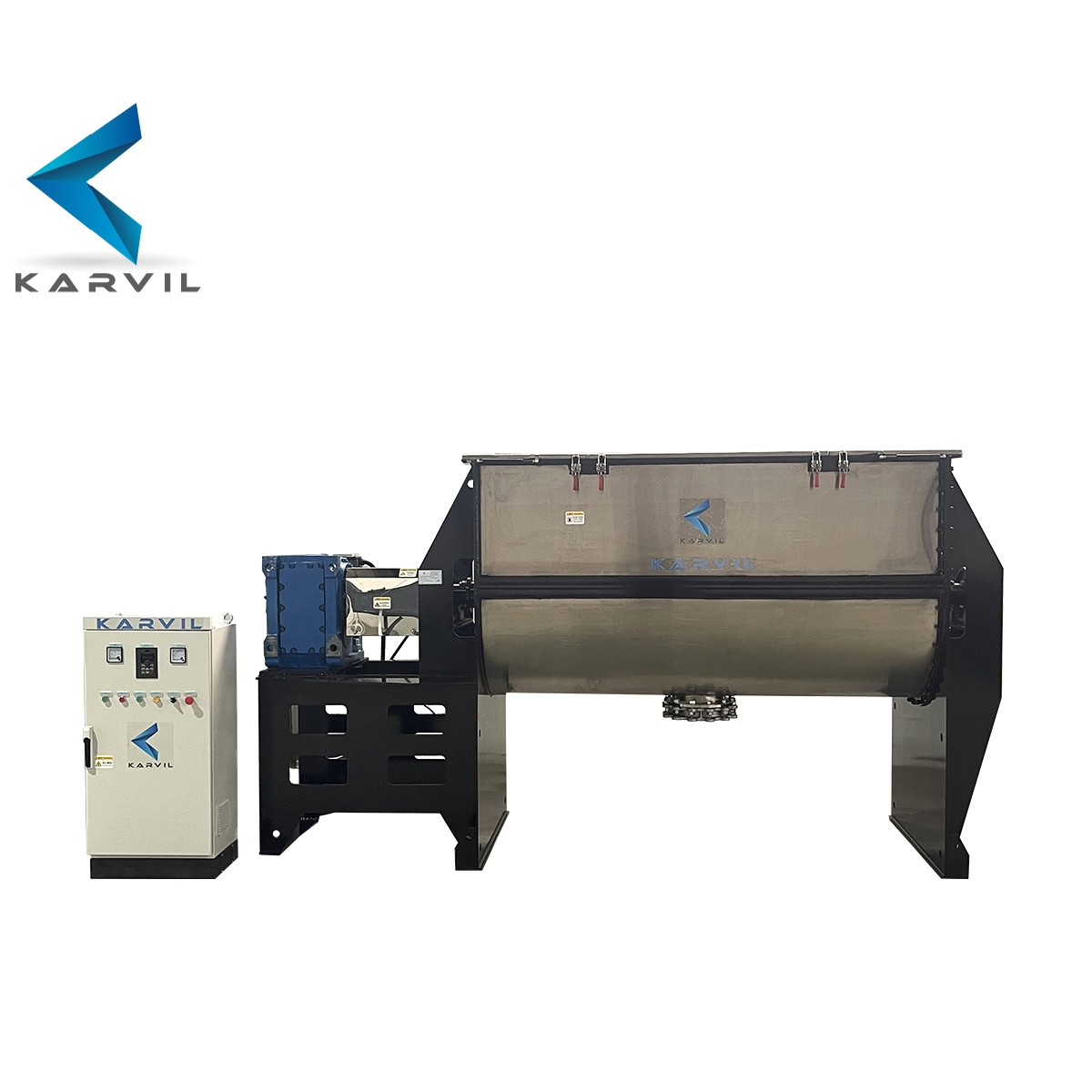

Ribbon Blender Mixer

Specifications:
  • 1500L ribbon mixer with 2.2m SS316 feeder
  • 1000L working capacity (1500L full capacity)
  • Motor power: 11Kw, Siemens
  • Material: The contact material is stainless steel 316, other SS304
  • Discharging method: DN200 manual butterfly valve discharging

Application Industry】:
Horizontal ribbon mixer is used for powder and powder mixing, powder with a small amount of liquid mixing, suitable for food, building, chemical, agricultural and other industries, such as food powder, dry mortar powder, fertilizer, seeds, spices, coffee powder, etc.
  • WLDH-1500

  • KARVIL

Availability:


StaPowder-Ribbon-Mixer-Banner-768x576 (1)ndard Design(Customizable):


Contact Materials: 304 Stainless Steel 316 optional

Interior Surfaces: Polished 180 Grit

Support Steel: 304 or 316 Stainless Steel

Exterior Surfaces: Glass Bead Blasted

Discharge: Swing away flush valve with pneumatic actuation

Working Capacities: 3 to 10,000 Cubic Feet

Drive: Hollow Bore SEW Eurodrive

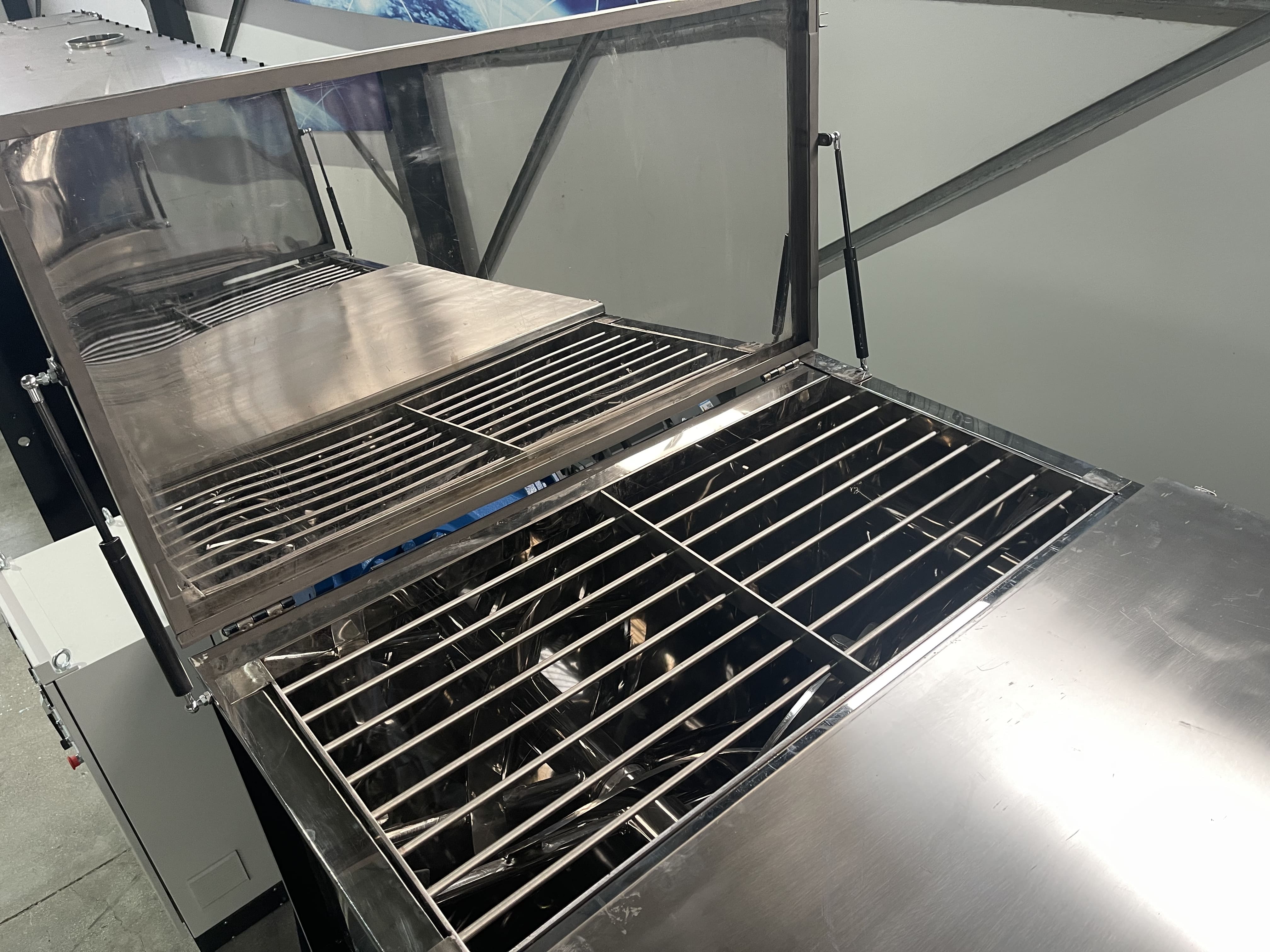

Loading: Loading Cover(s) with Welded Grate


Karvil-Machinery-Horizontal-Ribbon-Mixer-6

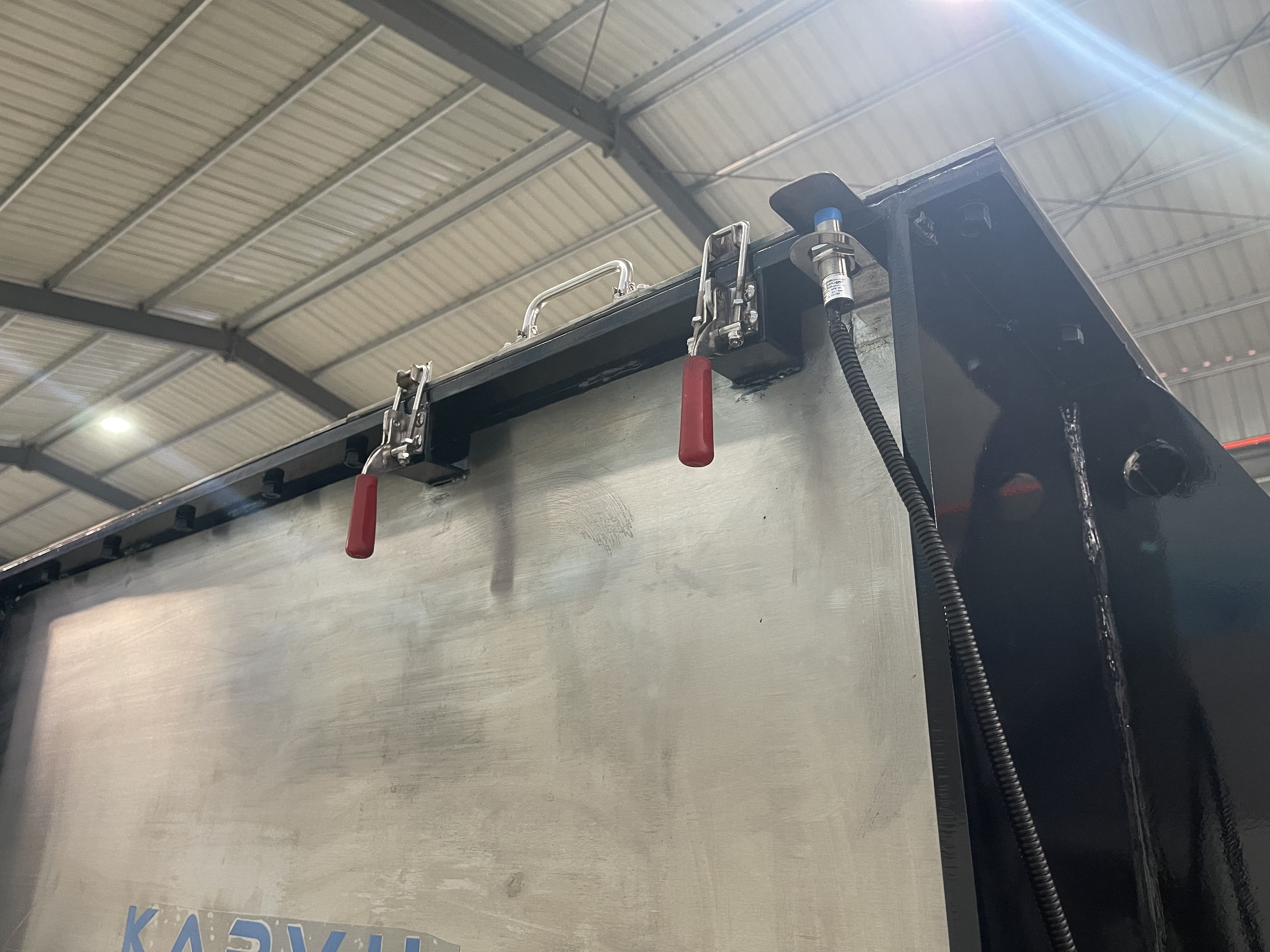

Safety - All Karvil Machinery ribbon blenders include CE markings and are manufactured in accordance with ISO9001 accreditation; Safety limit switch prevents agitator from running when cover is open; Available with customizable safety grilles, automatic valves and a variety of other operator-friendly options.

Customizable - Special structural materials can be provided according to raw materials, such as wear-resistant, corrosion-resistant or other; Heavy duty, high horsepower ribbon mixers to meet high-density mixing requirements; Mechanical seals, end wall scrapers, load cell systems and other upgrades available.

Technical Parameters

Spec WLDH-100 WLDH-300 WLDH-500 WLDH-1000 WLDH-1500 WLDH-2000 WLDH-3000 WLDH-4000 WLDH-6000 WLDH-8000 WLDH-10000
Total volume(L) 100 300 500 1000 1500 2000 3000 4000 6000 8000 10000
Mixed amount/batch (L) 30-60 90-180 150-300 400-600 450-900 600-1200 900-1800 1200-2400 1800-3600 2400-4800 3000-6000
Power (Kw) 1.5-4 3-5.5 4-11 7.5-15 11-18.5 15-22 18.5-30 22-37 37-55 37-55 45-75
Rotating speed (RPM) 65 65 65 46 38 33 28 28 28 24 21

Applications

karvil-dry-mortar-powder-mixer-machine karvil-soil-horizontal-ribbon-blender-mixer-machine Food-Grade-Hrizontal-Ribbon-Blender-Mixer-4 1-
karvil-feed-horizontal-ribbon-blender-mixer-machine Stainless-Steel-Horizontal-Ribbon-Blender-Mixer-for-Spices-4 karvil-medicine-mixer-machine karvil-grain-horizontal-ribbon-blender-mixer-machine

Our Services

d3decc020c846de83e6cd0ddfddaae9



LABORATORY TEST


In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.


  4cc6a298bf03570b88509020de7d969



PROFESSIONAL ENGINEERFood-Powder-Horizontal-Ribbon-Mixer-2_副本


The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine.  Karvil explores new technical points constantly to create perfect solutions for customers.


                   4cc6a298bf03570b88509020de7d969


d1e139188cac52c6159e923028a9a7b_副本
e5105655ad36bdba6d25397a9594f37_副本



DIRECT FACTORY


Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.


4cc6a298bf03570b88509020de7d969

F.A.Q.

1. Manufacturer or trading company?

We are a manufacturer with strict production standards in China.

2. Where is your company?

Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.

3. About your company's visit?

We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.

4. What is the main market for your company?

Asia and Africa, Australia, America, Europe.

5. Can you provide customized products?

Yes, we have professional engineers to meet your special design needs, so we can provide customized products.

6. What is your delivery time?

It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.

7. About the product warranty?

Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.

8. What are the payment terms?

T/T, L/C, etc.
