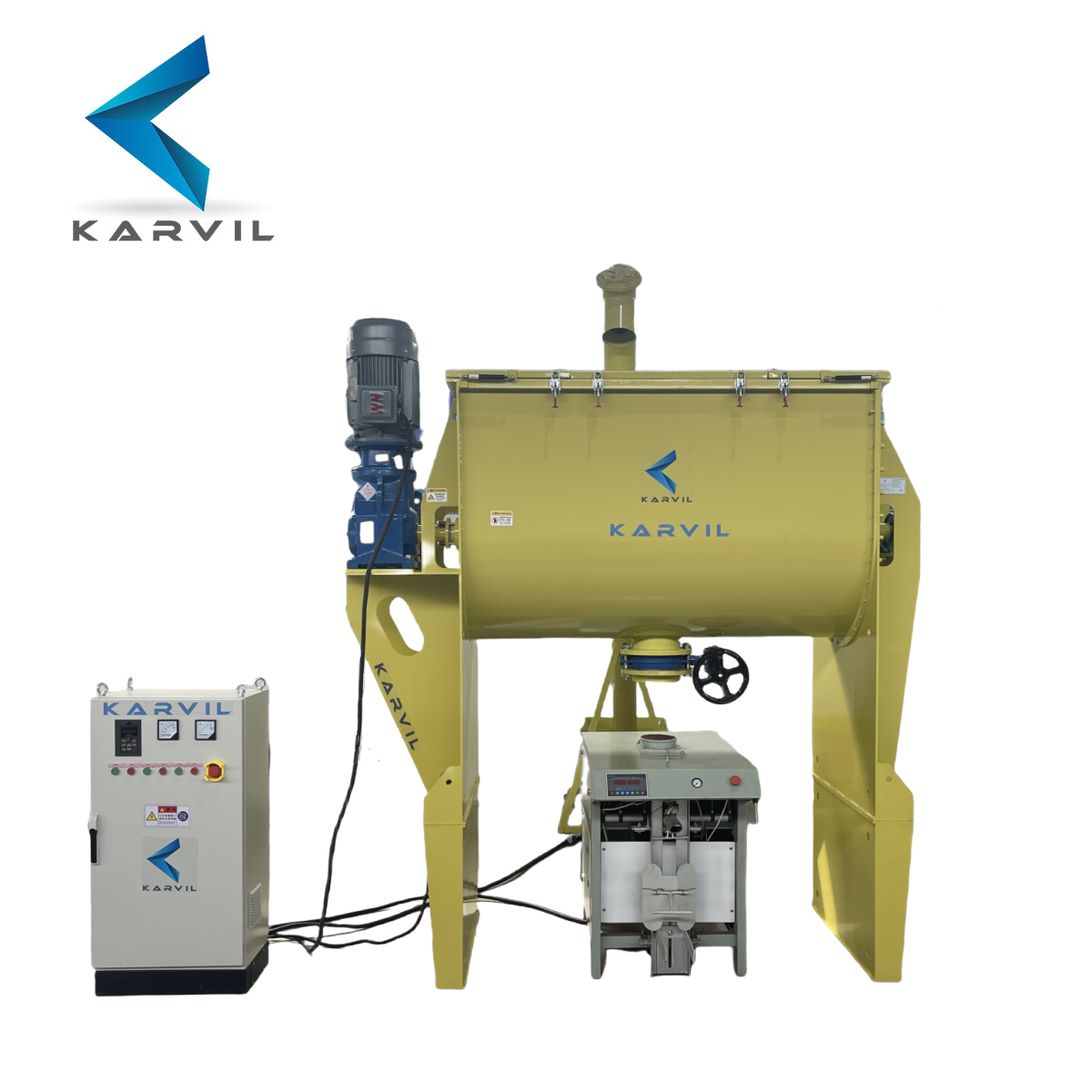

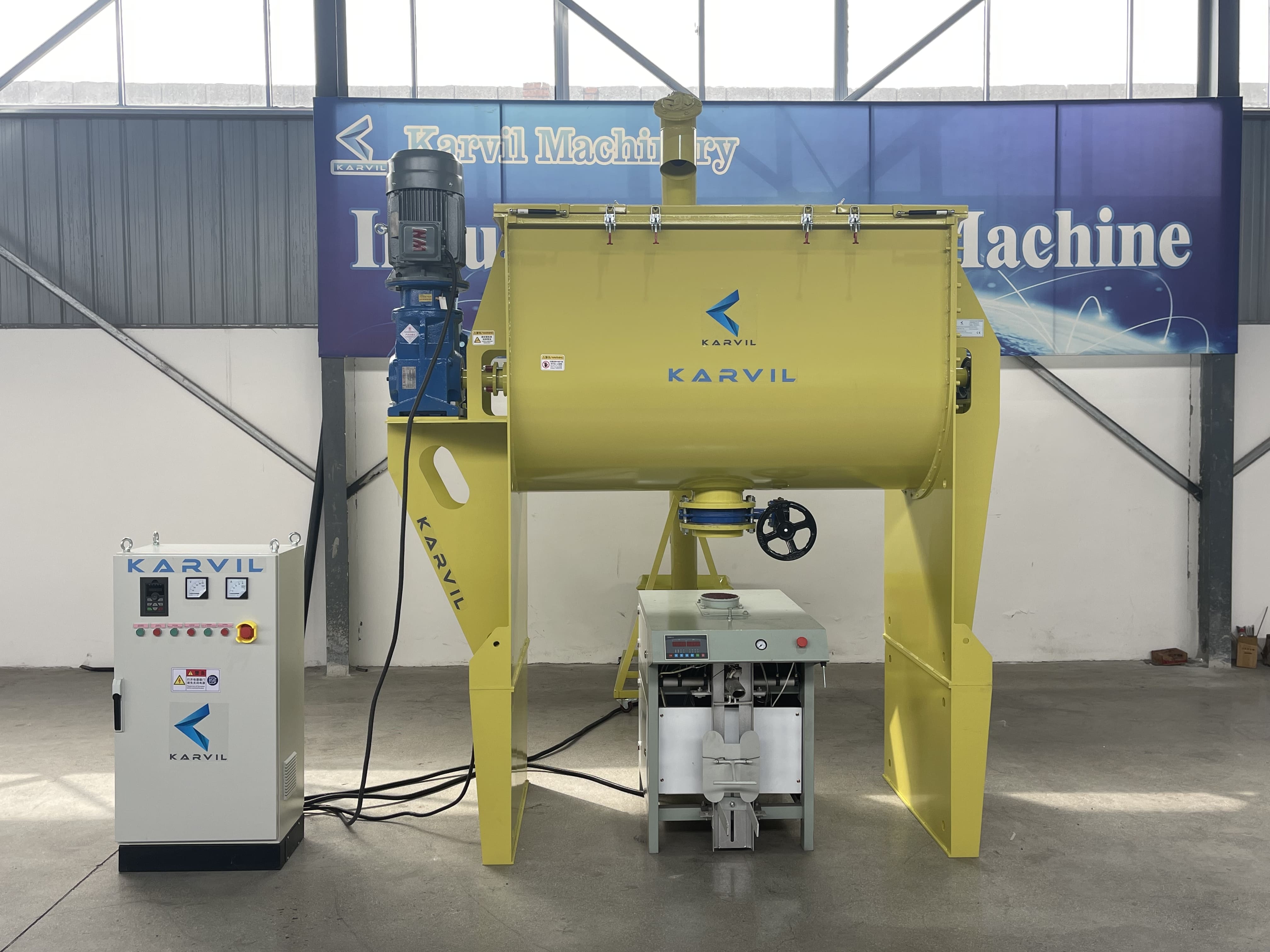

Carbon Steel Ribbon Mixer

Name: Carbon Steel Ribbon Mixer
Brand: Karvil
Rating: 5.0 (16 reviews)

Specifications:

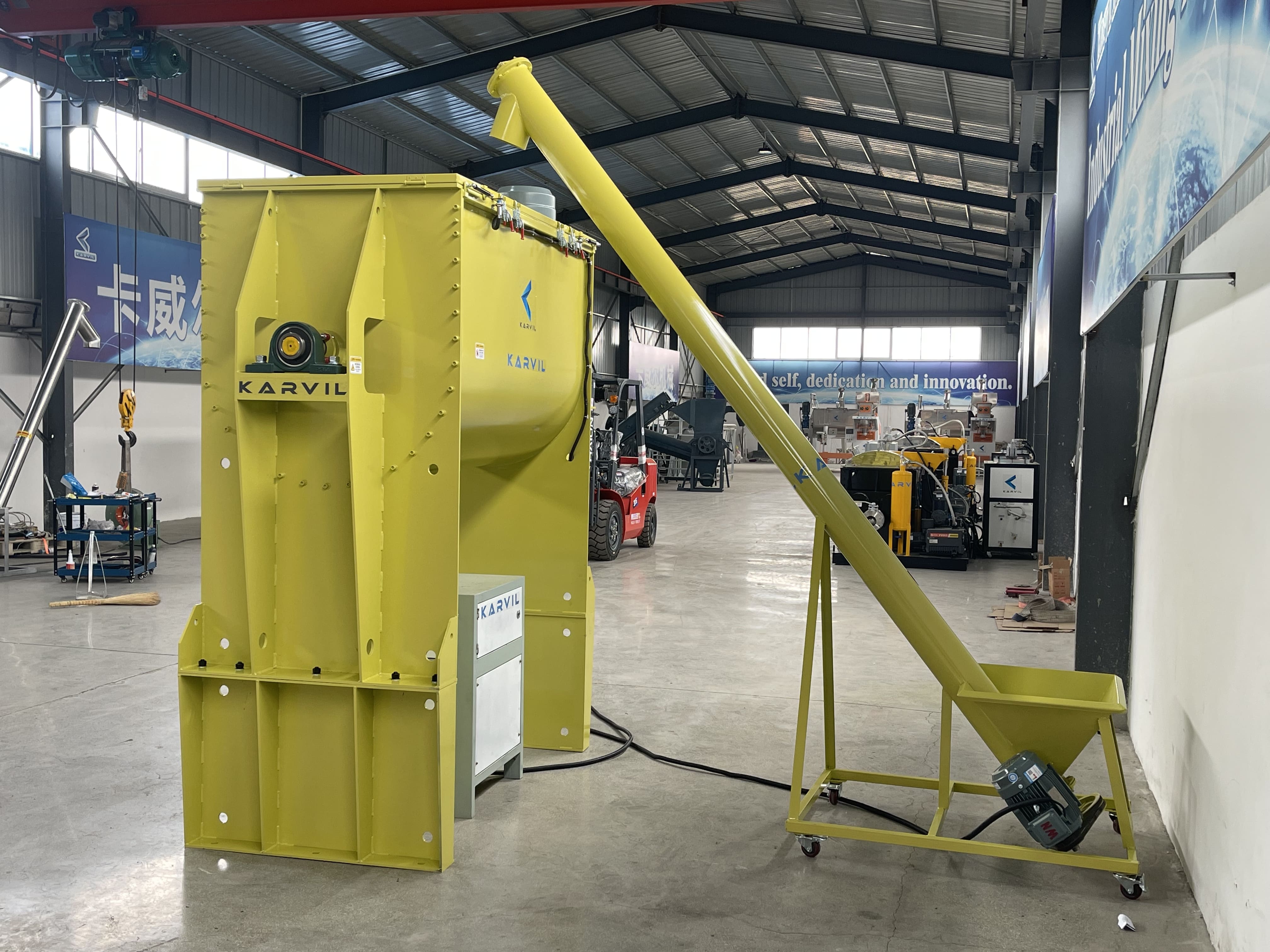

1 Screw conveyor,voltage 415V, 50Hz, 3 phases
2.1500L horizontal ribbon mixer

Effective working volume: 1000L, total volume: 1500L
Agitator shaft: speed 0-47r/min, frequency conversion control
Shaft seal material: PTFE packing
Material: all carbon steel, external spray paint, internal polishing without rust stains
Discharge method: manual lower butterfly valve, DN200. Discharge port 1200mm from the ground

3. Valve port packaging machine: compressed air 0.4-0.6Mpa, filling accuracy ±0.5kg, discharge speed 5s/25kg

Application Industry：

Horizontal ribbon mixer is used for powder and powder mixing, powder with a small amount of liquid mixing, suitable for food, building, chemical, agricultural and other industries, such as food powder, dry mortar powder, fertilizer, seeds, spices, coffee powder, etc.

Model:
WLDH-1500
Brand:
Karvil


Availability:



Inquiry

Product Description

Standard Design（Customizable）:

Contact Materials: 304 Stainless Steel 316 optional

Interior Surfaces: Polished 180 Grit

Support Steel: 304 or 316 Stainless Steel

Exterior Surfaces: Glass Bead Blasted

Discharge: Swing away flush valve with pneumatic actuation

Working Capacities: 3 to 10,000 Cubic Feet

Drive: Hollow Bore SEW Eurodrive

Loading: Loading Cover(s) with Welded Grate

Safety: Magnetic Safety Switch(s) on Main

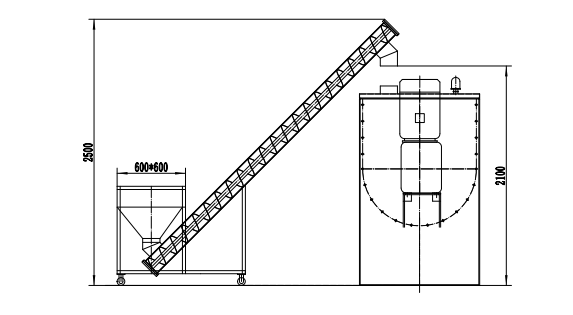

Carbon Steel Ribbon Mixer (2)

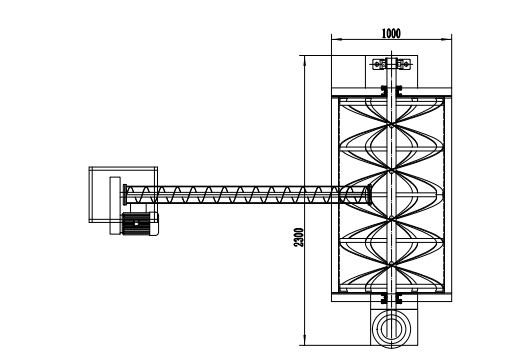

Carbon Steel Ribbon Mixer (3)

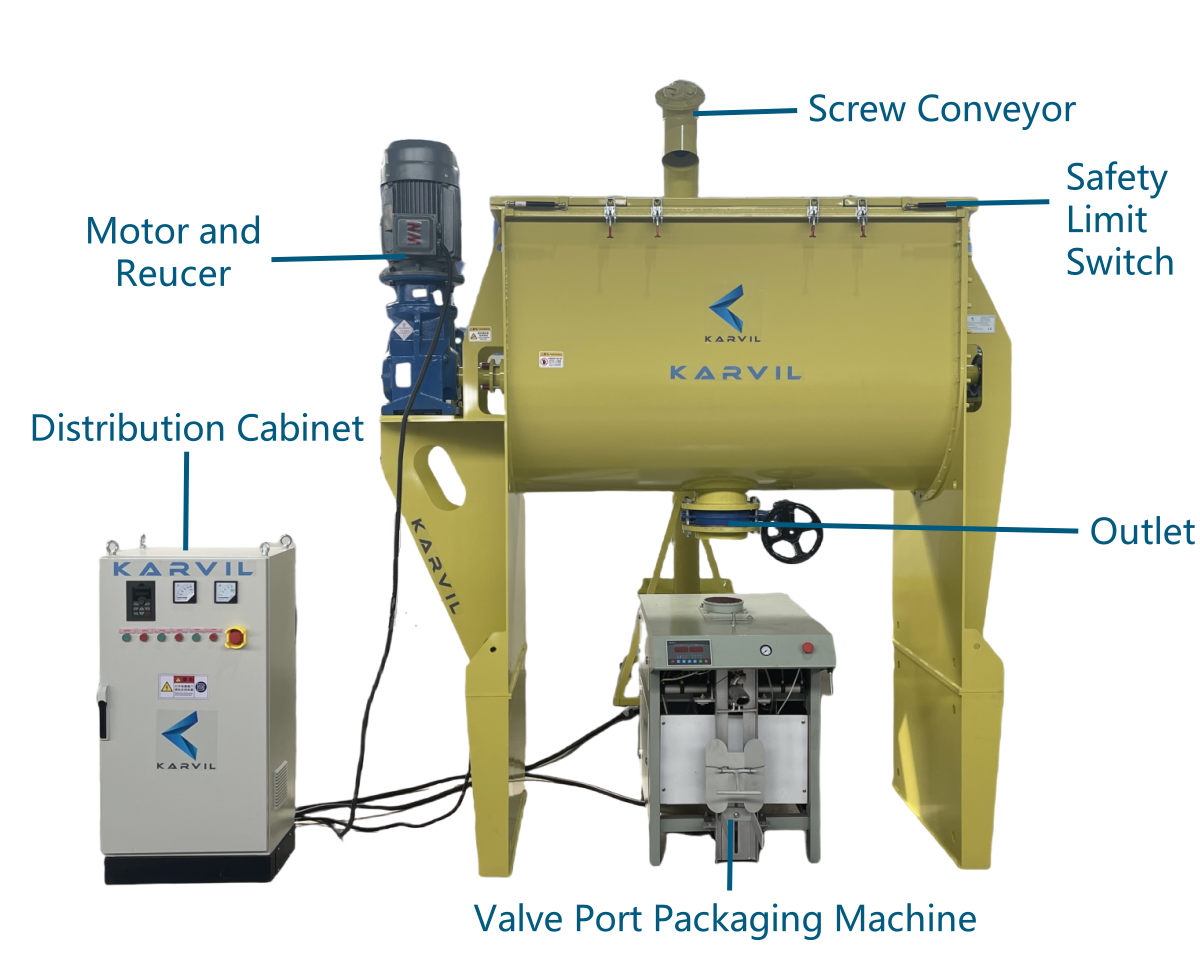

Horizontal ribbon mixer consists of drive disk assembly, double layer ribbon agitator, and U-shape cylinder.
The outer spiral belt pushes inward and the inner spiral belt pushes outward so that the materials can be flexibly sheared and dislocated to achieve the purpose of fast and uniform stirring.
Material outlets are located in the middle of the cylinder bottom. Outside ribbon driven by the main shaft moves materials to discharge to ensure no discharging dead zone.

Technical Parameters

Spec	WLDH-100	WLDH-300	WLDH-500	WLDH-1000	WLDH-1500	WLDH-2000	WLDH-3000	WLDH-4000	WLDH-6000	WLDH-8000	WLDH-10000
Total volume(L)	100	300	500	1000	1500	2000	3000	4000	6000	8000	10000
Mixed amount/batch (L)	30-60	90-180	150-300	400-600	450-900	600-1200	900-1800	1200-2400	1800-3600	2400-4800	3000-6000
Power (Kw)	1.5-4	3-5.5	4-11	7.5-15	11-18.5	15-22	18.5-30	22-37	37-55	37-55	45-75
Rotating speed (RPM)	65	65	65	46	38	33	28	28	28	24	21

Applications

Our Service

LABORATORY TEST

In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.

PROFESSIONAL ENGINEER

The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers.

Karvil-Machinery-sigma-blade-mixer, ribbon-blender

karvil-machinery-sigma-mixer-and-ribbon-mixer

DIRECT FACTORY

Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.
