Food Grade Ribbon Blender with Screw Conveyor

Standard Design（Customizable）:

Total Capacity: 500 liters
Drive Power: 5.5 kW, Siemens/Beide motor
Mixing Speed: 0–62 rpm, frequency inverter controlled
Material: Entire construction in food-grade SS304 stainless steel
Internal Surface: Mirror-polished contact parts for easy cleaning and low residue
Discharge System: Manual butterfly valve, bottom discharge, DN150 size

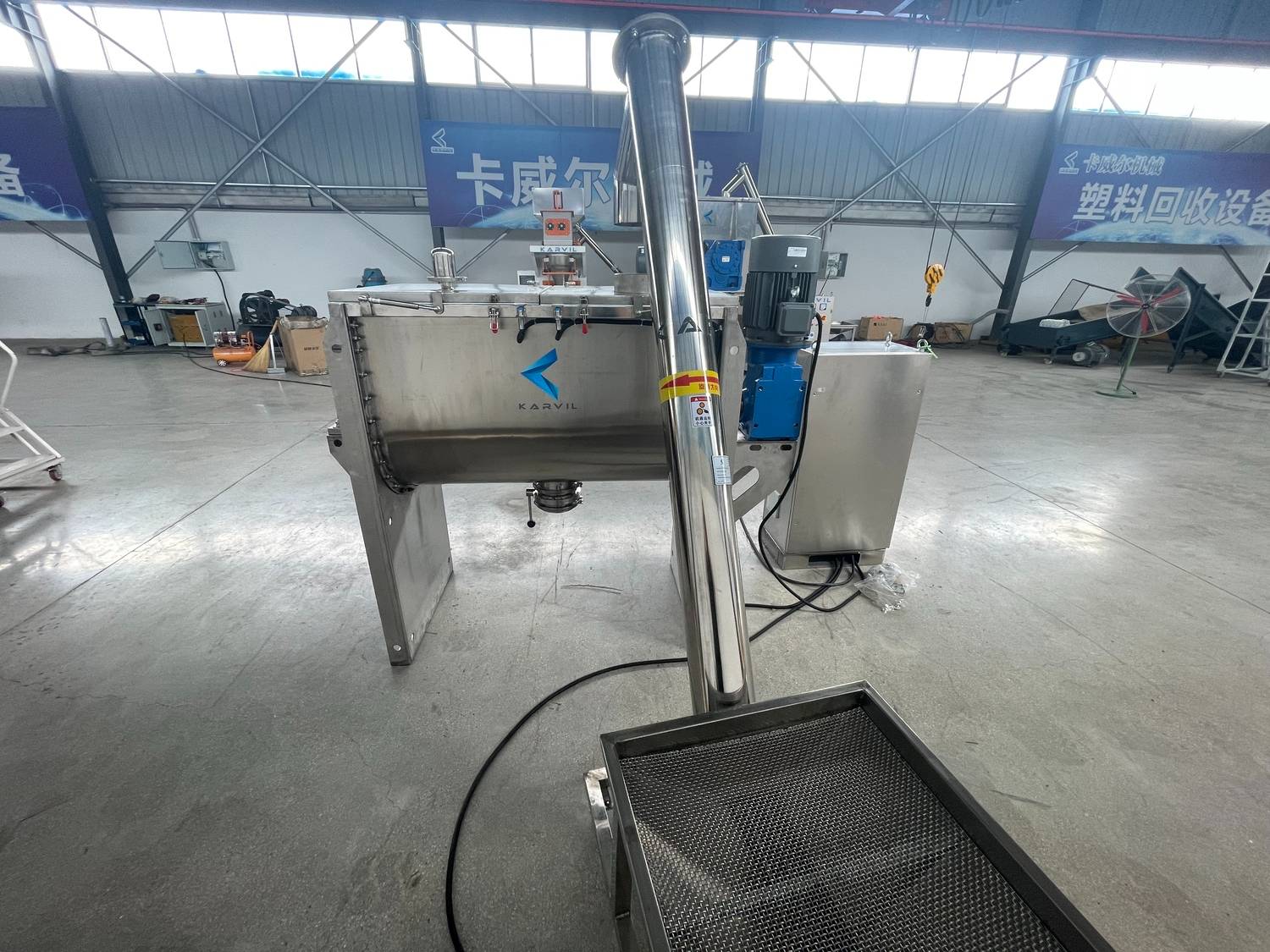

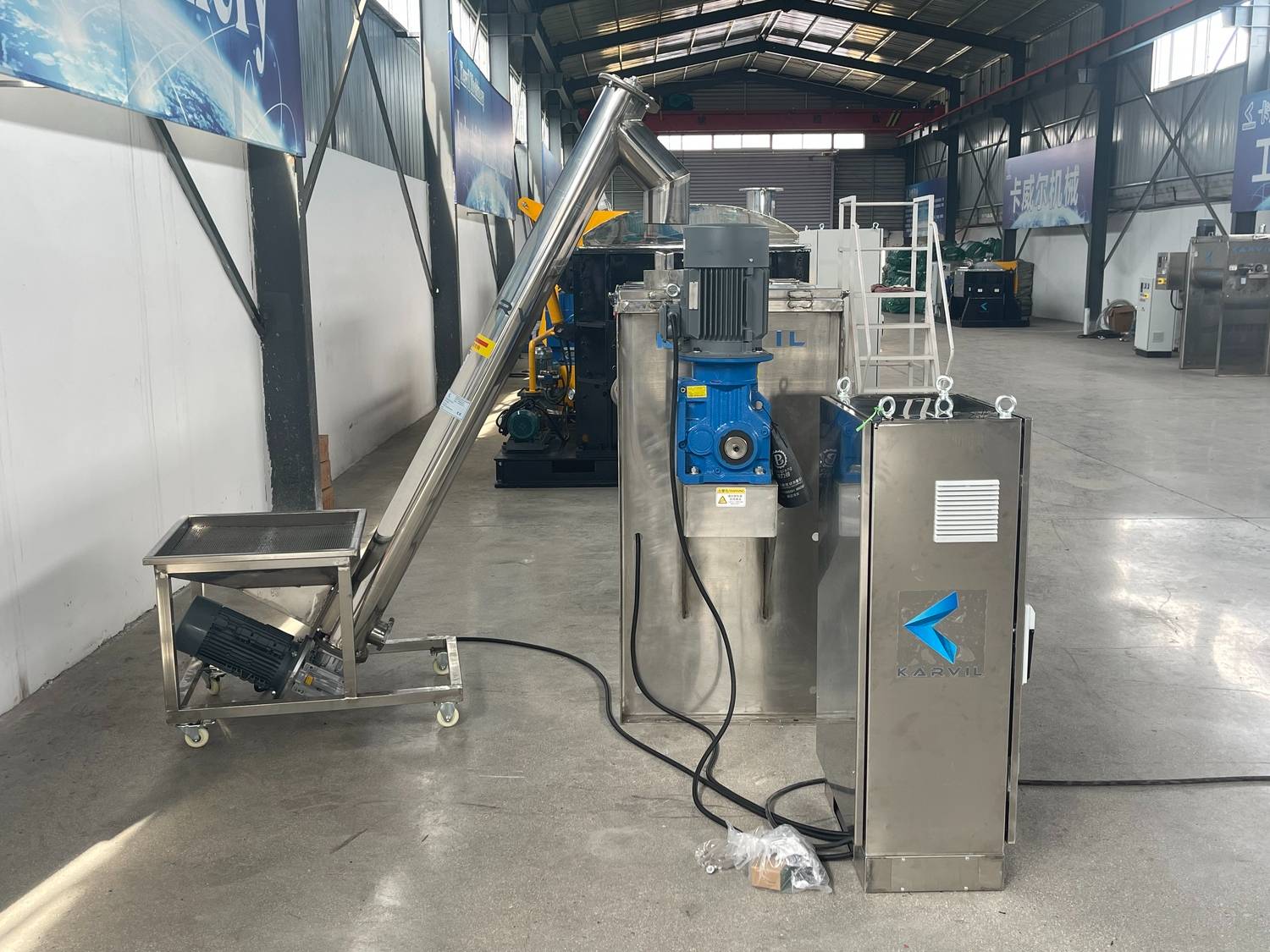

Feeding Solution: Equipped with a custom screw conveyor for smooth material transfer

【Application Industry】：
Specially suitable for farming mixing, such as: animal feed, soil mixture, grass seeds, clover seeds, dahlia seeds, corns, plant seeds, etc

Model:
WLDH-500


Availability:



Inquiry

Product Description

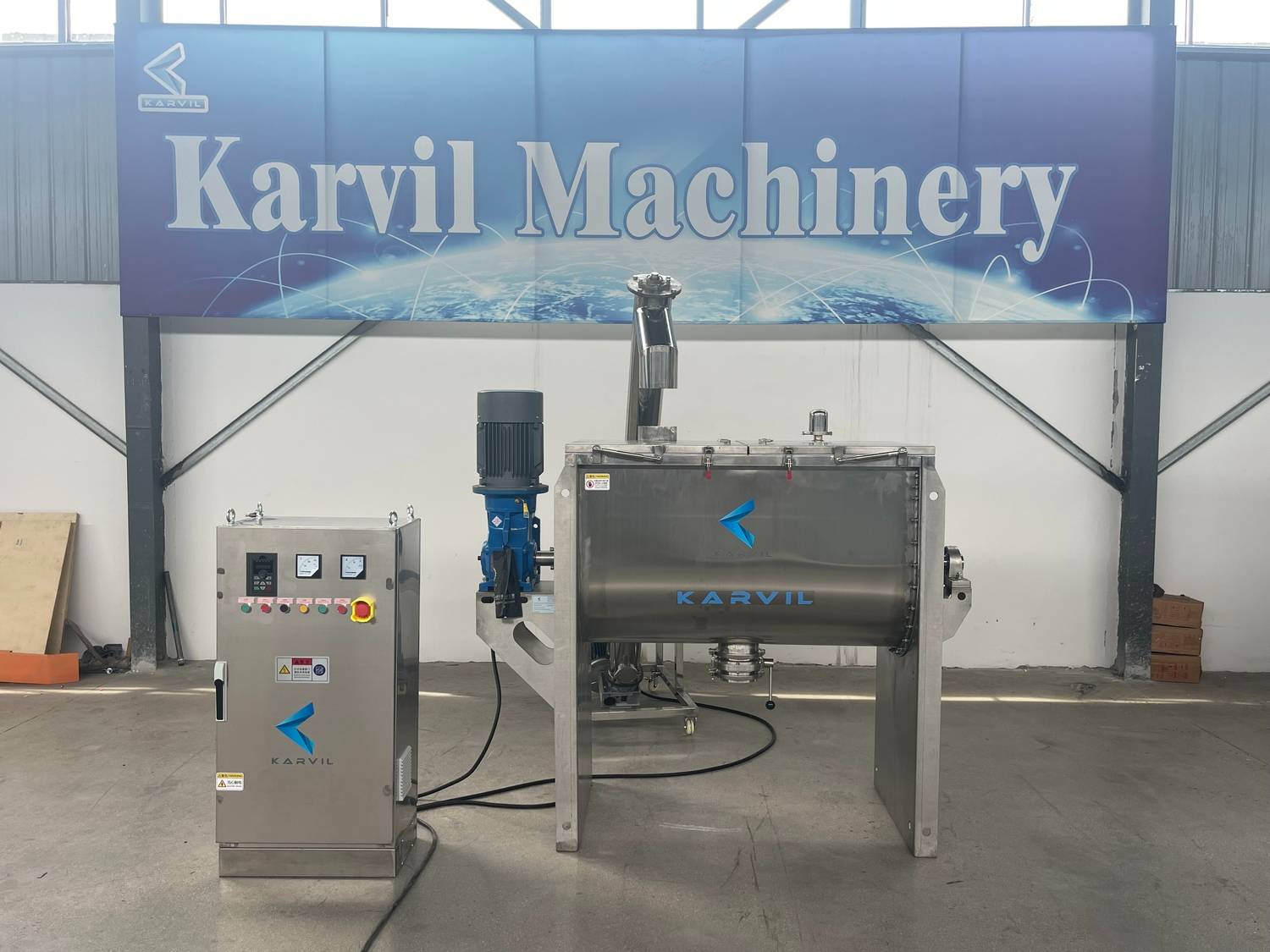

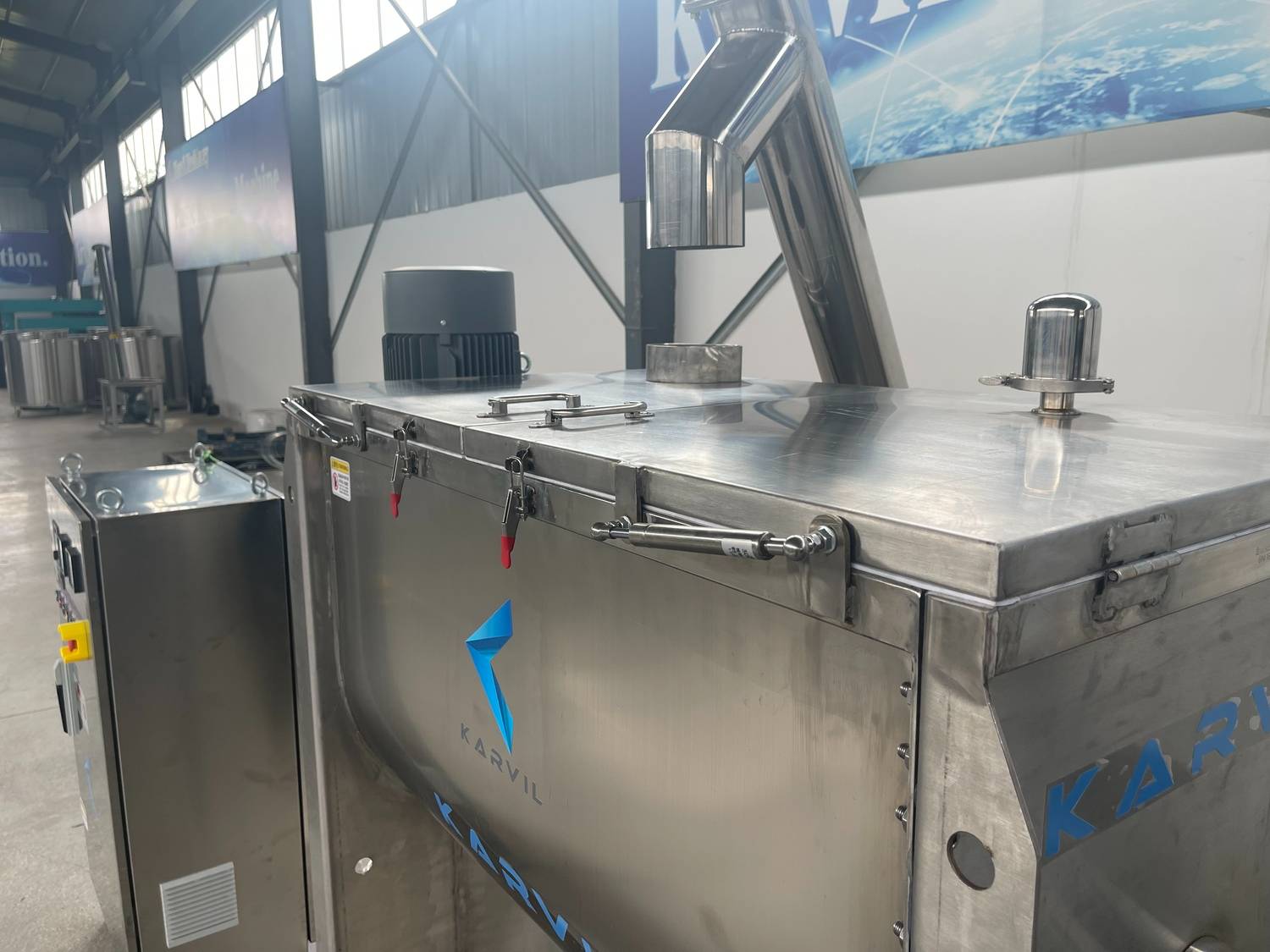

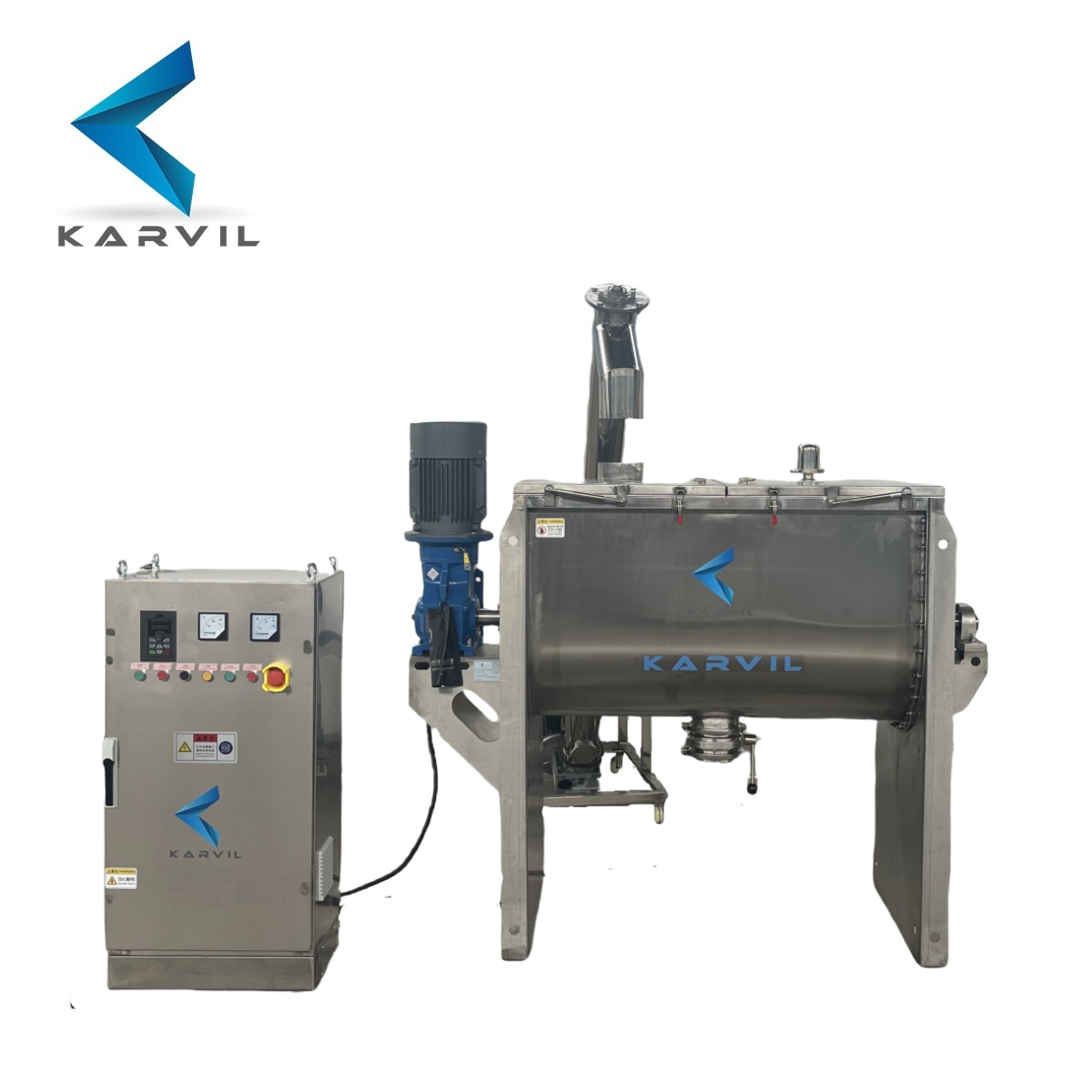

Food-Grade Ribbon Blender with Screw Conveyor

—Customized for Food Ingredient Producer

A customer in the food industry required a reliable and hygienic solution for mixing sugar, sweeteners, and food-grade colorants. Karvil Machinery provided a custom-designed 500L horizontal ribbon blender system with integrated screw conveyor, featuring full SS304 contact surfaces and operator safety protections.

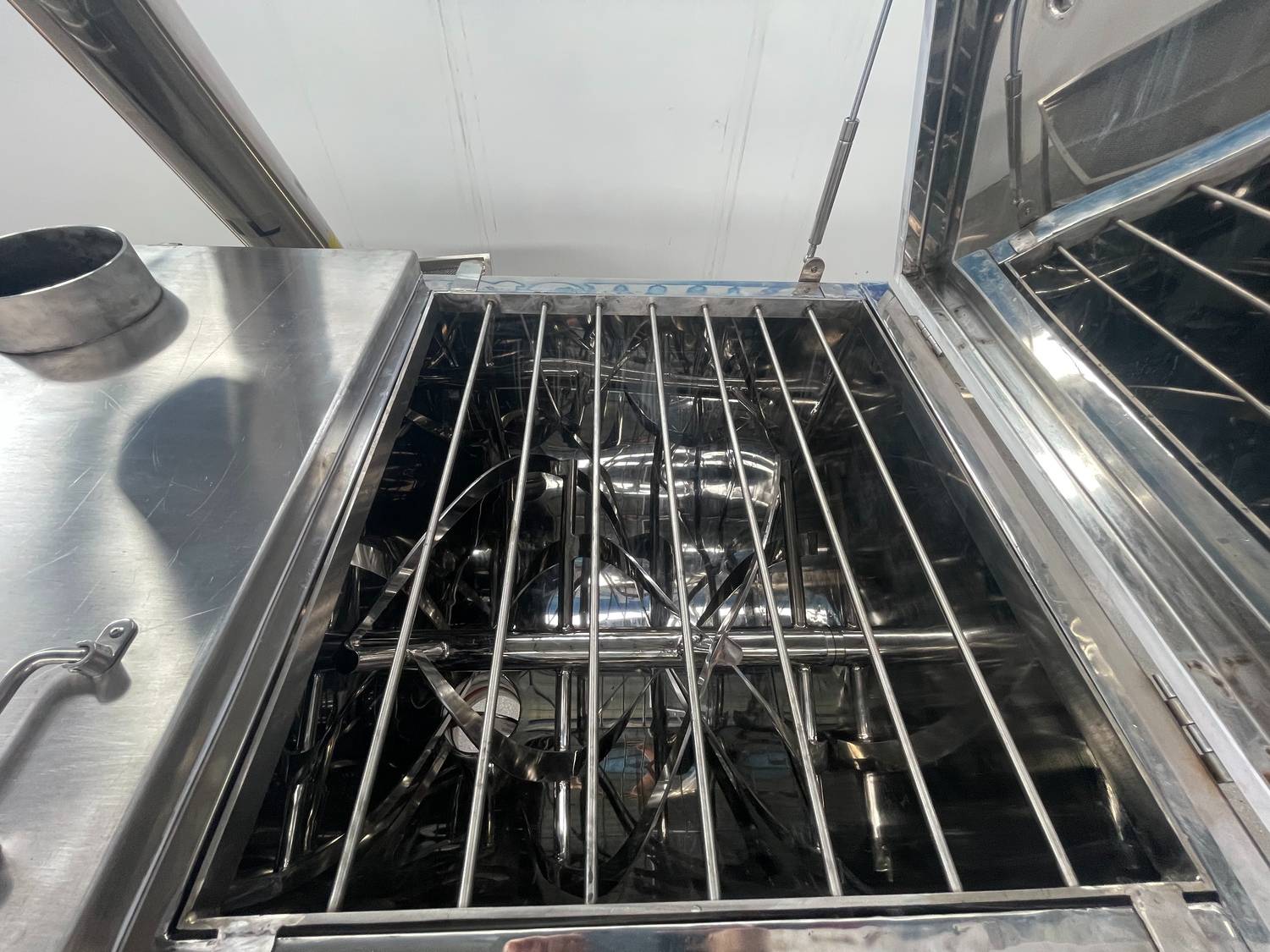

Protective Grid Interlock

Mixer continues operation when the lid is open only if safety grid is correctly in place.
If grid is removed or out of position, mixer halts automatically to ensure operator safety.

Why Choose This Design

Tailored for food-grade mixing operations
Ensures uniform blending of light powders and granules
Integrated conveyor improves material transfer efficiency
Easy to clean, low residue, and built to meet hygiene standards

1743587095603

开口方式

Horizontal ribbon mixer consists of drive disk assembly, double layer ribbon agitator, and U-shape cylinder.
The outer spiral belt pushes inward and the inner spiral belt pushes outward so that the materials can be flexibly sheared and dislocated to achieve the purpose of fast and uniform stirring.
Material outlets are located in the middle of the cylinder bottom. Outside ribbon driven by the main shaft moves materials to discharge to ensure no discharging dead zone.

Technical Parameters

Spec	WLDH-100	WLDH-300	WLDH-500	WLDH-1000	WLDH-1500	WLDH-2000	WLDH-3000	WLDH-4000	WLDH-6000	WLDH-8000	WLDH-10000
Total volume(L)	100	300	500	1000	1500	2000	3000	4000	6000	8000	10000
Mixed amount/batch (L)	30-60	90-180	150-300	400-600	450-900	600-1200	900-1800	1200-2400	1800-3600	2400-4800	3000-6000
Power (Kw)	1.5-4	3-5.5	4-11	7.5-15	11-18.5	15-22	18.5-30	22-37	37-55	37-55	45-75
Rotating speed (RPM)	65	65	65	46	38	33	28	28	28	24	21
