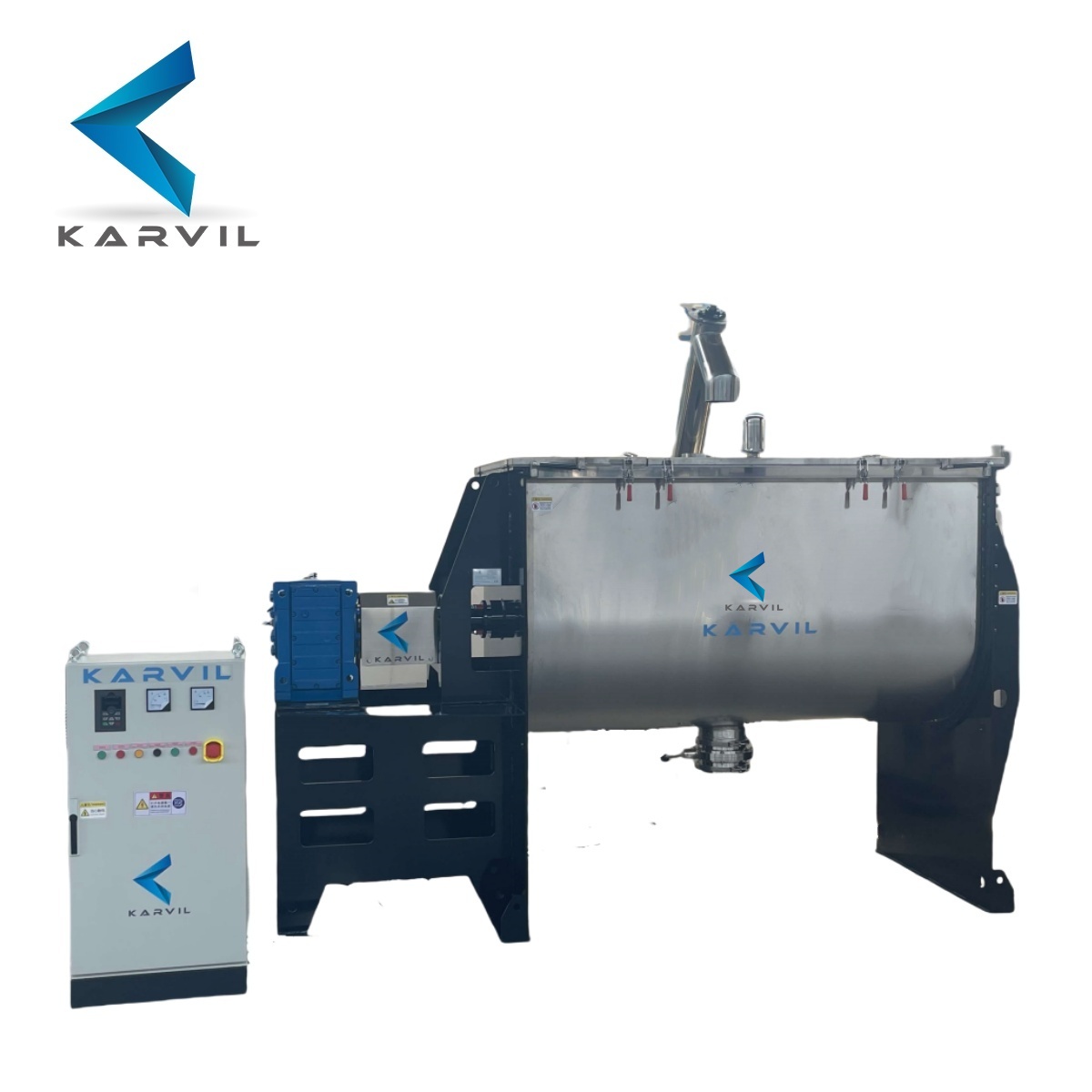

Horizontal Ribbon Blender with Screw Feeder

Name: Horizontal Ribbon Blender with Screw Feeder
Brand: KARVIL
Rating: 5.0 (78 reviews)

Specifications:

1200L working capacity (2000L full capacity)
Motor power: 18.5 kW, Siemens

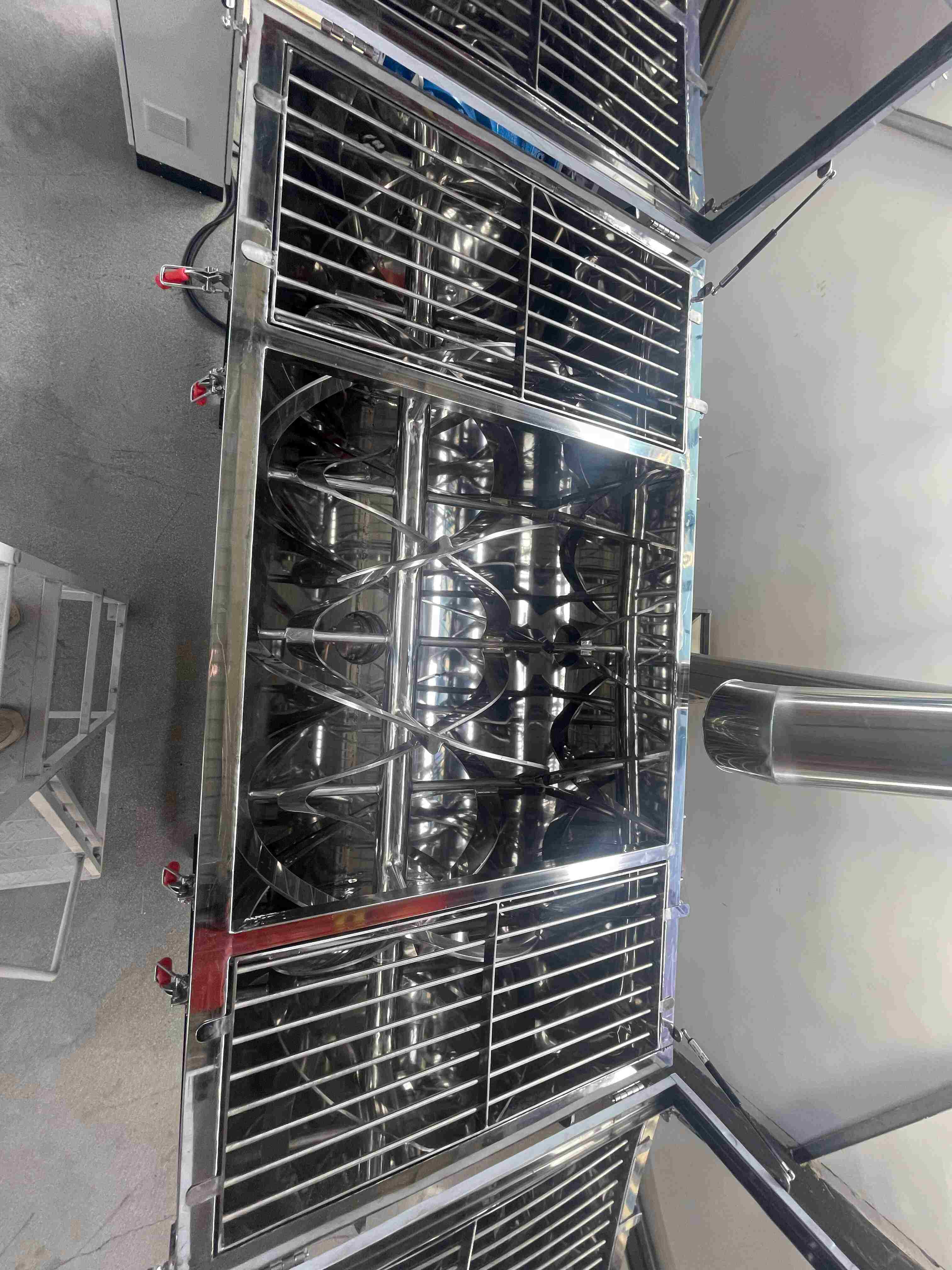

Upper cover: with cylinder auxiliary switch, dust collector, and safety grid
Material: The contact material is SS304, the internal contact material part is mirror polished, the external part is fine brushed, and the other is carbon steel.
Discharging method: DN200 manual butterfly valve discharging

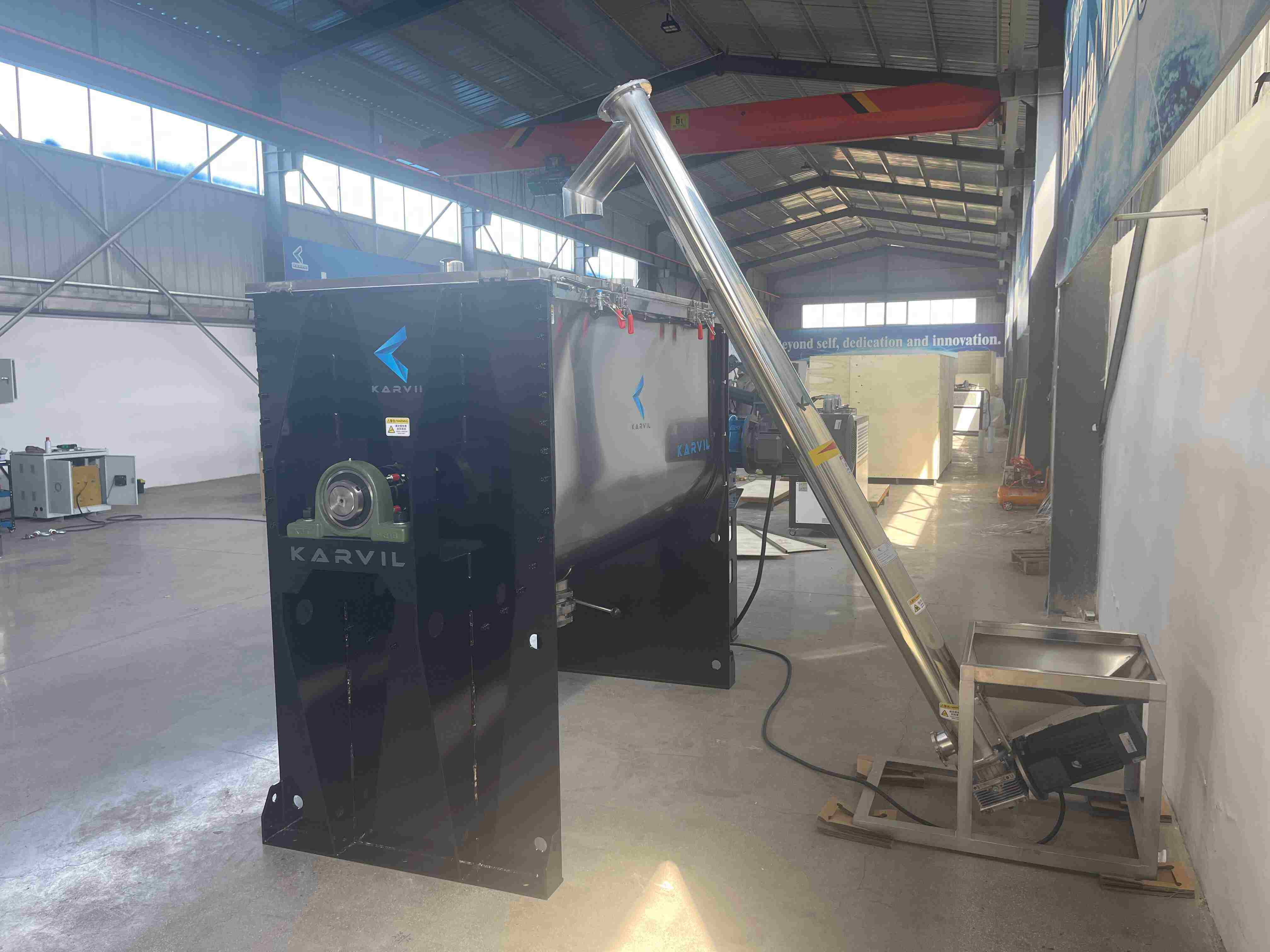

2.3m Screw Conveyor

Application Industry：
Horizontal ribbon mixer is used for powder and powder mixing, powder with a small amount of liquid mixing, suitable for food, building, chemical, agricultural and other industries, such as food powder, dry mortar powder, fertilizer, seeds, spices, coffee powder, etc.

Model:
WLDH-2000
Brand:
KARVIL


Availability:



Inquiry

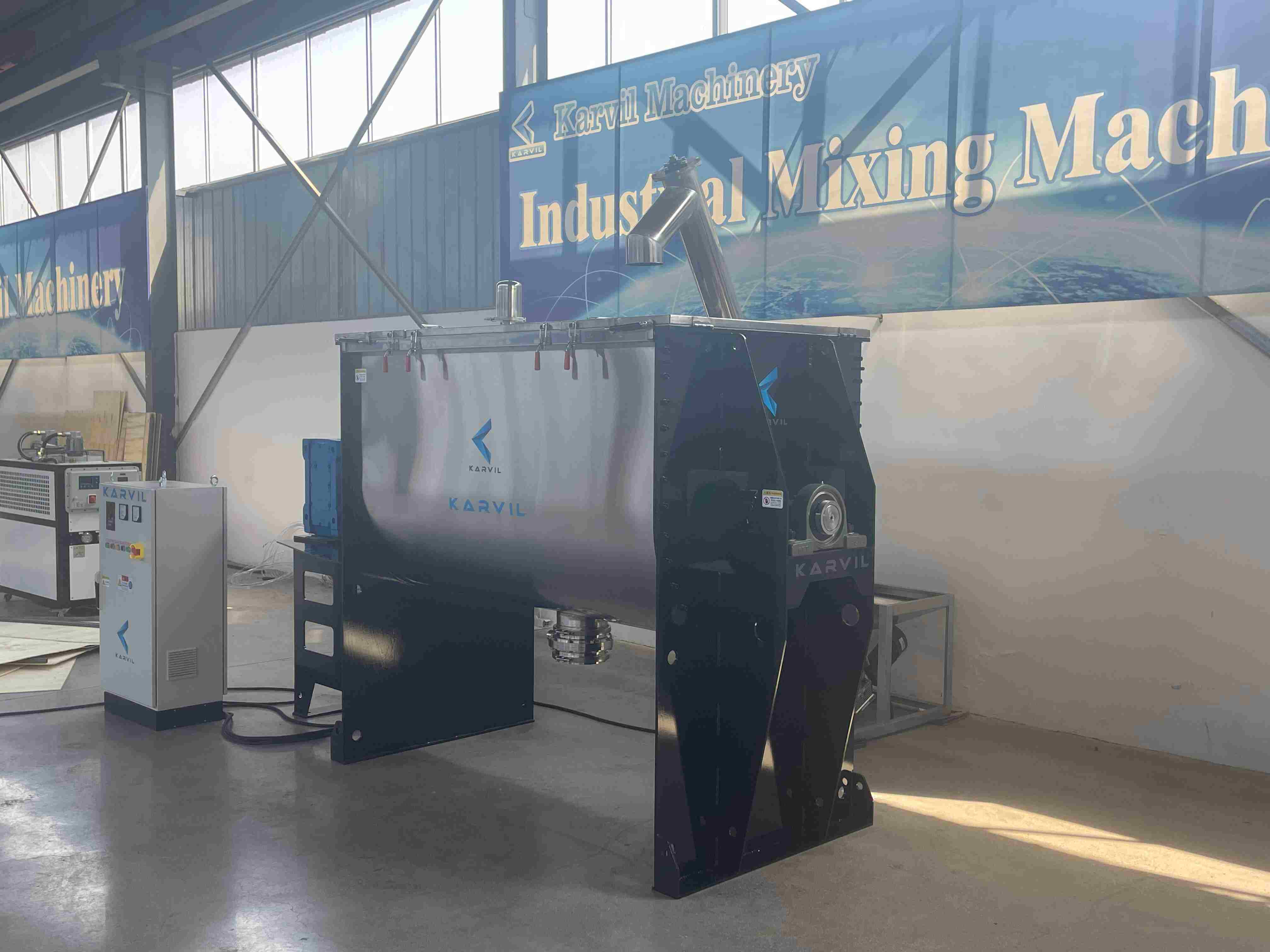

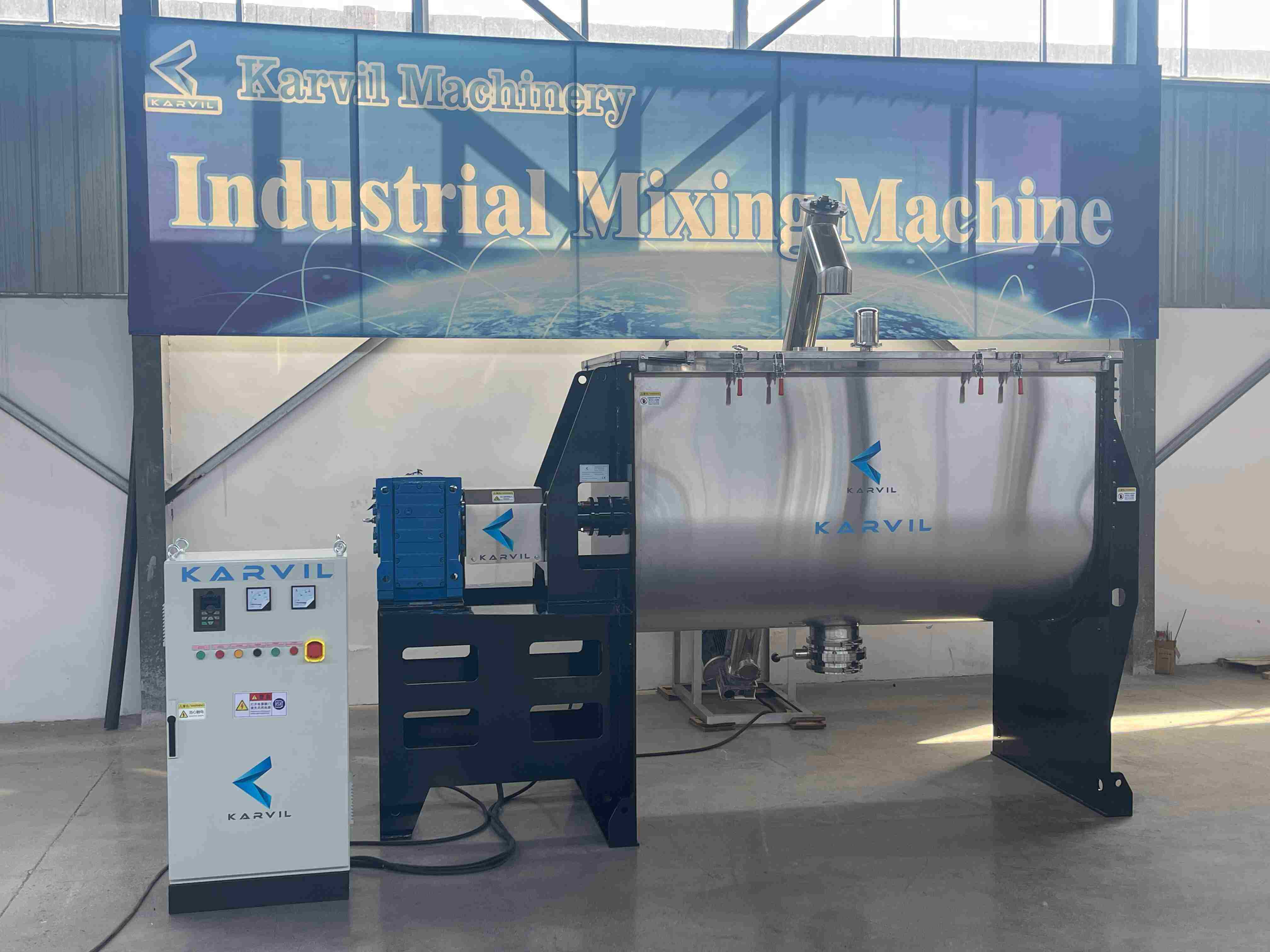

KARVIL horizontal ribbon mixer

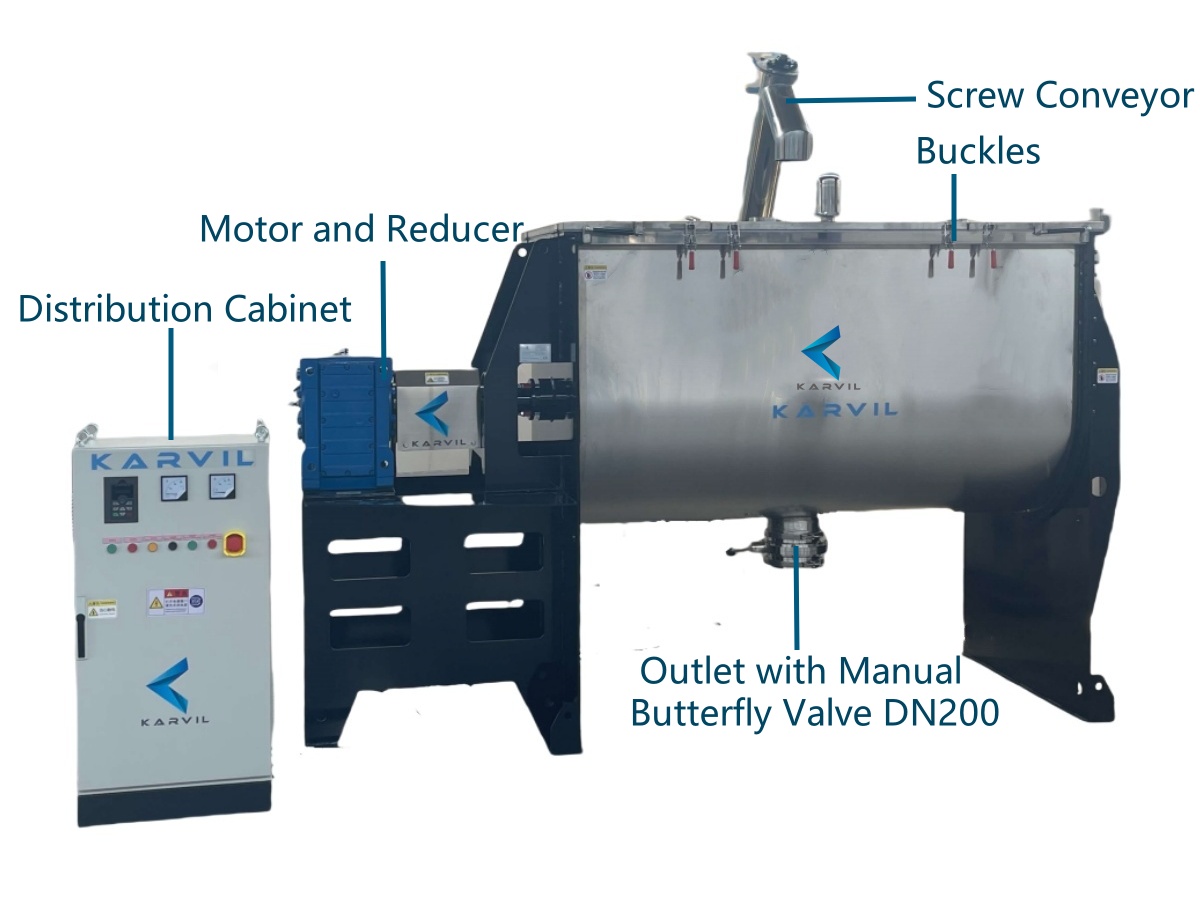

Sta Horizontal-Ribbon-Blender-with-Screw-Feeder (4) ndard Design（Customizable）:

Contact Materials: 304 Stainless Steel 316 optional

Interior Surfaces: Polished 180 Grit

Support Steel: 304 or 316 Stainless Steel

Exterior Surfaces: Glass Bead Blasted

Discharge: Swing away flush valve with pneumatic actuation

Working Capacities: 3 to 10,000 Cubic Feet

Drive: Hollow Bore SEW Eurodrive

Loading: Loading Cover(s) with Welded Grate

Karvil-Machinery-Horizontal-Ribbon-Mixer-6

Safety - All Karvil Machinery ribbon blenders include CE markings and are manufactured in accordance with ISO9001 accreditation; Safety limit switch prevents agitator from running when cover is open; Available with customizable safety grilles, automatic valves and a variety of other operator-friendly options.

Customizable - Special structural materials can be provided according to raw materials, such as wear-resistant, corrosion-resistant or other； Heavy duty, high horsepower ribbon mixers to meet high-density mixing requirements; Mechanical seals, end wall scrapers, load cell systems and other upgrades available.

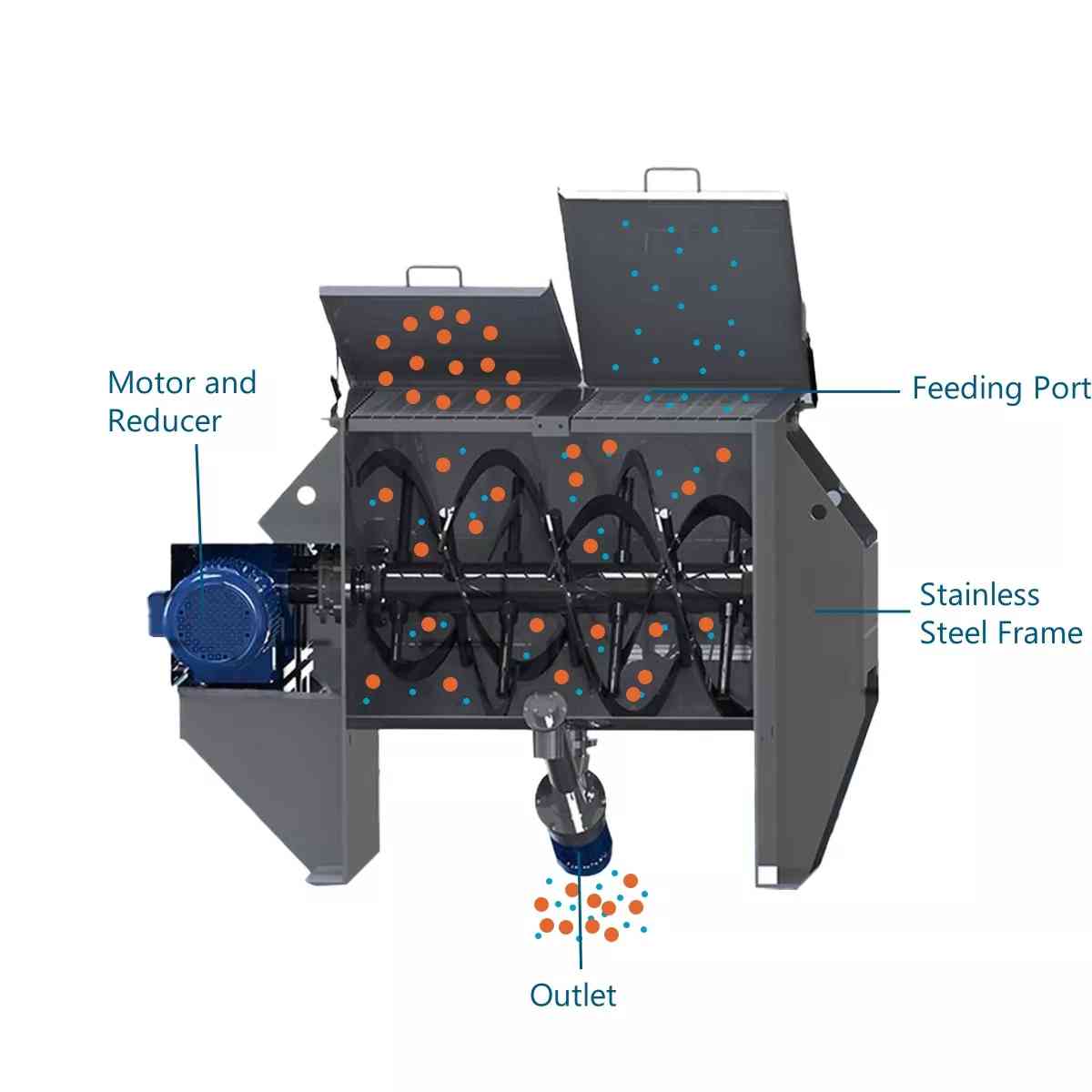

Ribbon Mixer Working Principle

Horizontal ribbon blender is a widely used industrial mixing machine designed for the uniform blending of dry powders, granules, and light pastes. It consists of a U-shaped horizontal mixing chamber and a specially designed ribbon agitator that moves the materials in multiple directions to achieve a fast and homogenous mix.

The ribbon agitator is made up of an inner and outer helical ribbon. The outer ribbon moves materials from the ends to the center, while the inner ribbon pushes materials from the center to both ends. This counter-current movement creates a gentle yet thorough mixing action, ensuring consistent results even with fine or light-density powders.

Technical Parameters

Spec	WLDH-100	WLDH-300	WLDH-500	WLDH-1000	WLDH-1500	WLDH-2000	WLDH-3000	WLDH-4000	WLDH-6000	WLDH-8000	WLDH-10000
Total volume(L)	100	300	500	1000	1500	2000	3000	4000	6000	8000	10000
Mixed amount/batch (L)	30-60	90-180	150-300	400-600	450-900	600-1200	900-1800	1200-2400	1800-3600	2400-4800	3000-6000
Power (Kw)	1.5-4	3-5.5	4-11	7.5-15	11-18.5	15-22	18.5-30	22-37	37-55	37-55	45-75
Rotating speed (RPM)	65	65	65	46	38	33	28	28	28	24	21

Applications

Our Services

LABORATORY TEST

In order to be able to demonstrate the advantages and modes of action of our industrial mixing machine with your products, our fully equipped modern laboratory/technical center is at your disposal.

PROFESSIONAL ENGINEER

The experienced team of engineers is specialized in the R&D and design of mixers, grinding equipment, and plastic recycling machine. Karvil explores new technical points constantly to create perfect solutions for customers.

Horizontal-Ribbon-Blender-with-Screw Feeder (2)

DIRECT FACTORY

Karvil factory has a series of strict standard system to control the procurement of raw materials, manufacturing process, in-process inspection, and product inspection, so as to ensure the quality of our products.

F.A.Q.

1. Manufacturer or trading company?

We are a manufacturer with strict production standards in China.

2. Where is your company?

Our company is located in Yantai, Shandong,——Powder Equipment Industry Belt.

3. About your company's visit?

We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.

4. What is the main market for your company?

Asia and Africa, Australia, America, Europe.

5. Can you provide customized products?

Yes, we have professional engineers to meet your special design needs, so we can provide customized products.

6. What is your delivery time?

It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.

7. About the product warranty?

Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.

8. What are the payment terms?

T/T, L/C, etc.
